Key Features

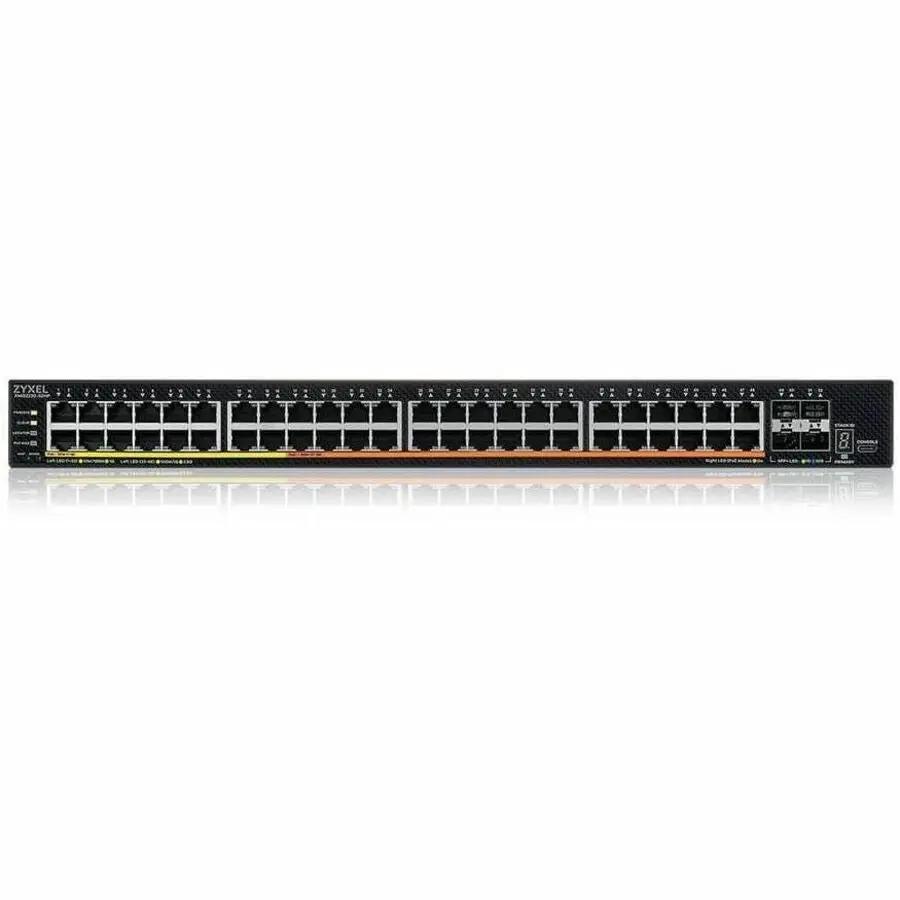

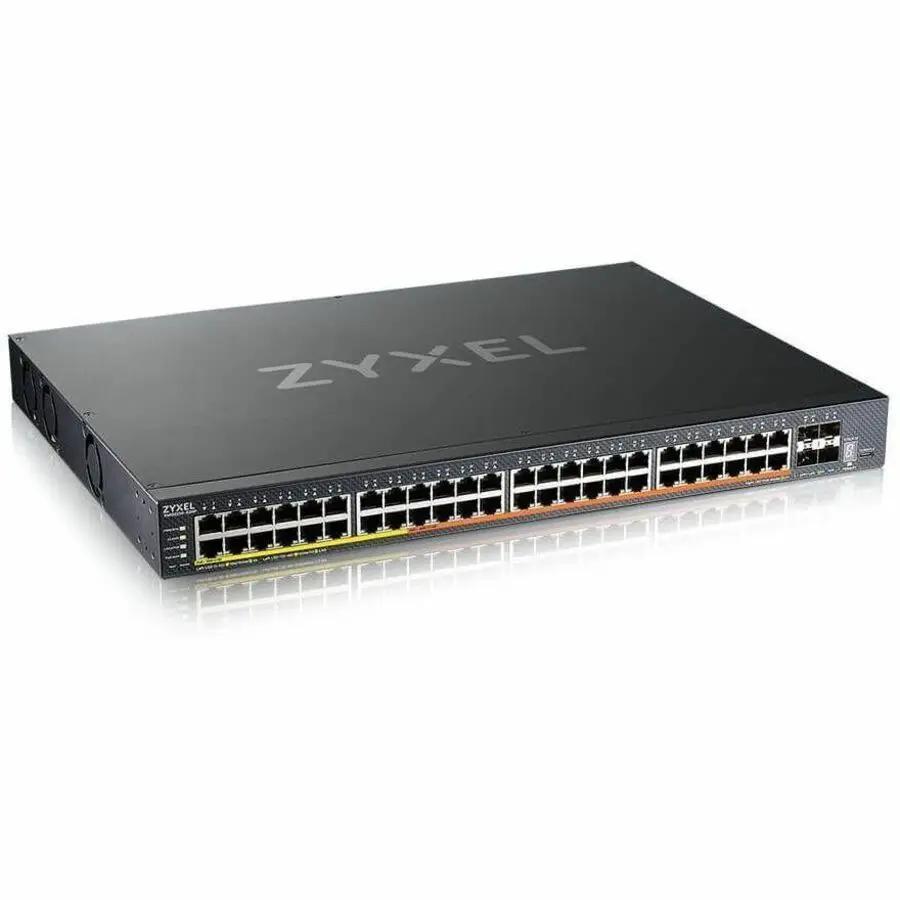

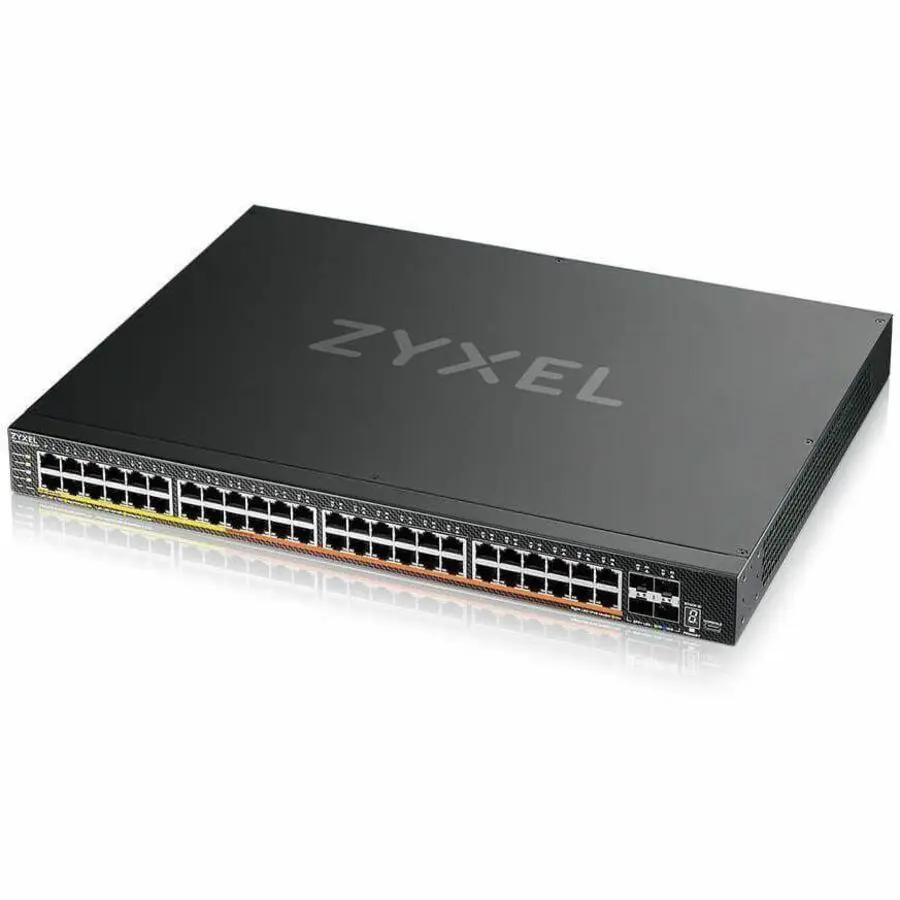

The Zyxel XMG2230-52 is a cloud-managed access switch with 48 PoE-capable RJ-45 ports, 16 of them running at 2.5 Gbps, plus four 10GbE SFP+ uplinks into the aggregation layer. A 960 W internal PoE budget, extendable to 2400 W with an external DC power system, feeds 802.3bt cameras and access points on the 32 PoE++ ports. Static Layer 3 routing and Nebula cloud management keep segmentation and monitoring in one console.
Tech Specs
- Ports: 16 x 2.5GbE RJ-45 (ports 33 to 48) + 32 x Gigabit RJ-45 (ports 1 to 32)
- Uplinks: 4 x 10GbE SFP+
- PoE Ports: 48
- PoE+ Ports: 16 (IEEE 802.3at on ports 1 to 16)
- PoE++ Ports: 32 (IEEE 802.3bt on ports 17 to 48)
- PoE++ per Port: Up to 60 W
- PoE Budget: 960 W with the internal AC supply
- Extended PoE Budget: 2400 W with an external DC power system
- Switching Capacity: 224 Gbps
- Forwarding Rate: 166.6 Mpps
- Switching Layer: Layer 3 Lite
- Routing: Static routing
- Management: Nebula cloud management
- Form Factor: 1U rack-mountable

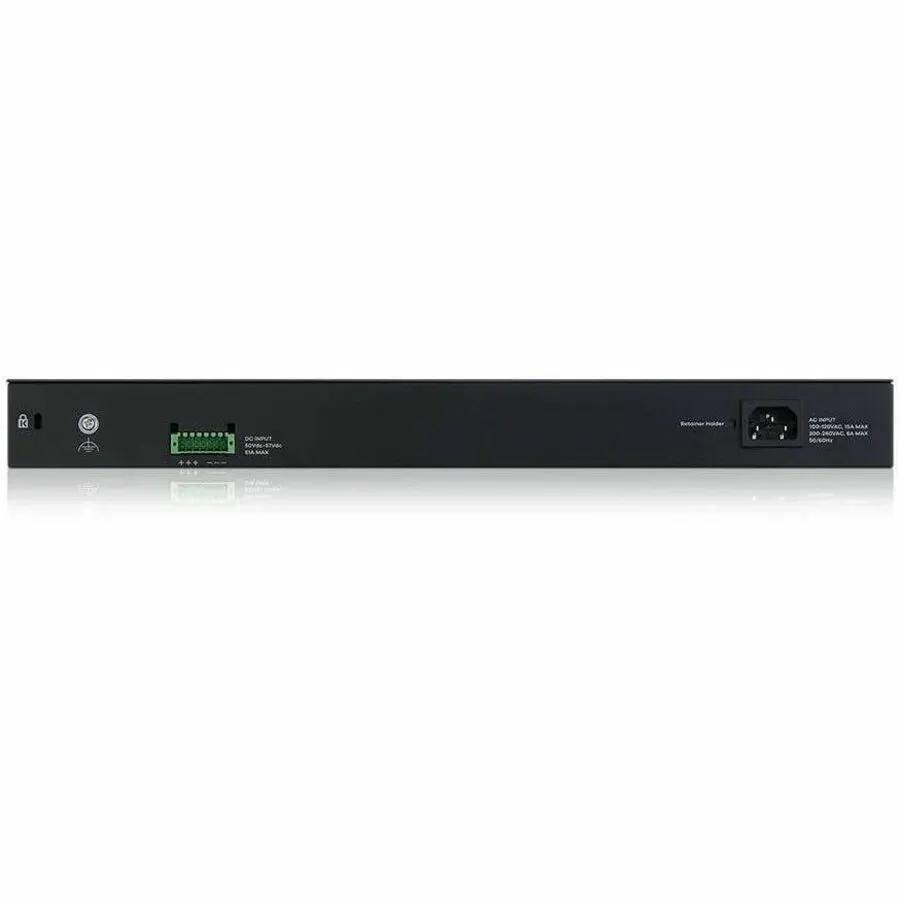

- Power Source: AC
- Weight: 11.09 lb
