Key Features

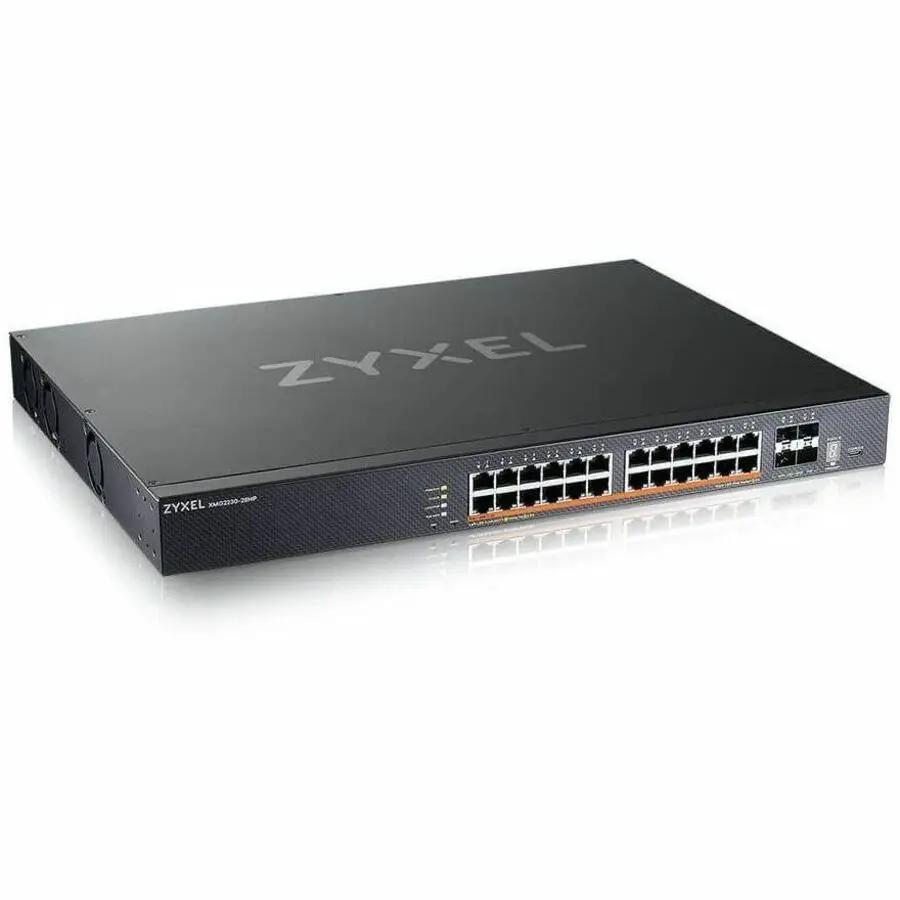

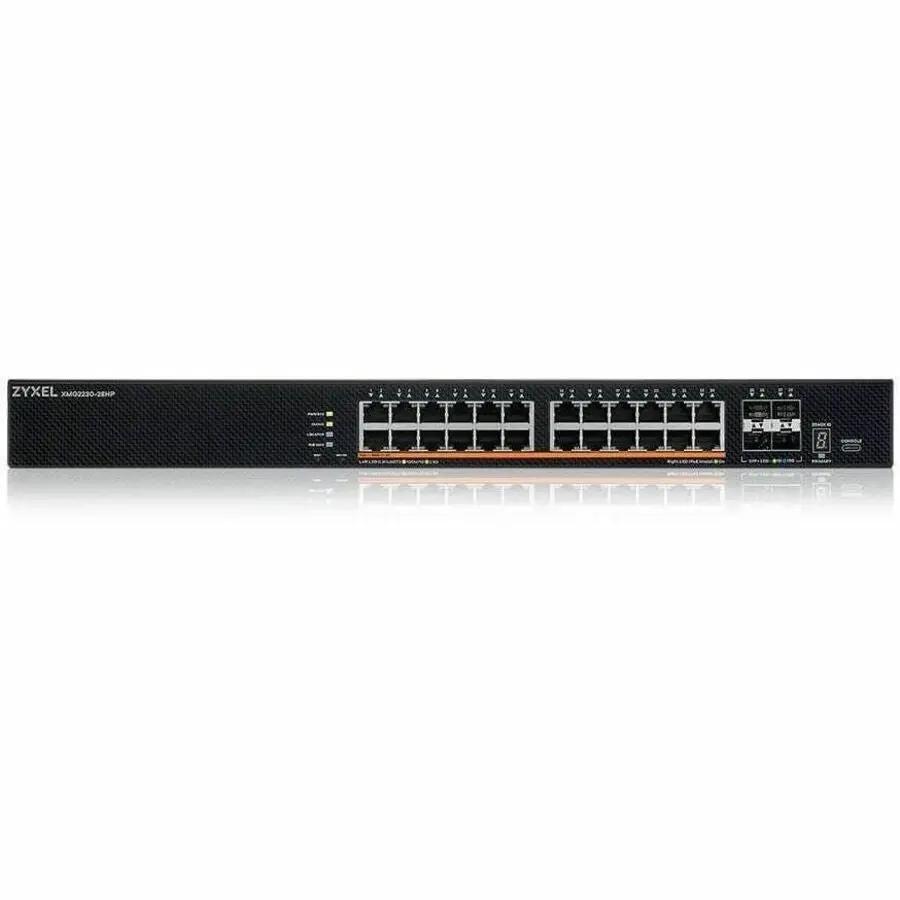

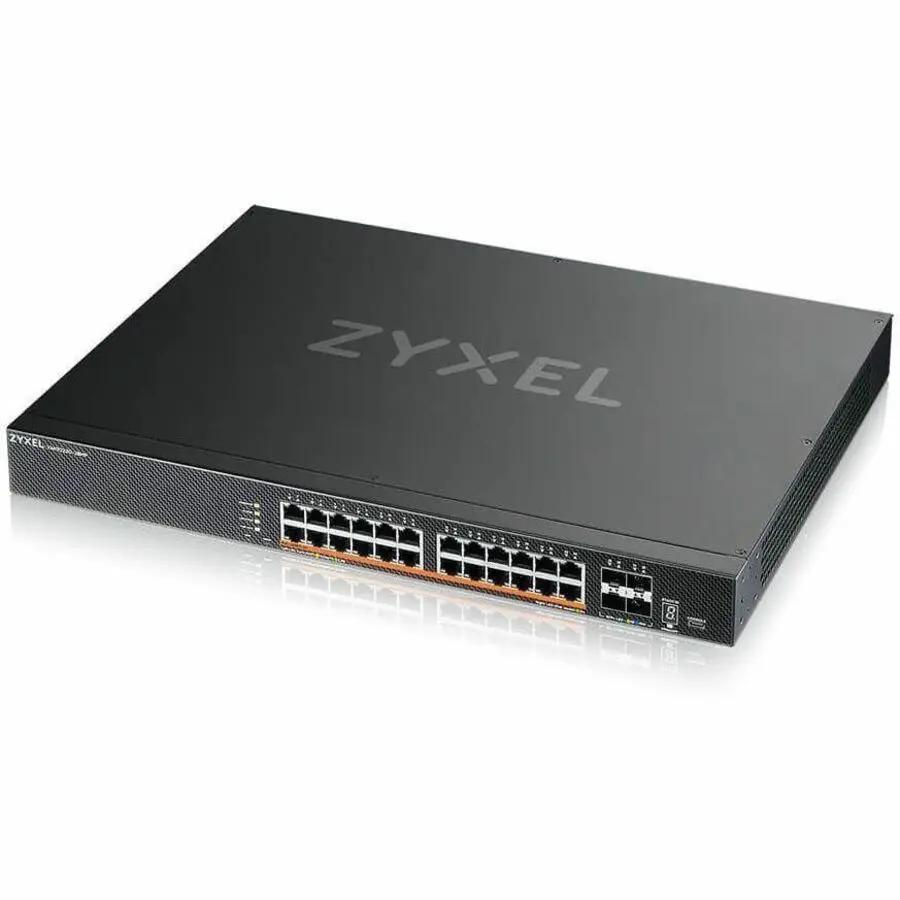

The Zyxel XMG2230-28 puts 24 multi-gigabit PoE++ ports and four 10G SFP+ uplinks into a single 1U chassis, with every access port capable of 2.5 Gbps and up to 60 W of power. Static Layer 3 routing and cloud management make it a practical aggregation point for Wi-Fi access points, IP cameras, and multi-gig desktops at the network edge.
Tech Specs
- Access Ports: 24 x Multi-Gigabit PoE RJ-45
- Port Speeds: 100M/1G/2.5G on every access port
- Uplinks: 4 x 10G SFP+
- PoE Standard: IEEE 802.3bt (PoE++), up to 60 W per port
- PoE Budget: 700 W on internal AC power, up to 1440 W with an external DC power system
- Maximum Data Rate: 10 Gbps per uplink port
- Switching Layer: Layer 3 Lite (static routing)
- Management: Remote and cloud management
- Fiber Media: Optical fiber

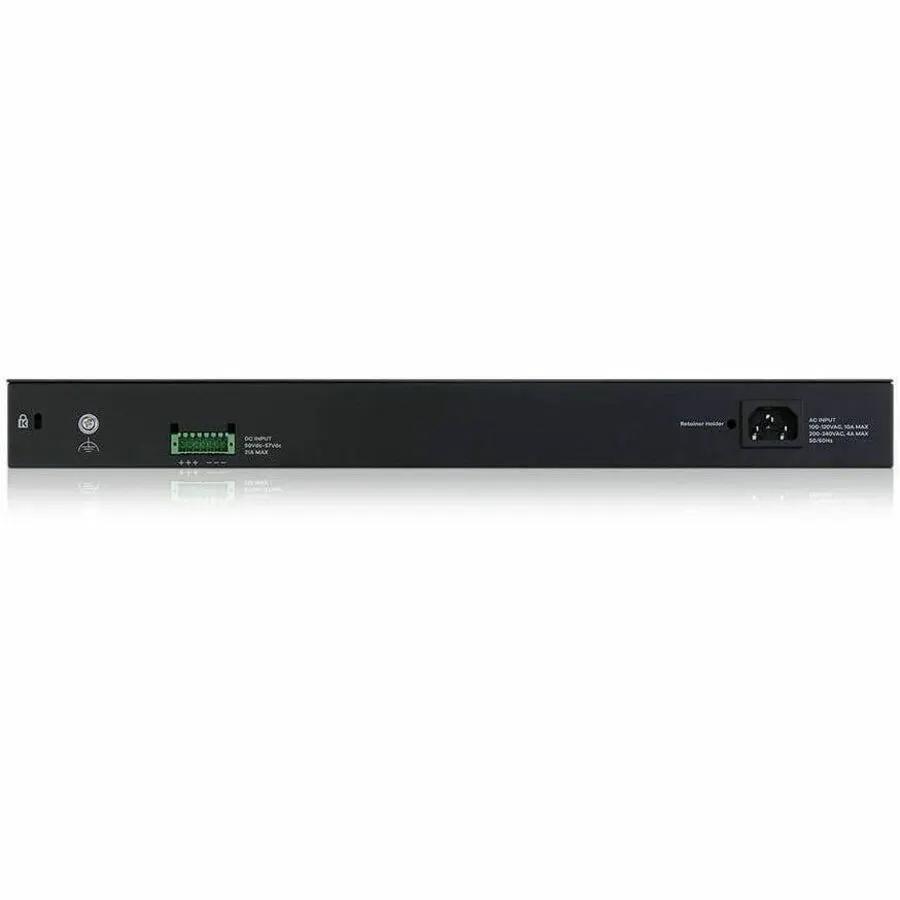

- Power Source: Internal AC with optional external DC input for redundancy
- Form Factor: 1U rack mount
- Weight: 9.99 lb
