Key Features

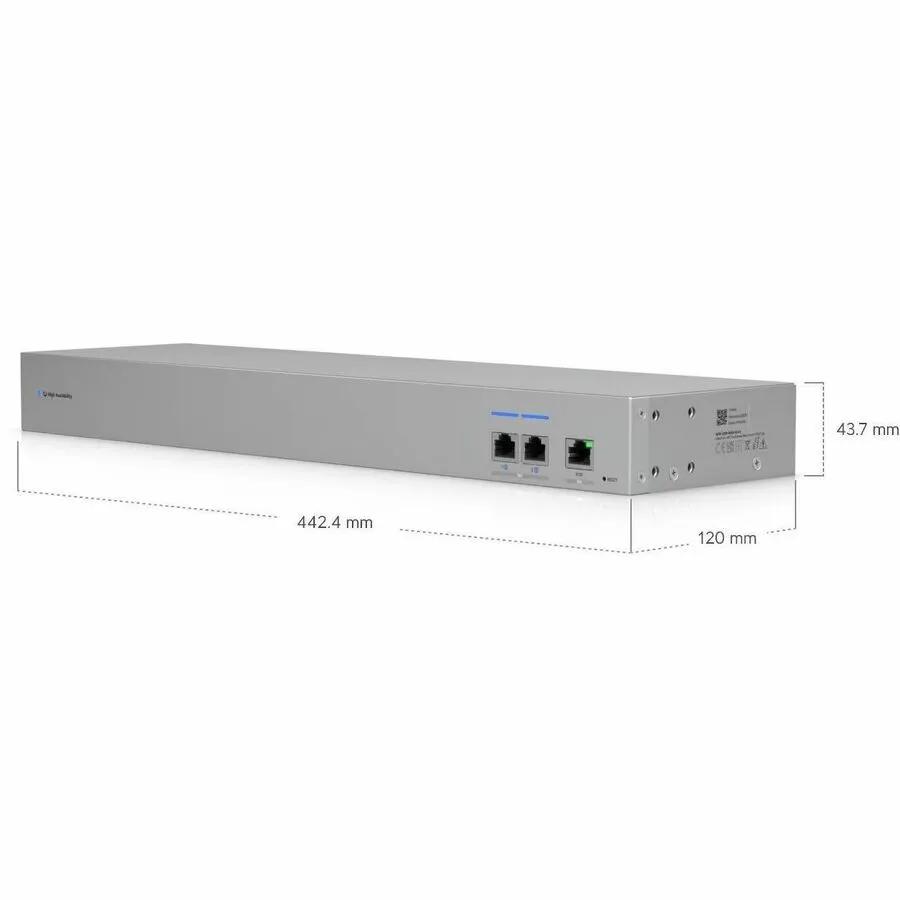

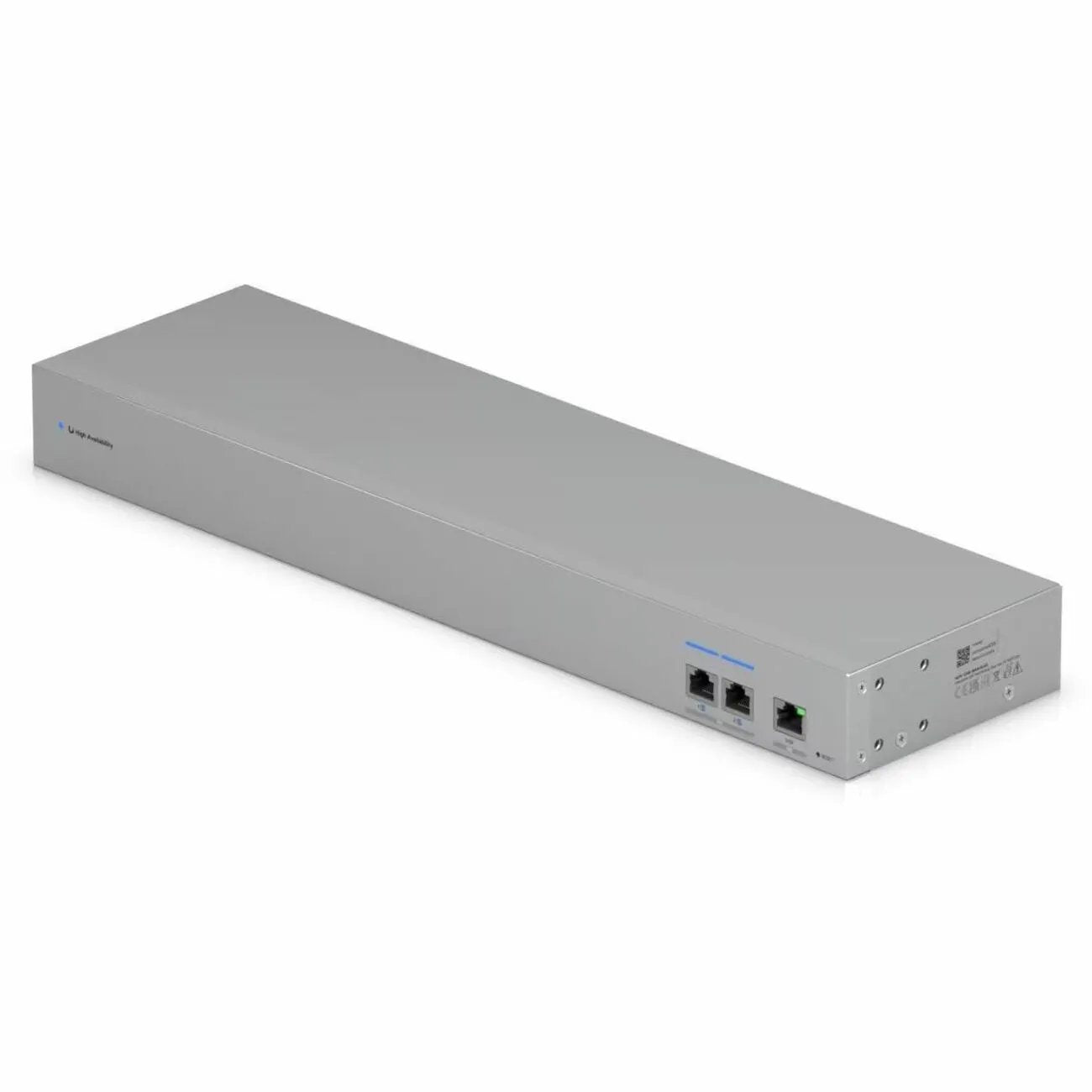

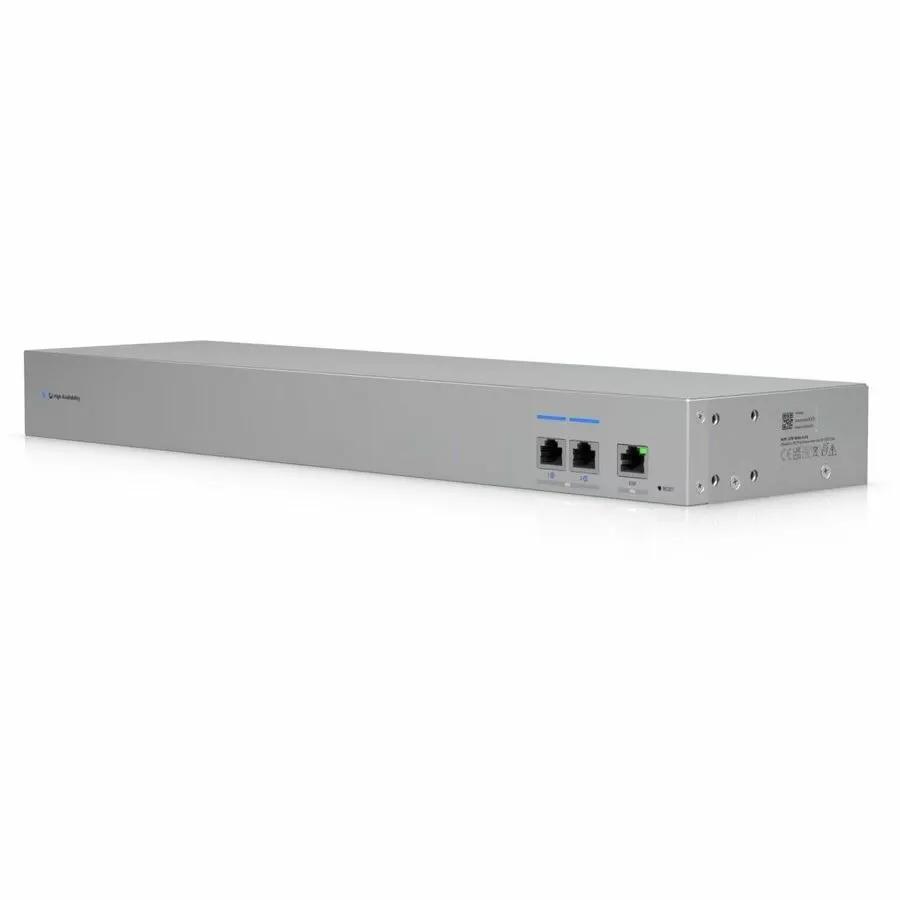

The Ubiquiti UniFi USW-WAN-RJ45 is a 1U managed switch that consolidates ISP handoffs onto three 10GbE RJ45 ports. Dual internal power supplies keep the connection live if one feed drops, and 20 Gbps of switching capacity leaves headroom for multi-gig WAN links. UniFi Network handles configuration, monitoring, and firmware from the same console as the rest of the network.
Tech Specs
- Ports: 3 x 10GbE RJ45 (10GBase-T)
- Management Port: 1 x Gigabit RJ45
- Switching Capacity: 20 Gbps
- Non-Blocking Throughput: 10 Gbps
- Forwarding Rate: 15 Mpps
- Switching Layer: Layer 2
- Multicast: IGMP snooping
- Spanning Tree: Supported
- Port Mirroring: Supported
- Management: UniFi Network
- Power Supplies: 2 x internal AC
- Input Voltage: 230 V AC
- Power Consumption: 18 W
- Cable Distance: Up to 100 m over twisted pair
- Chassis: SGCC steel

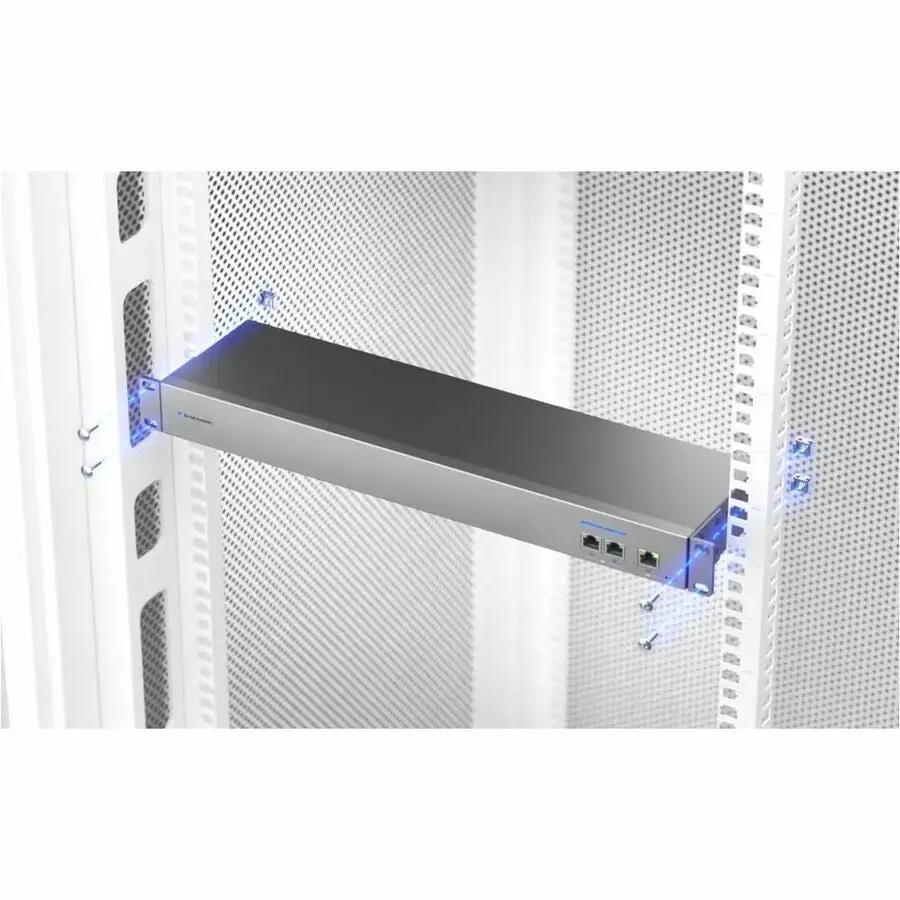

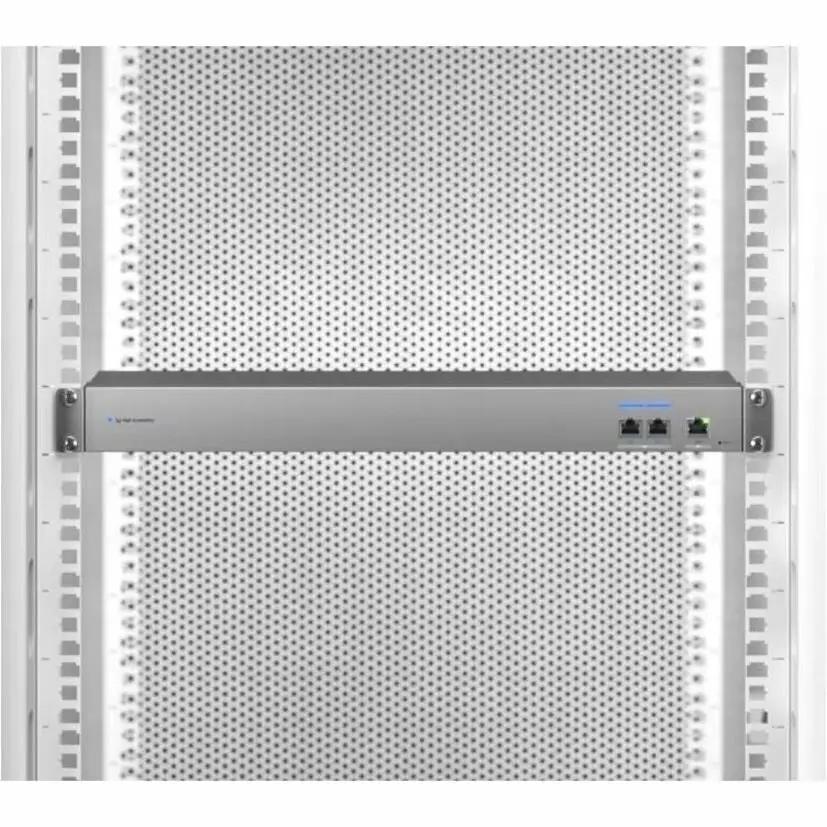

- Mounting: 1U rack mountable
- Weight: 5.07 lb
Warranty & Compliance
- Environmental Compliance: WEEE
