Key Features
This compact 5-port Gigabit managed switch is itself powered over Ethernet and passes a 46 W PoE budget on to connected cameras, sensors, and access points. A single PoE++ feed covers the switch and everything hanging off it, so one cable carries both data and power to the far end of a site. The pole-mount housing puts managed switching exactly where the devices are, well away from the wiring closet.
Tech Specs

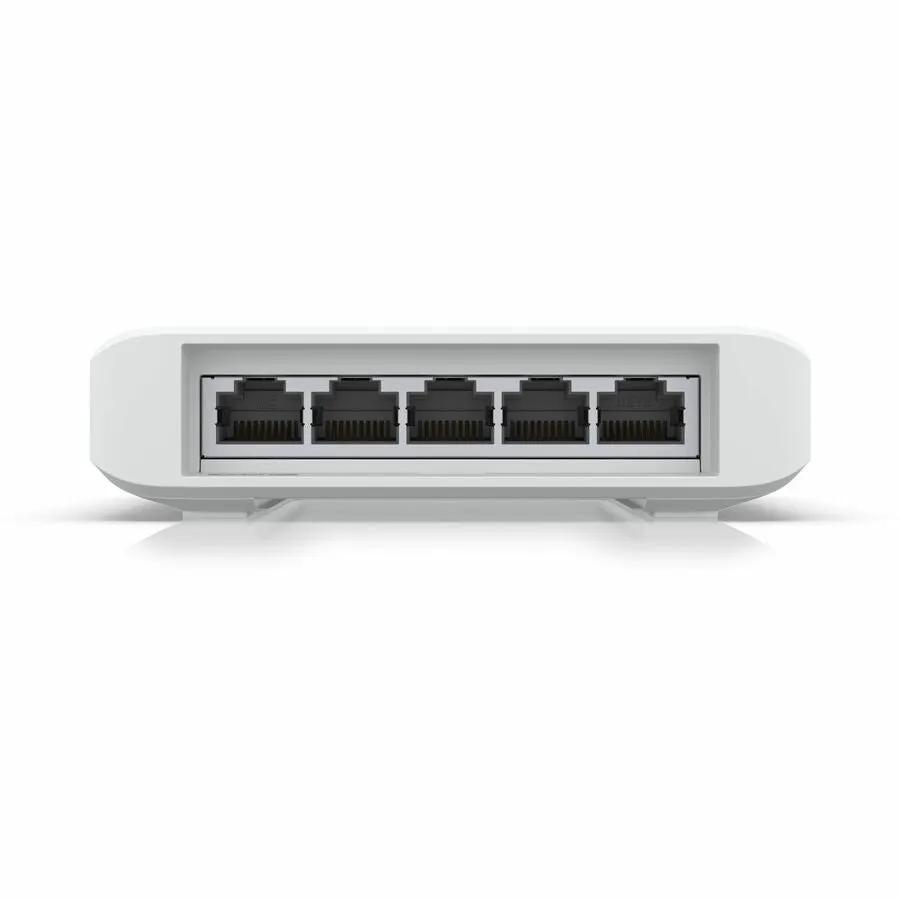

- Ports: 5 x Gigabit Ethernet (RJ-45)
- PoE Output Standard: IEEE 802.3af
- PoE Output Budget: 46 W total
- PoE Input: IEEE 802.3bt (PoE++)
- Input Voltage: 57 V
- Switching Layer: Layer 2
- Management Type: Managed
- Network Technology: 10/100/1000Base-T
- Cable Media: Twisted pair

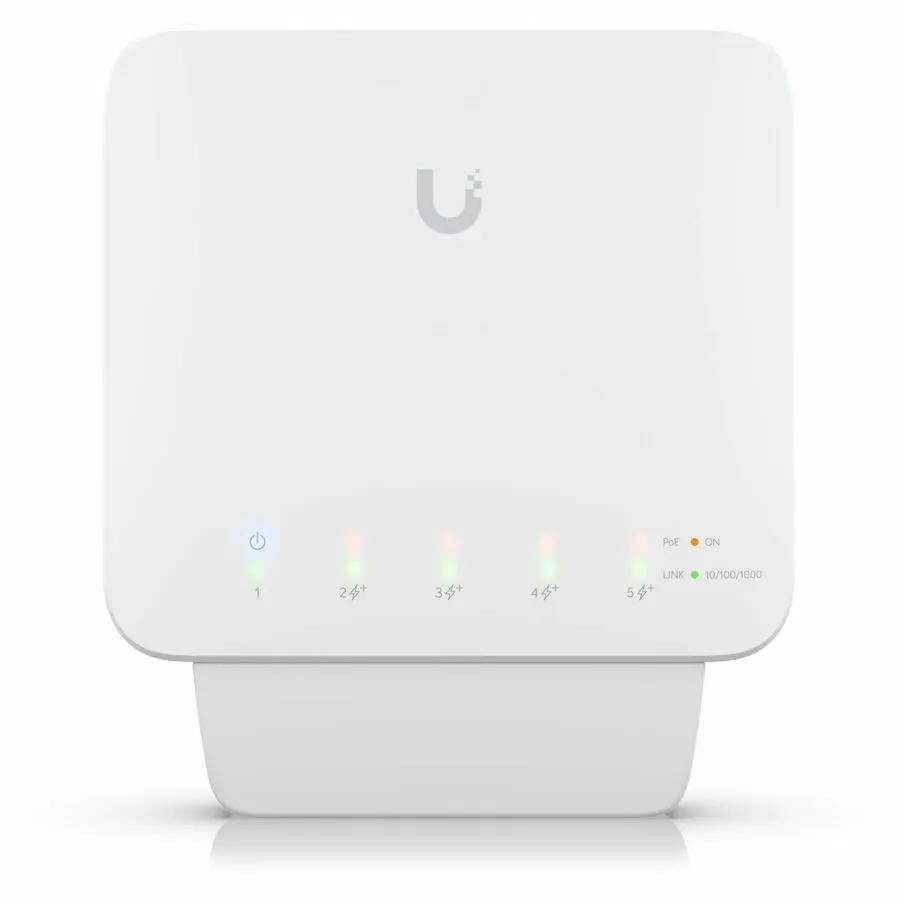

- Status Indicator: LED
- Power Consumption: 51 W

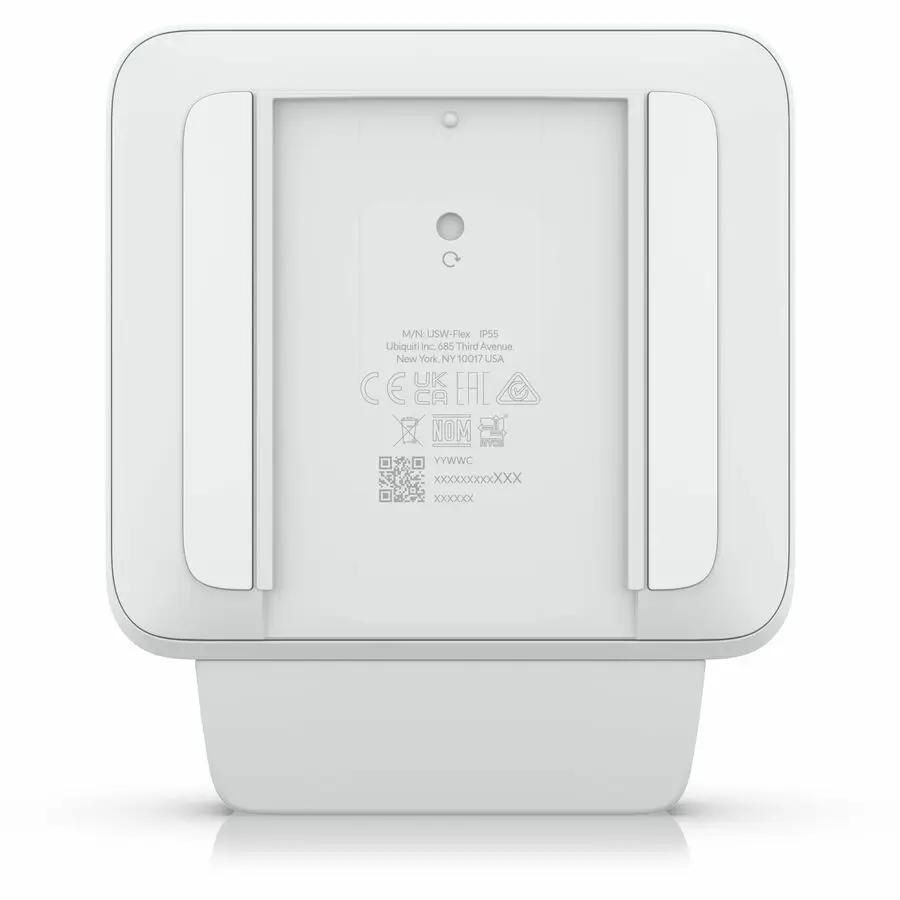

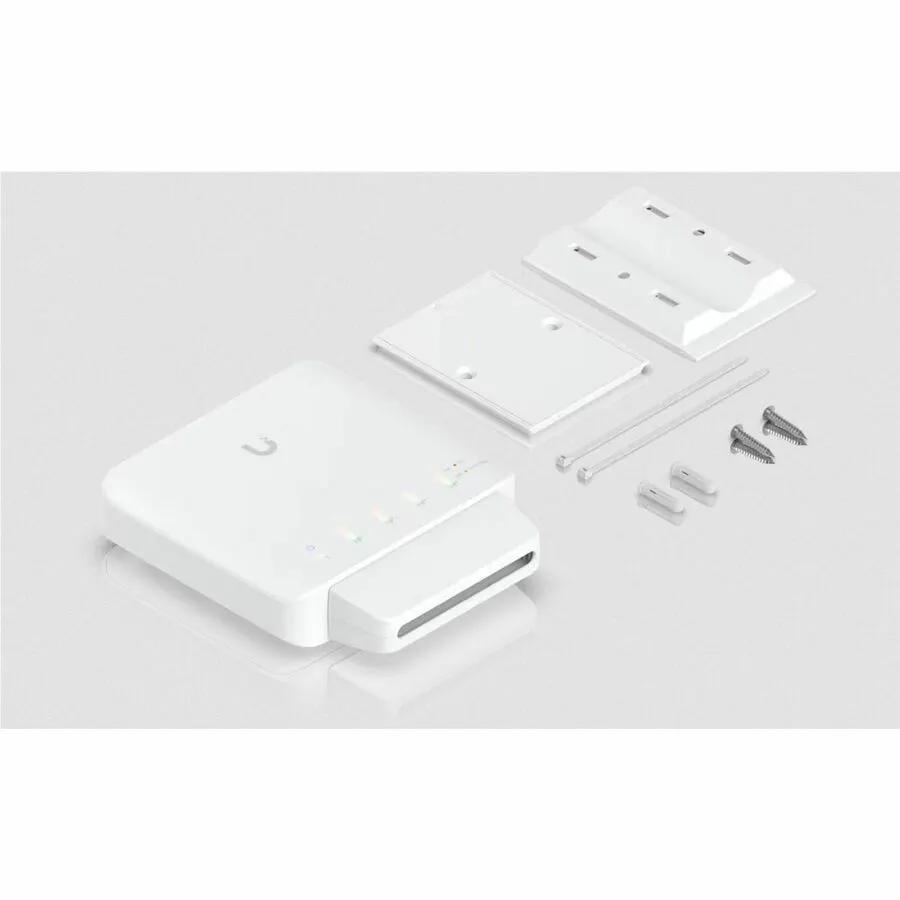

- Form Factor: Pole mount
- Weight: 8.11 oz
Warranty & Compliance
- Environmental Compliance: WEEE
