Key Features

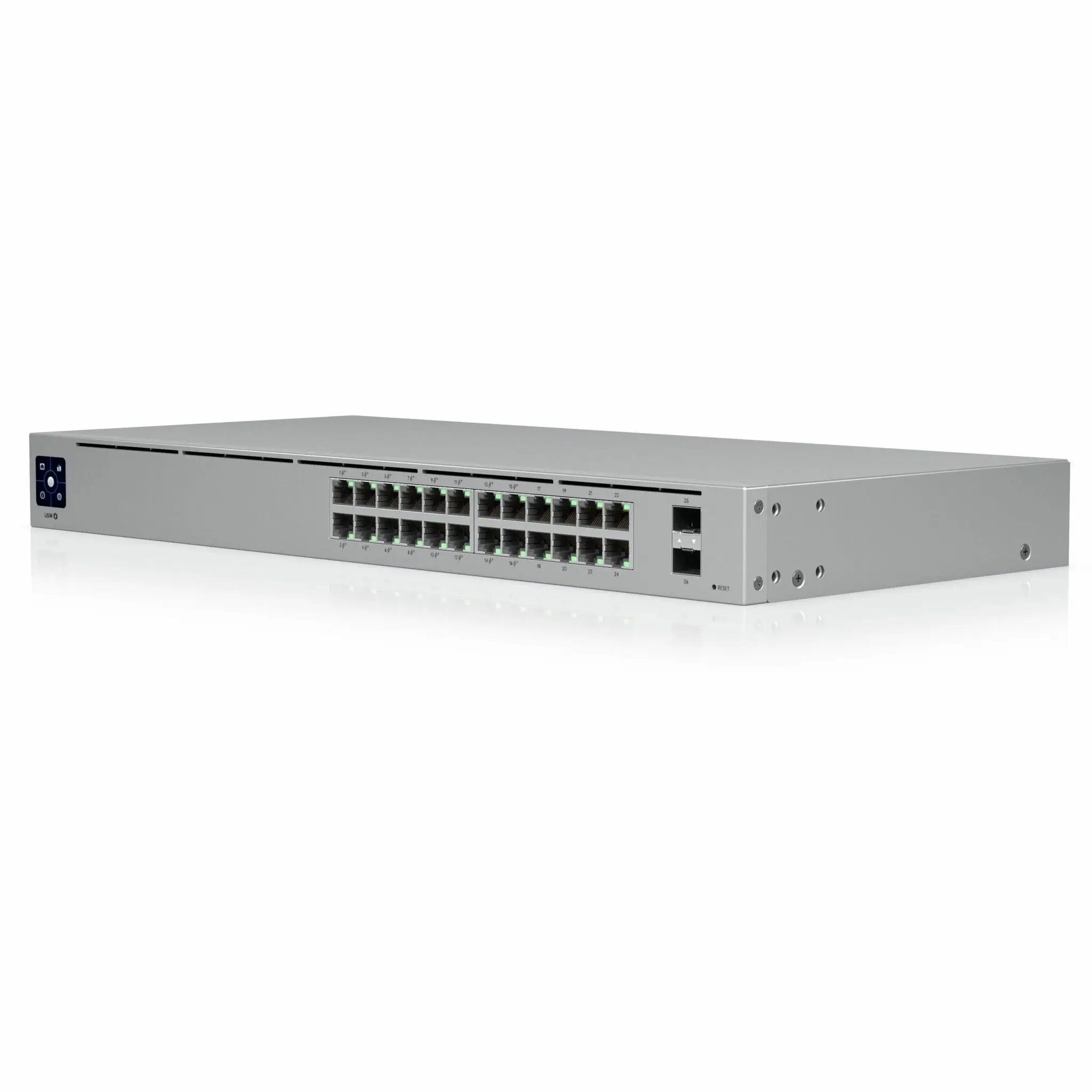

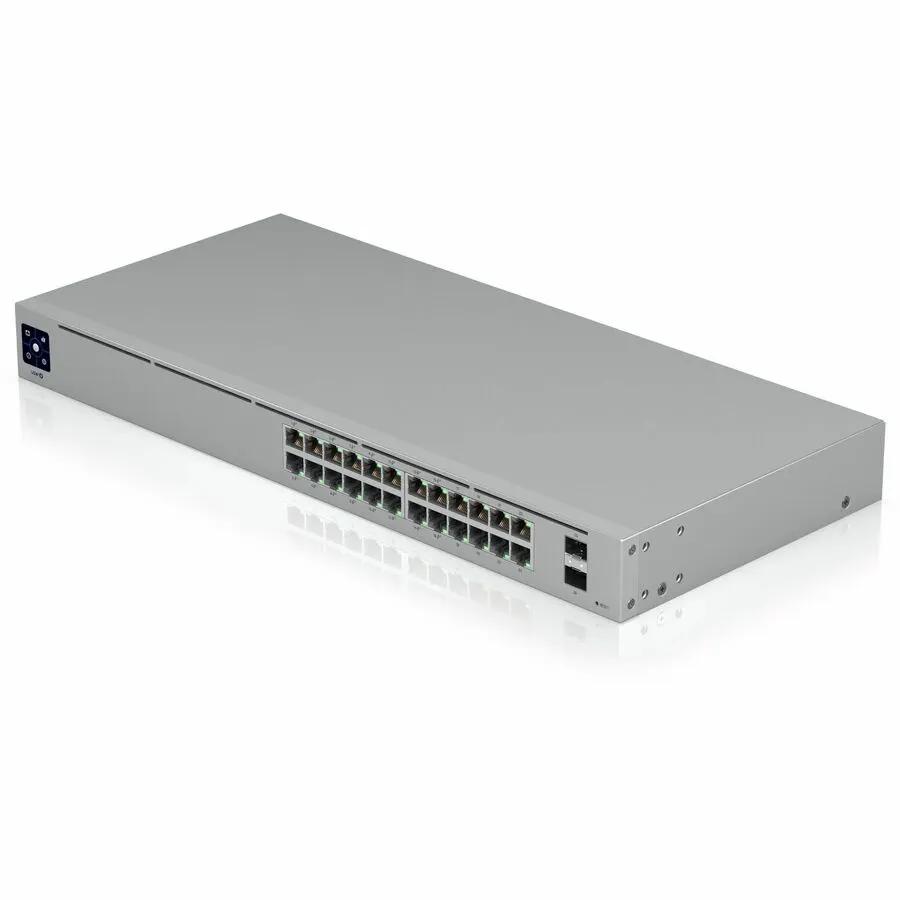

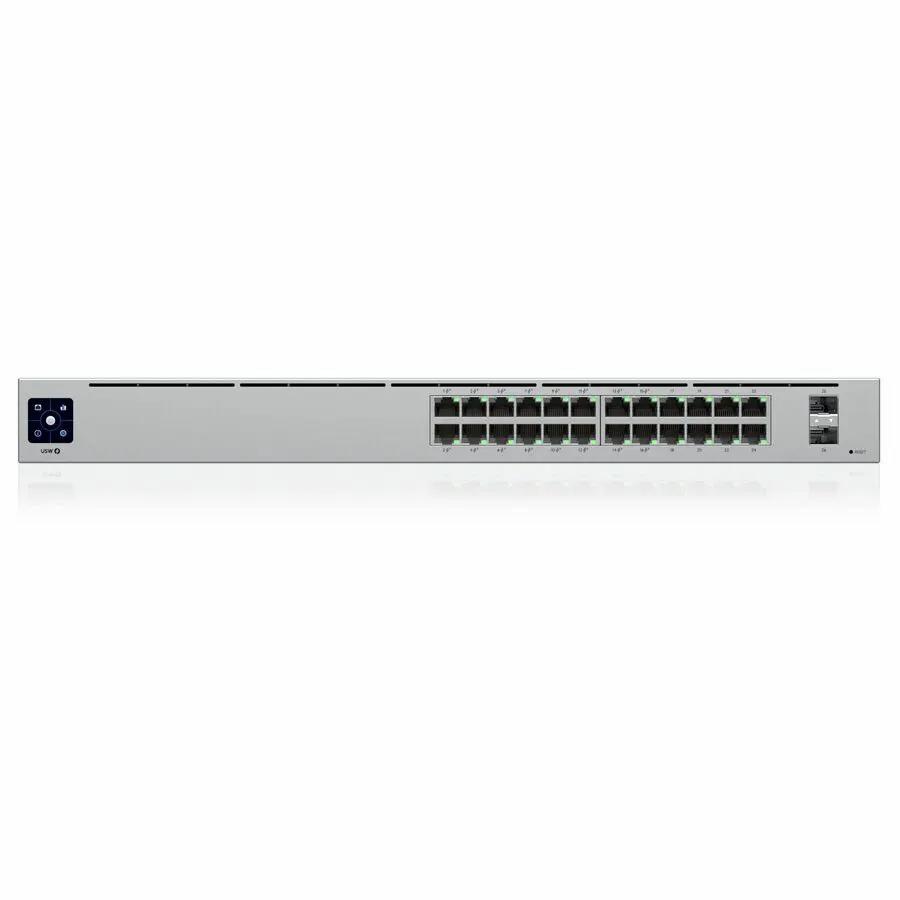

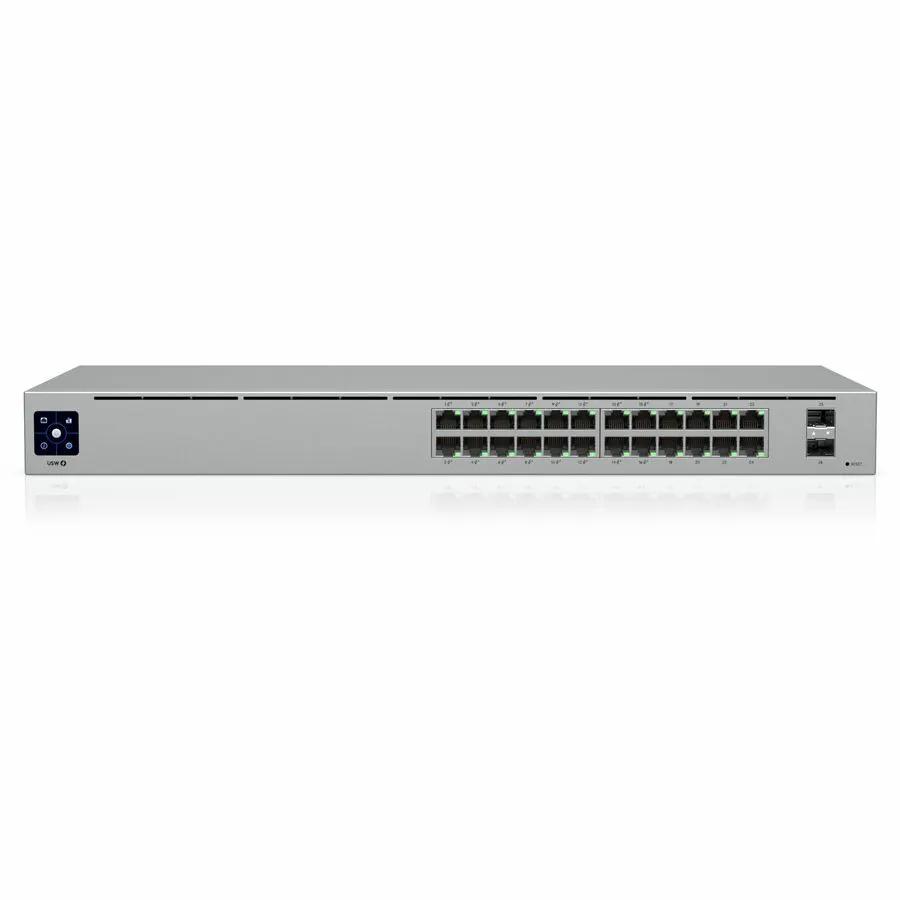

This 1U managed switch provides 24 Gigabit copper ports, 16 of them carrying IEEE 802.3at PoE+ at up to 32W from a 95W budget, plus two Gigabit SFP slots for fiber uplinks. Layer 2 switching with IGMP snooping, port mirroring, spanning tree, and 802.1X port authentication is configured entirely from the UniFi Network controller, so a whole site of switches shares one interface. A 52 Gbps switching fabric and an SGCC steel chassis suit small to mid-size wired deployments.
Tech Specs
- Ports: 24 x Gigabit RJ-45
- PoE+ Ports: 16 of 24
- PoE Standard: IEEE 802.3at (PoE+)
- Per-Port PoE: Up to 32W
- PoE Budget: 95W
- Uplinks: 2 x Gigabit SFP
- Switching Capacity: 52 Gbps
- Non-Blocking Throughput: 26 Gbps
- Forwarding Rate: 39 Mpps
- Switching Layer: Layer 2
- Multicast: IGMP snooping
- Port Mirroring: Supported
- Spanning Tree: Supported
- Port Authentication: IEEE 802.1x
- Management: UniFi Network controller
- Local Display: 1.3-inch touchscreen
- Controls: Reset button
- Chassis: SGCC steel
- Mounting: 1U rack mount
- Power Input: 100-240V AC
- Power Consumption: 120W
- Weight: 6.61 lb
Warranty & Compliance
- Compliance: WEEE
