Key Features

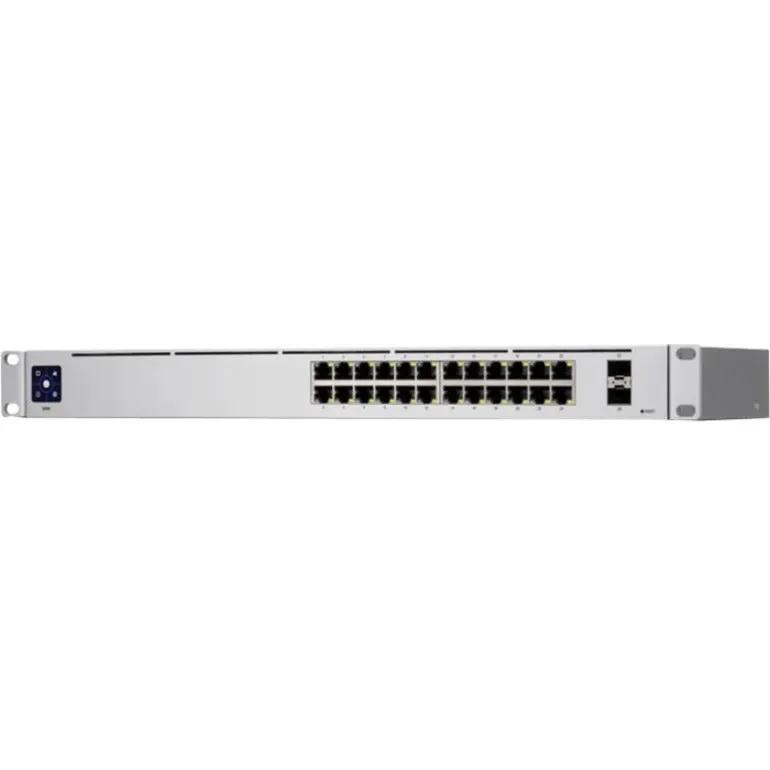

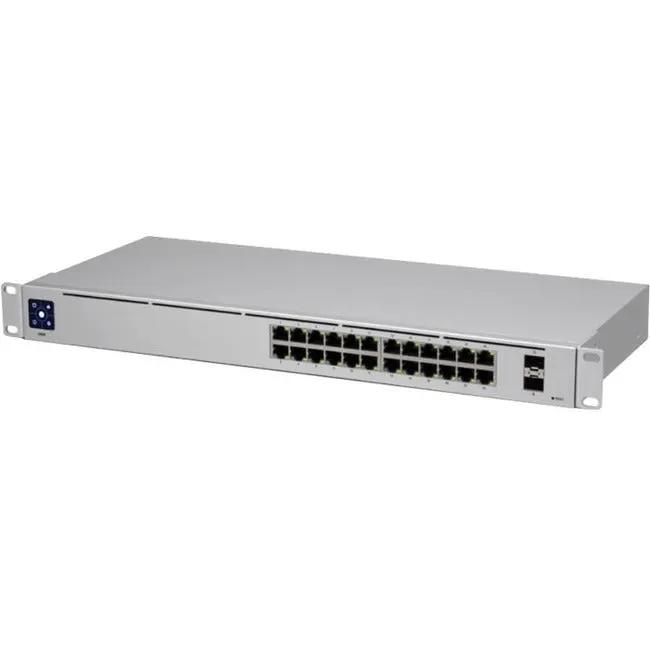

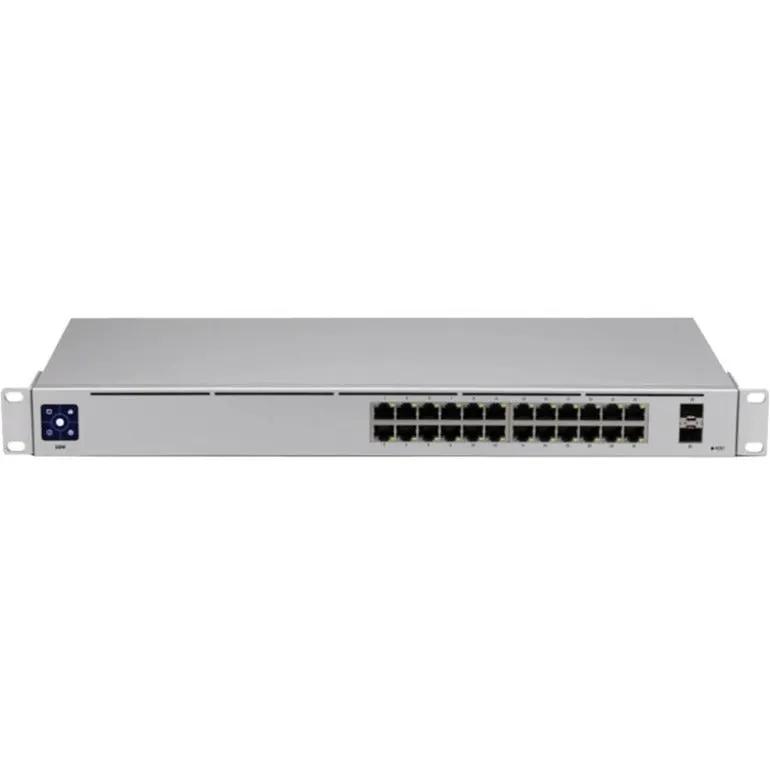

The UniFi USW-24 is a 24-port Gigabit Layer 2 switch sized for a single floor or a small office. Two 1G SFP slots carry fiber uplinks, and 52 Gbps of switching capacity keeps the ports at line rate. A 1.3-inch front touchscreen shows live status without opening a console, and the whole switch is configured from the UniFi Network application alongside the rest of the site.
Tech Specs
- Ports: 24 x Gigabit Ethernet (RJ-45)
- Uplinks: 2 x 1G SFP
- Switching Layer: Layer 2
- Switching Capacity: 52 Gbps
- Non-Blocking Throughput: 26 Gbps
- Management: UniFi Network application
- Display: 1.3-inch color touchscreen
- Network Technology: 1000Base-X
- Media Type Supported: Optical Fiber
- Cooling: Fanless
- Form Factor: 1U rack mountable
- Power Source: AC, internal power supply
- Power Consumption: 25 W
- Weight: 5.95 lb
Warranty & Compliance
- Warranty: 1 Year Limited
- Environmental Compliance: WEEE
What's in the Box
- UniFi Switch 24
- Rackmount Kit
