Key Features

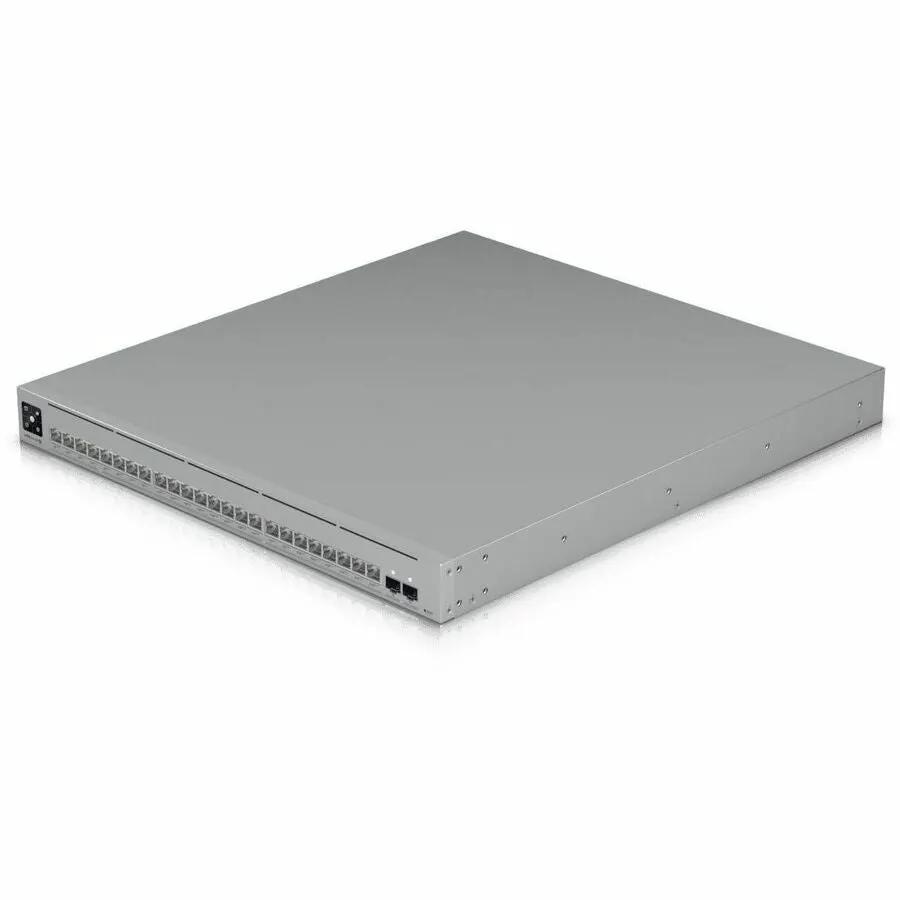

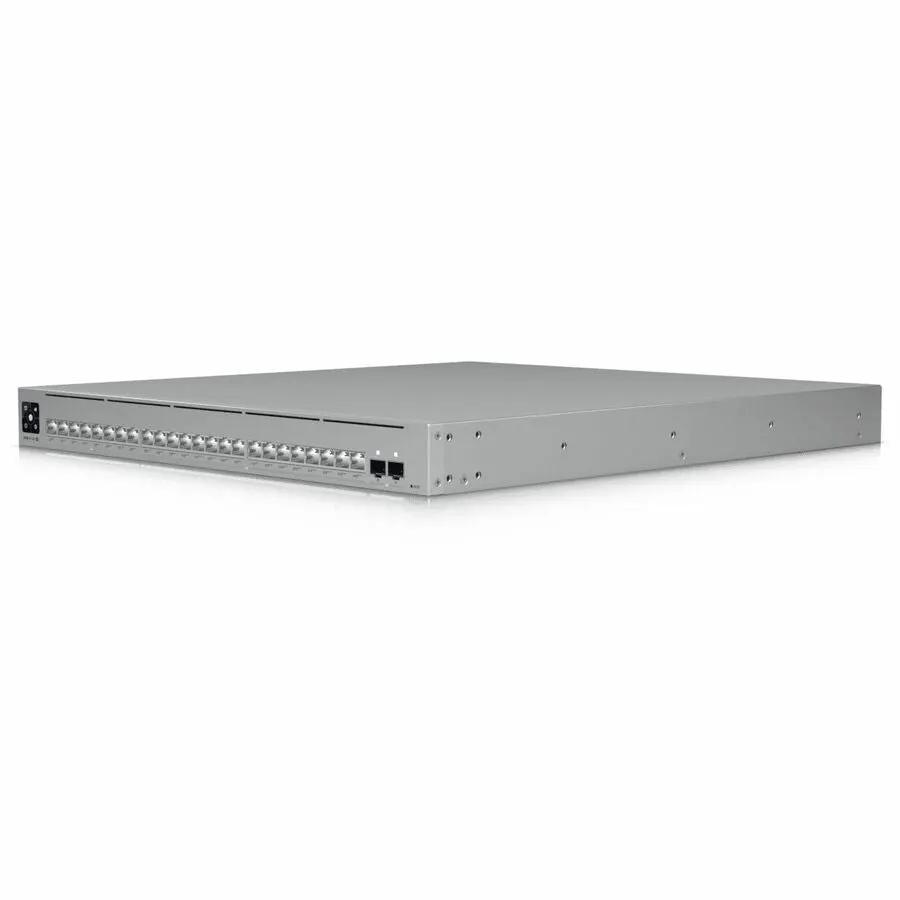

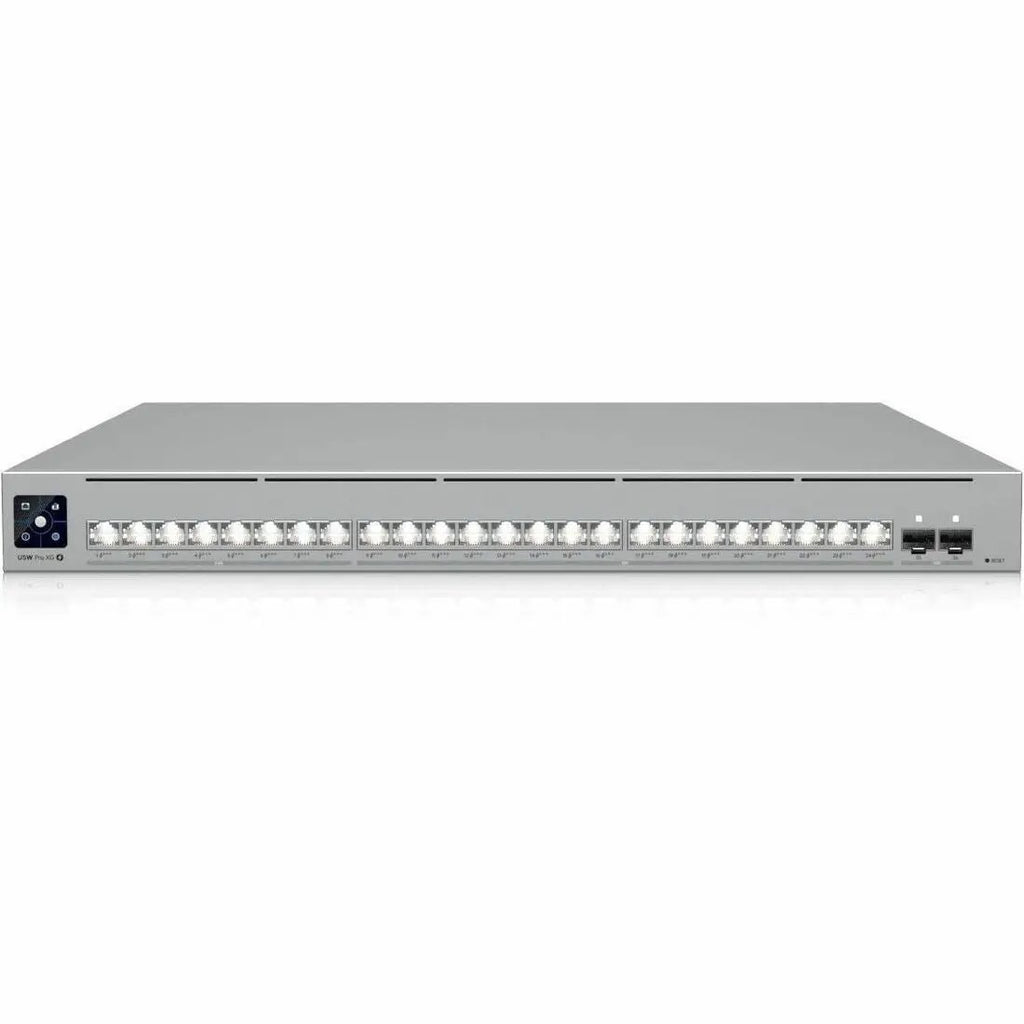

The Ubiquiti UniFi USW-Pro-XG-24-PoE is a 1U multi-gig access switch with 24 PoE++ RJ45 ports, sixteen of them at 10GbE and eight at 2.5GbE, backed by a 720 W budget that can drive 90 W devices on any port. Two 25G SFP28 uplinks and a 460 Gbps switching fabric feed the core without contention, and inter-VLAN routing, static routes, and a local DHCP server keep traffic on the switch. An internal power supply with USP RPS backup and a front touchscreen suit it to production racks.
Tech Specs

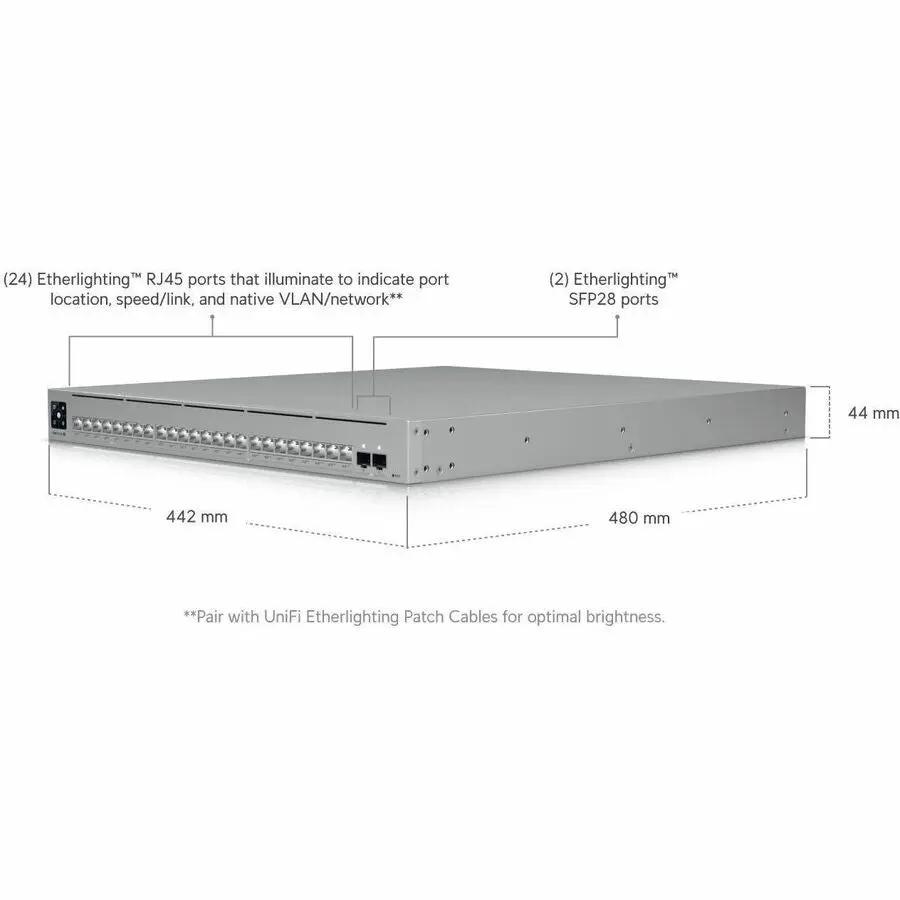

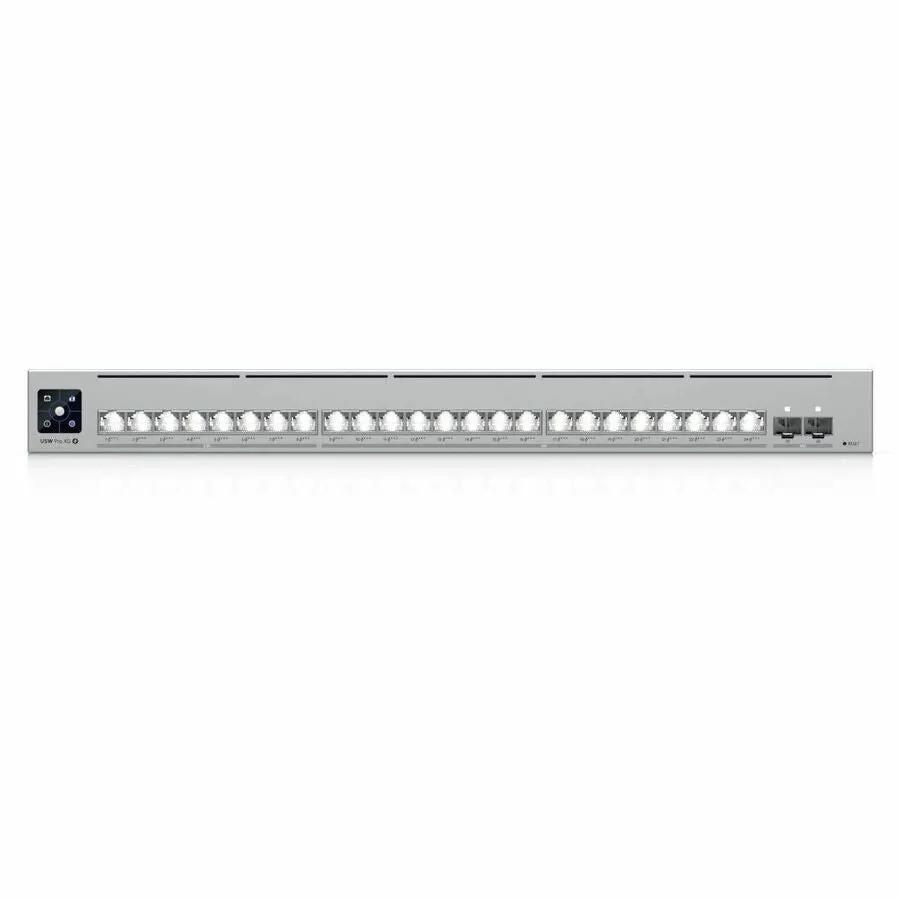

- Port Configuration: 24 x RJ45
- 10GbE Ports: 16
- 2.5GbE Ports: 8
- Uplinks: 2 x 25G SFP28
- PoE Output Standard: PoE++ (IEEE 802.3bt)
- PoE Output Per Port: Up to 90 W
- Total PoE Budget: 720 W
- Switching Capacity: 460 Gbps
- Non-Blocking Throughput: 230 Gbps
- Forwarding Rate: 342 Mpps
- Packet Buffer: 8 MB
- Switching Layer: Layer 3
- Routing: Inter-VLAN and static routing
- DHCP: Local DHCP server
- Security: 802.1X port-based authentication
- Management: UniFi Network
- Local Display: 1.3-inch color touchscreen

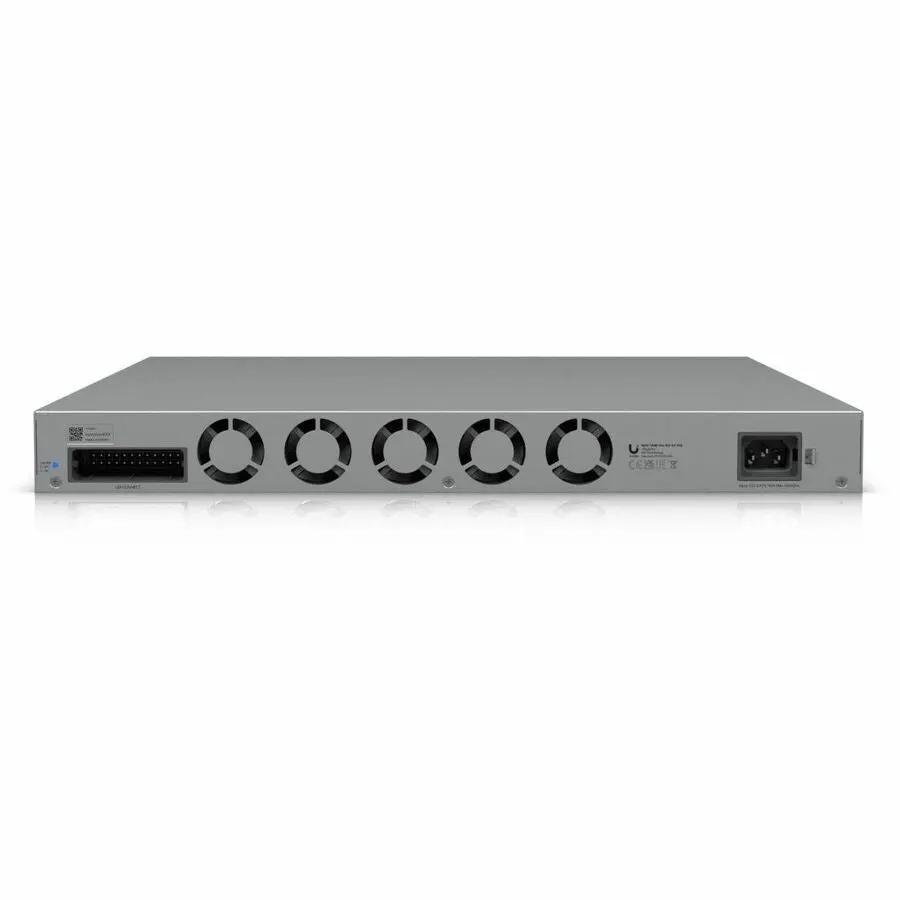

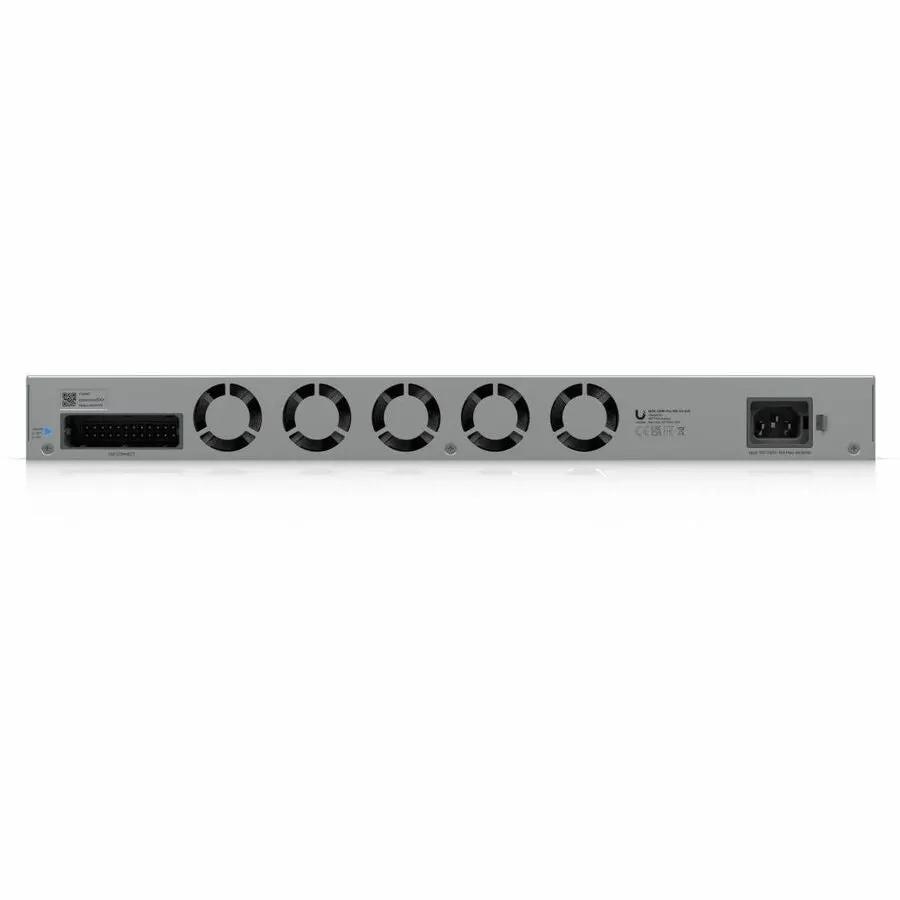

- Power Supply: Internal, 870 W
- Power Input: 100-240 V AC
- Redundant Power: USP RPS DC input supported
- Chassis Material: SGCC steel

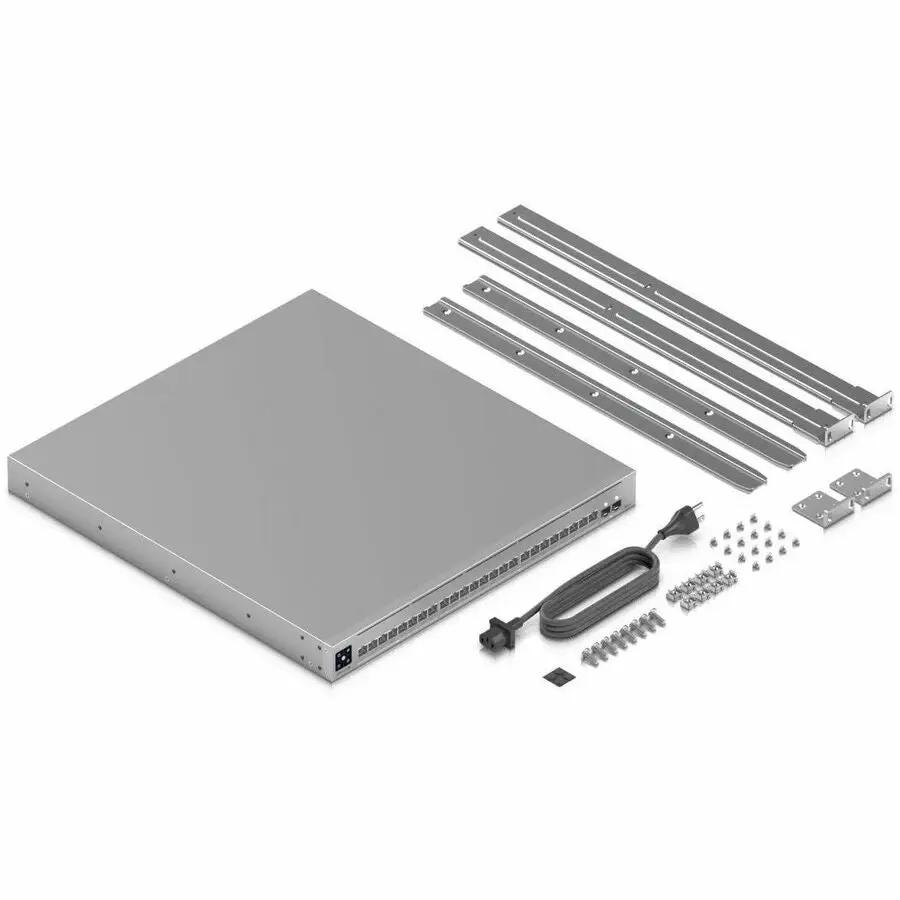

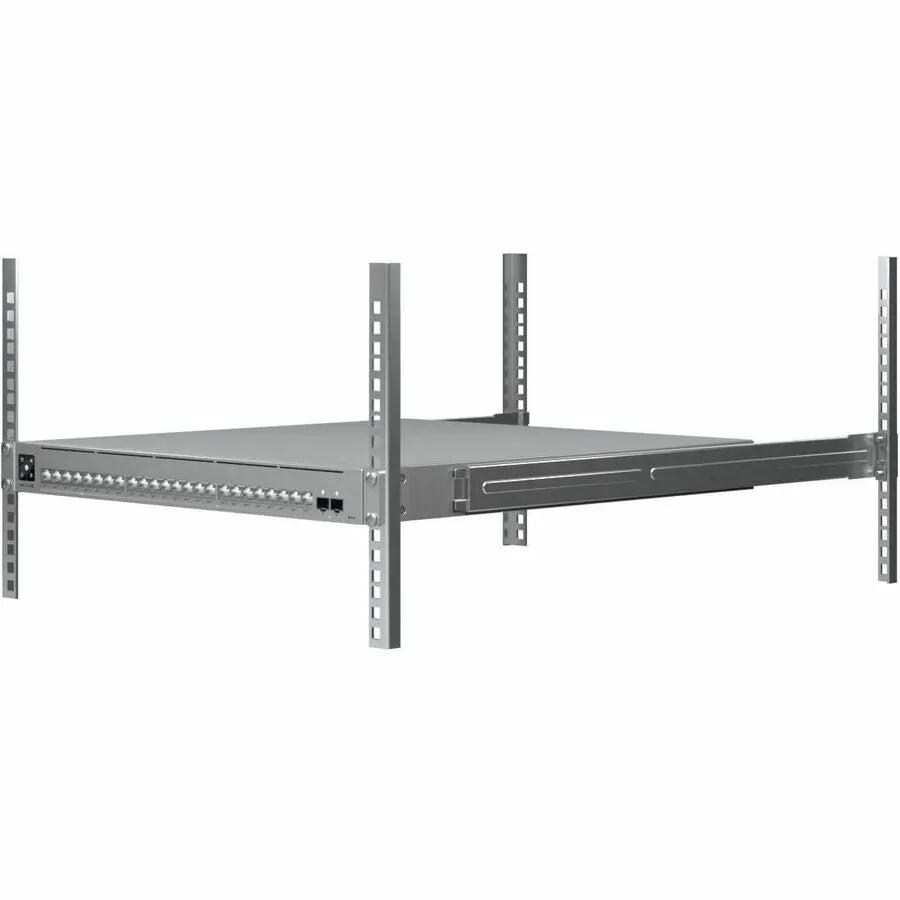

- Form Factor: 1U rack mountable
- Weight: 17.42 lb
