Key Features

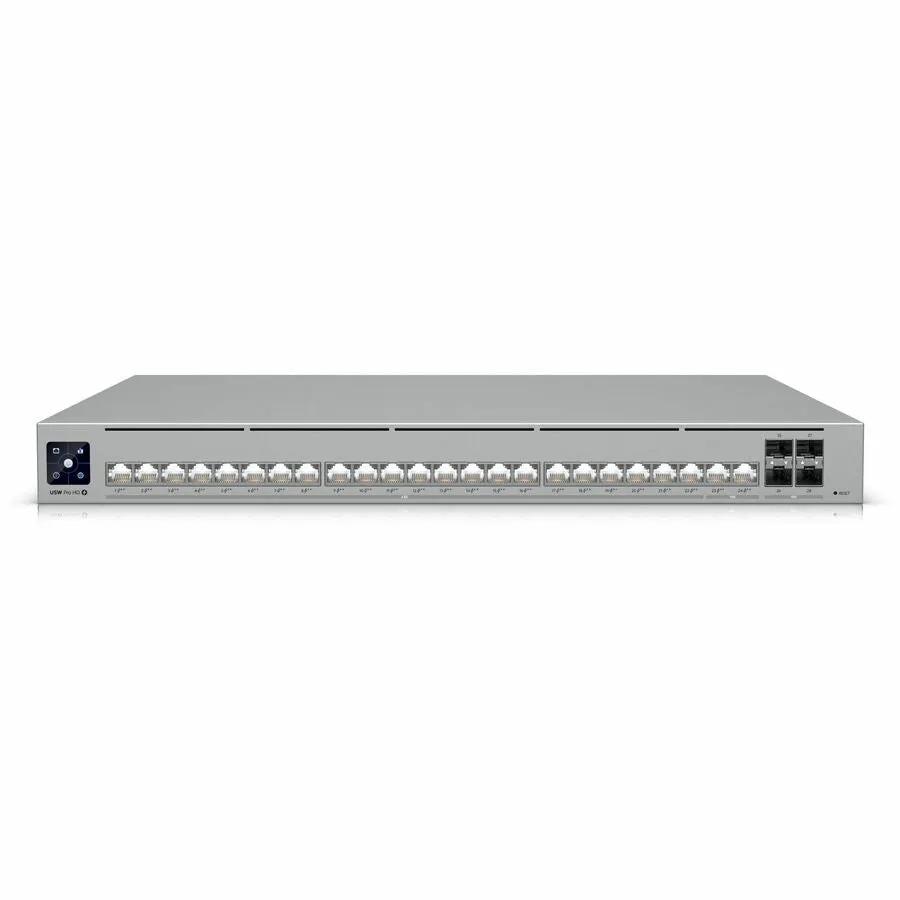

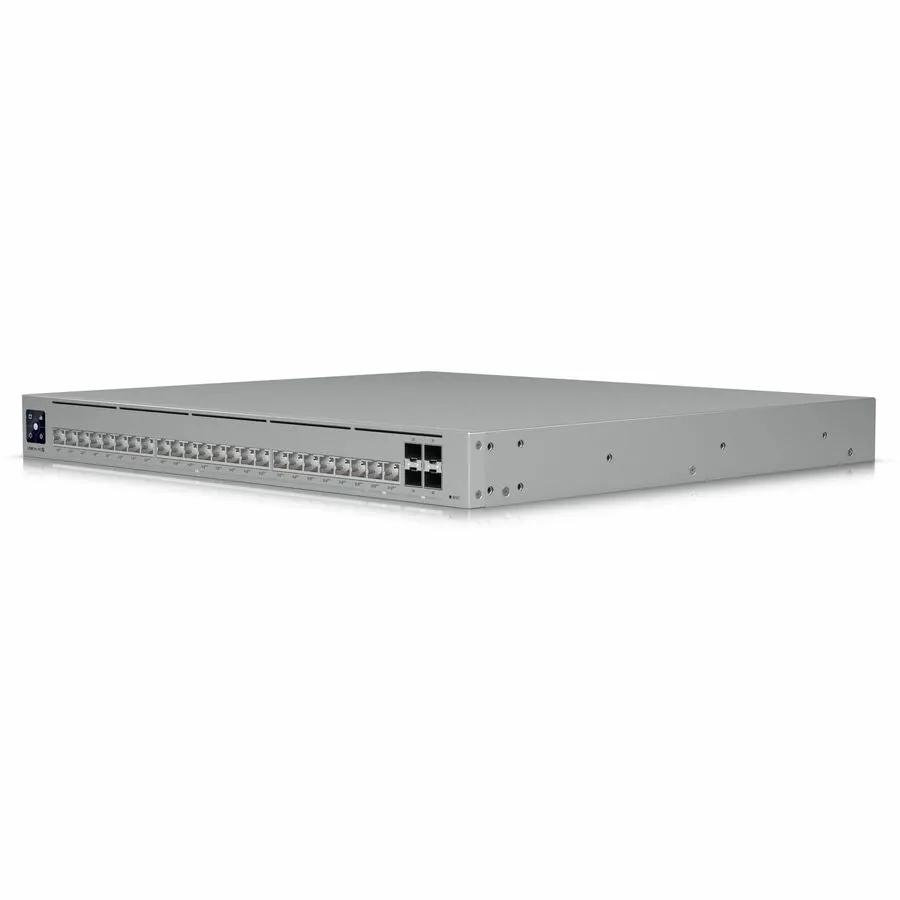

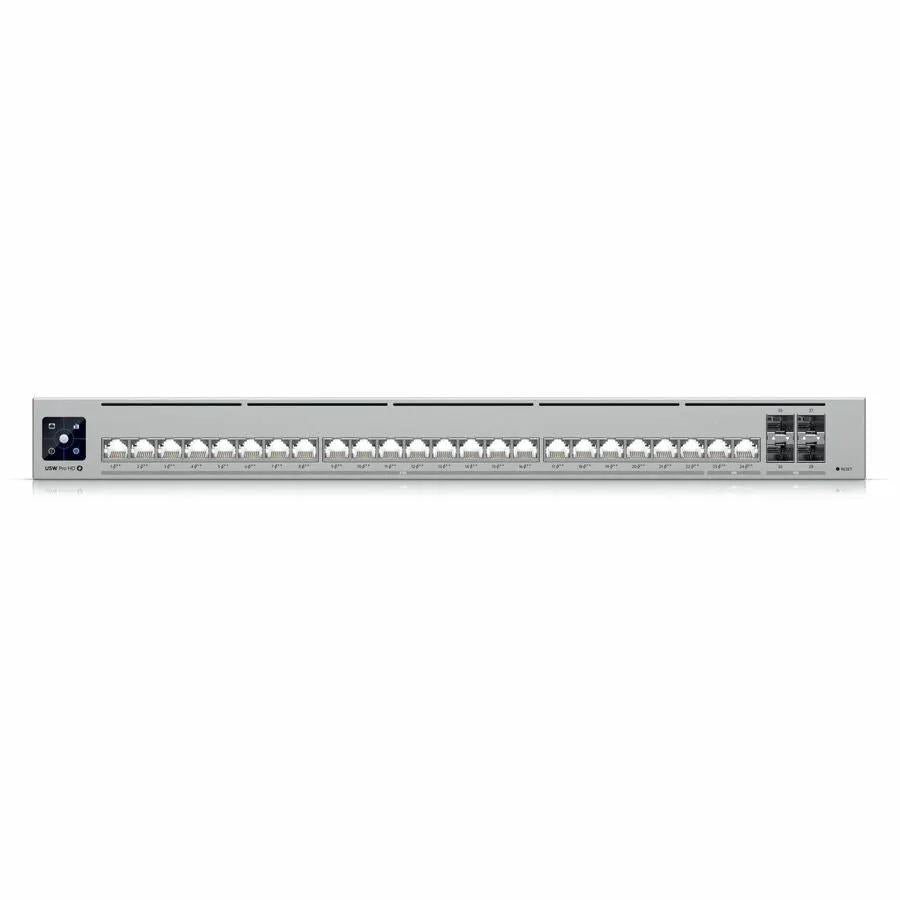

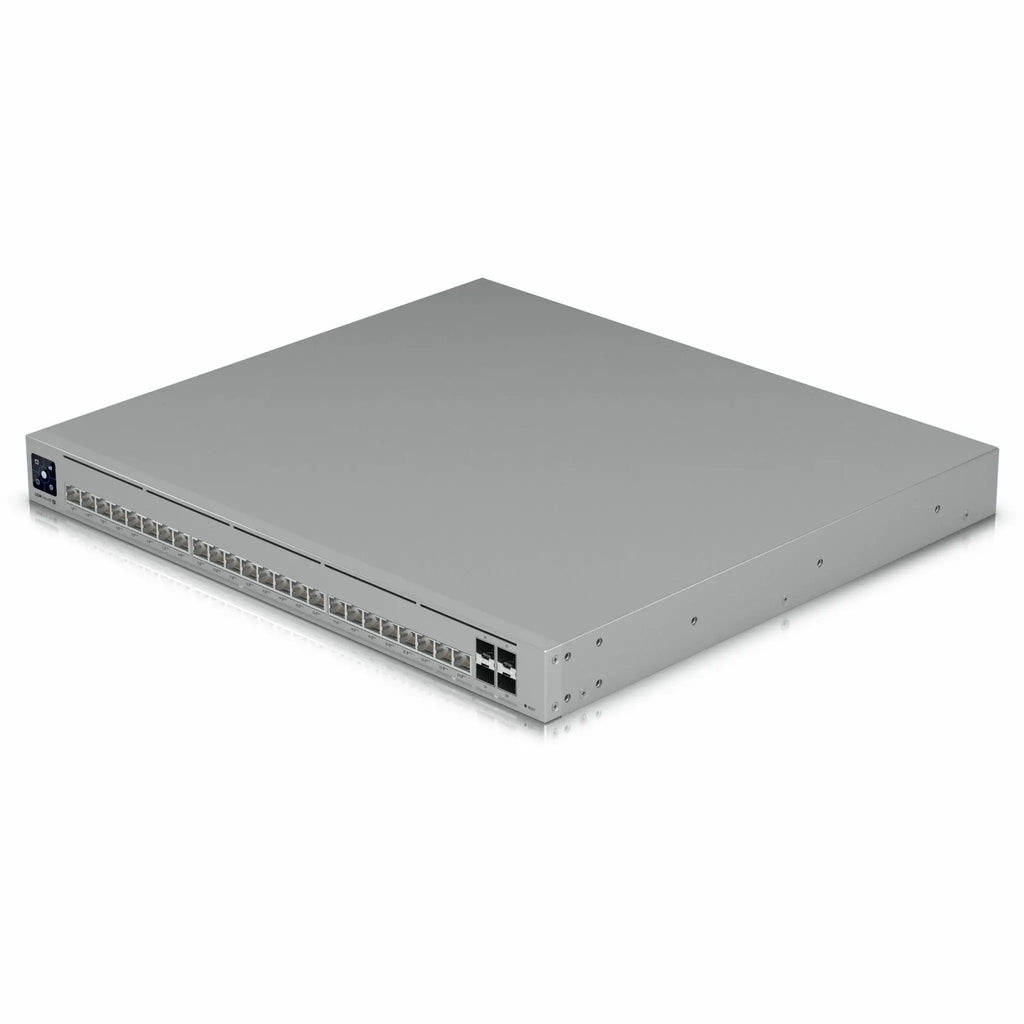

This 24-port managed switch delivers PoE++ on every copper port for dense camera, access point, and phone deployments. Twenty-two 2.5GbE ports and two 10GbE ports share a 600 W power budget, and four 10G SFP+ cages carry aggregated traffic upstream. Cloud management through the UniFi Network application adds VLAN segmentation and static routing across 230 Gbps of switching capacity.
Tech Specs
- Ports: 22 x 2.5GbE + 2 x 10GbE RJ-45
- Uplinks: 4 x 10G SFP+
- PoE Standard: IEEE 802.3bt (PoE++)
- PoE Ports: 24 RJ-45
- PoE Budget: 600 W
- Maximum PoE per Port: 64 W
- Switching Capacity: 230 Gbps
- Non-Blocking Throughput: 115 Gbps
- Switching Layer: Layer 3 Lite
- Static Routing: 256 IPv4 static routes
- Inter-VLAN Routing: Supported
- Supported VLANs: 1,000
- Management: Cloud managed via the UniFi Network application
- Network Standards: IEEE 802.1x
- Quality of Service: Supported
- Port Indicators: Etherlighting LEDs

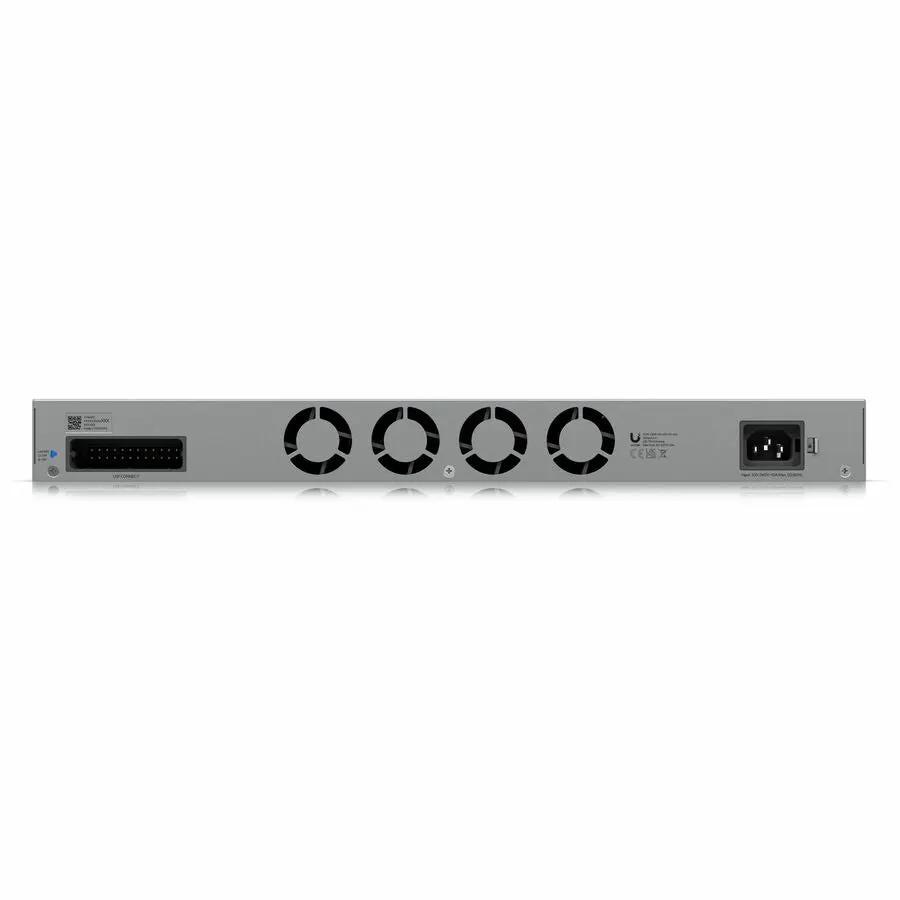

- Power Supply: Internal, 100-240V AC
- Power Consumption: 660 W
- Rack Units: 1U
- Chassis Material: SGCC steel
- Weight: 13.67 lb
