Key Features

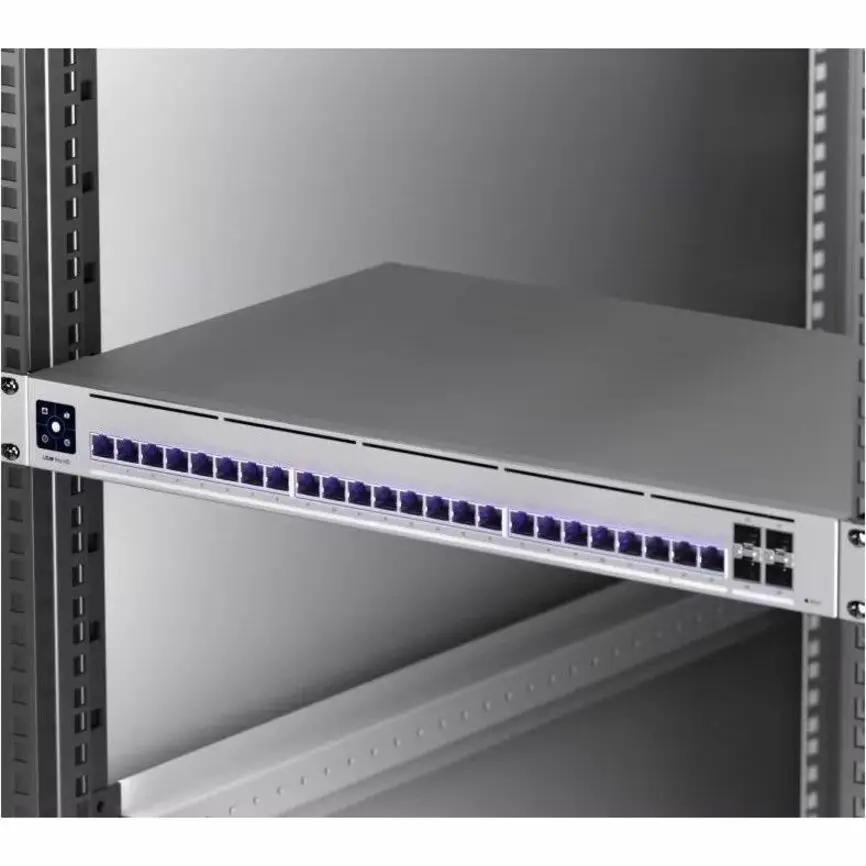

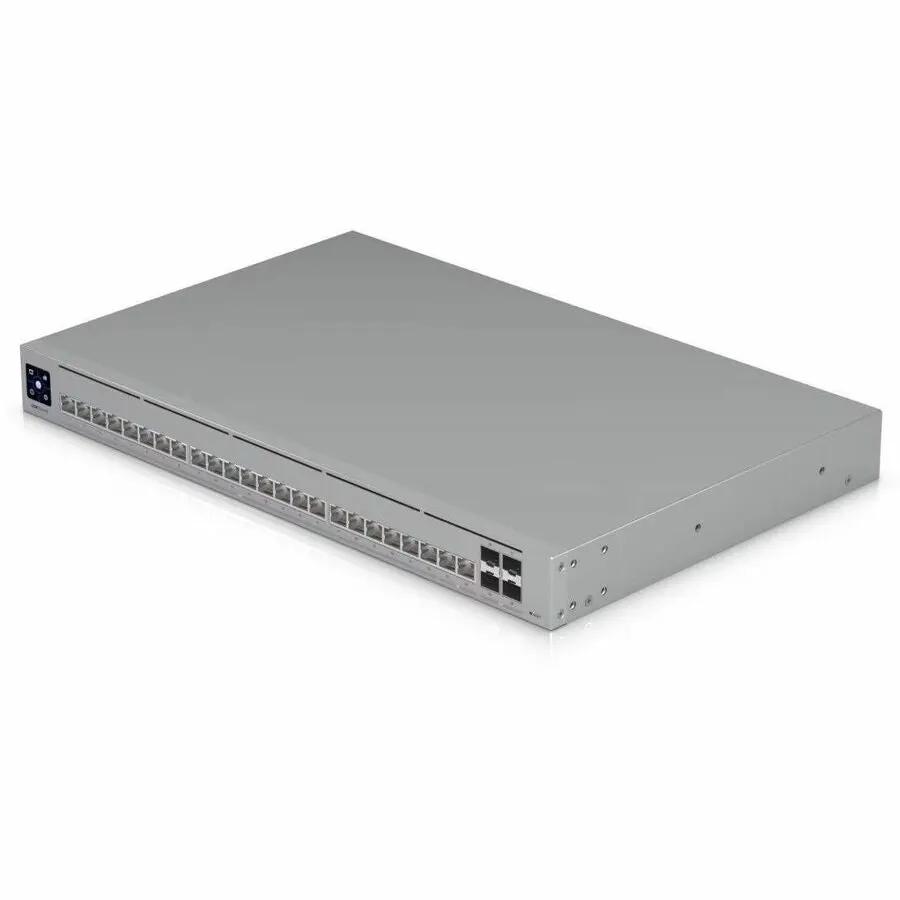

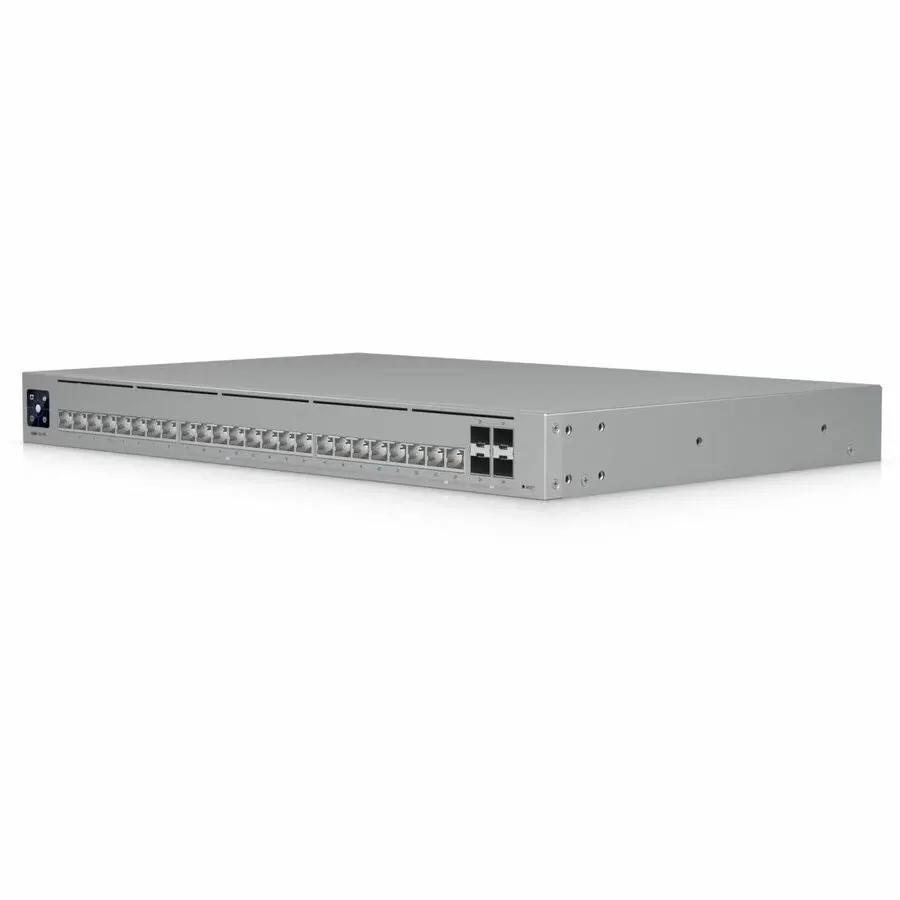

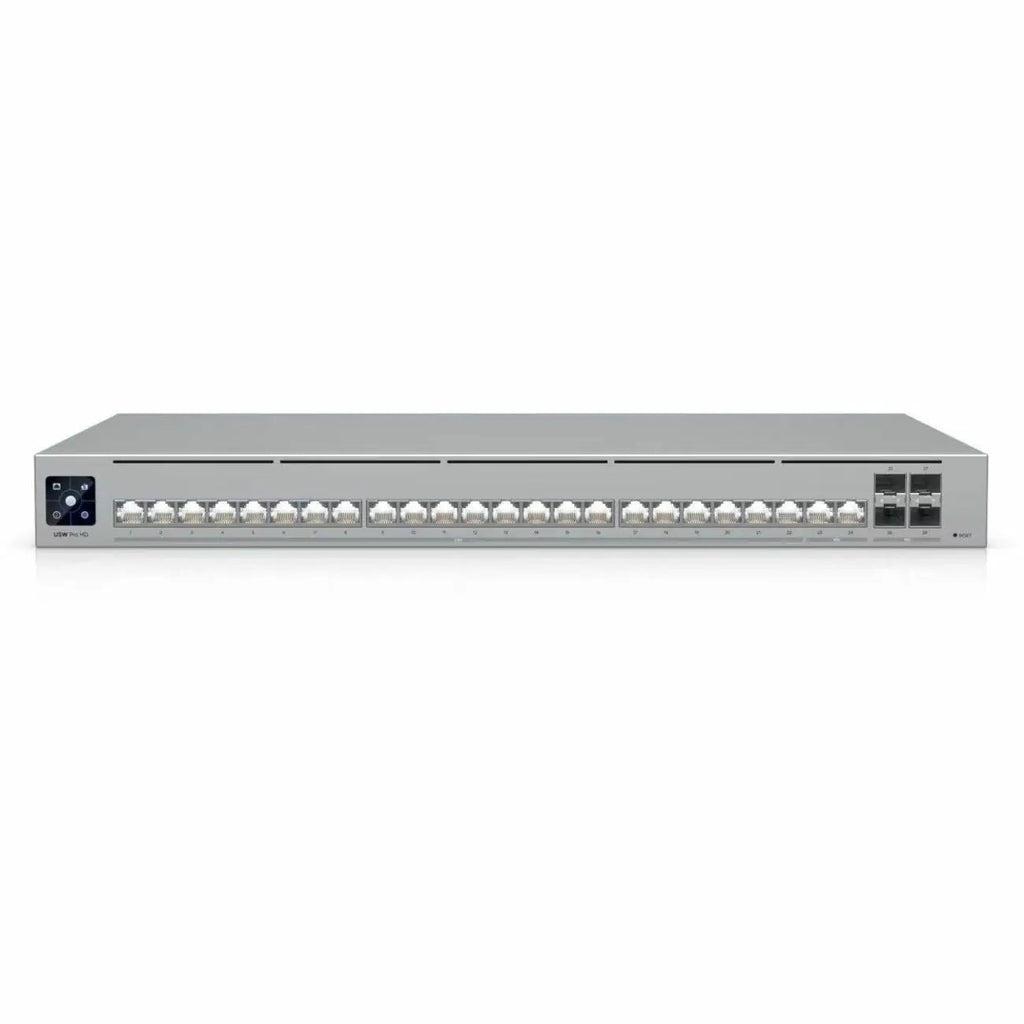

This 24-port managed switch pairs multi-gig copper access with 10G fiber uplinks for dense wiring closets. Twenty-two 2.5GbE ports and two 10GbE ports feed 230 Gbps of switching capacity, and four 10G SFP+ cages carry aggregated traffic upstream. Cloud management through the UniFi Network application adds VLAN segmentation, static routing, and loop protection.
Tech Specs

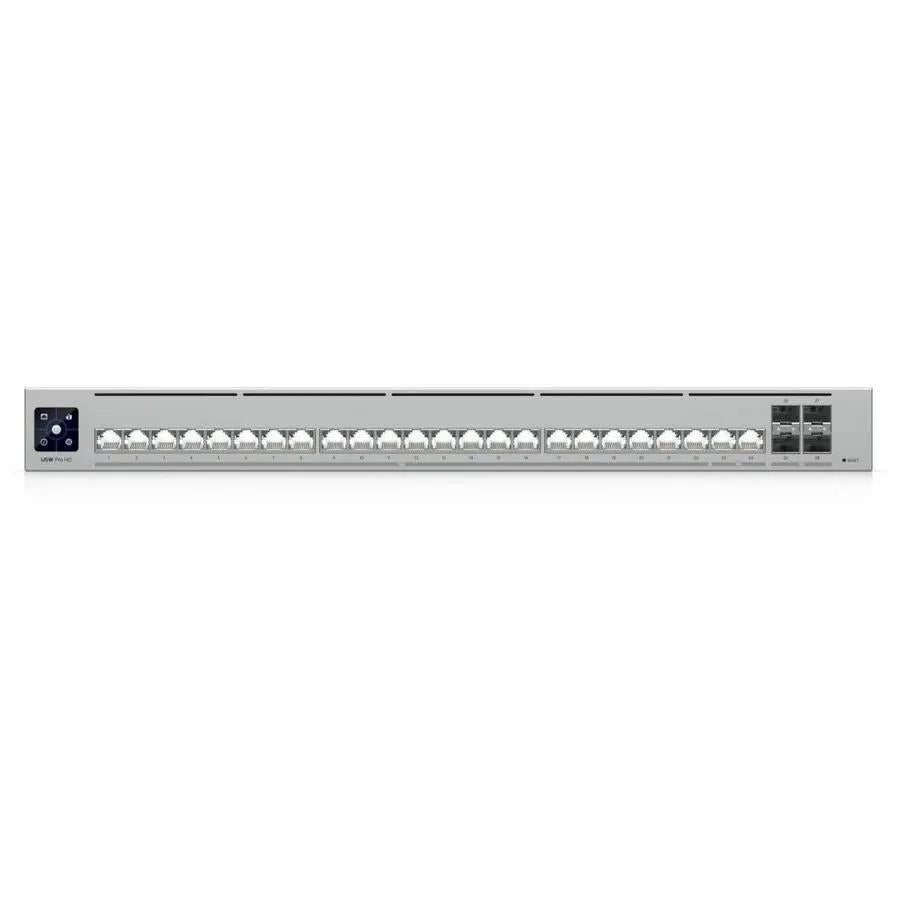

- Ports: 22 x 2.5GbE + 2 x 10GbE RJ-45
- Uplinks: 4 x 10G SFP+
- PoE: Not supported
- Switching Capacity: 230 Gbps
- Non-Blocking Throughput: 115 Gbps
- Forwarding Rate: 171.12 Mpps
- MAC Address Table: 32,000 entries
- Switching Layer: Layer 3 Lite
- Static Routing: 256 IPv4 static routes
- Inter-VLAN Routing: Supported
- Supported VLANs: 1,000
- Management: Cloud managed via the UniFi Network application
- Network Standards: IEEE 802.1x
- Loop Protection: Supported
- Port Indicators: Etherlighting LEDs

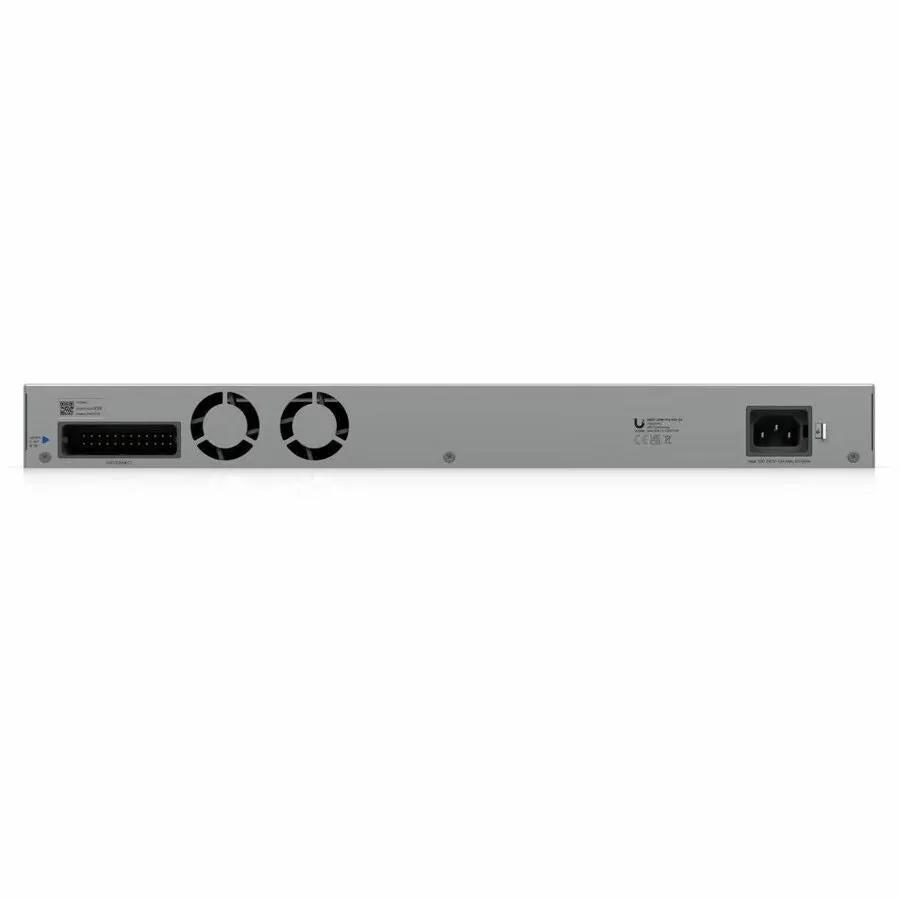

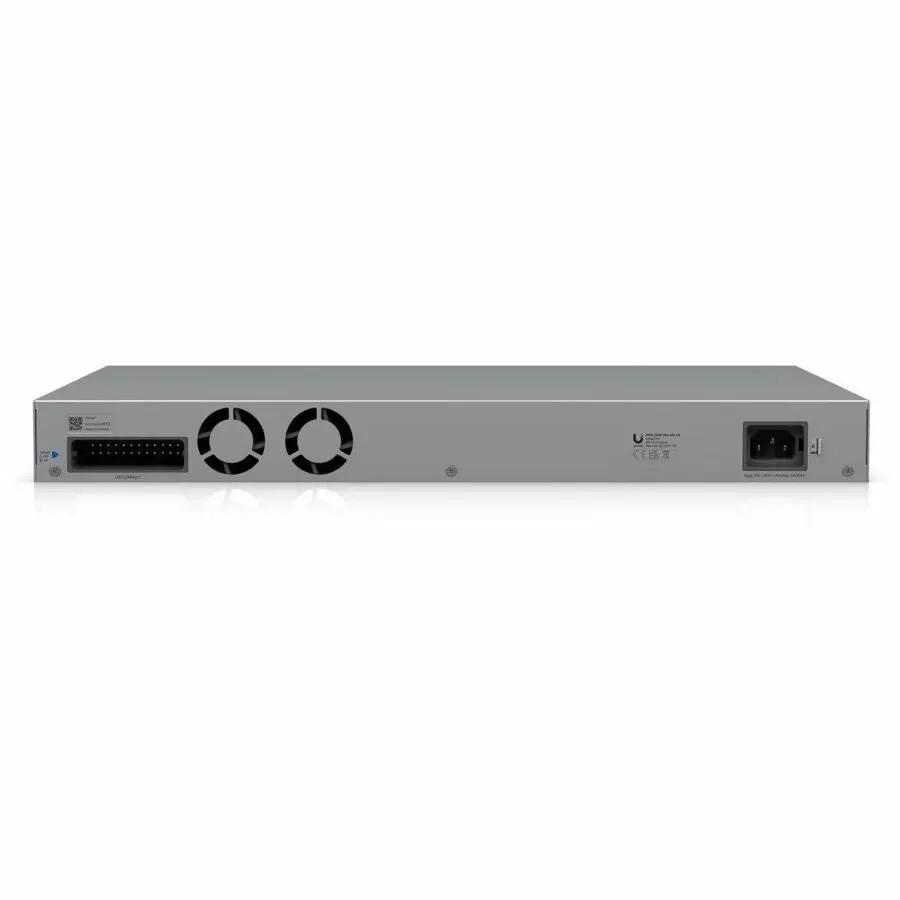

- Power Supply: Internal, 100-240V AC
- Power Consumption: 60 W

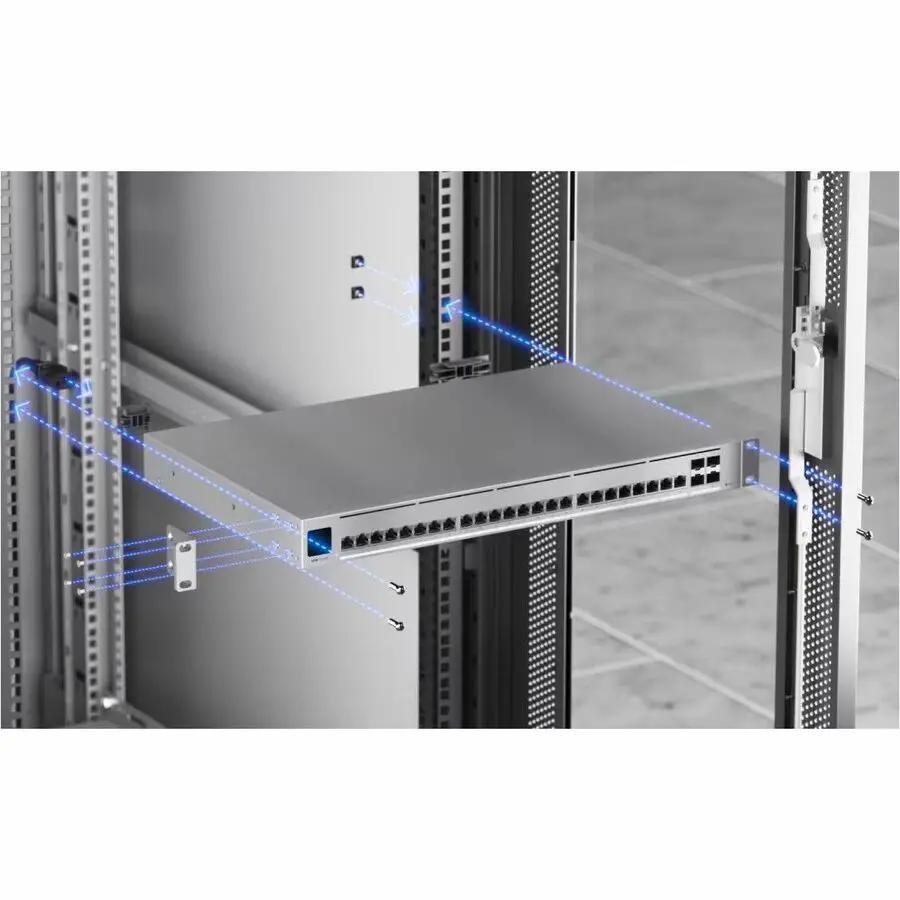

- Rack Units: 1U
- Chassis Material: Steel
- Weight: 9.20 lb
