Description

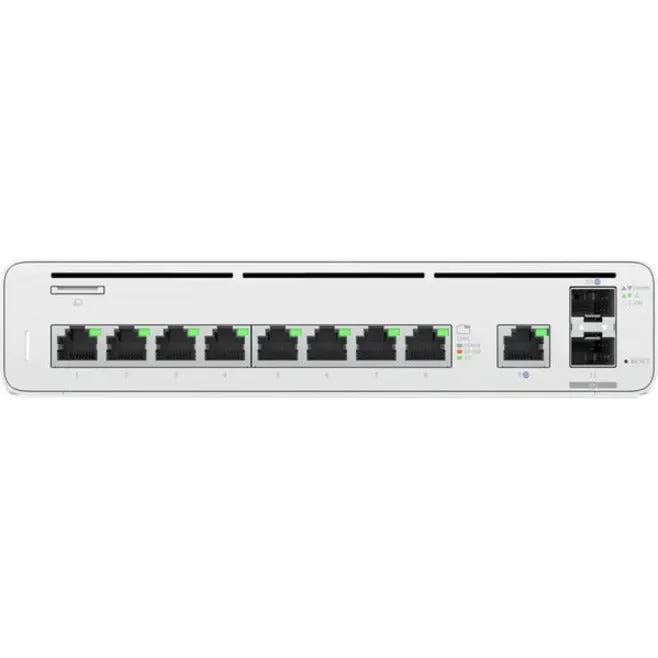

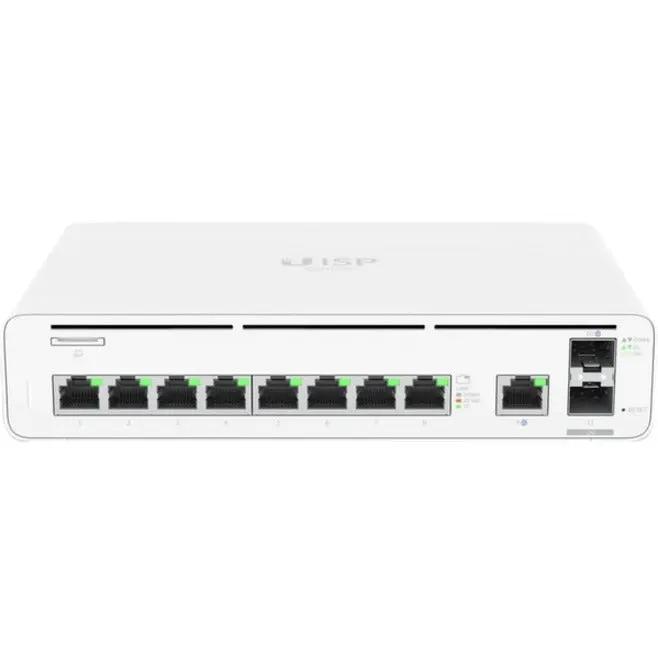

The Ubiquiti UISP Console is a compact, wired multi-gigabit Ethernet gateway with an integrated 8-port switch, built for small to mid-size UISP deployments. It combines an 8-port GbE switch, a 10G SFP+ uplink, and dual WAN options to deliver high-speed, reliable edge connectivity with up to 8,500 Mbps NAT throughput. Pre-installed UISP software and Bluetooth-enabled setup provide a streamlined, manageable foundation for edge networks and branch sites.
Tech Specs
- Device Type: Wired Ethernet gateway with integrated switch (no built-in Wi-Fi)
- LAN Ports: 8 x GbE RJ45
- SFP+ LAN: 1 x 10G SFP+
- WAN Ports: 1 x 10G SFP+ + 1 x GbE RJ45
- NAT Throughput: Up to 8,500 Mbps
- Network Standards: 10GBASE-X
- Media Type: Optical fiber (SFP+)
- Layer 2 Features: IGMP snooping, port mirroring, spanning tree
- Management: Pre-installed UISP application; Bluetooth setup via UISP Mobile app
- Form Factor: 1U rack-mountable; wall-mount kit included
- Enclosure: Polycarbonate
- Power: 30 W (typical); 24 V DC external adapter (included)
- Weight: Approx. 3.31 lb
What's in the Box
- UISP Console
- 24 V DC, 2.5 A Power Adapter
- Rack-mount kit
- Wall-mount kit
