Description

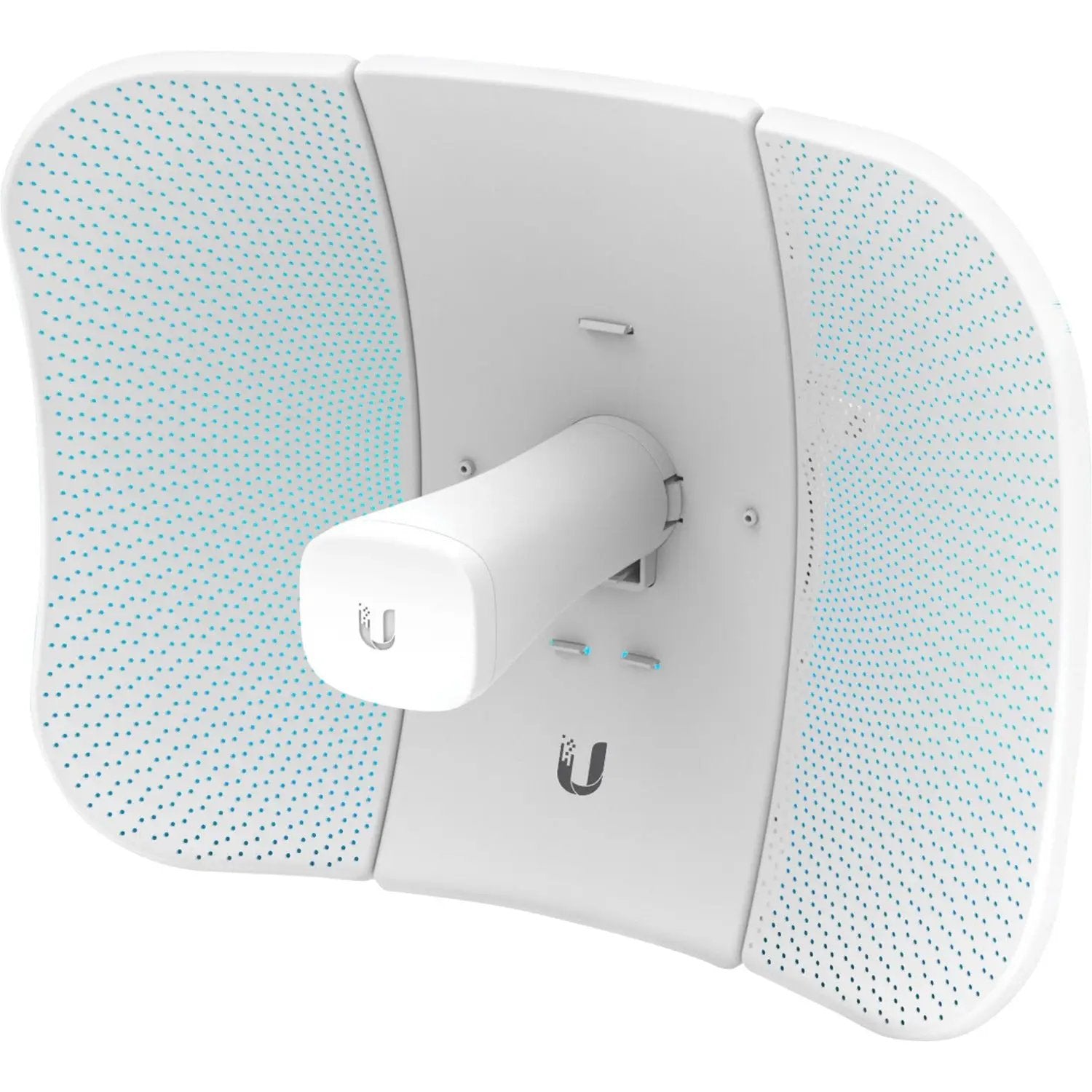

LiteBeam AC Gen2 wireless bridge delivers long-range 5 GHz point-to-point uplink in a compact, lightweight form. With a 23 dBi directional antenna and 2x2 MIMO, it provides up to 450 Mbps of wireless throughput managed by Ubiquiti's airOS 8. An integrated management Wi-Fi radio simplifies setup from a mobile device, while three-axis alignment and tool-free mounting speed outdoor deployments.
Tech Specs
- Frequency Band: 5 GHz
- Wireless Standard: IEEE 802.11ac (airMAX ac)
- Wireless Transmission Speed: 450 Mbps
- MIMO Technology: 2x2 MIMO
- Antenna Gain: 23 dBi
- Antenna Pattern: Directional
- Port Configuration: 1 x Gigabit Ethernet RJ-45
- Power/PoE: 24V, 0.3A Gigabit PoE Adapter (included)
- Power Input: 24V DC via PoE injector

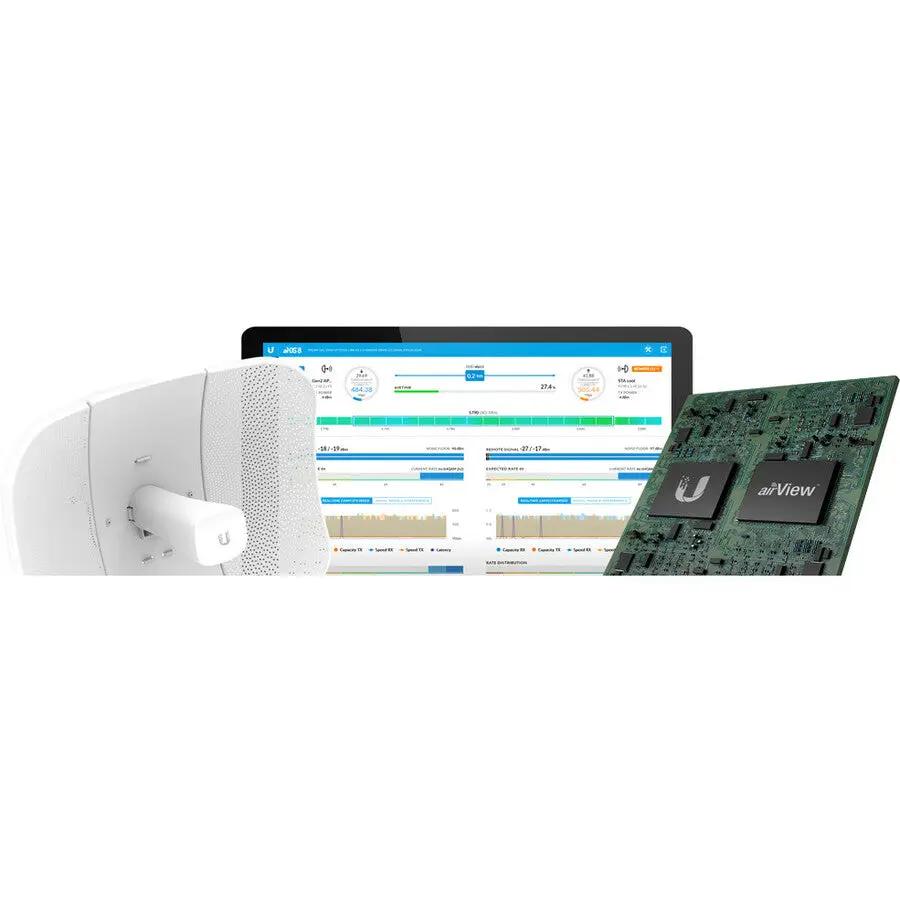

- Management / RF Analytics: airOS 8; airView

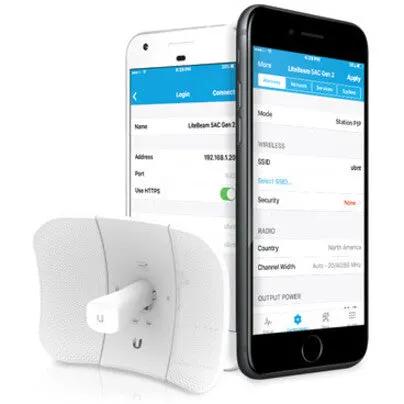

- Management Radio: Separate Wi-Fi radio for setup
- Networking Protocols: airMAX ac protocol support
- Form Factor: Pole-mountable
- Mounting: Three-axis alignment; quick, tool-free assembly; pole-mounting kit included
Warranty & Compliance
- Limited Warranty: 1 Year

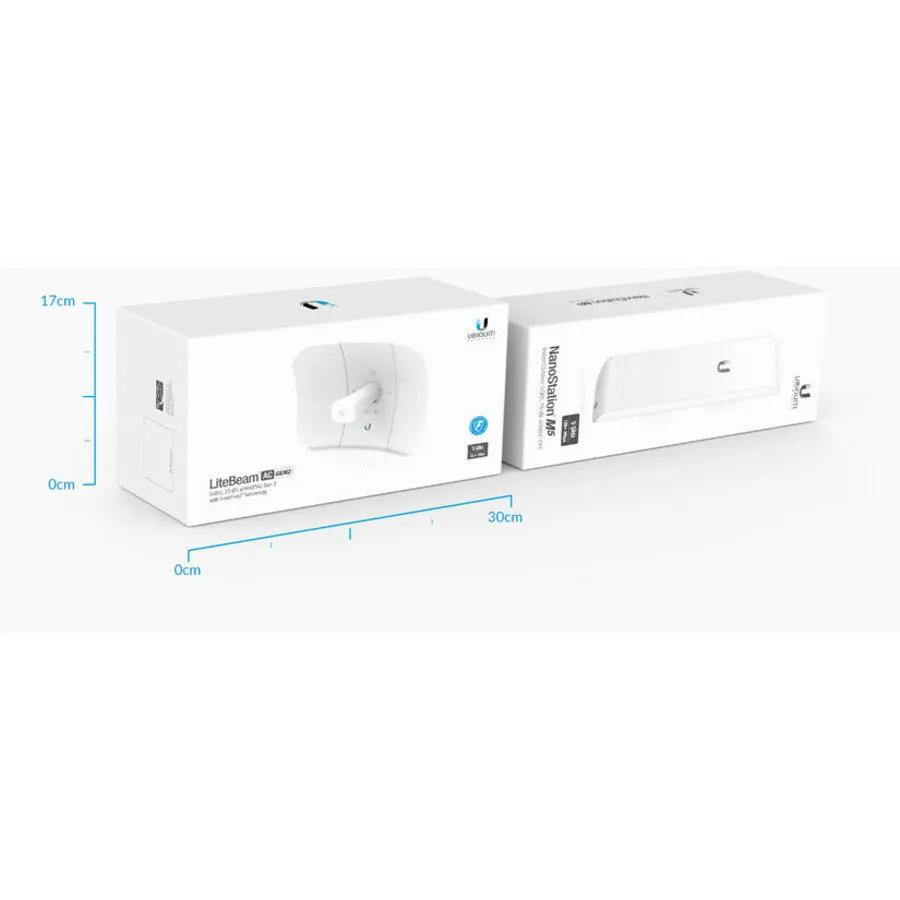

What's in the Box
- LiteBeam AC Gen2 LBE-5AC-Gen2 Wireless Bridge
- 24V, 0.3A Gigabit PoE Adapter
- Pole-Mounting Kit
