Key Features

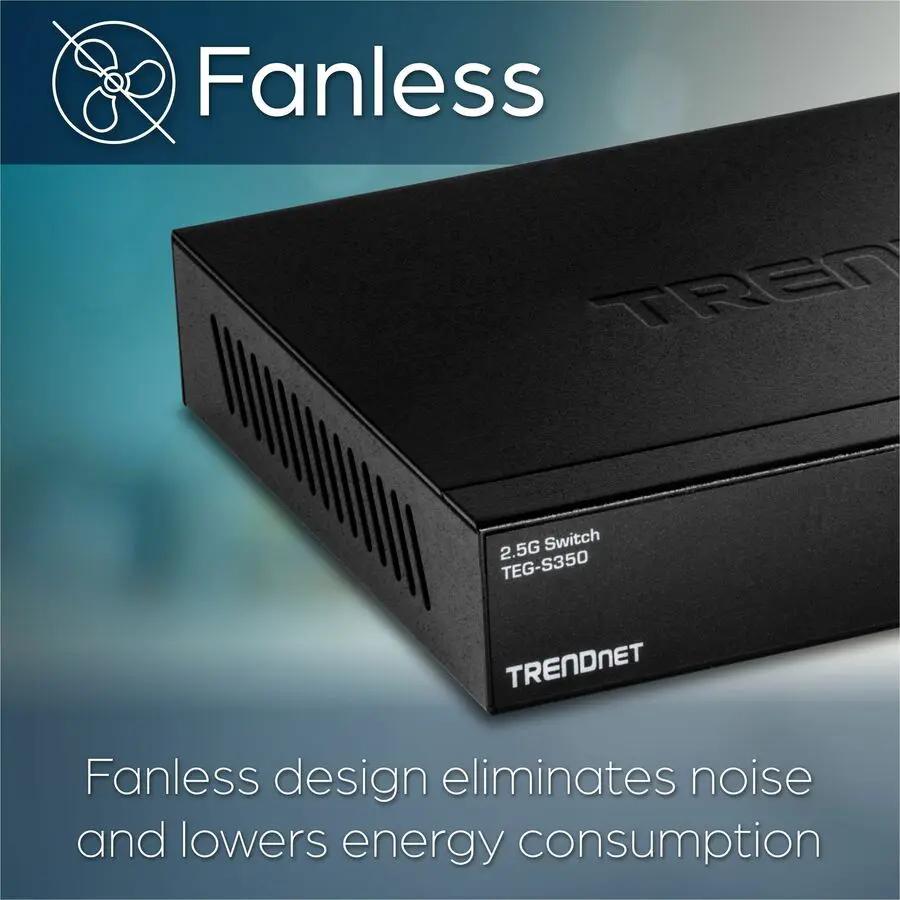

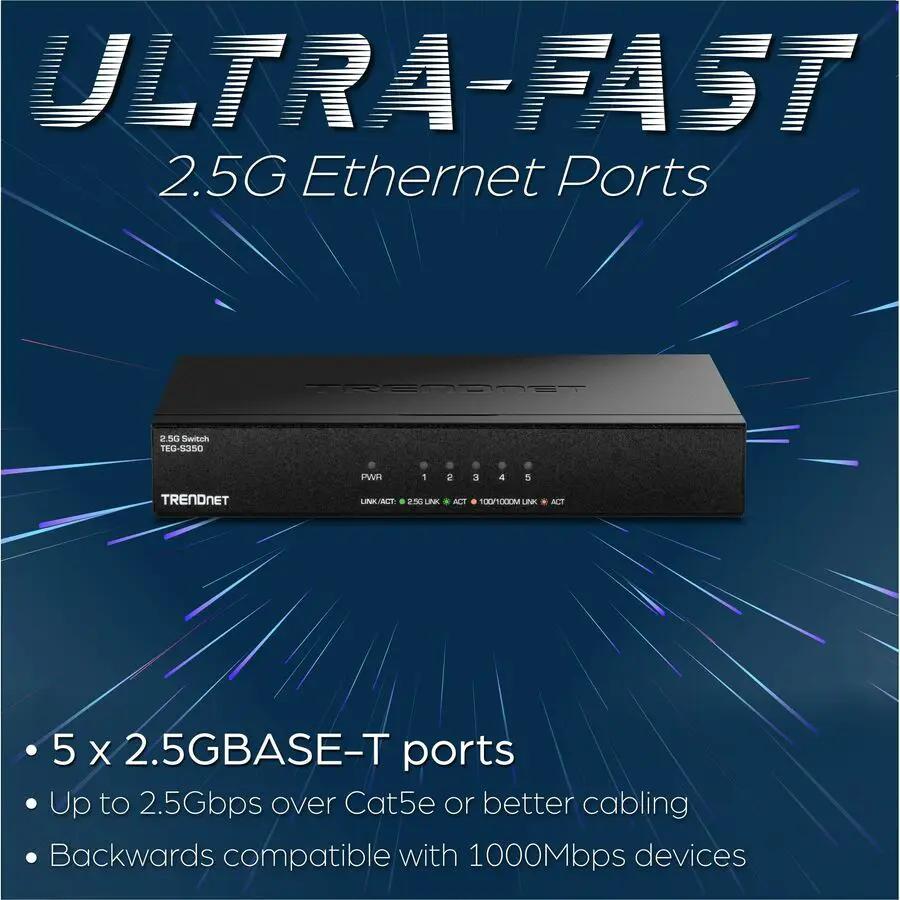

Five 2.5GBASE-T ports raise local throughput above Gigabit using the Cat5e cabling already in the wall. Each port runs up to 2.5 Gbps for a 25 Gbps switching fabric, falls back to 100 and 1000 Mbps devices, and needs no configuration. The fanless metal housing mounts to a wall and operates without noise.
Tech Specs

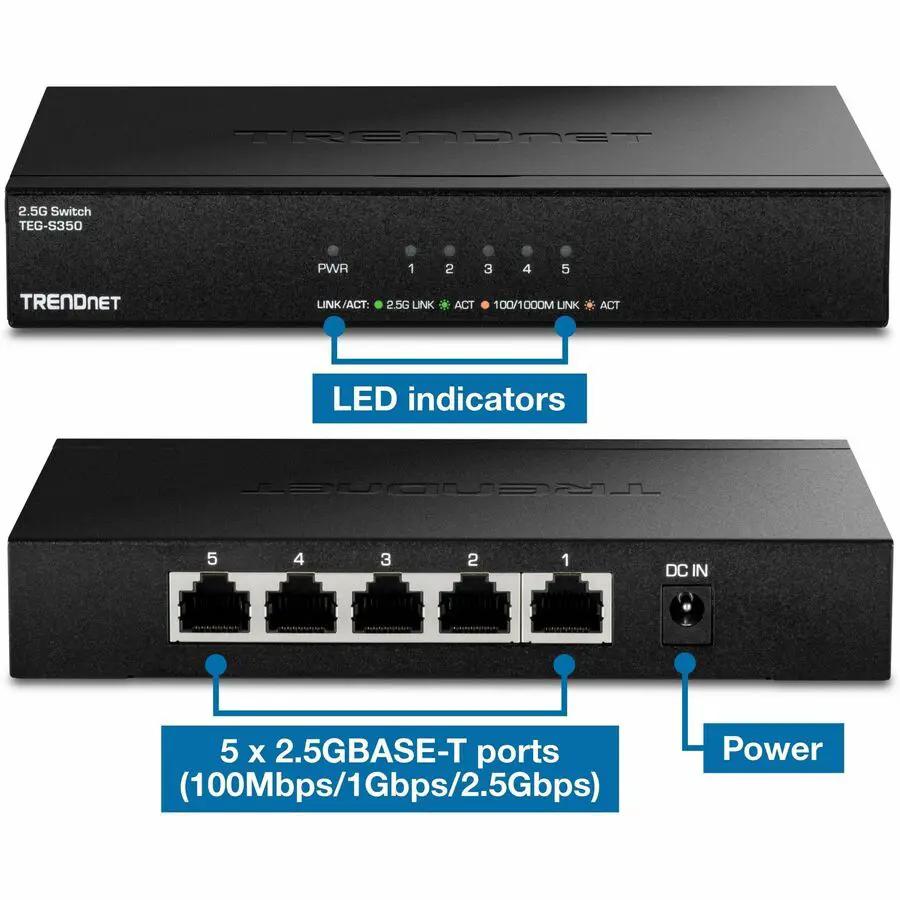

- Ports: 5 x 2.5GBASE-T (RJ-45)
- Per-Port Speed: Up to 2.5 Gbps
- Backward Compatibility: 100 and 1000 Mbps devices
- Switching Capacity: 25 Gbps
- Forwarding Rate: 18.6 Mpps
- MAC Address Table: 16K entries
- Jumbo Frames: 12KB
- Network Standard: IEEE 802.3bz 2.5GBASE-T
- Flow Control: IEEE 802.3x
- Cabling: Cat5e or better
- Management: Unmanaged
- Power Consumption: 9.5 W
- Power Input: 100-240V AC, 50/60 Hz
- Power Adapter: 12V DC, 1.5A external
- Chassis: Metal
- Cooling: Fanless

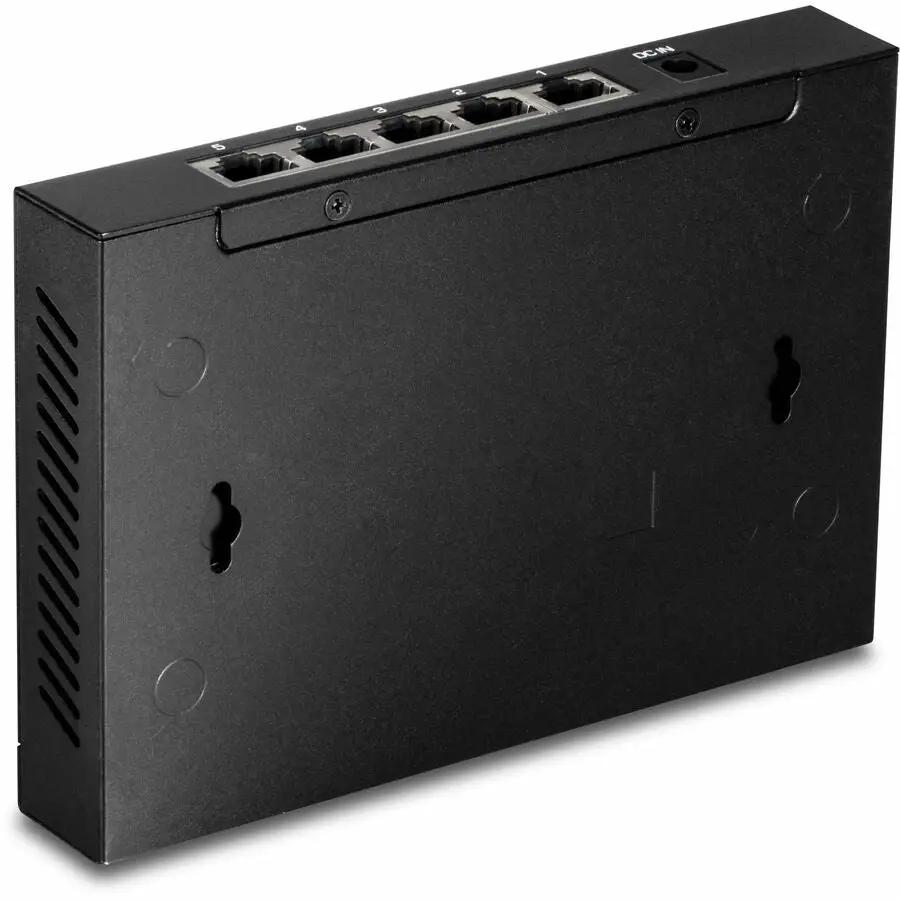

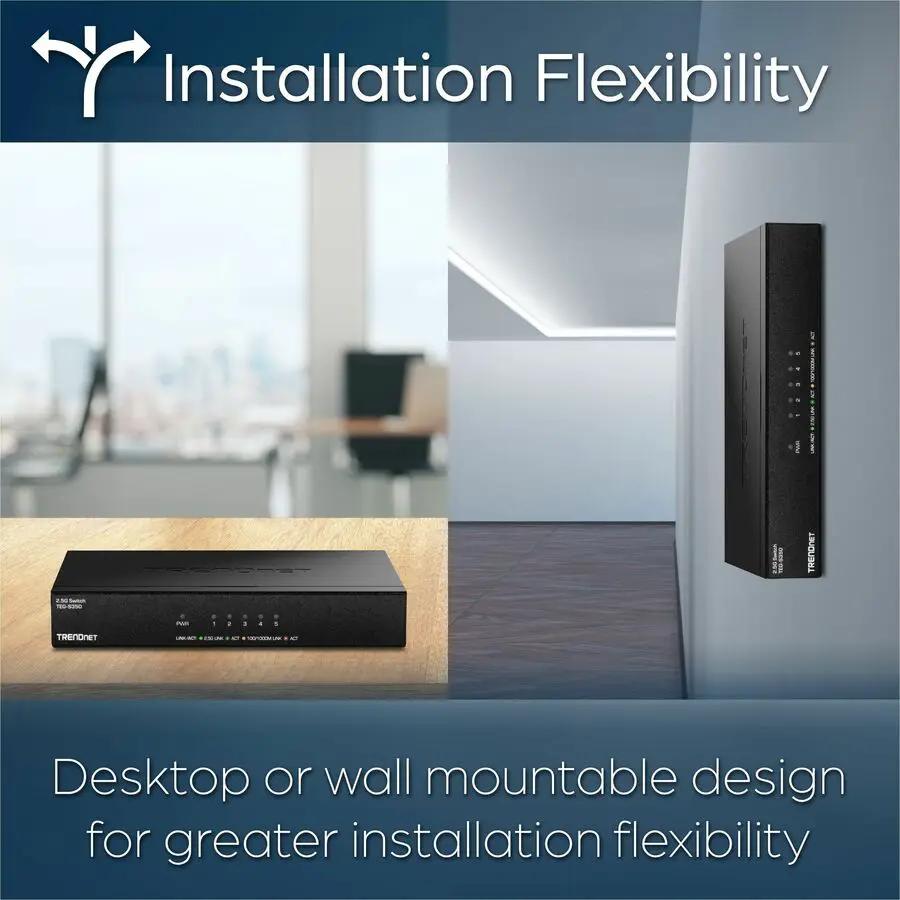

- Mounting: Wall mount
- Dimensions: 6.29 x 4.29 x 0.98 in
- Weight: 14.6 oz
Warranty & Compliance
- Lifetime limited warranty

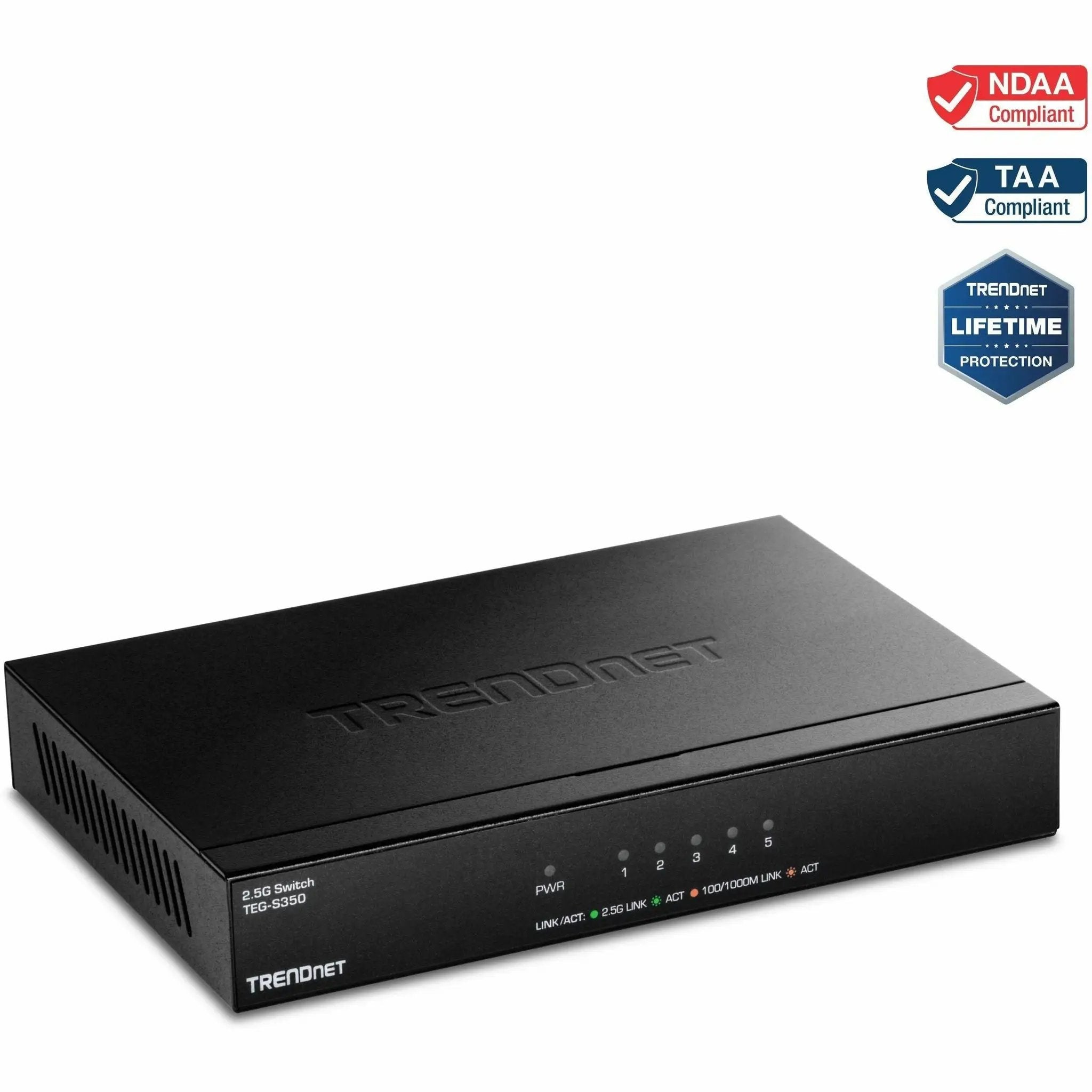

- NDAA Compliant (U.S. and Canada only)
- TAA Compliant (U.S. and Canada only)
What's in the Box
- 5-Port Unmanaged 2.5G Switch
- Quick Installation Guide
- Power adapter (12V DC, 1.5A)
