Key Features

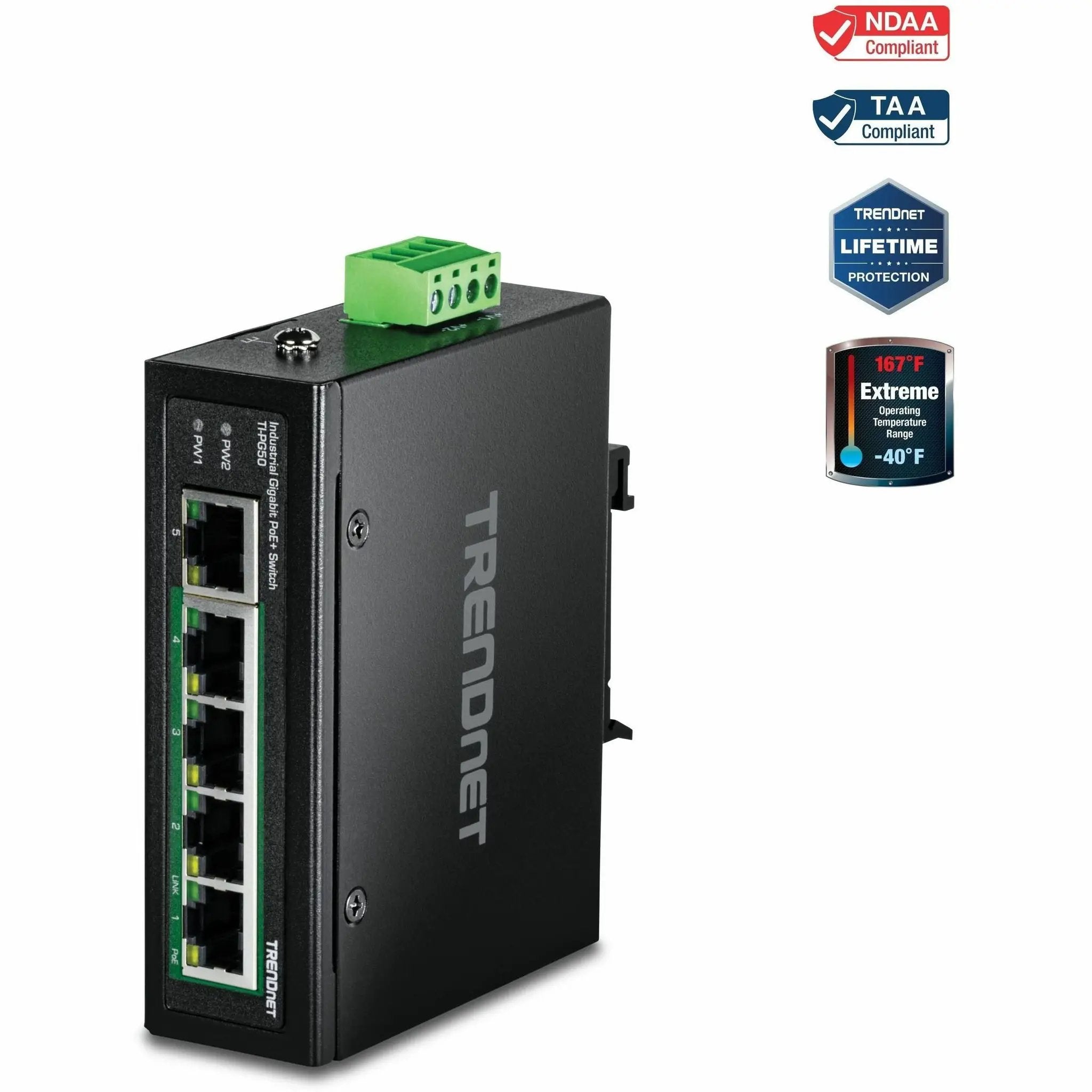

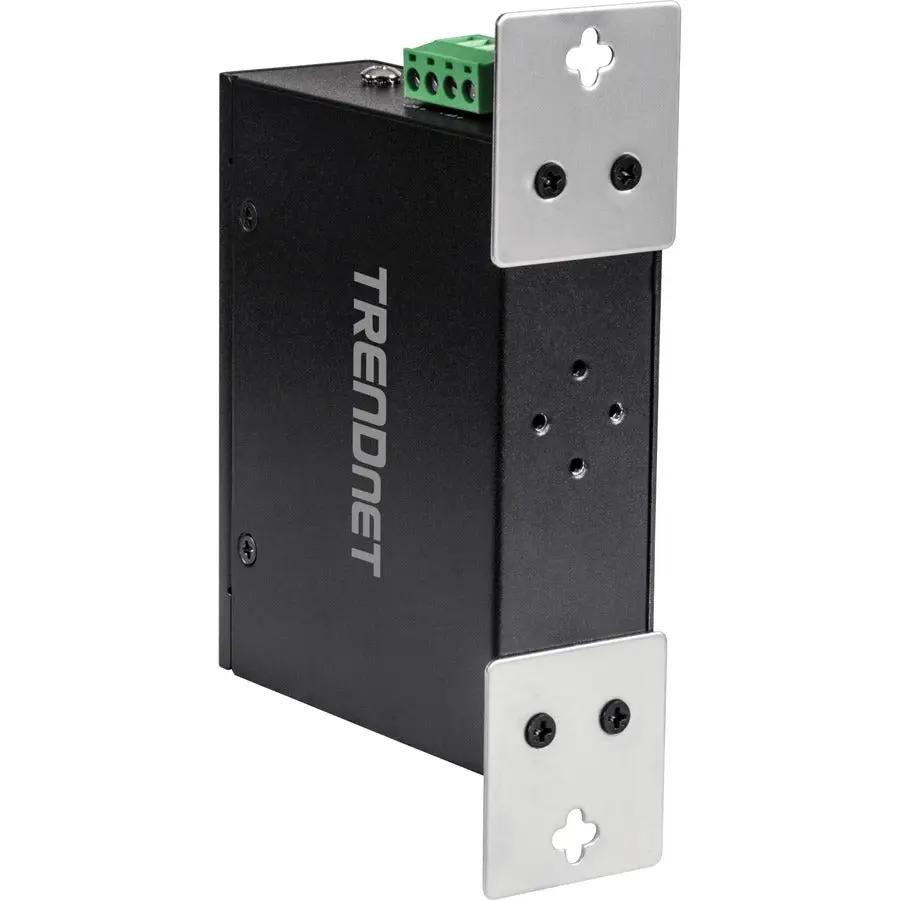

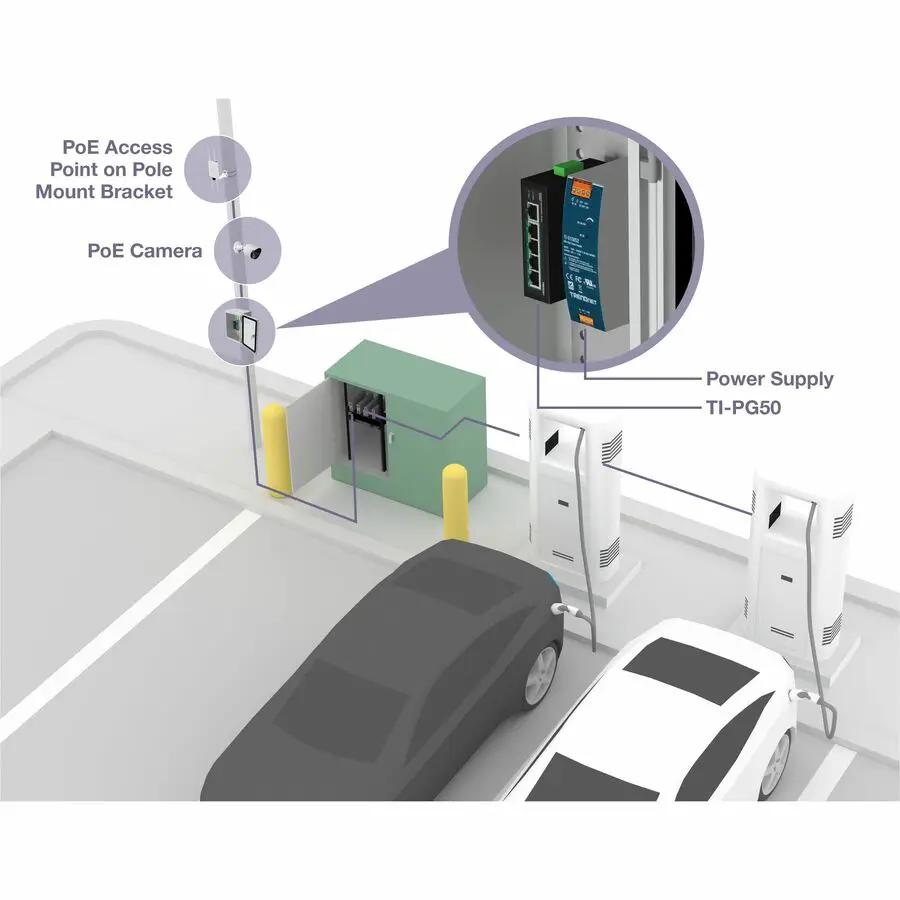

A hardened five-port Gigabit switch built for cabinets and equipment rooms rather than desks, with four PoE+ ports drawing on a budget of up to 120 W and one Gigabit port for the uplink. An IP50 metal case, a -40 to 75 C operating range, and dual redundant DC inputs with overload protection keep cameras, access points, and phones running where a commercial switch would not survive. DIN-rail and wall mount hardware ship in the box.
Tech Specs

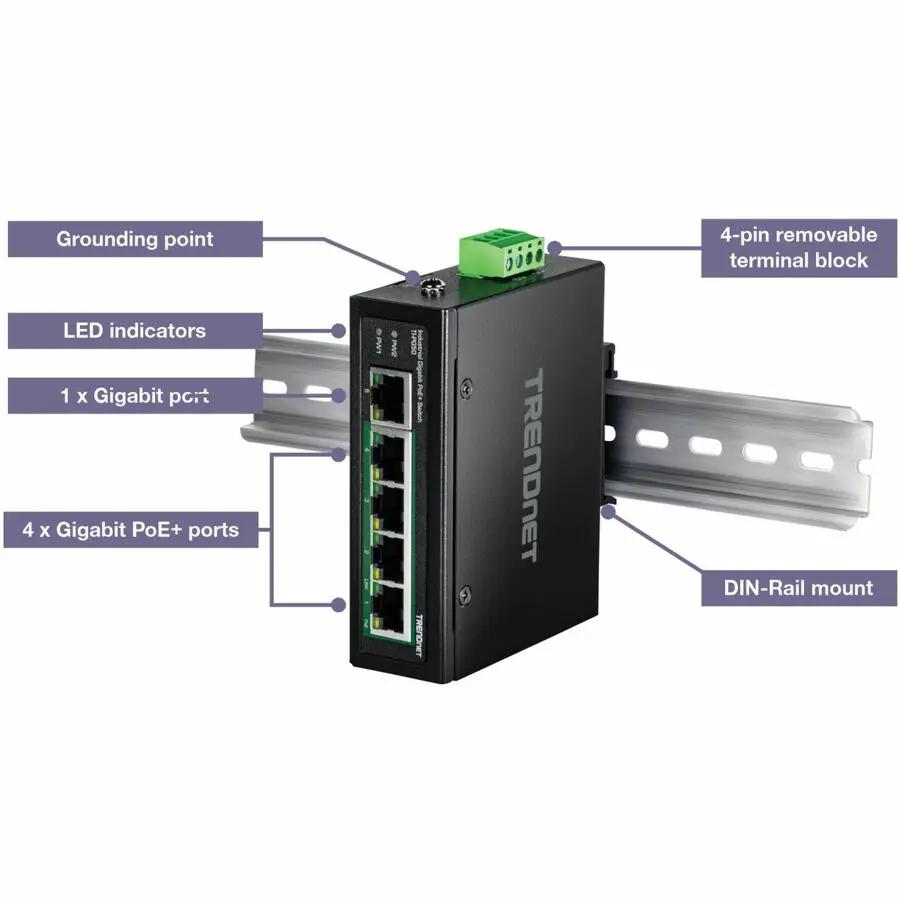

- Ports: 5 x Gigabit RJ-45
- PoE Ports: 4 x PoE+
- Non-PoE Ports: 1 x Gigabit
- PoE Budget: Up to 120 W
- PoE per Port: Up to 30 W
- PoE Standard: IEEE 802.3at
- Switching Capacity: 10 Gbps
- Forwarding Rate: 7.44 Mpps at 64-byte packets
- MAC Address Table: 2K entries
- Jumbo Frame: 9 KB
- Network Technology: Gigabit Ethernet (10/100/1000Base-T)
- Media Type: Twisted pair
- Management: Unmanaged
- Stacking: Not supported
- Enclosure: IP50 rated hardened metal
- Operating Temperature: -40 to 75 C (-40 to 167 F)
- Operating Humidity: Up to 95% non-condensing

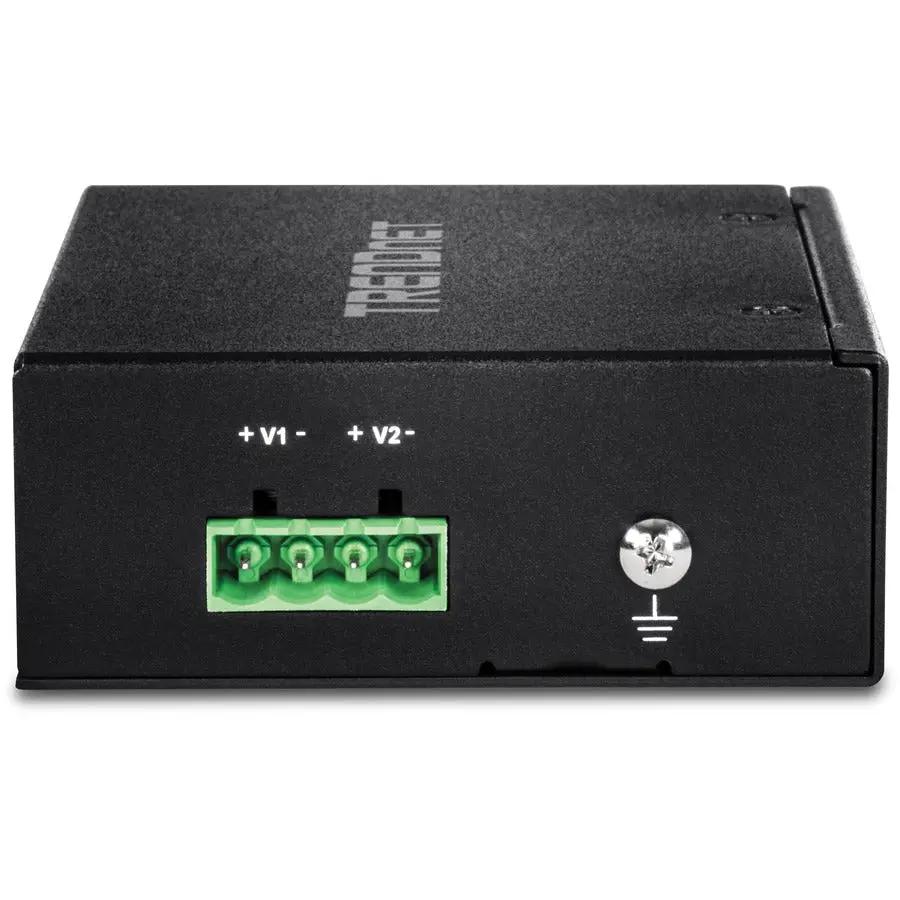

- Power Input: 48 to 56 V DC via removable 4-pin terminal block
- Power Redundancy: Dual inputs with overload current protection
- Power Supply: Sold separately, model TI-S15052
- ESD Protection: 6 kV
- Surge Protection: 2 kV power and signal (IEC 61000-4-5)
- MTBF: 83,000 hours at 25 C

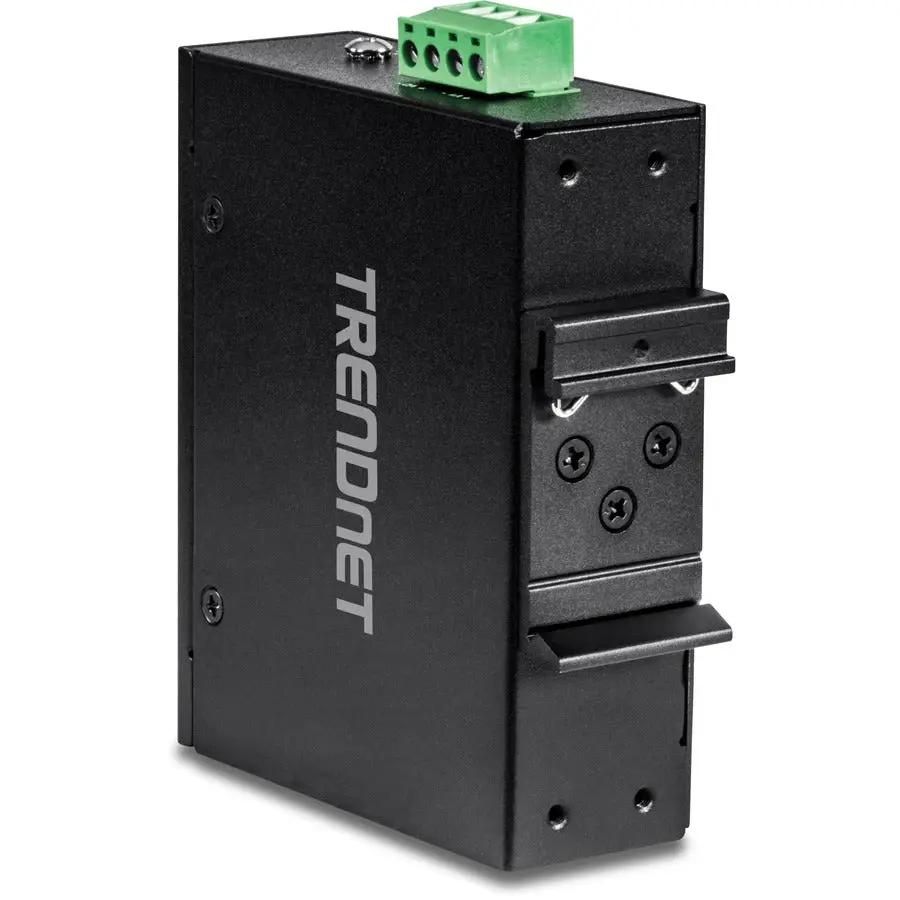

- Mounting: DIN-rail or wall
- Dimensions: 113 x 82 x 31 mm (4.4 x 3.2 x 1.2 in)
- Weight: 12.80 oz
Warranty & Compliance
- Lifetime manufacturer warranty
- NDAA compliant
- TAA compliant
- RoHS compliant
- China Environmental United Certification Center (CEC) certified
- Shock resistance (IEC 60068-2-27)
- Freefall resistance (IEC 60068-2-32)
- Vibration resistance (IEC 60068-2-6)
- EMC: IEC 61000-4-2 and IEC 61000-4-4
What's in the Box
- TI-PG50 industrial switch
- Quick installation guide
- Removable terminal block
- DIN-rail and wall mount kit
