Key Features

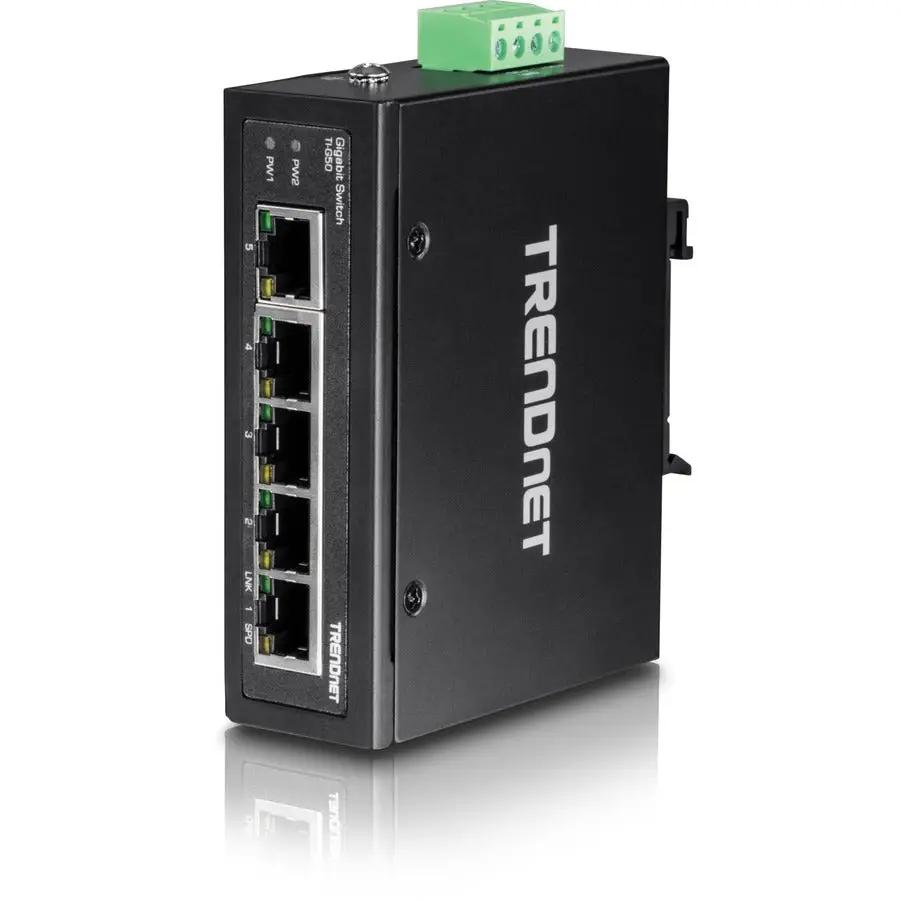

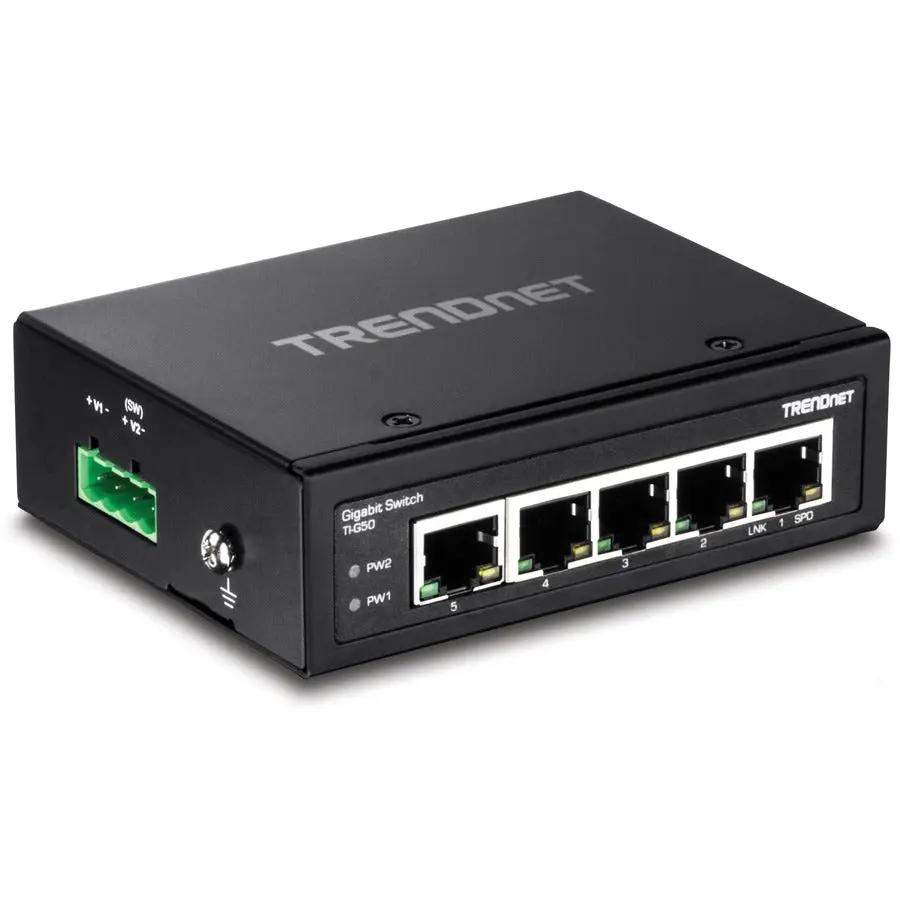

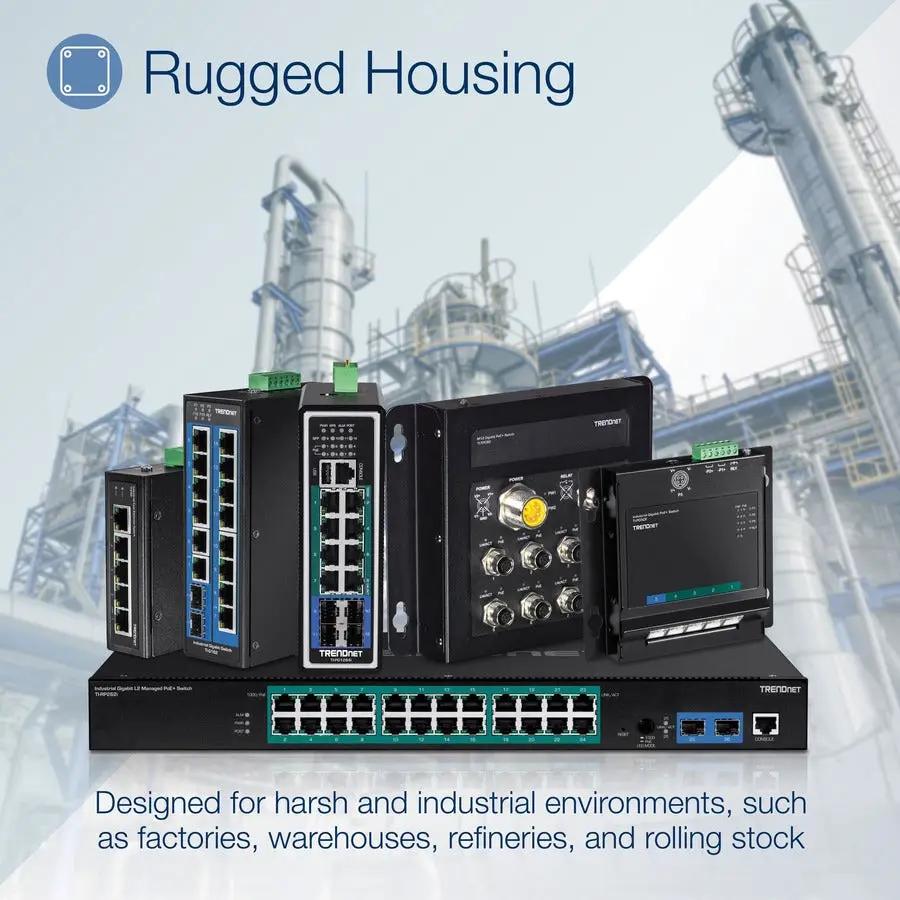

A hardened five-port Gigabit Ethernet switch for cabinets, factory floors, and roadside enclosures. An IP50 rated metal case, fanless construction, and dual redundant power inputs with overload current protection keep the link up from -40 to 75 °C, while a 10 Gbps switching fabric forwards all five ports without contention. DIN-Rail and wall-mount hardware are included, and the unit is NDAA and TAA compliant.
Tech Specs
- Ports: 5 x Gigabit Ethernet (RJ-45)
- Ethernet Technology: Gigabit Ethernet (1000Base-T)
- Switching Capacity: 10 Gbps
- Management: Unmanaged
- Flow Control: IEEE 802.3x
- Media Type: Twisted pair
- Enclosure: Hardened metal, IP50 rated
- Cooling: Fanless
- Operating Temperature: -40 to 75 °C (-40 to 167 °F)
- Power Input: 12 to 56 V DC via removable terminal block
- Power Redundancy: Dual inputs with overload current protection
- Power Supply: Sold separately, model TI-M6024

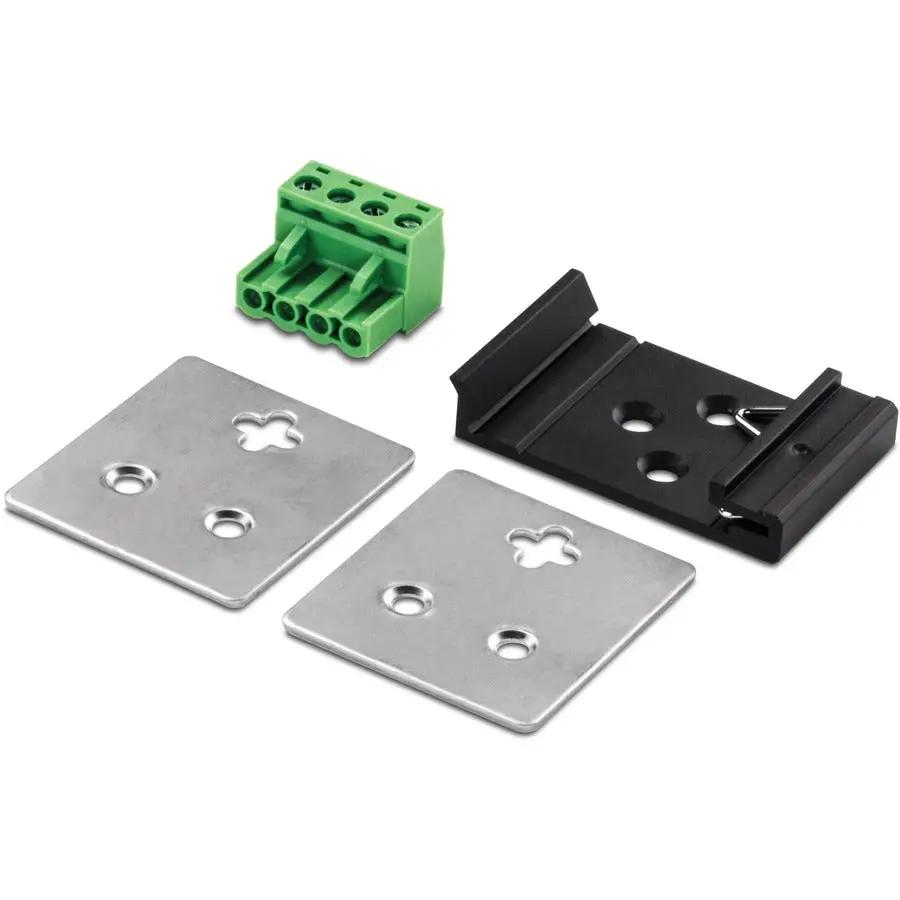

- Mounting: DIN-Rail or wall

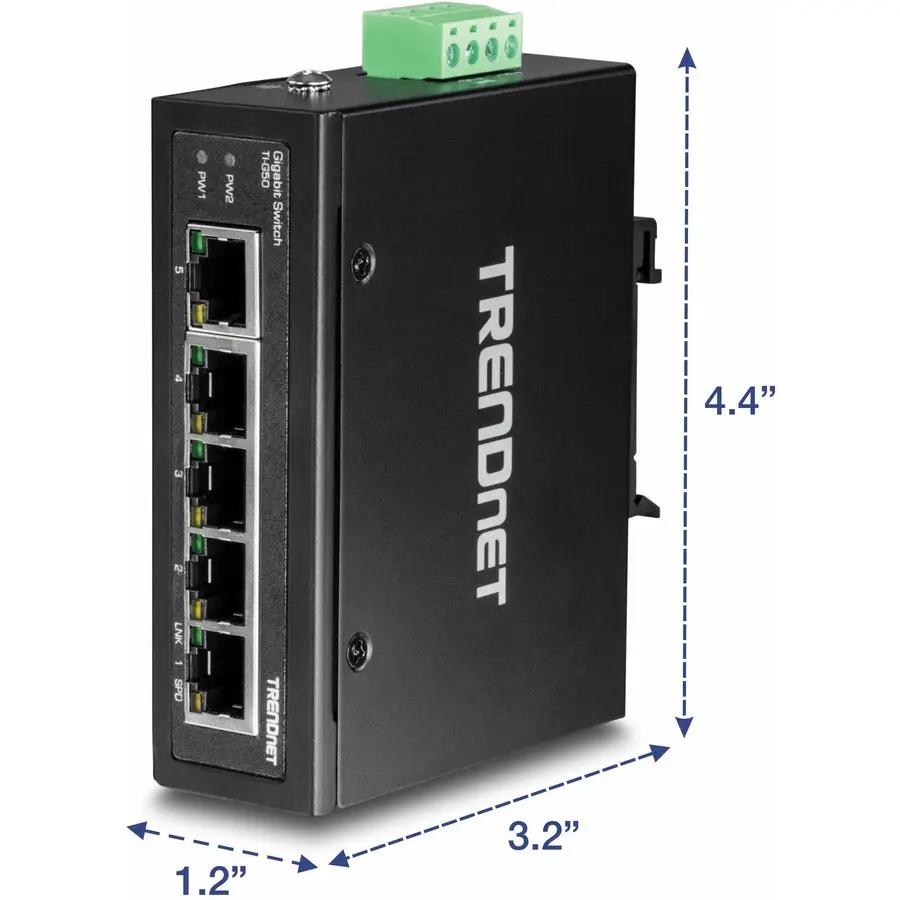

- Weight: 1.49 lb

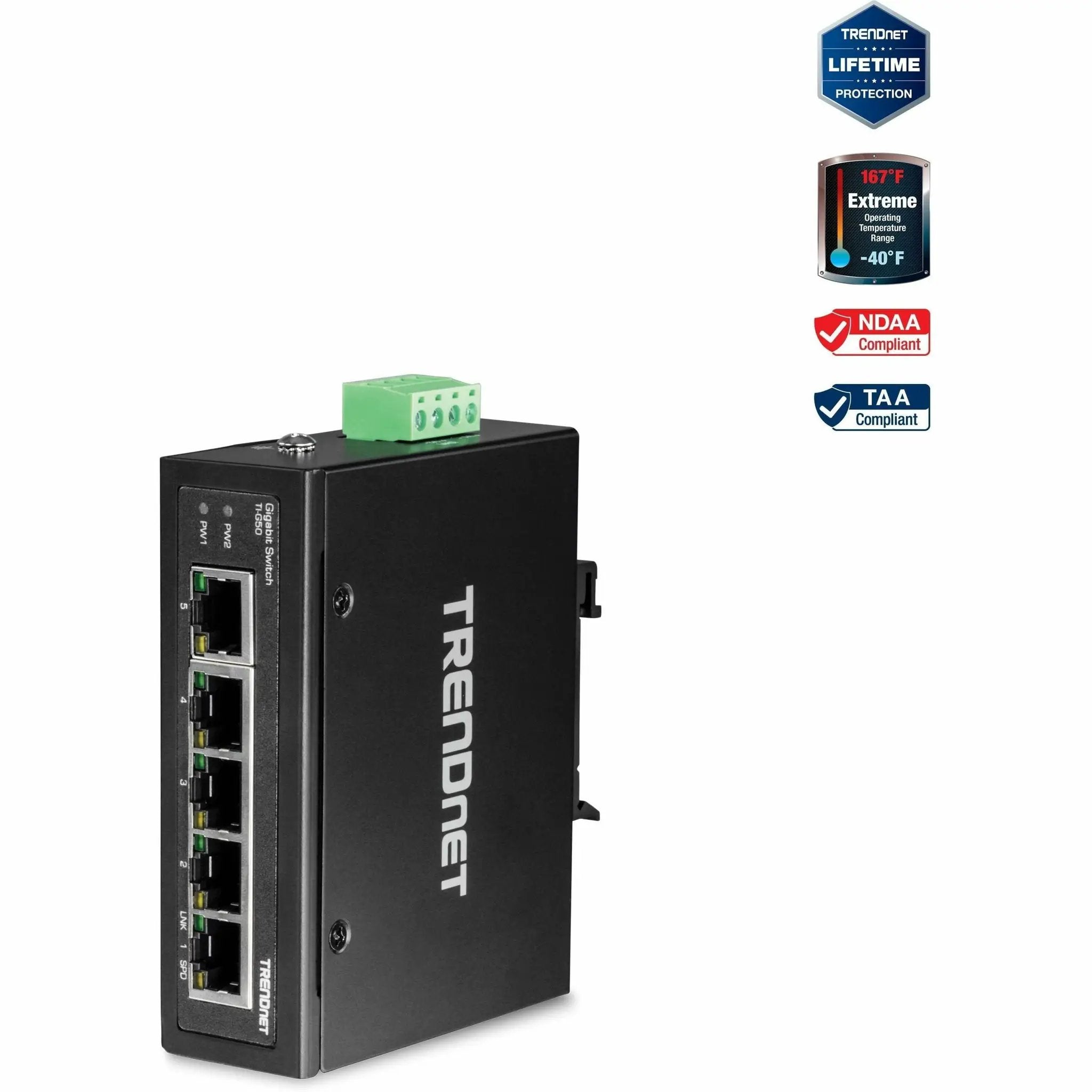

Warranty & Compliance
- Warranty: Limited lifetime
- NDAA Compliant
- TAA Compliant
