Key Features

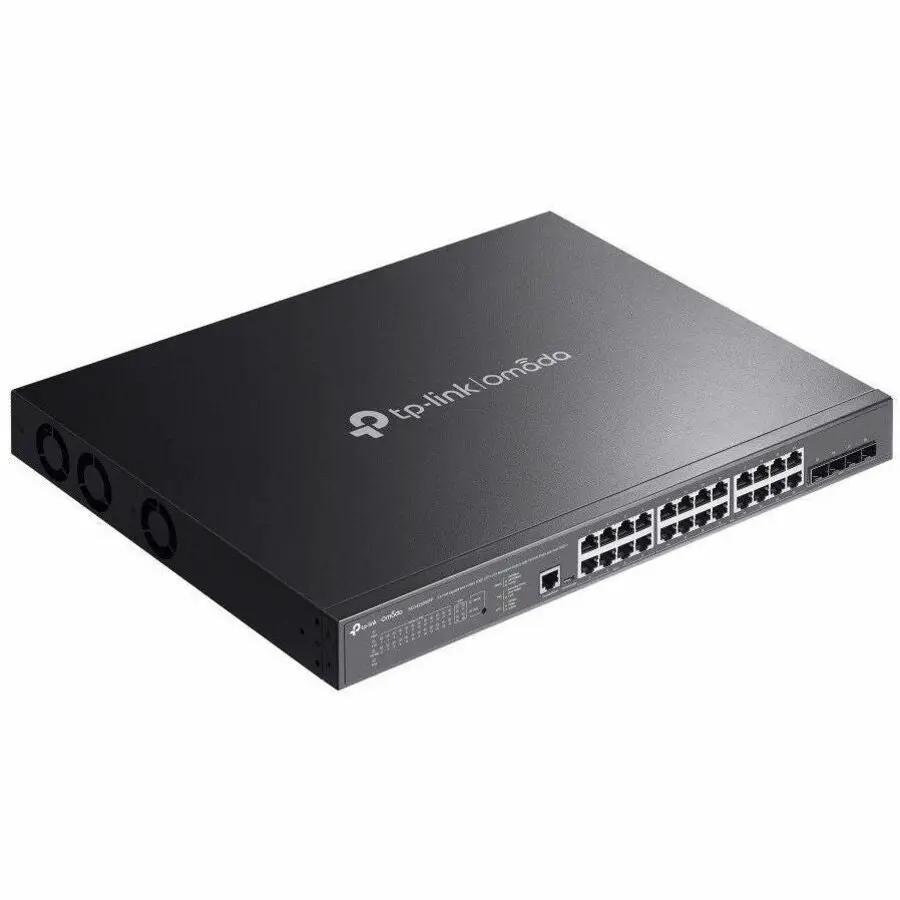

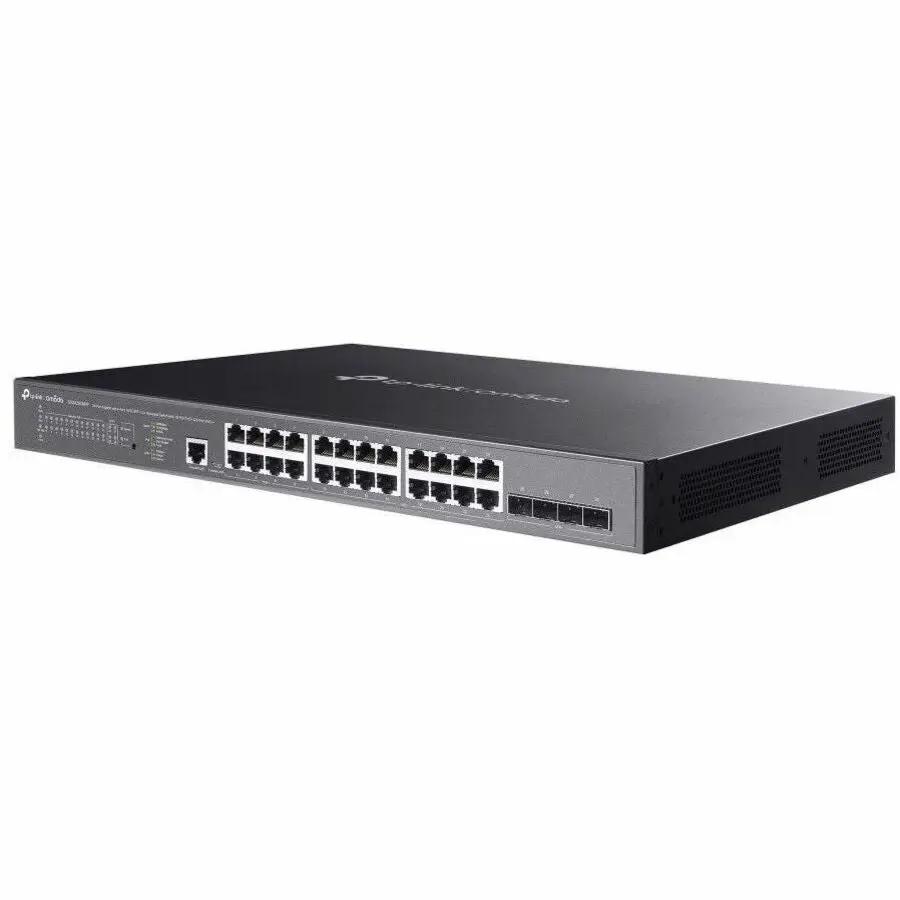

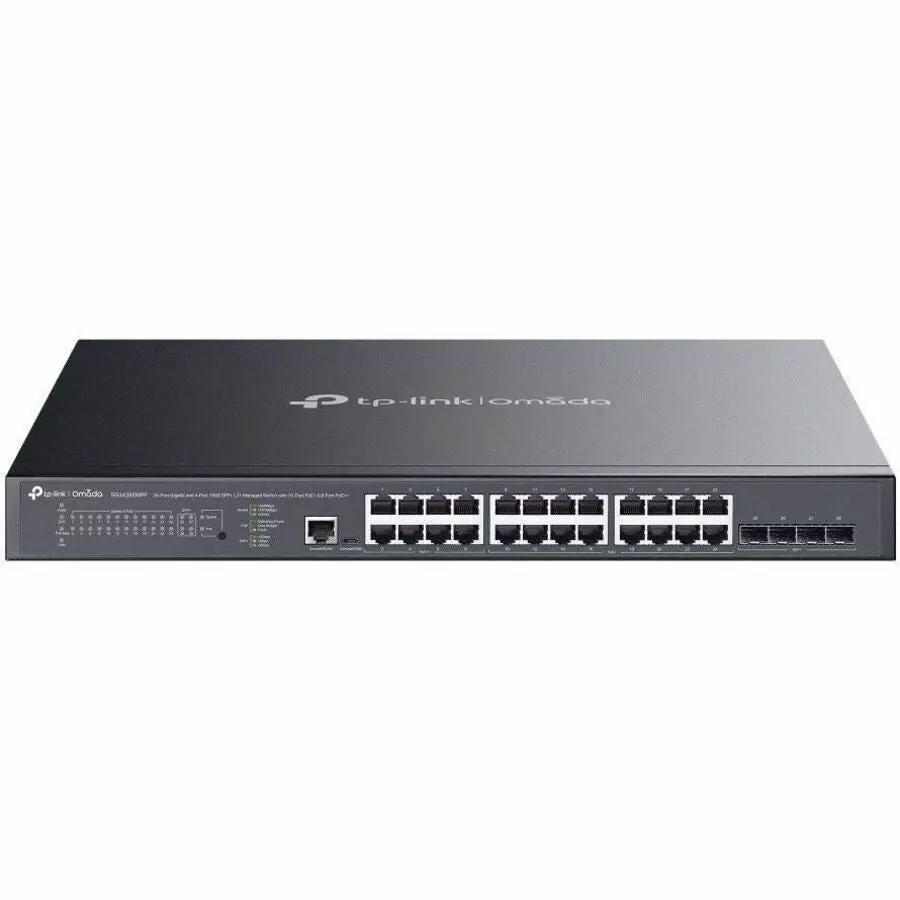

The TP-Link Omada SG3428XMPP is a 1U rack switch that pairs 24 Gigabit access ports with a 500 W PoE budget, so cameras, access points, and 90 W PoE++ devices all draw power from the same chassis. Four 10G SFP+ slots carry traffic upstream, and static routing keeps inter-VLAN traffic on the switch. It runs under the Omada cloud controller or standalone through the web GUI, CLI, SNMP, and RMON.
Tech Specs
- Port Configuration: 24 x Gigabit Ethernet RJ45
- Uplinks: 4 x 10G SFP+
- PoE++ Ports: 8 (IEEE 802.3bt)
- PoE++ Output Per Port: Up to 90 W
- PoE+ Ports: 16 (IEEE 802.3at)
- PoE+ Output Per Port: Up to 30 W
- Total PoE Budget: 500 W
- Switching Layer: Layer 2+
- Routing: Static routing, 48 IPv4 and IPv6 routes
- VLAN: 802.1Q
- Spanning Tree: STP, RSTP, and MSTP
- Link Aggregation: Supported
- Multicast: IGMP snooping
- Quality of Service: Supported
- Access Control: ACL
- Ring Protection: ERPS
- Optical Diagnostics: DDM
- Link Monitoring: OAM
- Discovery Protocol: IEEE 802.1ab LLDP
- Cloud Management: Omada SDN controller and mobile app
- Standalone Management: Web GUI, CLI, SNMP, and RMON
- Power Supply: Internal
- Maximum Power Consumption: 605.5 W
- Chassis Material: Metal
- Form Factor: 1U rack mountable
- Width: 17.3 in
