Key Features

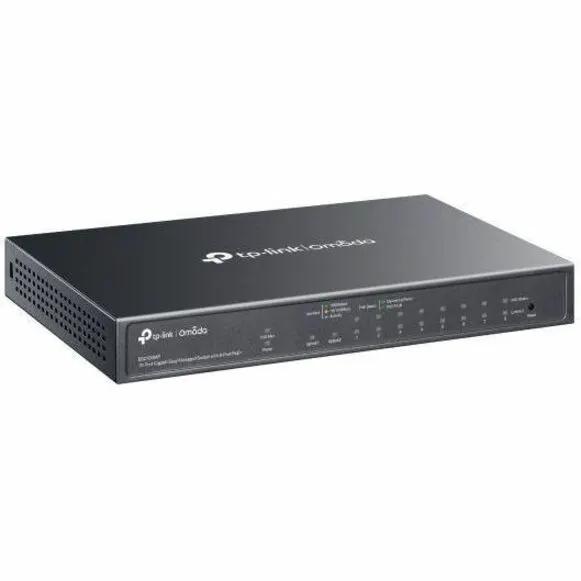

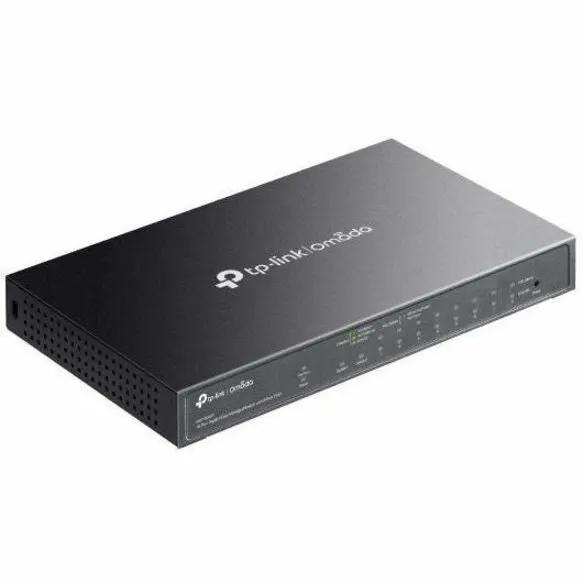

The Omada ES210GMP is a 10-port Gigabit switch built for camera and access point installs in small networks. Eight PoE+ ports share a 123W budget with up to 30W for a single device, and a combo slot takes either a Gigabit RJ-45 or an SFP uplink. The fanless metal chassis sits on a desk or mounts on a wall, and PoE Auto Recovery restarts a stalled camera without a site visit.
Tech Specs

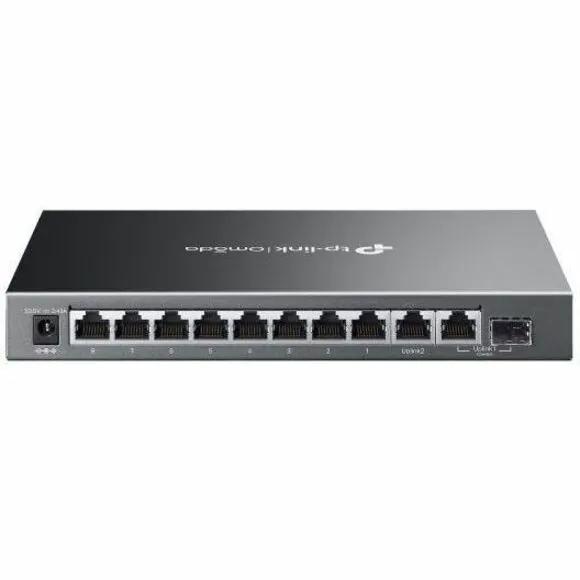

- PoE+ Ports: 8 x Gigabit RJ-45
- Standard Ports: 1 x Gigabit RJ-45
- Combo Uplink: 1 x Gigabit RJ-45 or SFP (shared)
- Total RJ-45 Ports: 10
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Budget: 123W
- PoE Per Port: Up to 30W
- Extended PoE Range: Up to 250 m
- PoE Auto Recovery: Supported
- Switching Layer: Layer 2
- Management: Centralized cloud management via web or the Omada app
- VLAN: Supported
- IGMP Snooping: Supported
- Loop Prevention: Automatic
- Port Isolation: Supported
- QoS: Supported
- Cooling: Fanless
- Housing: Metal

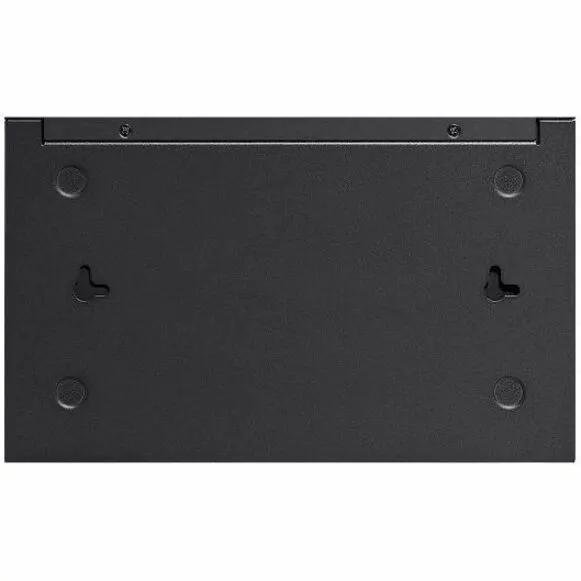

- Mounting: Desktop or wall
Warranty & Compliance
- Compliance: RoHS
