Key Features

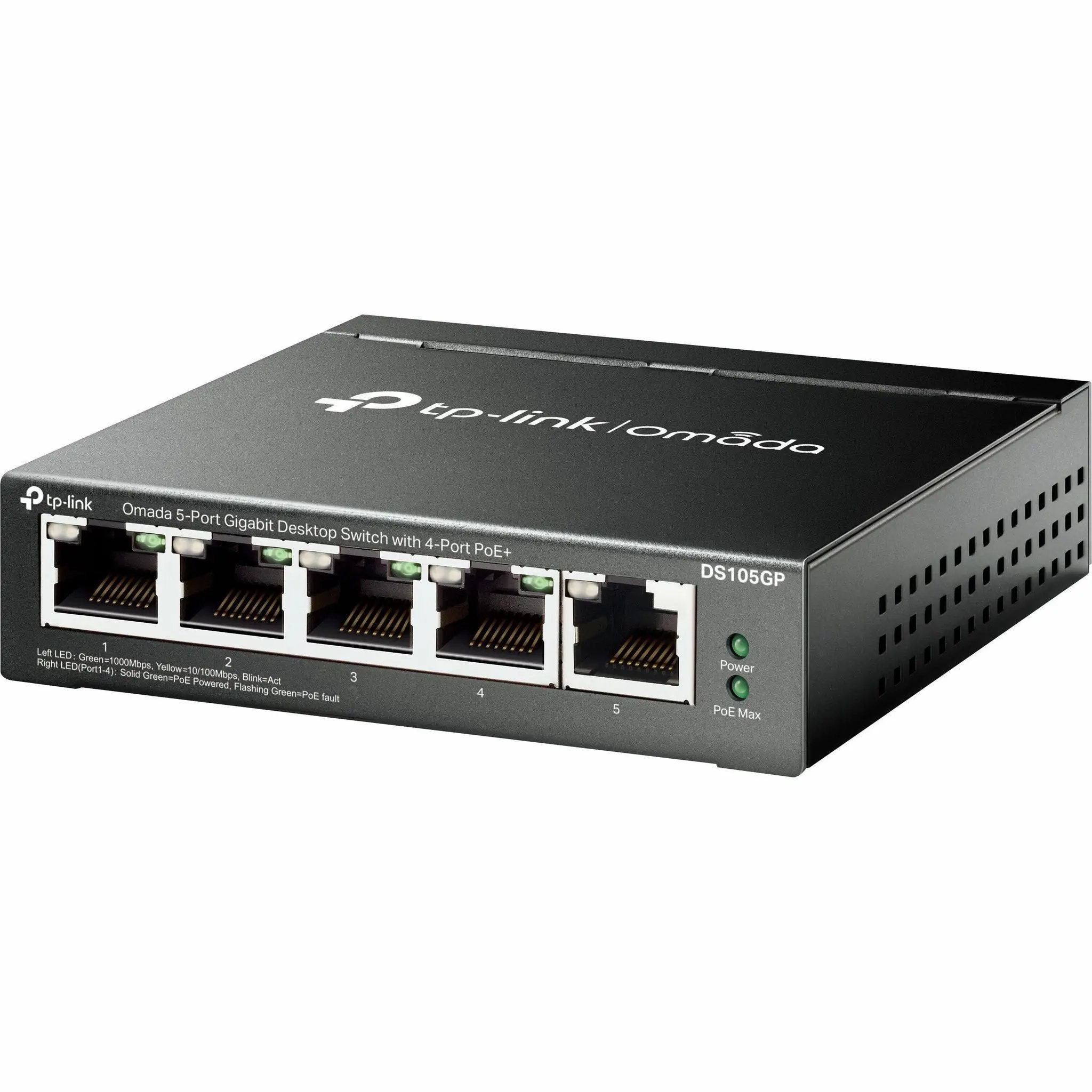

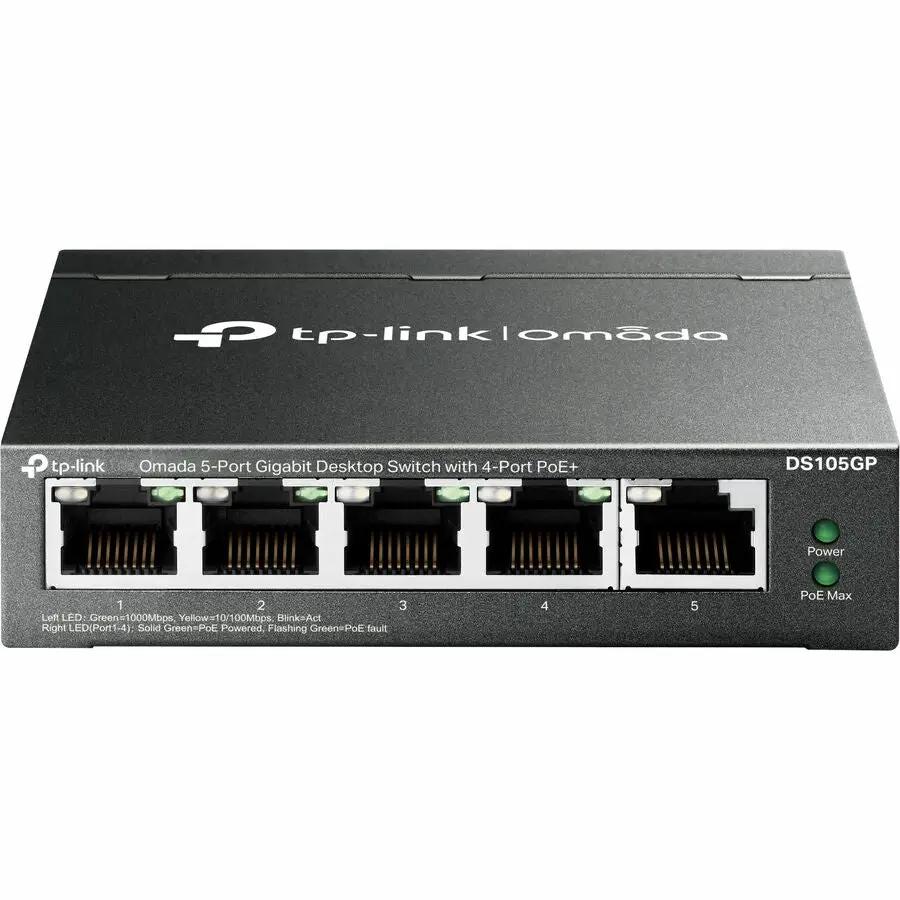

The TP-Link Omada DS105GP is a five-port Gigabit switch that carries data and power over one cable to IP cameras, wireless access points, and VoIP phones. Four PoE+ ports share a 65W budget with up to 30W available to a single device, and Extend Mode pushes power and data as far as 250 m for long camera runs. It works straight out of the box with no configuration, and PoE Auto Recovery reboots unresponsive powered devices automatically.
Tech Specs
- Ports: 5 x Gigabit RJ-45
- PoE+ Ports: 4
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Budget: 65 W
- Maximum PoE per Port: 30 W
- PoE Extend Mode Range: Up to 250 m
- PoE Auto Recovery: Supported
- QoS: 802.1p and DSCP
- Flow Control: IEEE 802.3x
- Network Technology: 1000Base-T
- Management: Unmanaged
- Switching Layer: Layer 2
- Media Supported: Twisted pair
- Chassis Material: Steel
- Mounting: Desktop or wall
- Power Source: DC
- Input Voltage: 53.5 V DC
- Power Consumption: 74.54 W
