Description

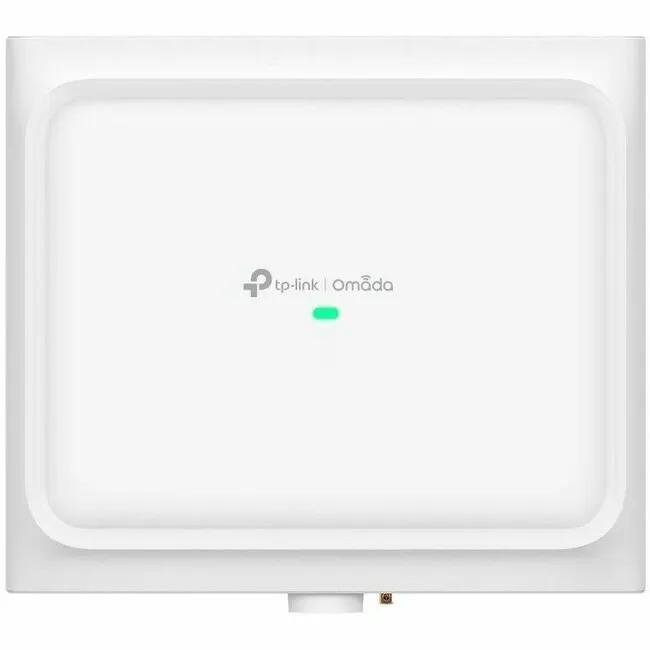

The TP-Link Omada EAP772-Outdoor is an IP68-rated omnidirectional tri-band Wi-Fi 7 access point for outdoor deployment. It delivers 2.4/5/6 GHz coverage with up to 11 Gbps aggregate speed, a 1 × 2.5 GbE PoE+ port, 6 internal antennas, and AFC-enabled 6 GHz outdoor access, managed via Omada SDN.
Tech Specs
- Form Factor: Pole-mountable

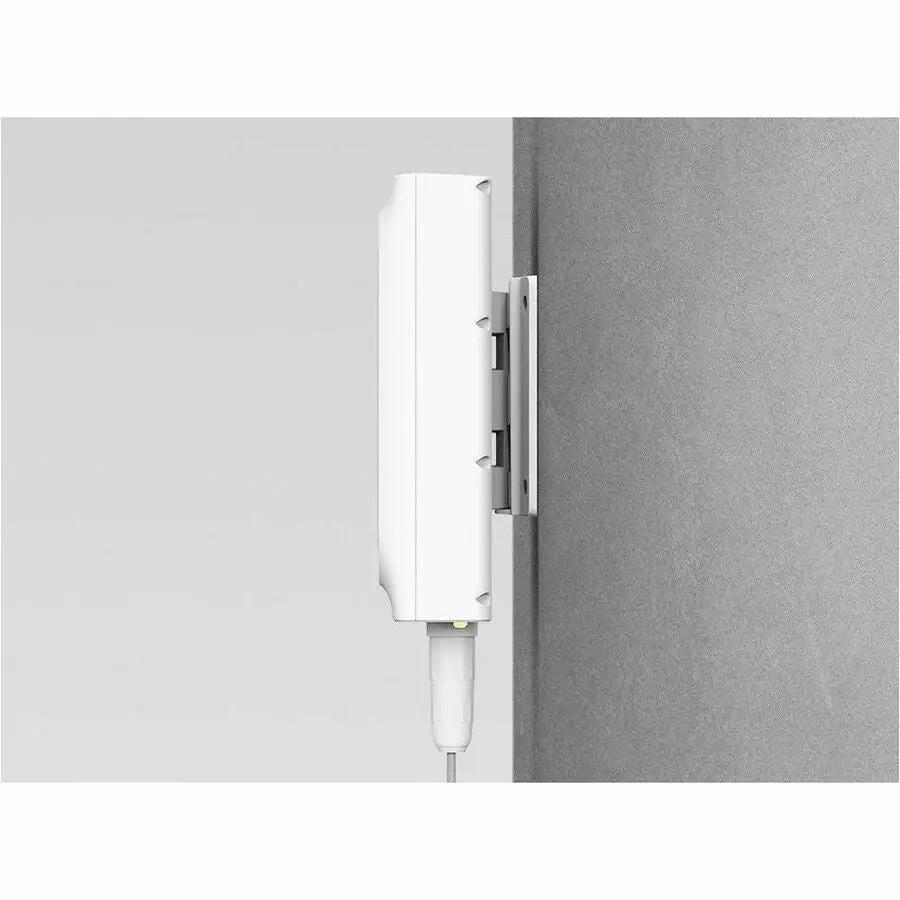

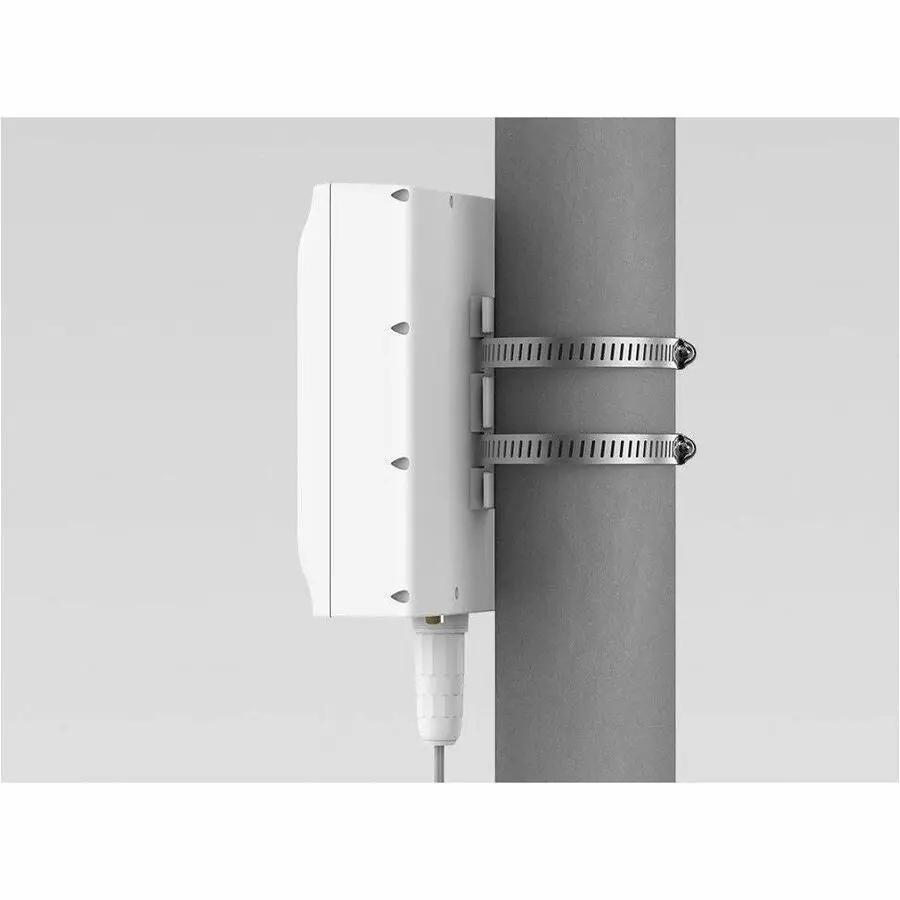

- Mounting: Wall or pole mount
- Wireless Standards: 802.11a/b/g/n/ac/ax/be
- Wi-Fi Generation: Wi-Fi 7 (802.11be)
- Frequency Band: Tri-Band (2.4 GHz / 5 GHz / 6 GHz)
- Data Transmission Speed: Up to 11 Gbps
- Port Configuration: 1 × 2.5 GbE RJ-45 PoE+
- PoE: 802.3at PoE+
- Encryption: WPA3-Enterprise
- Security Protocols: SSH
- Bluetooth: Bluetooth 5.2
- MIMO: MU-MIMO
- Beamforming: Enabled
- Internal Antennas: 6
- Antenna Type (2.4 GHz): Dual-polarized
- IP Rating: IP68
- Environment: Indoor/Outdoor
- Coverage Area: 300 m² (3,200 ft²) recommended
- 6 GHz Access: Unlocked by AFC
- Seamless Roaming: Supported
- Mesh Technology: Omada Mesh
- Management: Omada SDN cloud management
Warranty & Compliance
- Environmental Compliance: RoHS

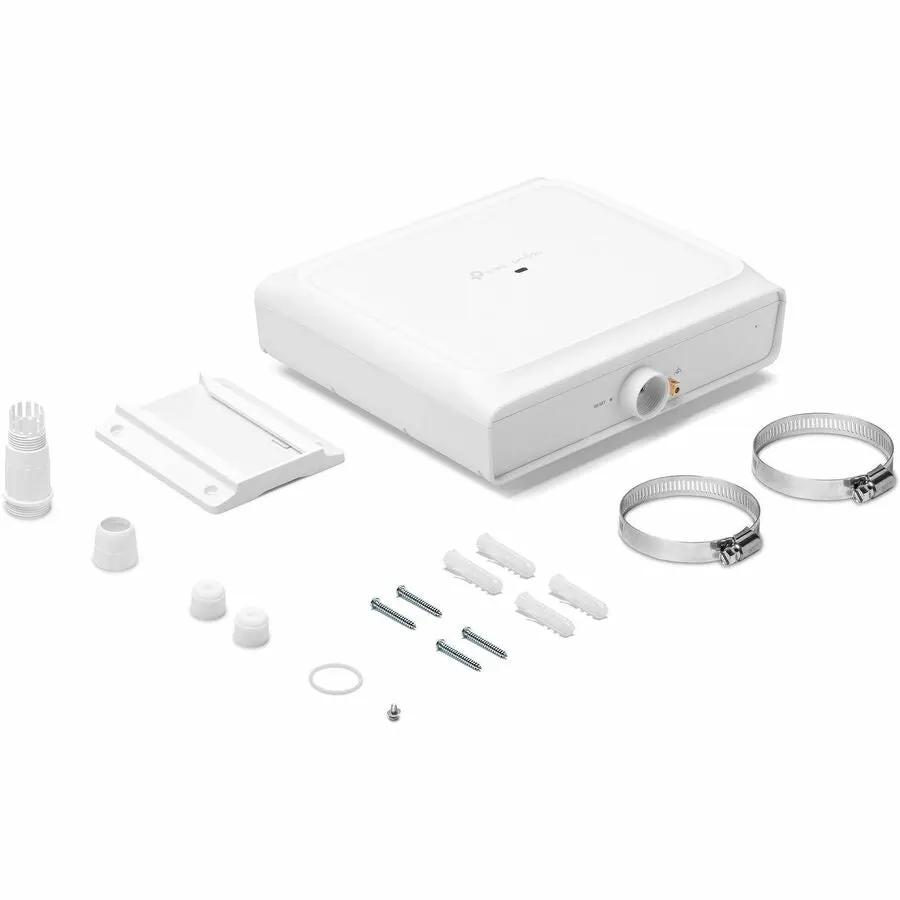

What's in the Box
- Tri-Band Omnidirectional BE11000 Indoor/Outdoor Wi-Fi 7 Access Point
- Power Cord
- Mounting Kits
- Installation Guide
