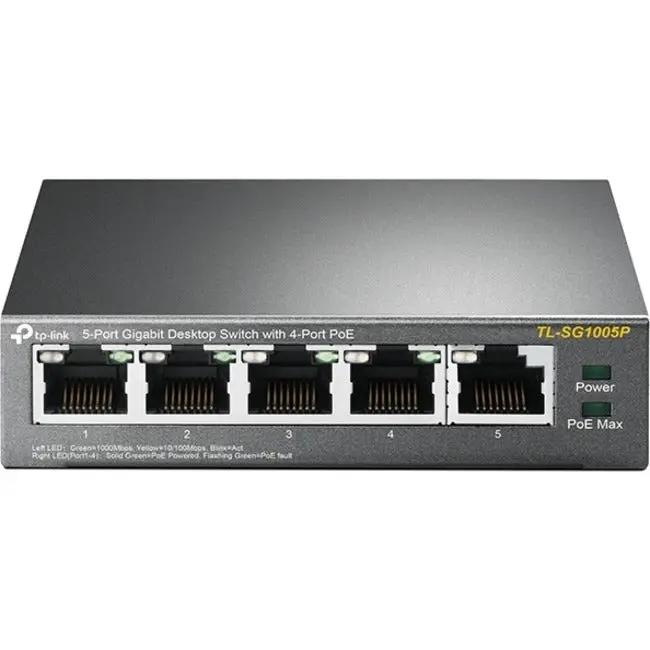

TP-Link TL-SG1005P 5-Port PoE unmanaged Gigabit desktop switch with 4 PoE ports

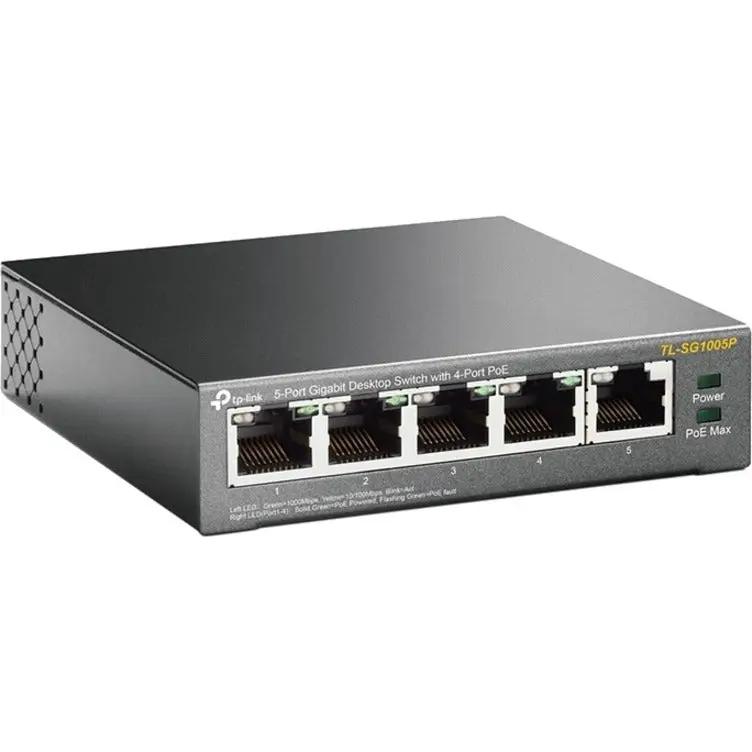

TP-Link TL-SG1005P 5-Port PoE unmanaged switch with desktop metal enclosure

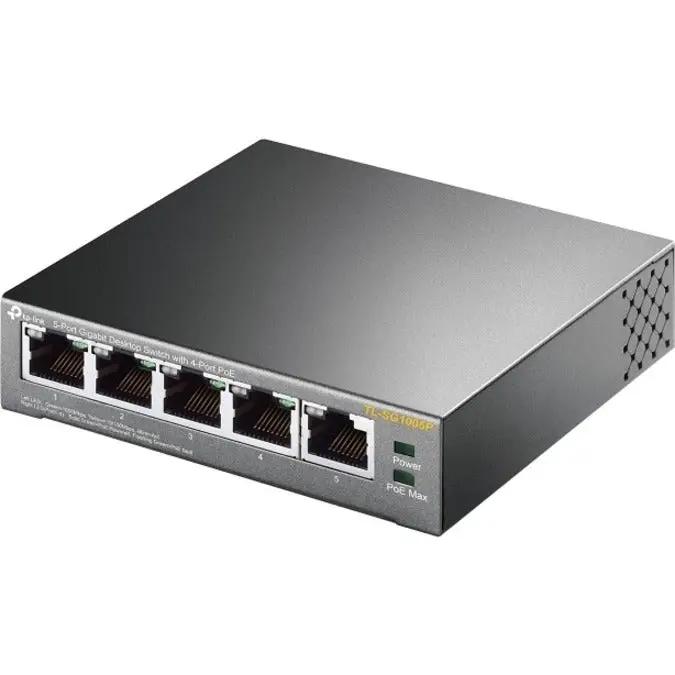

TP-Link TL-SG1005P 5-Port PoE Unmanaged Switch on white background, dark gray metal chassis

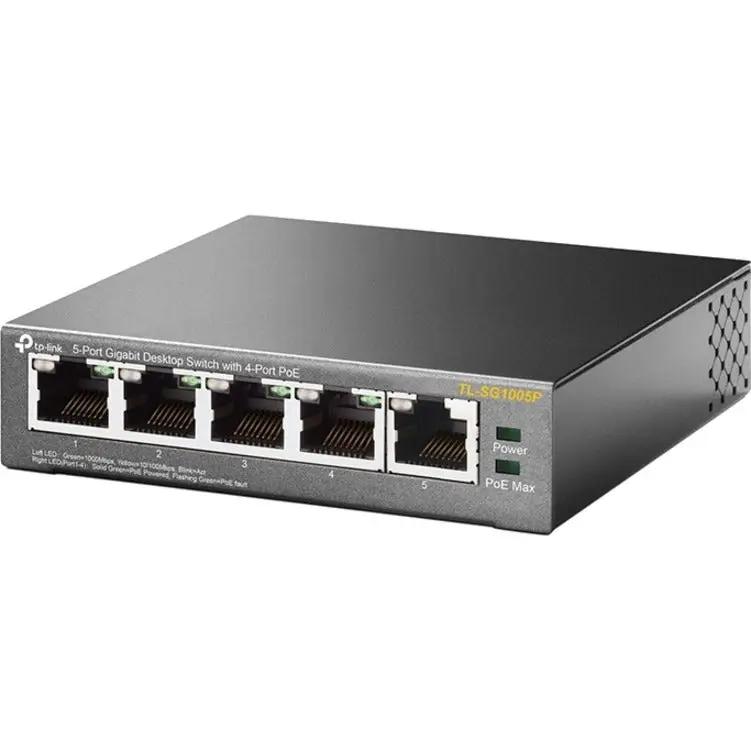

TP-Link TL-SG1005P 5-Port PoE unmanaged switch, black metal housing

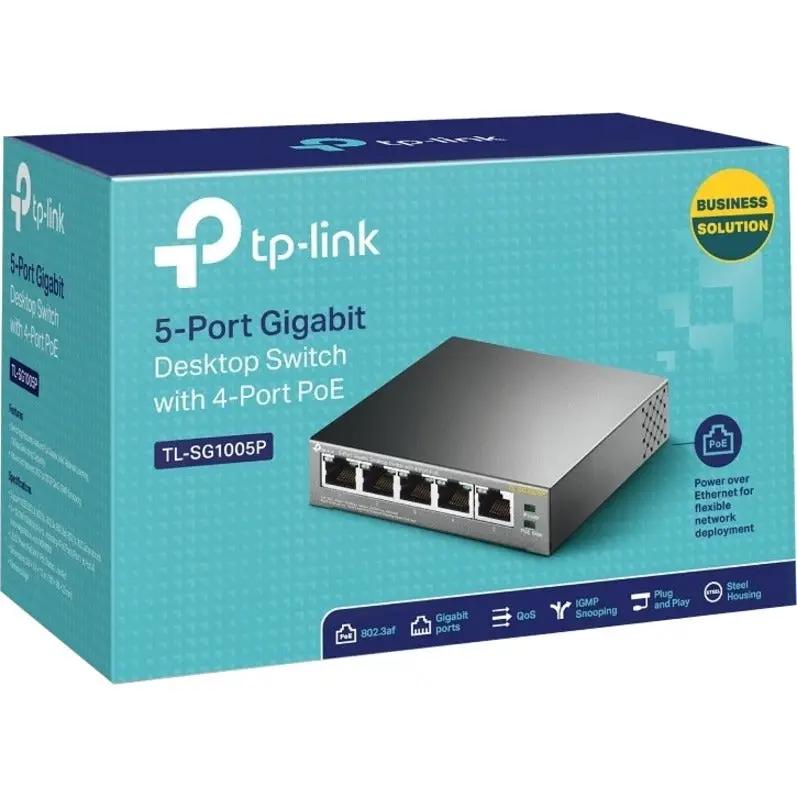

TP-Link TL-SG1005P 5-Port Gigabit PoE Unmanaged Switch on blue packaging box

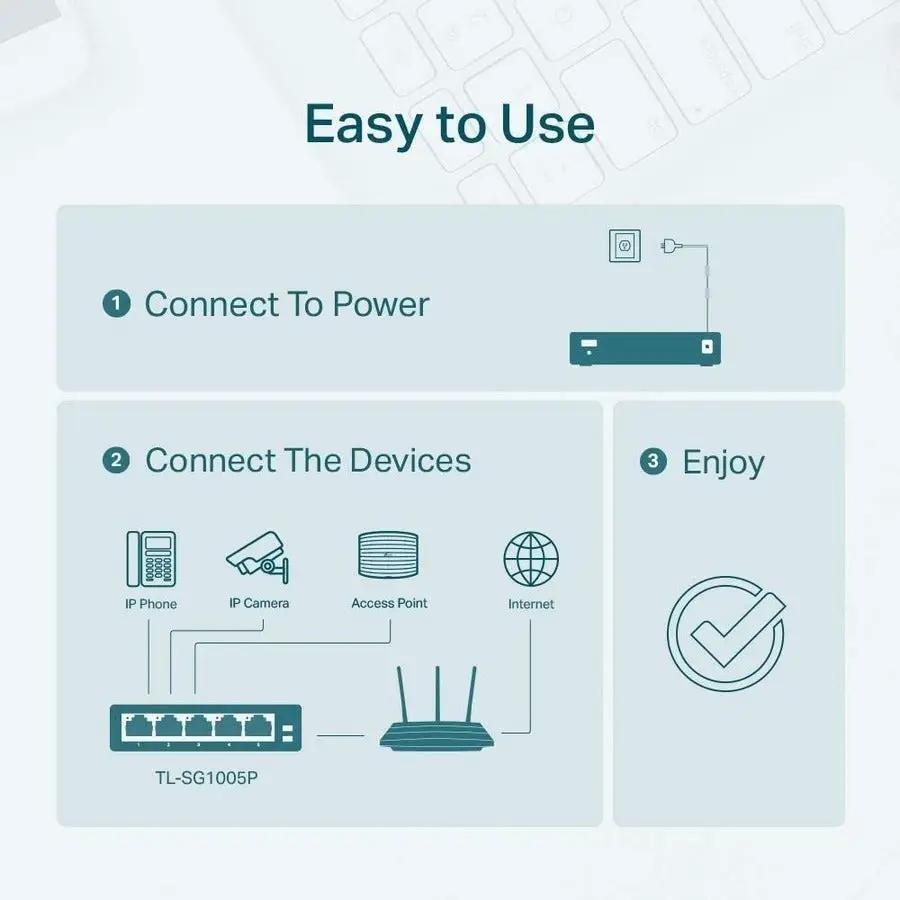

TP-Link TL-SG1005P 5-Port PoE unmanaged switch teal diagram showing setup steps
TP-Link TL-SG1005P 5-Port PoE unmanaged switch
TP-Link TL-SG1005P 5-Port PoE Unmanaged Switch banner showing surveillance, conference call, and Wi‑Fi coverage.
TP-Link TL-SG1005P 5-Port PoE Unmanaged Switch banner with QoS and IGMP Snooping icons

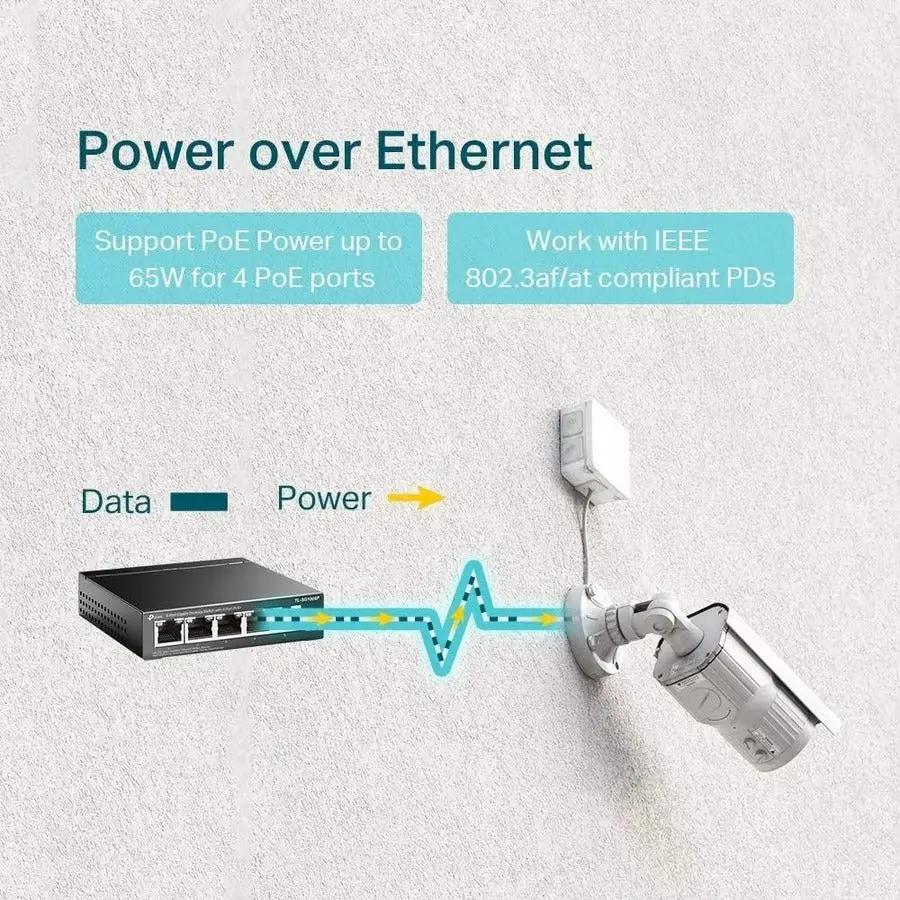

TP-Link TL-SG1005P 5-Port PoE Unmanaged Switch, black Ethernet switch with blue PoE cables powering a camera
Roll over image to zoom in Click on image to zoom
TP-Link TL-SG1005P 5-Port PoE unmanaged Gigabit desktop switch with 4 PoE portsTP-Link TL-SG1005P 5-Port PoE unmanaged switch with desktop metal enclosureTP-Link TL-SG1005P 5-Port PoE Unmanaged Switch on white background, dark gray metal chassisTP-Link TL-SG1005P 5-Port PoE unmanaged switch, black metal housingTP-Link TL-SG1005P 5-Port Gigabit PoE Unmanaged Switch on blue packaging boxTP-Link TL-SG1005P 5-Port PoE unmanaged switch teal diagram showing setup stepsTP-Link TL-SG1005P 5-Port PoE unmanaged switchTP-Link TL-SG1005P 5-Port PoE Unmanaged Switch banner showing surveillance, conference call, and Wi‑Fi coverage.TP-Link TL-SG1005P 5-Port PoE Unmanaged Switch banner with QoS and IGMP Snooping iconsTP-Link TL-SG1005P 5-Port PoE Unmanaged Switch, black Ethernet switch with blue PoE cables powering a camera

TP-Link JetStream TL-SG1005P 5-Port Gigabit PoE+ Unmanaged Switch

TP-Link
No reviews
Price:
$60.99

Description

The TP-Link TL-SG1005P is a 5-port plug-and-play Gigabit Ethernet unmanaged switch with 4 PoE+ ports and a 65 W PoE budget. Auto-detection of IEEE 802.3af/at devices makes it ideal for powering wireless access points, IP cameras, IP phones, and other PoE devices in small offices or home networks. The fanless metal chassis supports desktop or wall-mount installation for quiet, flexible deployment.

Tech Specs

  • Ports: 5 x RJ-45 (4 PoE+, 1 non-PoE Gigabit)
  • Port Speed: 10/100/1000 Mbps auto-negotiation
  • PoE Standards: IEEE 802.3af, IEEE 802.3at
  • PoE Budget: 65 W total (up to 30 W per port)
  • Power Management: Overload protection with port priority (Port 4 powered off first if total PD power reaches 56 W)
  • Network Technology: 10/100/1000Base-T
  • Standards: IEEE 802.3x (Flow Control), IEEE 802.1p (QoS)
  • QoS: Port-based 802.1p/DSCP; IGMP Snooping
  • Management: Unmanaged (Plug-and-Play)
  • Layer: 2
  • Power Consumption: 4.30 W
  • Power Source: External Power Adapter
  • Form Factor: Desktop or wall-mountable
  • Material: Metal
  • Cooling: Fanless

Warranty & Compliance

  • Limited Lifetime Warranty
  • Free 24/7 Technical Support
  • RoHS Compliant
  • Country of Origin: China

What's in the Box

  • TP-Link TL-SG1005P 5-Port Gigabit Desktop Switch
  • Power Adapter
  • Installation Guide
