Key Features

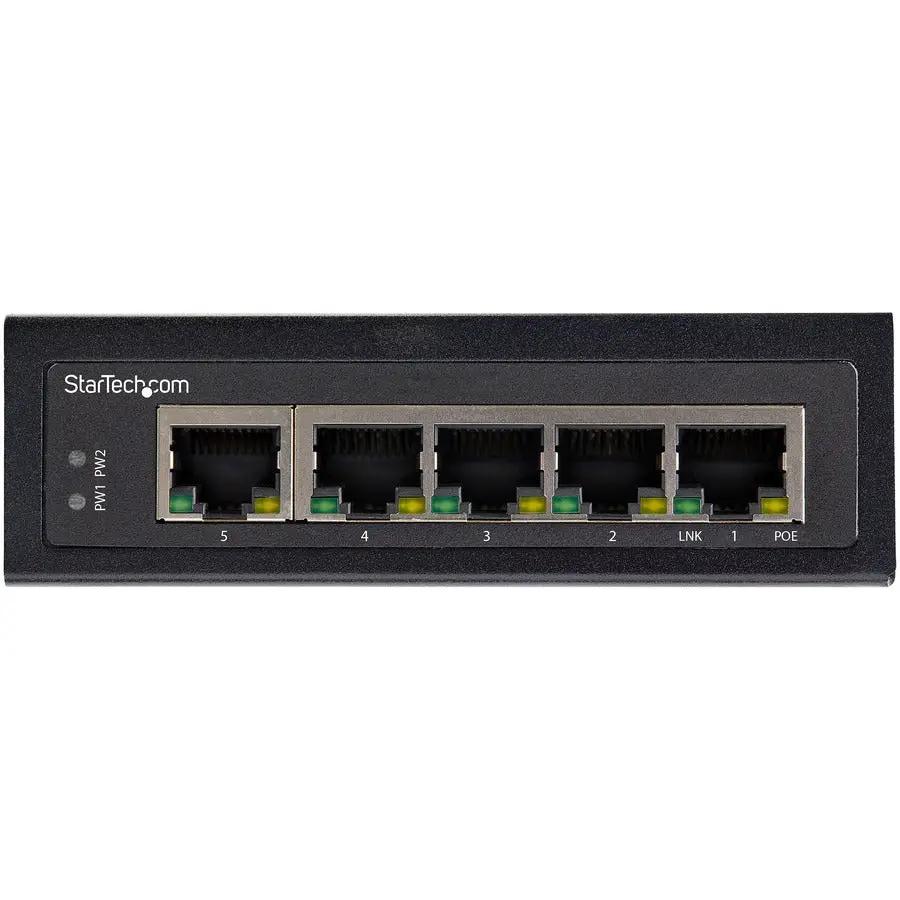

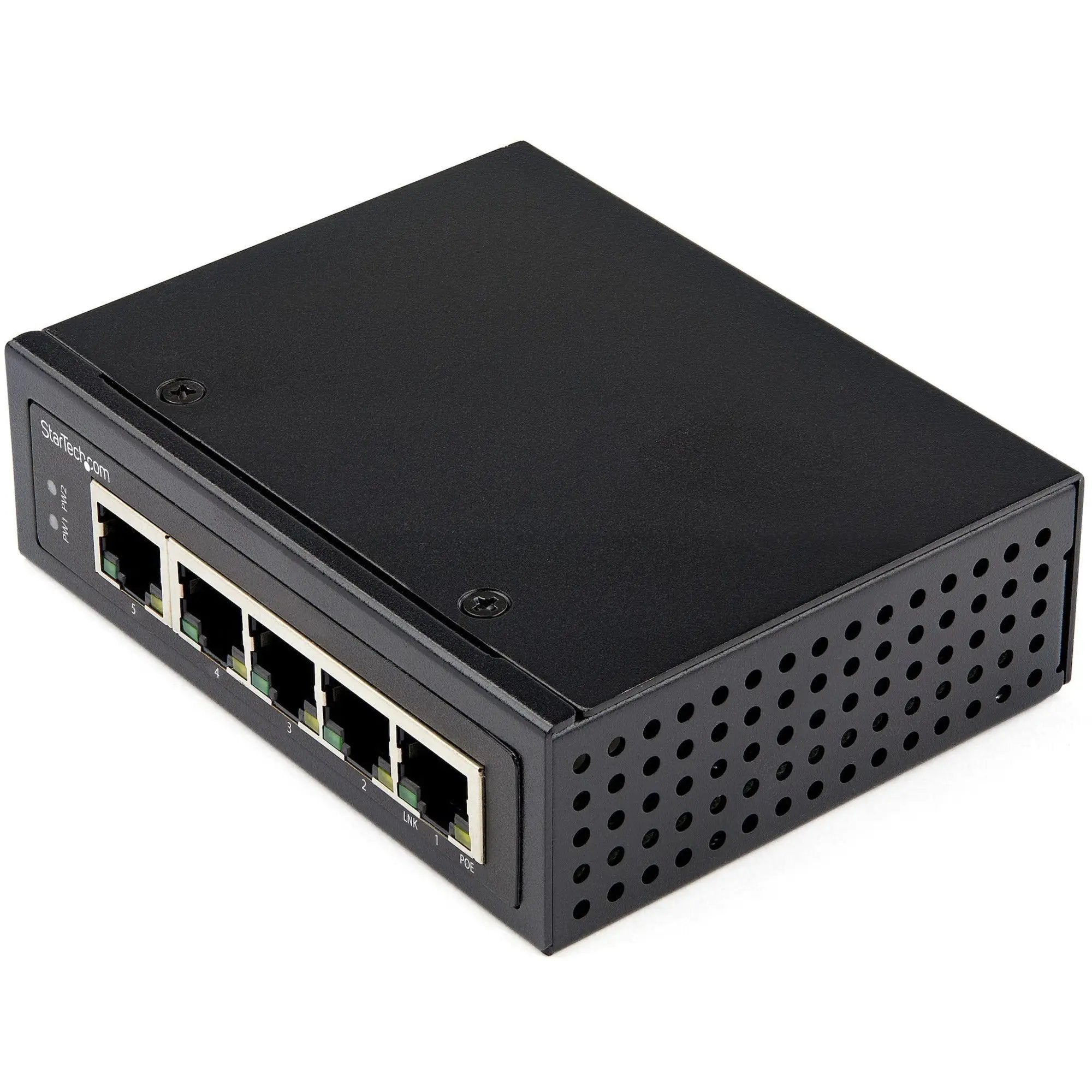

The StarTech IESC1G50UP is a hardened five-port Gigabit switch that delivers up to 30W of PoE+ power on four ports from a 120W budget. An IP-30 rated enclosure and a -40 to 75 degrees Celsius operating range let it run in cabinets, on plant floors, and in unconditioned spaces where a standard switch would fail. Redundant terminal block power input and DIN rail or wall mounting suit factory automation, outdoor camera runs, and remote equipment shelters.
Tech Specs
- Ports: 5 x Gigabit RJ-45
- PoE+ Ports: 4
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Budget: 120 W
- Maximum PoE per Port: 30 W
- Flow Control: IEEE 802.3x
- Network Technology: 1000Base-T
- Management: Unmanaged
- Switching Layer: Layer 2
- Media Supported: Twisted pair
- Cabling: Cat5e or better
- Maximum Cable Run: 100 m
- Enclosure Rating: IP-30
- Chassis Material: Steel
- Operating Temperature: -40 to 75 degrees Celsius
- Ruggedization: Vibration, shock, and free-fall rated
- MTBF: 500,000+ hours at 50 degrees Celsius
- Mounting: DIN rail or wall
- Power Source: DC
- Input Voltage: 48 to 56 V DC

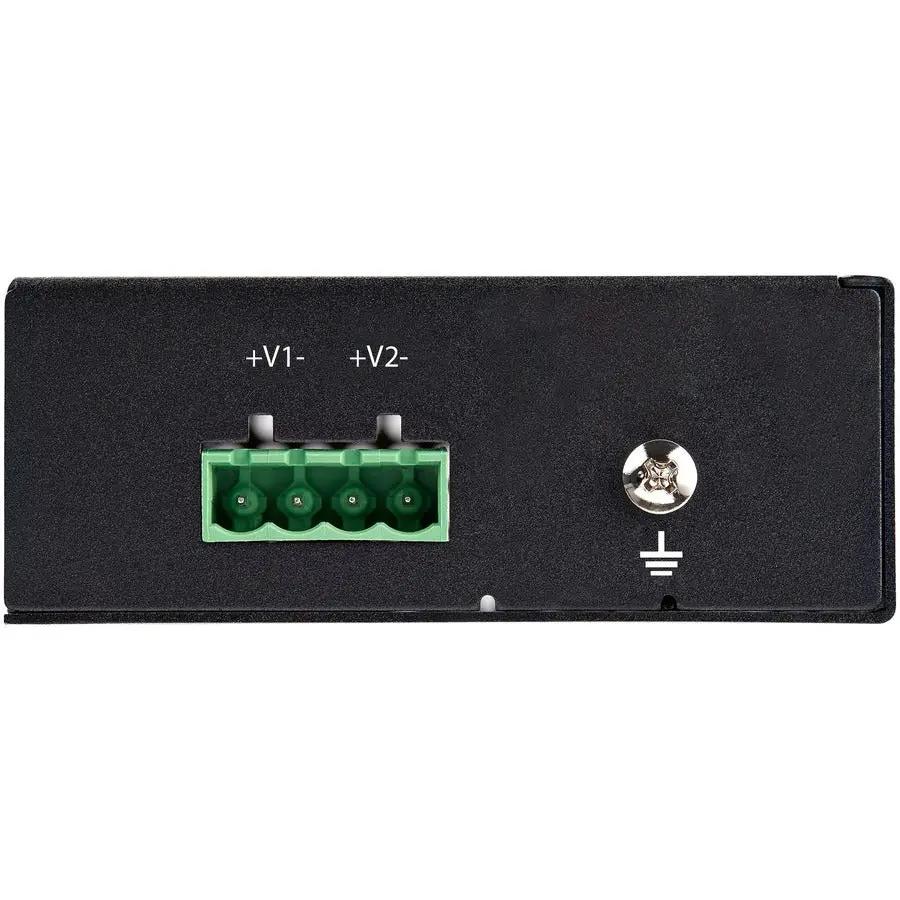

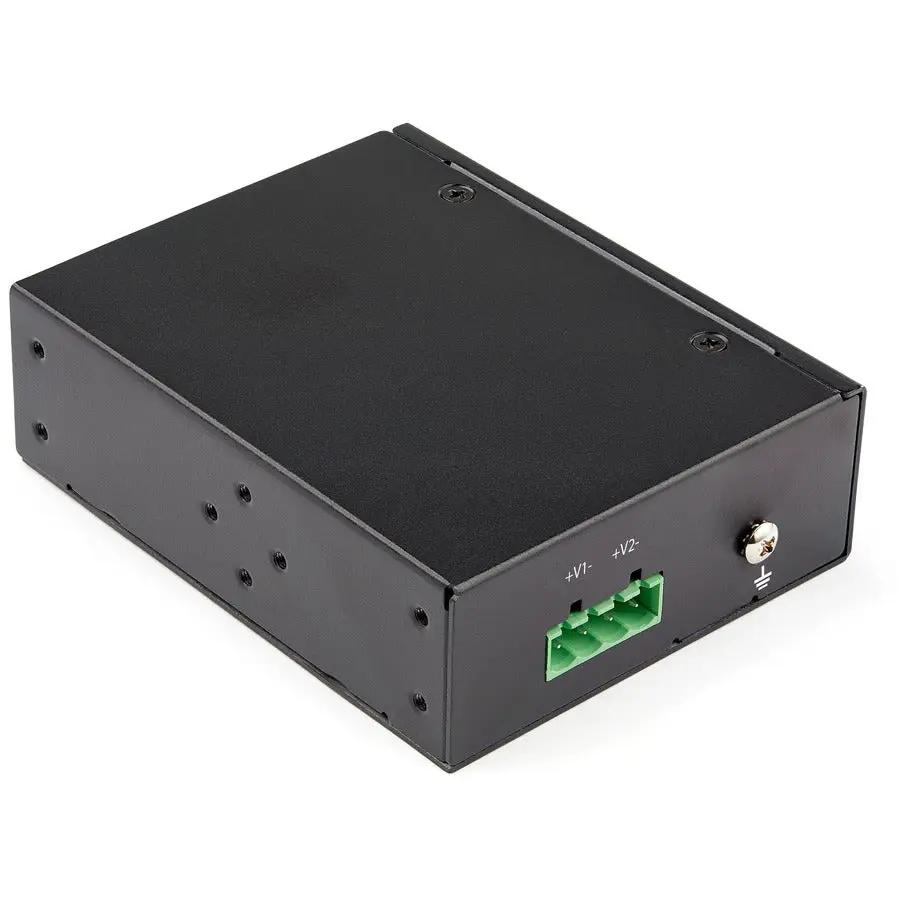

- Power Input: Redundant terminal block
- Power Consumption: 126 W
- Length: 4.1 in
- Weight: 5.30 oz
Warranty & Compliance
- Warranty: 2-year limited warranty
- TAA compliant
- EU RoHS compliant
- WEEE compliant
What's in the Box
- Industrial Ethernet Switch
- Mounting Hardware Kit
- Terminal Block
- Quick-Start Guide
