Description
The SonicWall TZ680 High Availability appliance is a next-generation firewall for mid-sized organizations and distributed enterprises with SD-Branch locations. It pairs strong firewall performance with SSL inspection, Secure SD-WAN, and centralized NSM management in a compact desktop chassis, enabling scalable, resilient edge security across multiple sites. Flexible 10/5/2.5/1 GbE interfaces, PoE, and built-in expandable storage round out a streamlined, manageable platform.
Tech Specs
- Firewall throughput: 5 Gbps
- VPN throughput: 2.56 Gbps
- IPS throughput: 3.07 Gbps
- New connections per second: 26,000
- Concurrent VPN connections: Up to 500
- Ethernet technology: 10 Gigabit Ethernet (10/5/2.5/1 GbE)

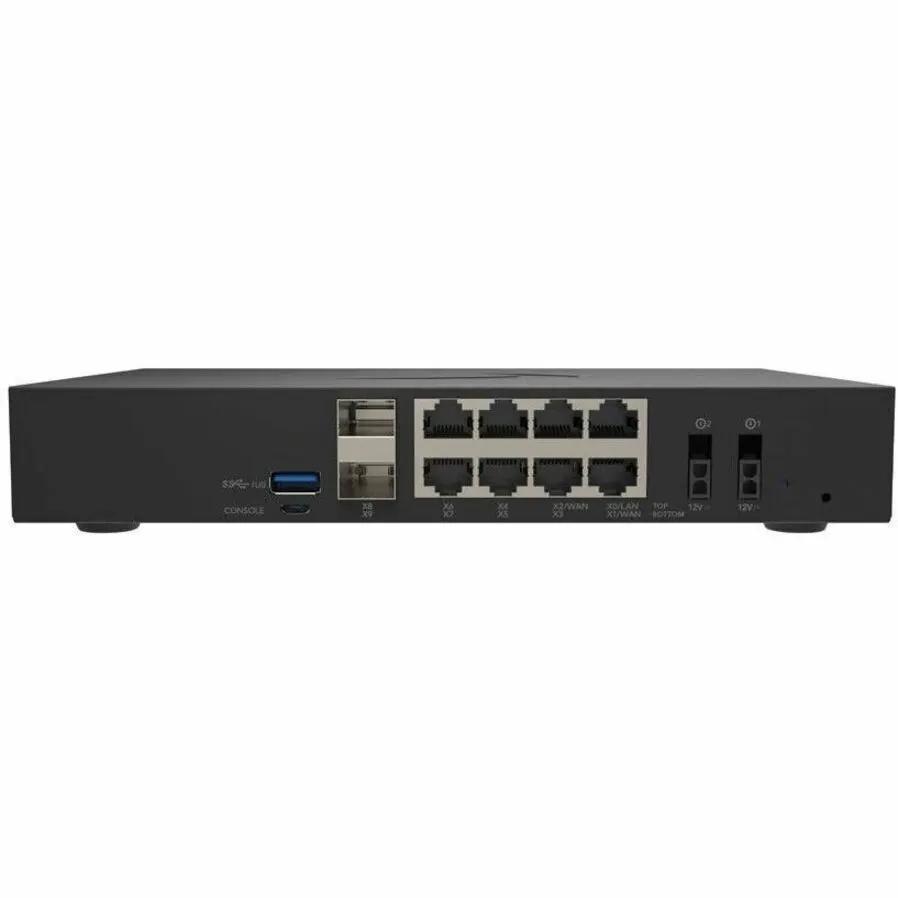

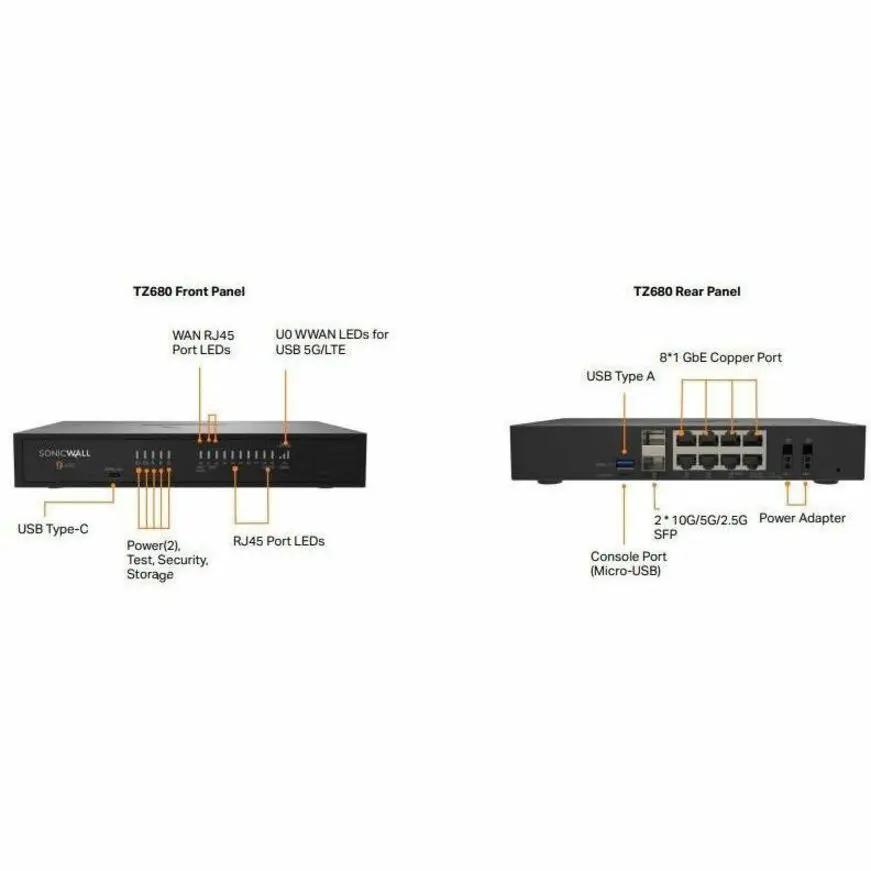

- Network ports: 8 x RJ-45
- Expansion: 2 x SFP+ slots
- PoE: PoE/PoE+ support for up to 4 devices
- USB: Yes
- Intrusion prevention (IPS/IDS): Yes
- SSL/TLS inspection: Supported (TLS)
- Secure SD-WAN: Yes
- SD-Branch ready: Yes
- Zero-Touch Deployment & SonicExpress onboarding: Yes
- Management: Centralized via Network Security Manager (NSM)
- Storage: Built-in and expandable
- Ecosystem integration: SonicWall Switch, SonicWave Access Point, Capture Client
- Form factor: Desktop
- Power consumption: 16.99 W
- Weight: 2.14 lb
Warranty & Compliance
- Environmental compliance: WEEE Directive
