Description

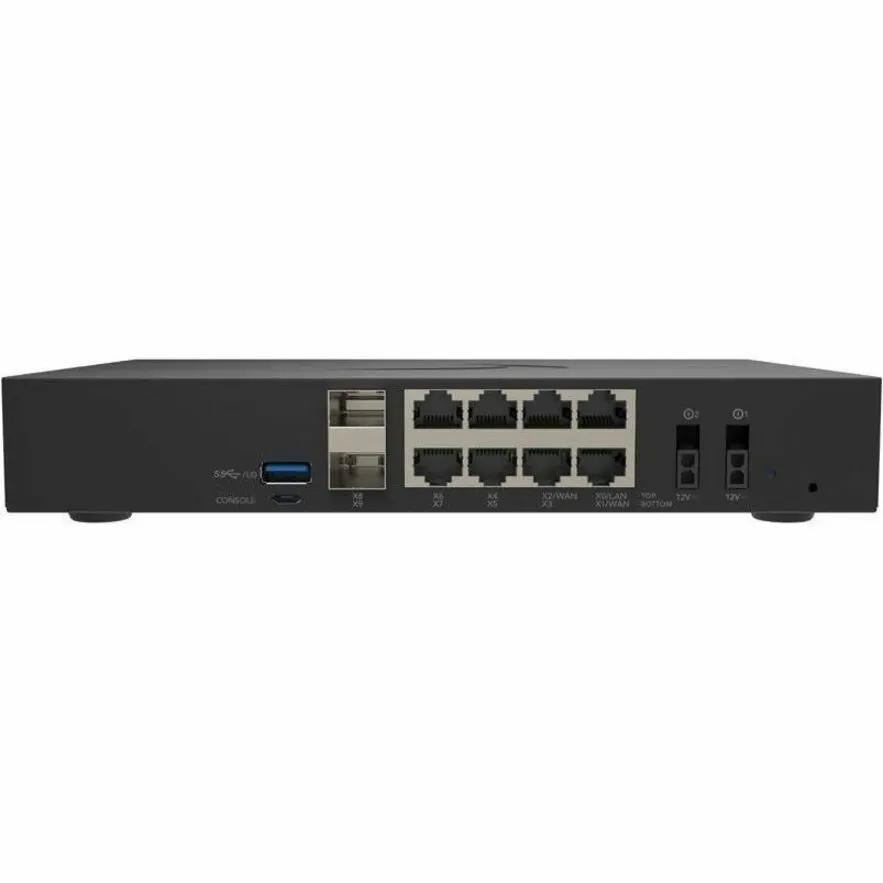

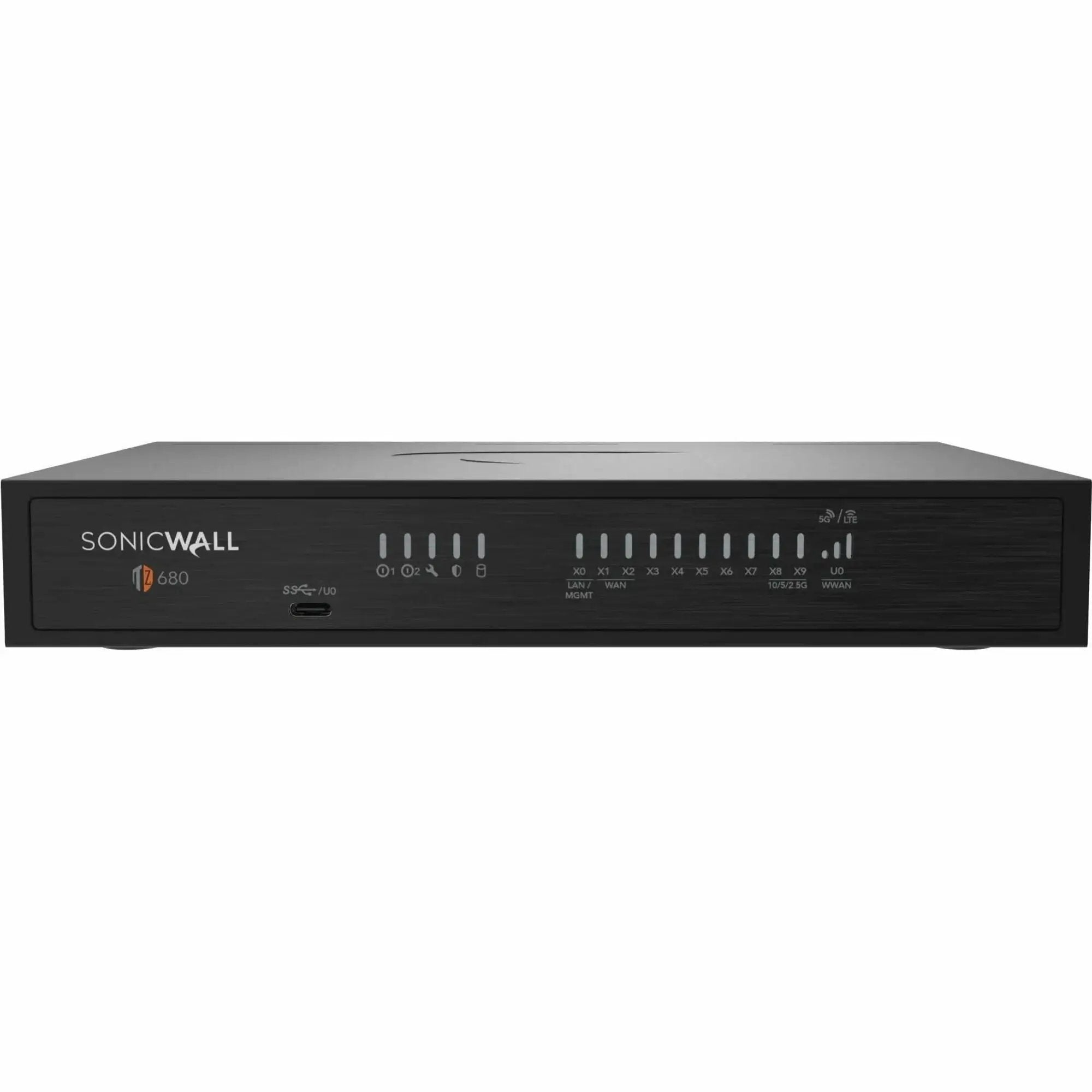

The SonicWall TZ680 is a desktop-grade security gateway designed for mid-sized organizations and distributed enterprises with SD-Branch locations. It combines secure SD-WAN, Intrusion Prevention, and scalable performance with up to 10/5/2.5/1G interfaces, 10GbE-capable ports, PoE edge support, and built-in storage, all managed centrally via Network Security Manager. This configuration ships with a 1-Year TotalSecure Advanced Edition license for streamlined protection across sites.
Tech Specs
- Series: TZ
- Form Factor: Desktop
- RJ-45 Ports: 8
- SFP+ Slots: 2
- Ethernet Technology: 10 Gigabit Ethernet (10/5/2.5/1G support)
- PoE: PoE/PoE+ support for 4 devices
- Firewall Throughput: 5 Gbps
- Threat Prevention (IPS) Throughput: 3.07 Gbps
- VPN Throughput: 2.56 Gbps
- New Connections Per Second: 26,000
- Site-to-Site VPN Tunnels: 500
- Encryption: TLS
- Threat Prevention: Intrusion Prevention, Anti-spam
- Networking: Secure SD-WAN, SD-Branch ready
- Management: Network Security Manager (NSM), SonicExpress App onboarding, Zero-Touch Deployment, SonicWall Unified Management
- Storage: Built-in and expandable storage
- License: TotalSecure Advanced Edition, 1-Year term
- USB: Yes
- Power Consumption: 16.99 W
- Manufacturer Part Number: 03-SSC-6998
Warranty & Compliance
- Service/Support Duration: 1 Year
- Environmental Compliance: WEEE
