Description
The SonicWall TZ680 is a high-performance next-generation firewall built for mid-sized networks and SD-Branch deployments. It delivers Secure SD-WAN, SSL inspection, and centralized management through SonicWall Network Security Manager (NSM), with flexible 10/5/2.5/1 GbE interfaces and PoE in a compact desktop form factor. Built-in expandable storage and tight integration with SonicWall switches, access points, and Capture Client make it a scalable choice for distributed, secure connectivity.
Tech Specs
- Firewall throughput: 5 Gbps
- VPN throughput: 2.56 Gbps
- IPS throughput: 3.07 Gbps
- New connections per second: 26,000
- Concurrent VPN connections: Up to 500

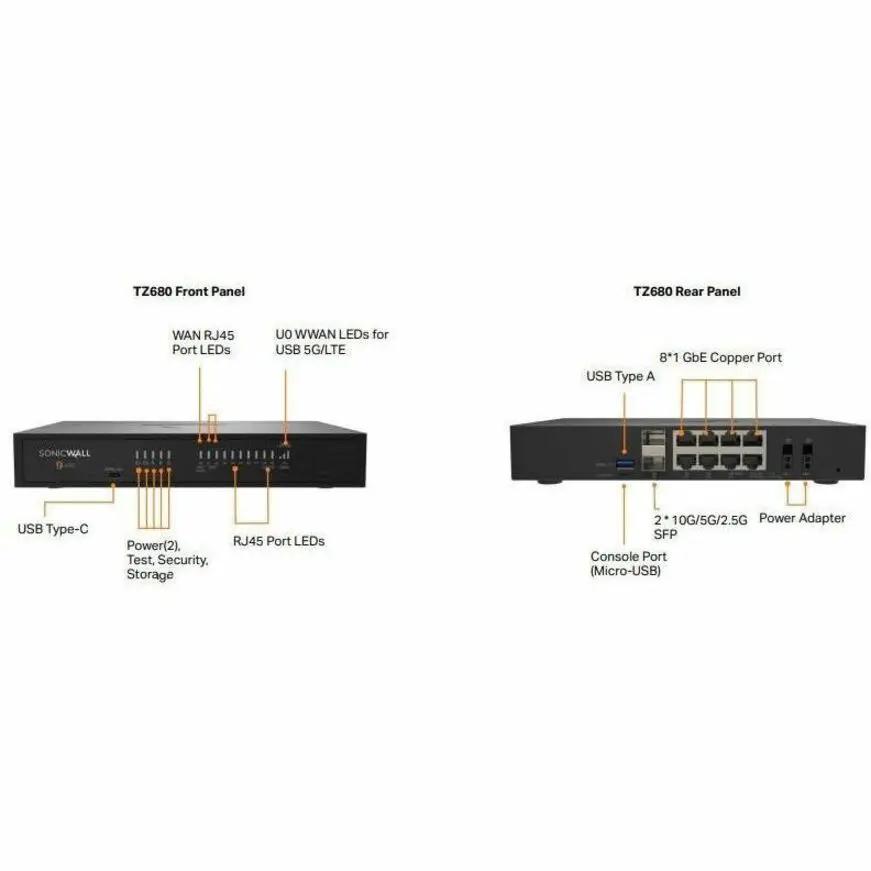

- Ethernet technology: 10 Gigabit Ethernet (10/5/2.5/1 GbE)
- Network ports: 8 x RJ-45
- Expansion: 2 x SFP+ slots

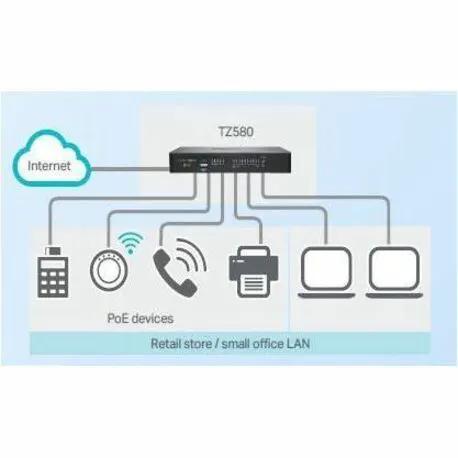

- PoE: PoE/PoE+ support for up to 4 devices
- USB: Yes
- Intrusion prevention (IPS/IDS): Yes
- SSL/TLS inspection: Supported (TLS)
- Secure SD-WAN: Yes
- SD-Branch ready: Yes
- Zero-Touch Deployment & SonicExpress onboarding: Yes
- Management: Centralized via Network Security Manager (NSM)
- Storage: Built-in and expandable
- Ecosystem integration: SonicWall Switch, SonicWave Access Point, Capture Client
- Form factor: Desktop
- Power consumption: 16.99 W
- Weight: 2.14 lb
Warranty & Compliance
- Environmental compliance: WEEE Directive
