Description
The SonicWall TZ680 is a compact desktop next-generation firewall designed for mid-sized organizations and SD-Branch deployments. It delivers robust threat protection with up to 5 Gbps firewall throughput, high-speed IPS, and high-capacity VPN, plus Secure SD-WAN and SD-Branch readiness. Eight RJ-45 ports and two SFP+ slots support 10/5/2.5/1 G connectivity, while PoE/PoE+ powers edge devices and Zero-Touch Deployment with centralized Network Security Manager (NSM) control simplifies rollout.
Tech Specs
- Product Type: Next-Generation Firewall / Security Appliance
- Series / Model: TZ / TZ680
- Form Factor: Desktop
- Ethernet Technology: 10 Gigabit Ethernet (10/5/2.5/1 G interfaces)

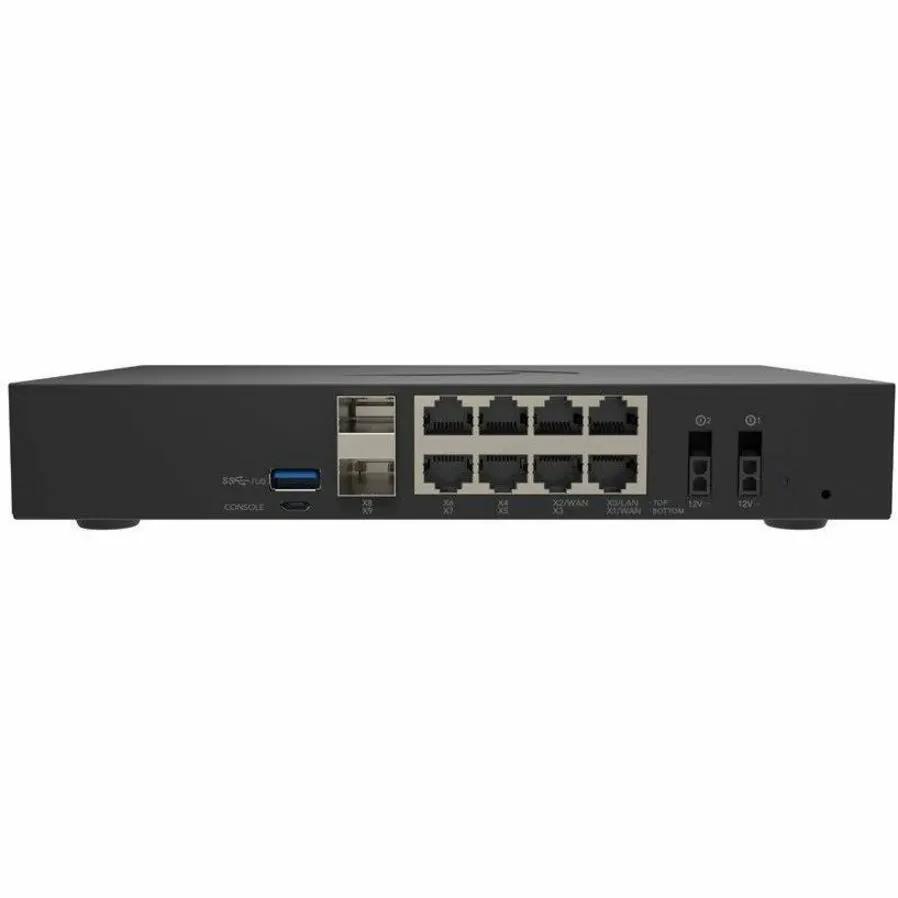

- RJ-45 Ports: 8
- SFP+ Slots: 2
- Expansion Slots: 2 (SFP+)
- USB: Yes
- PoE/PoE+: Powers up to 4 PoE/PoE+ devices
- Firewall Throughput: 5 Gbps
- IPS Throughput: 3.07 Gbps
- VPN Throughput: 2.56 Gbps
- VPN Tunnels Supported: 500
- New Connections Per Second: 26,000
- Intrusion Prevention: Yes
- SSL Inspection: Yes
- Encryption Standard: TLS
- Secure SD-WAN: Yes
- SD-Branch Ready: Yes
- Zero-Touch Deployment: Yes
- SonicExpress App Onboarding: Yes
- Centralized Management: Network Security Manager (NSM)
- Integrations: SonicWall Switch, SonicWave Access Point, Capture Client
- Storage: Built-in and expandable
- Power Consumption: 16.99 W
- Weight: 2.14 lb
Warranty & Compliance
- License: 2-Year Secure Upgrade Plus Advanced Edition
- Management Software: Network Security Manager (NSM)
- Environmental Compliance: WEEE Directive
