Description

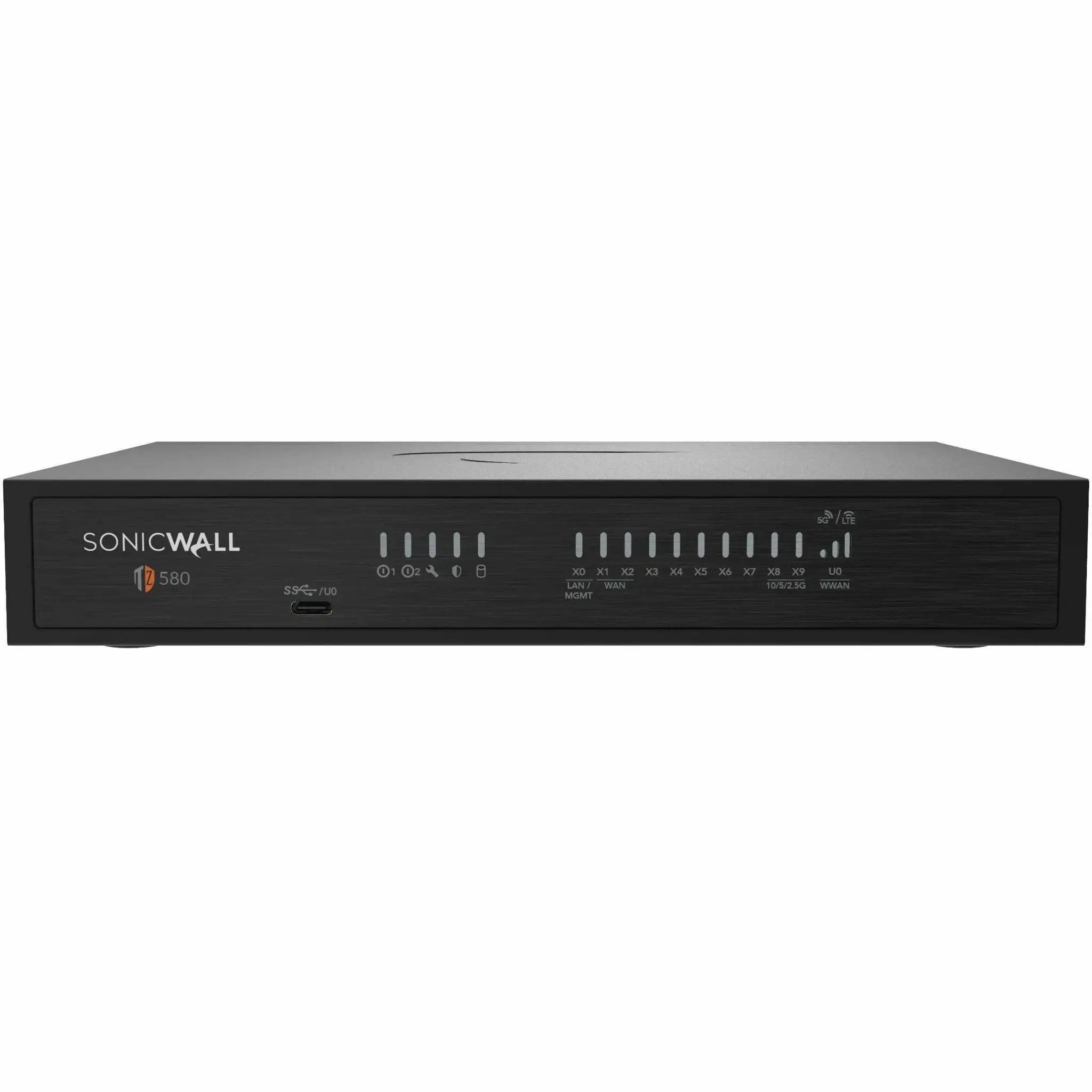

The SonicWall TZ580 TotalSecure delivers enterprise-grade next-generation firewall protection for small to midsize organizations and distributed SD-Branch deployments. It pairs high-throughput firewall, IPS, and SSL inspection with Secure SD-WAN, SonicExpress onboarding, and Zero-Touch Deployment, all under centralized Network Security Manager (NSM) control. Eight RJ-45 ports plus two SFP+ slots support 10/5/2.5/1 G connectivity, and bundled PoE/PoE+ powers up to four edge devices for an all-in-one branch security hub.
Tech Specs
- Product Type: Next-Generation Firewall / Security Appliance
- Series / Model: TZ / TZ580
- Form Factor: Desktop
- Ethernet Technology: 10 Gigabit Ethernet (10/5/2.5/1 G interfaces)
- RJ-45 Ports: 8
- SFP+ Slots: 2
- Expansion Slots: 2 (SFP+)
- USB: Yes
- PoE/PoE+: Powers up to 4 PoE/PoE+ devices
- Firewall Throughput: 4.5 Gbps
- IPS Throughput: 2.56 Gbps
- VPN Throughput: 2.25 Gbps
- VPN Tunnels Supported: 500
- New Connections Per Second: 20,000
- Intrusion Prevention: Yes
- SSL Inspection: Yes
- Encryption Standard: TLS
- Secure SD-WAN: Yes
- SD-Branch Ready: Yes
- Zero-Touch Deployment: Yes
- SonicExpress App Onboarding: Yes
- Centralized Management: Network Security Manager (NSM)
- Integrations: SonicWall Switch, SonicWave Access Point, Capture Client
- Storage: Built-in and expandable
- Power Consumption: 15.6 W
- Weight: 2.14 lb
Warranty & Compliance
- License: 1-Year TotalSecure Advanced Edition
- Management Software: Network Security Manager (NSM)
- Environmental Compliance: WEEE Directive
