Description

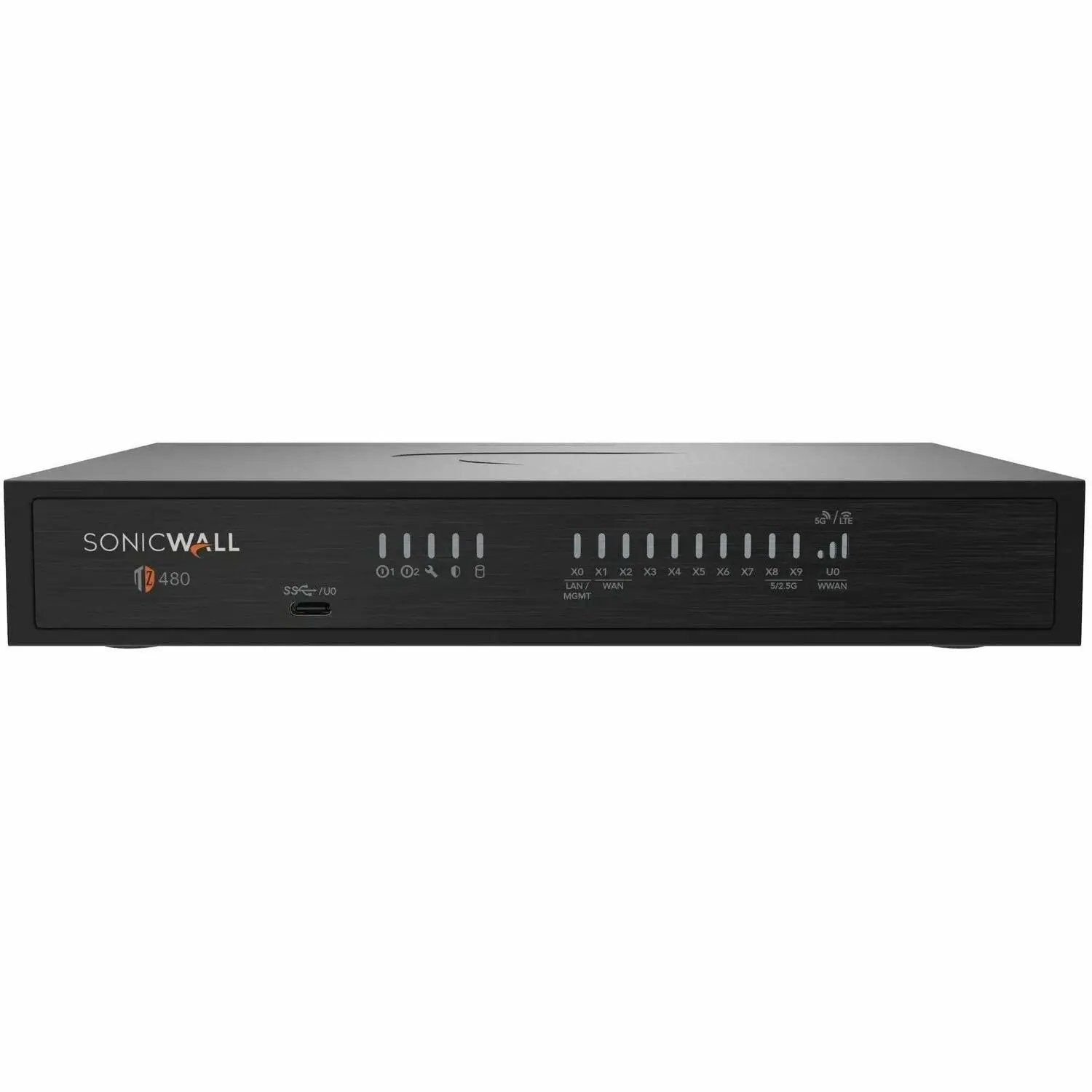

The SonicWall TZ480 delivers enterprise-grade protection in a compact desktop form factor, designed for small organizations and distributed SD-Branch deployments. It supports up to 10/5/2.5/1G interfaces, includes secure SD-WAN, PoE edge support, and centralized management via Network Security Manager (NSM). This configuration ships with a 1-Year TotalSecure Advanced Edition license and integrates with the broader SonicWall ecosystem of switches, SonicWave access points, and Capture Client for end-to-end edge security.
Tech Specs
- Series: TZ
- Form Factor: Desktop
- RJ-45 Ports: 8
- SFP+ Slots: 2
- Ethernet Technology: 2.5 Gigabit Ethernet (10/5/2.5/1G support)
- PoE: PoE/PoE+ support for 4 devices
- Firewall Throughput: 4 Gbps
- Threat Prevention (IPS) Throughput: 2.25 Gbps
- VPN Throughput: 2.05 Gbps
- New Connections Per Second: 18,000
- Site-to-Site VPN Tunnels: 200
- Encryption: TLS
- Threat Prevention: Intrusion Prevention & Detection
- Networking: Secure SD-WAN, SD-Branch ready
- Management: Network Security Manager (NSM), SonicExpress App onboarding, Zero-Touch Deployment, SonicWall Unified Management
- Storage: Built-in and expandable storage
- License: TotalSecure Advanced Edition, 1-Year term
- USB: Yes
- Power Consumption: 15.19 W
- Manufacturer Part Number: 03-SSC-6973
Warranty & Compliance
- Service/Support Duration: 1 Year
- Environmental Compliance: WEEE
