Key Features

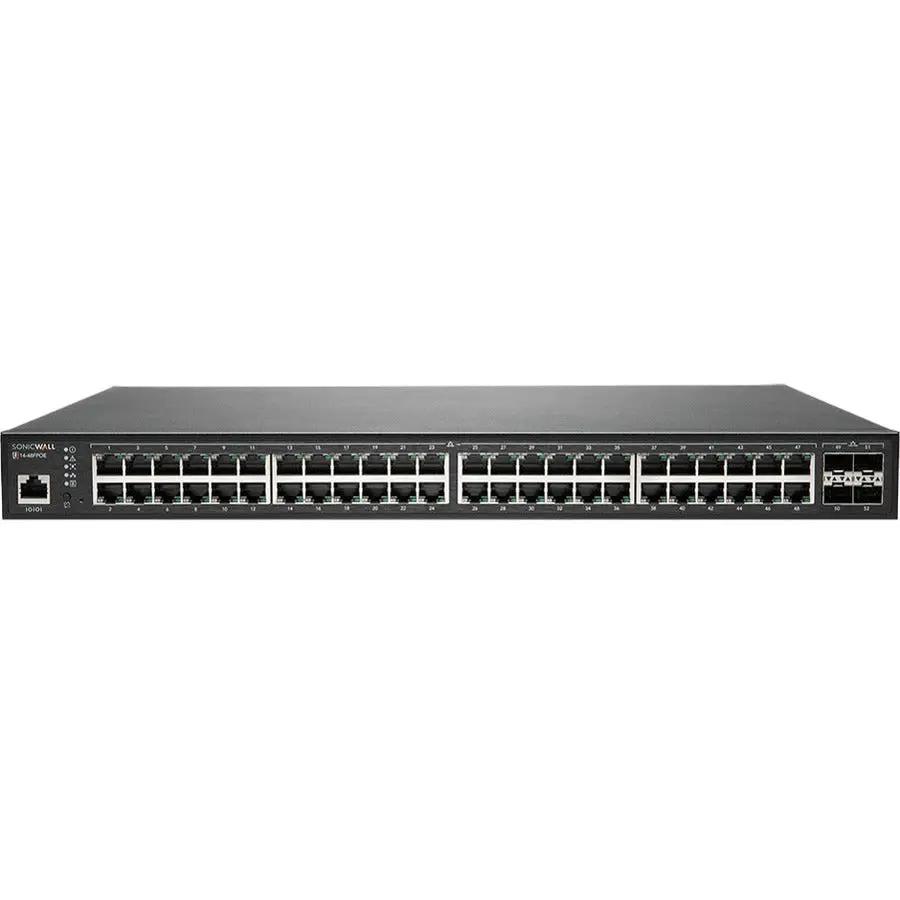

The SonicWall SWS14-48FPOE is a 1U managed switch with 48 PoE+ Gigabit ports and four 10G SFP+ uplinks. A 740 W power budget runs cameras, phones, and access points at up to 30 W per port, and the switch pairs with SonicWall firewalls or Wireless Network Manager for single-console control across branch sites.
Tech Specs
- Port Configuration: 48 x Gigabit RJ-45 with PoE+
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Budget: 740 W
- Uplink Ports: 4 x 10G SFP+
- Maximum Data Transfer Rate: 10 Gbps
- Network Technology: 10GBase-X
- Media Type: Twisted pair
- Switching Layer: Layer 2
- Routing: Static routing
- Management: Firewall, Wireless Network Manager, standalone UI, and CLI
- Monitoring: SNMP
- Access Control: 802.1X and MAC Authentication Bypass
- Quality of Service: Supported
- Flow Control: Supported
- PoE Port Scheduling: Supported
- Deployment: Zero-Touch Deployment
- SD-Branch: Ready
- Configuration Backup: Backup and restore supported
- Form Factor: 1U rack-mountable
- Input Voltage: 230 V AC
- Power Consumption: 885 W
- Weight: 10.58 lb
Warranty & Compliance
- RoHS: Compliant
