Key Features

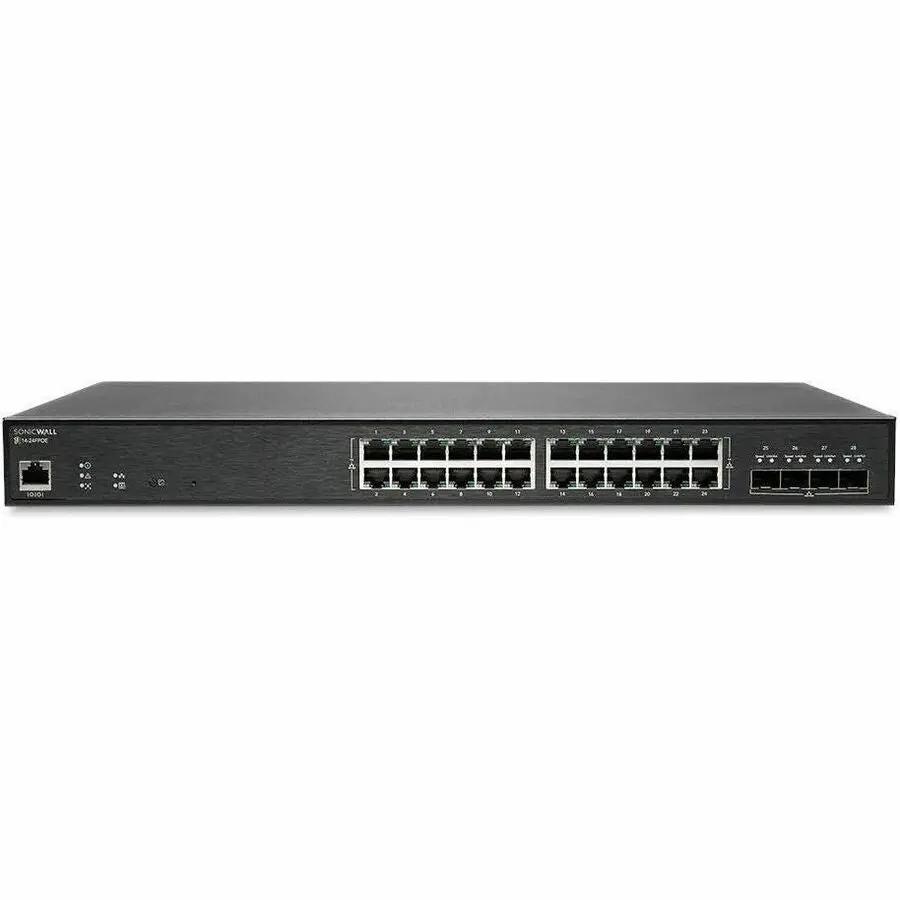

The SonicWall SWS14 is a high-density PoE+ switch for small-business and SD-Branch networks. Twenty-four Gigabit RJ-45 ports share a 410 W PoE budget, and four 10 Gigabit SFP+ slots carry the uplinks from a 1U chassis. Management runs through a SonicWall firewall, Wireless Network Manager, the standalone web interface, or the CLI, with zero-touch deployment, SNMP monitoring, and configuration backup keeping rollouts and day-to-day operations simple.
Tech Specs
- Ports: 24 x Gigabit Ethernet RJ-45
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Budget: 410 W
- Uplink Slots: 4 x SFP+
- Uplink Speed: 10 Gigabit Ethernet
- Network Technology: 10GBase-X
- Media Type: Twisted pair
- Routing: Static routing
- Management: SonicWall firewall, Wireless Network Manager, standalone UI, and CLI
- Monitoring: SNMP
- Deployment: Zero-touch deployment
- Configuration: Backup and restore
- Authentication: 802.1X and MAB
- Quality of Service: Supported
- Flow Control: Supported
- PoE Scheduling: Time-management options for PoE ports
- Form Factor: 1U rack mountable
- Power Consumption: 500.40 W
- Weight: 8.60 lb
Warranty & Compliance
- Environmental Compliance: REACH
