Key Features

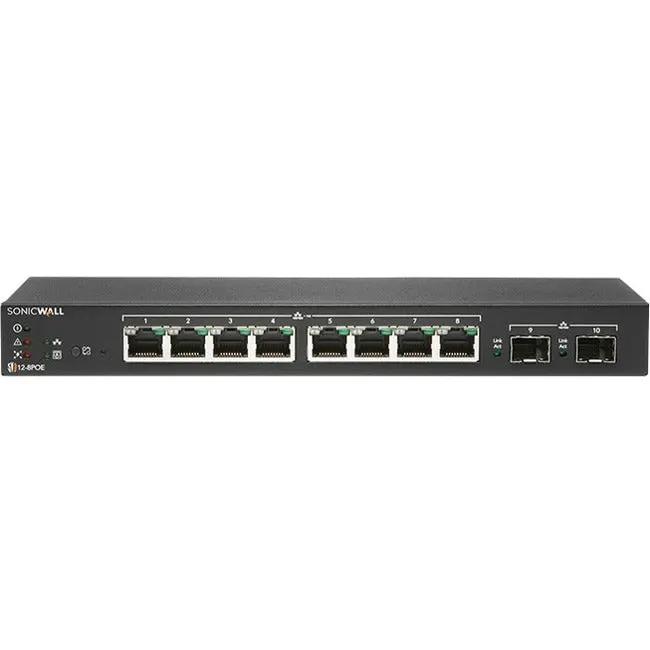

The SonicWall SWS12-8POE is a compact managed switch that powers eight Gigabit PoE ports from a 55 W budget and adds two SFP fiber uplinks. It is deployed and run from a SonicWall firewall, Wireless Network Manager, a standalone interface, or the CLI, and zero-touch deployment, 802.1X and MAB access control, segmentation, and QoS extend one policy set to the wired edge of a small office or SD-Branch site.
Tech Specs
- Ports: 8 x Gigabit RJ-45 with PoE
- Uplinks: 2 x Gigabit SFP
- PoE Standard: IEEE 802.3af
- PoE Per Port: Up to 15.4 W
- PoE Budget: 55 W
- Switching Capacity: 20 Gbps
- Maximum Data Rate: 1 Gbps per port
- Switching Layer: Layer 3 Lite (static routing)
- Management: SonicWall firewall, Wireless Network Manager, standalone interface, and CLI
- Monitoring: SNMP
- Access Control: 802.1X and MAB
- Quality of Service: Supported
- Flow Control: Supported
- Deployment: Zero-touch deployment
- Configuration: Backup and restore
- PoE Scheduling: Time management options for PoE ports
- Power Input: 54 V DC through an external power adapter
- Power Consumption: 63.2 W
- Form Factor: Compact
- Weight: 1.41 lb
Warranty & Compliance
- Environmental Compliance: RoHS
