Key Features

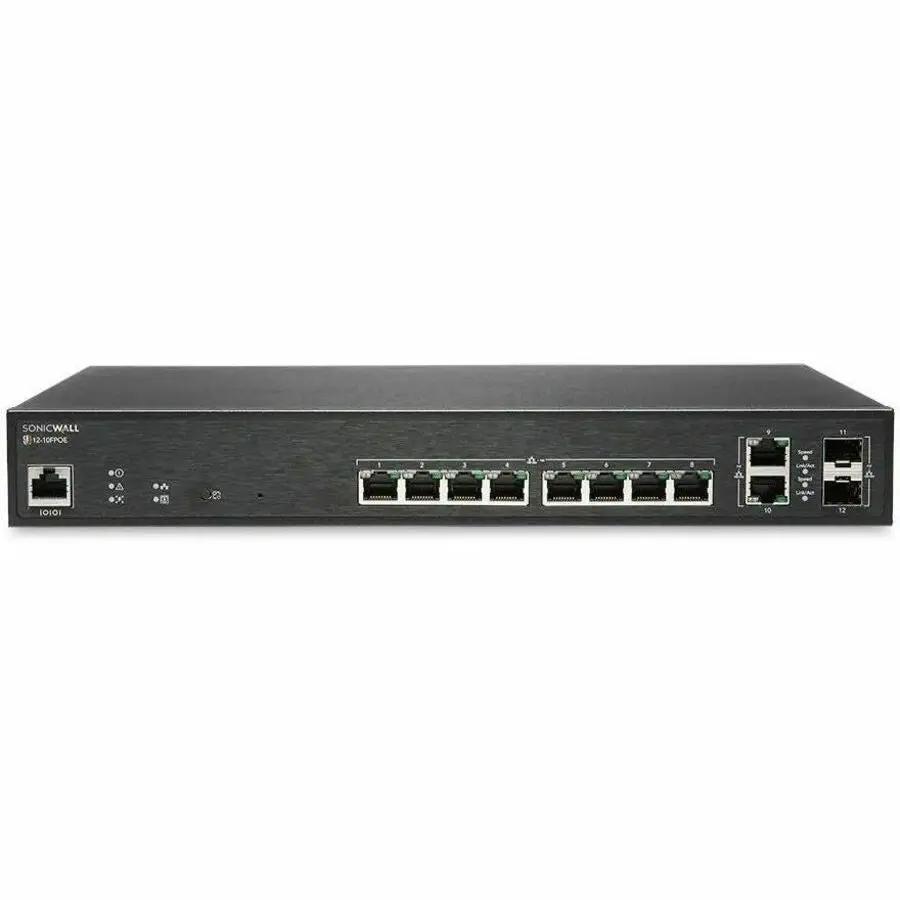

The SonicWall SWS12 is a compact managed switch for small offices and SD-Branch sites, pairing ten Gigabit PoE+ ports with two SFP uplink slots. A 130 W power budget runs access points, cameras, and IP phones, and the switch is administered from a SonicWall firewall, Wireless Network Manager, its own web interface, or the CLI. Zero-touch deployment, SNMP monitoring, and configuration backup keep rollouts and daily operations simple.
Tech Specs
- Ports: 10 x Gigabit Ethernet RJ-45
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Budget: 130 W
- Uplink Slots: 2 x SFP
- Uplink Speed: Gigabit Ethernet
- Network Technology: 1000Base-X
- Media Type: Twisted pair
- Routing: Static routing
- Management: SonicWall firewall, Wireless Network Manager, standalone UI, and CLI
- Monitoring: SNMP
- Deployment: Zero-touch deployment
- Configuration: Backup and restore
- Authentication: 802.1X and MAB
- Quality of Service: Supported
- Flow Control: Supported
- PoE Scheduling: Time-management options for PoE ports
- Power Consumption: 152.80 W
- Weight: 5.51 lb
Warranty & Compliance
- Environmental Compliance: RoHS
