Key Features

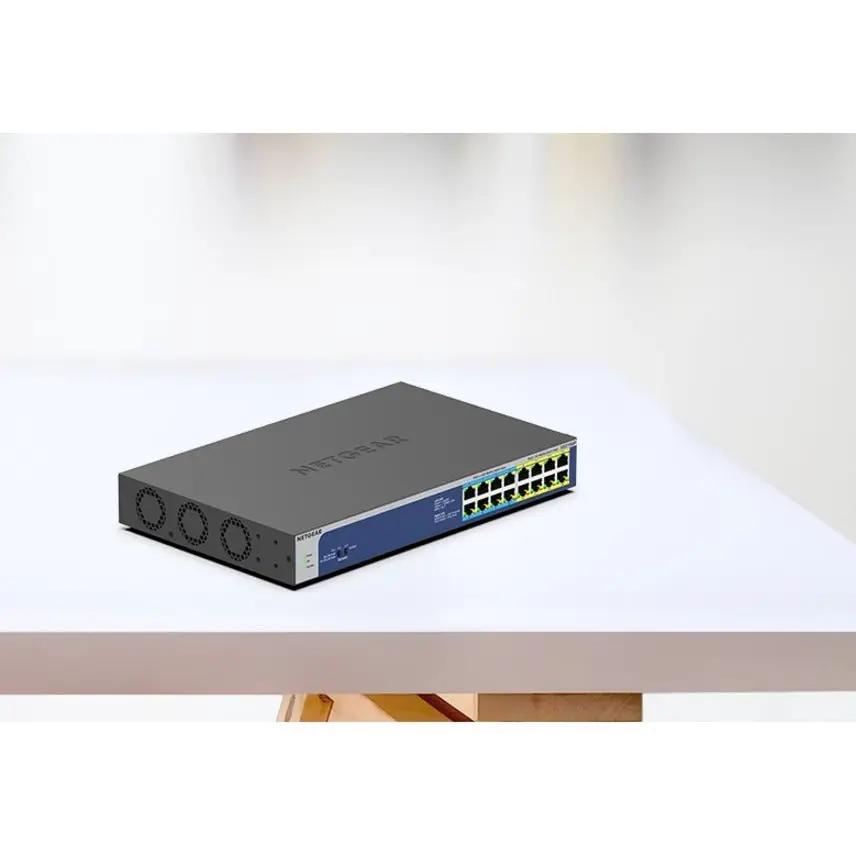

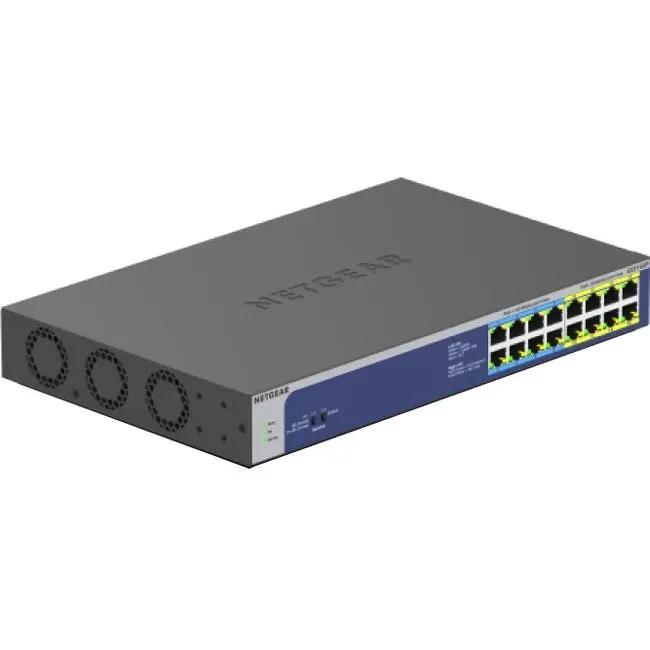

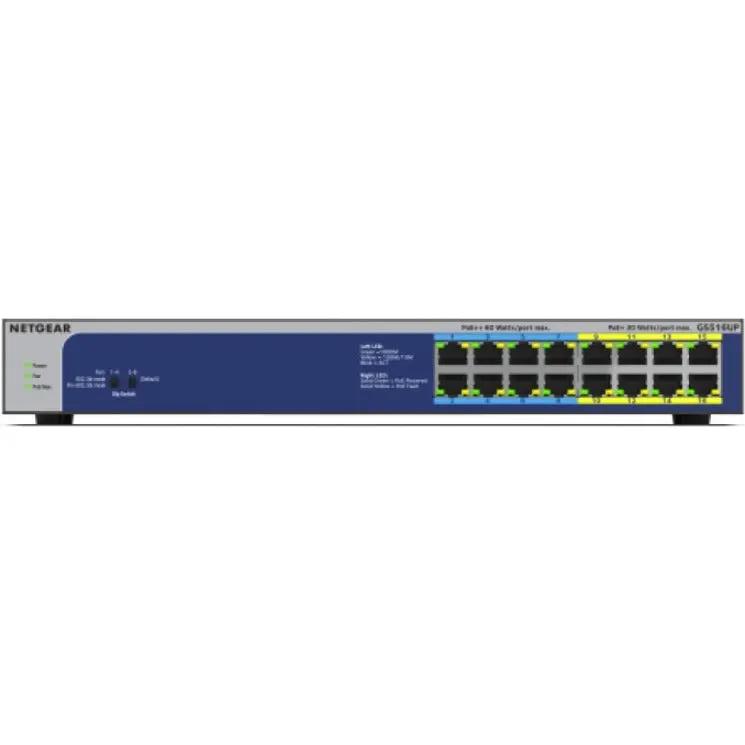

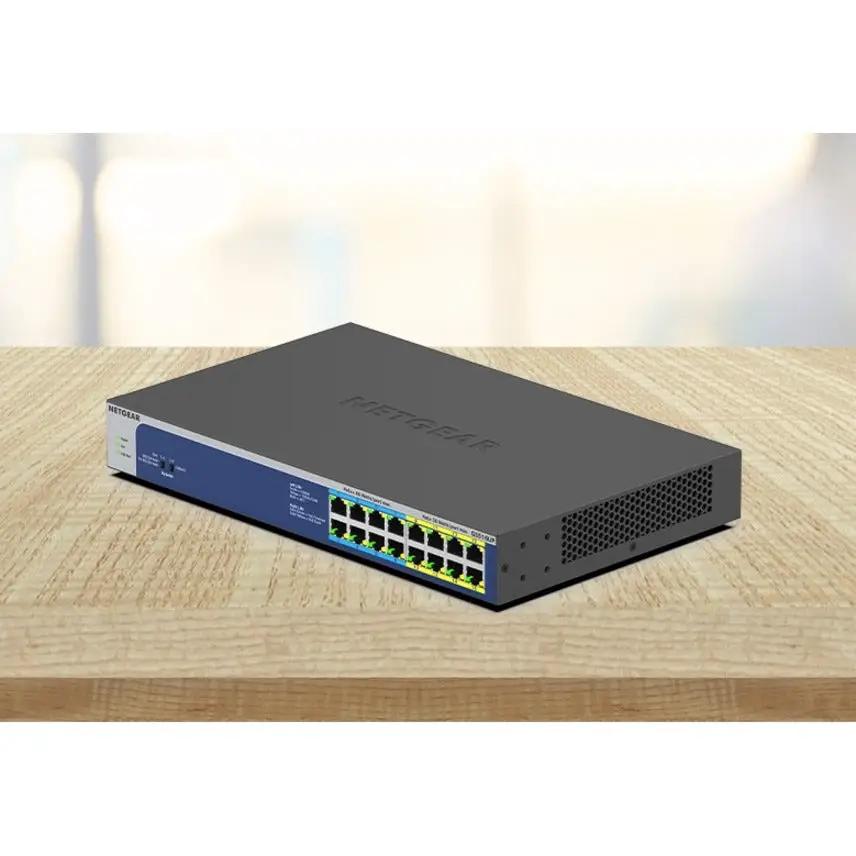

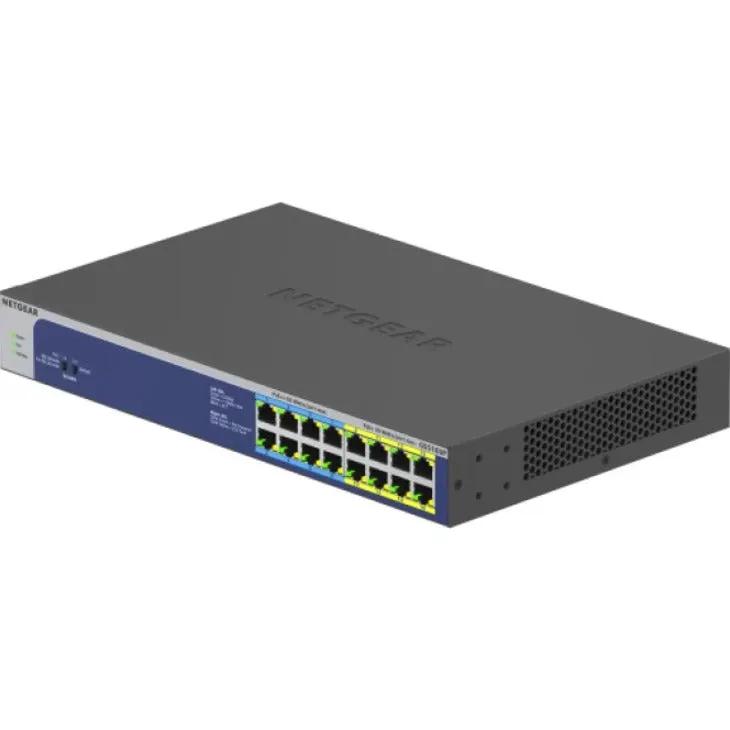

A 16-port Gigabit switch that splits its 380 W budget between eight 802.3bt PoE++ ports at up to 60 W each and eight PoE+ ports at up to 30 W, so PTZ cameras, high-power access points, and PoE lighting can share one box with ordinary phones and sensors. Non-blocking 32 Gbps switching keeps every port at wire speed with no configuration to do. The fanless metal chassis mounts in a rack or sits on a desk.
Tech Specs
- Ports: 16 x Gigabit RJ-45
- PoE++ Ports: 8 x IEEE 802.3bt Type 3
- PoE+ Ports: 8 x IEEE 802.3at
- PoE per PoE++ Port: Up to 60 W
- PoE per PoE+ Port: Up to 30 W
- PoE Budget: 380 W total
- Switching Capacity: 32 Gbps non-blocking
- Network Technology: Gigabit Ethernet (10/100/1000Base-T)
- Media Type: Twisted pair
- Auto-Negotiation: Supported
- Auto-MDI/MDIX: Supported
- Management: Unmanaged, no software or configuration required
- Port LEDs: Per-port activity and speed
- Chassis: Metal
- Cooling: Fanless
- Mounting: Desktop or rack
- Power Supply: Internal, 100 to 240 V AC 50/60 Hz
- Power Consumption: 456.80 W maximum
- Weight: 5.73 lb
Warranty & Compliance
- Lifetime manufacturer warranty
- ErP (Energy-related Products Directive) compliant
- REACH compliant
What's in the Box
- GS516UP Ethernet switch
- Power cord
- Rackmount kit
- Desktop rubber feet
- Installation guide
- Insight registration flyer
