Key Features

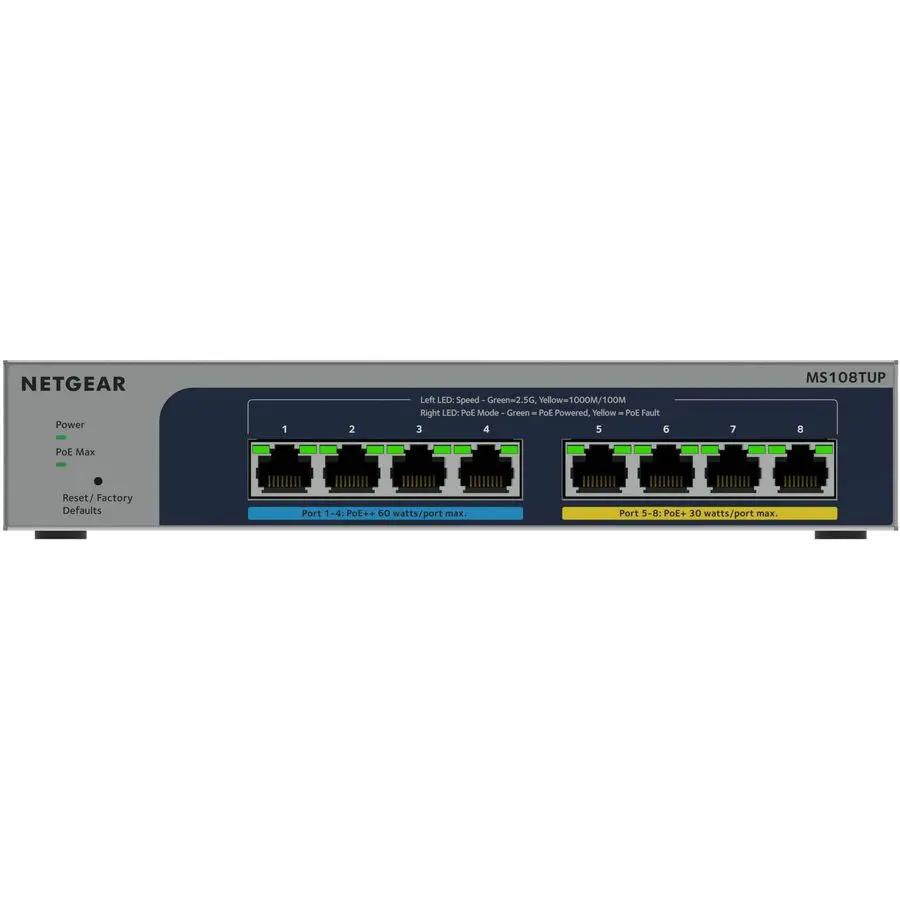

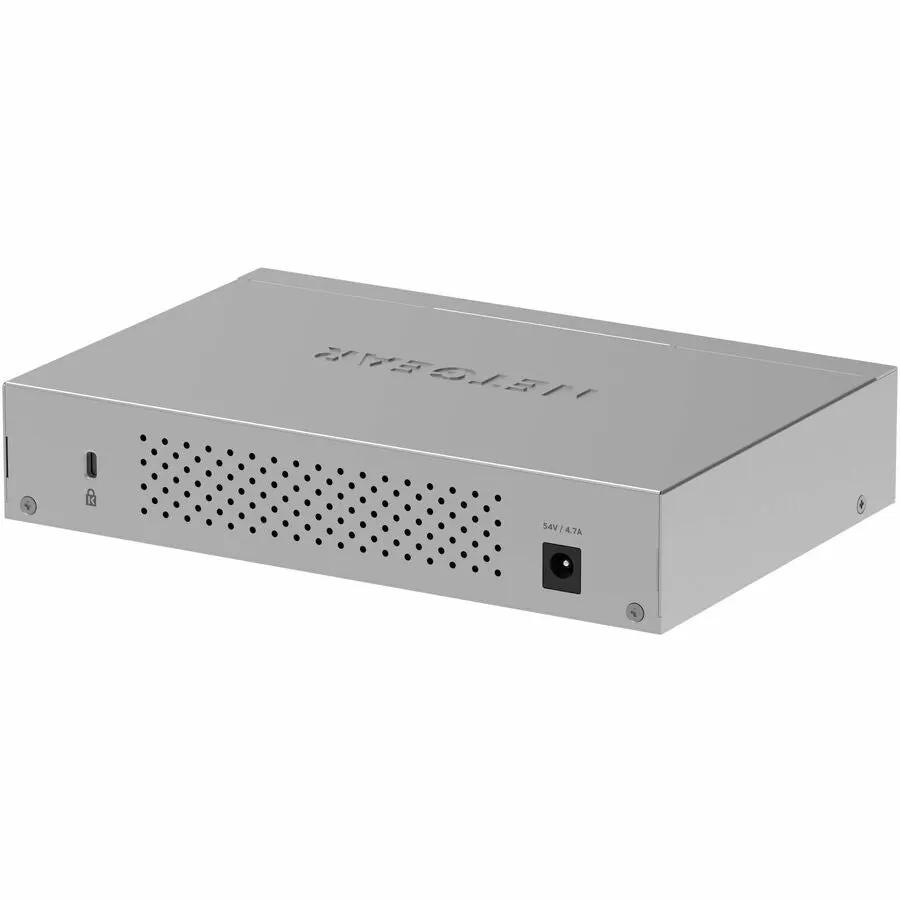

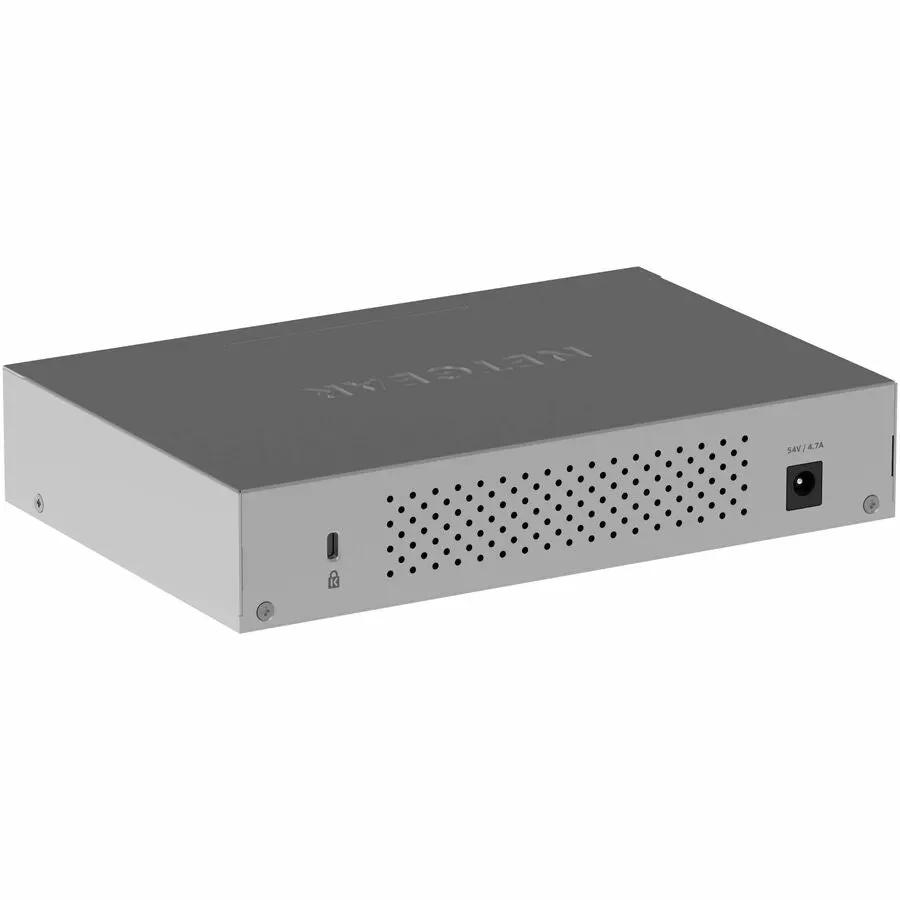

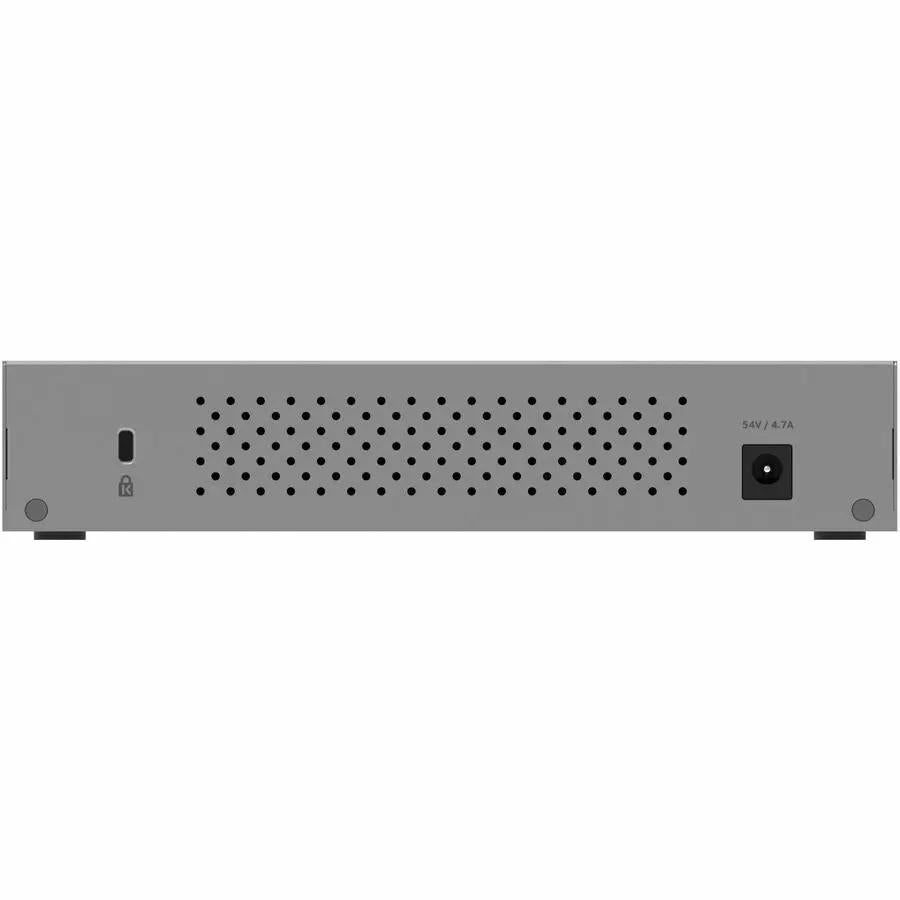

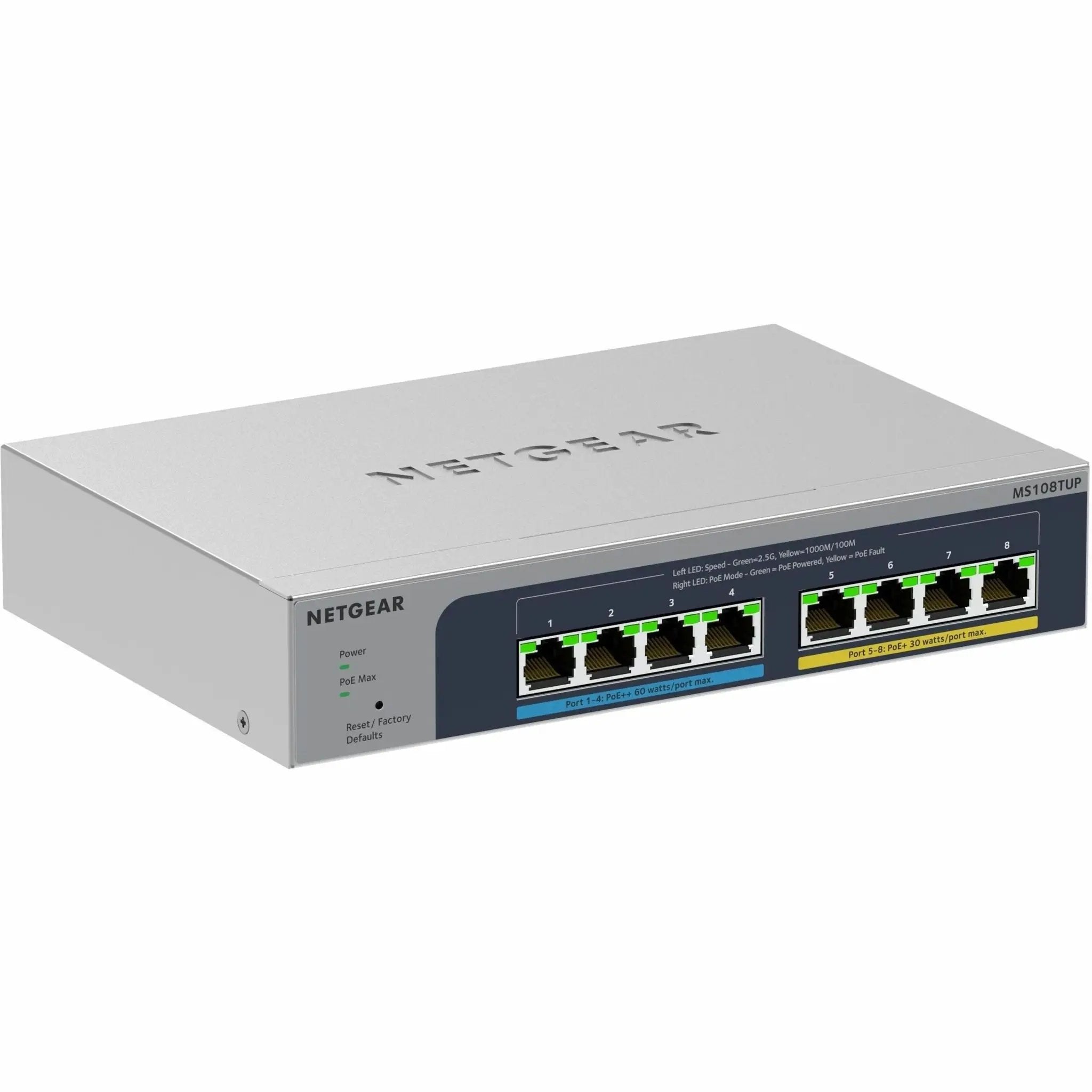

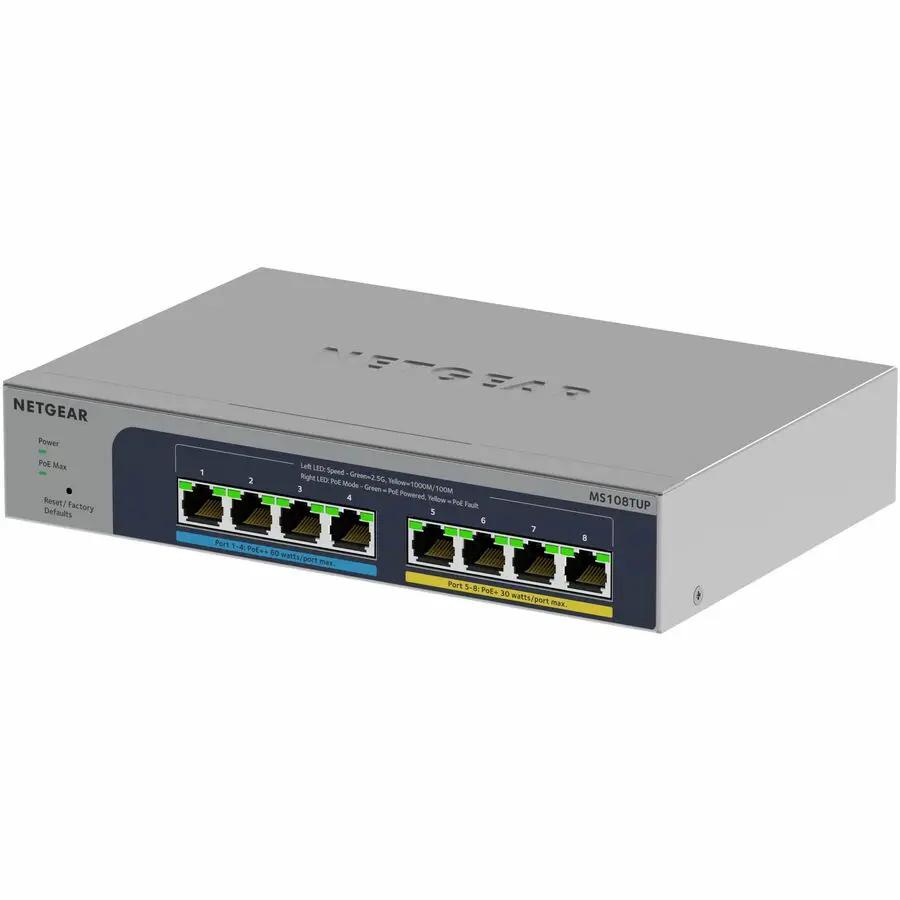

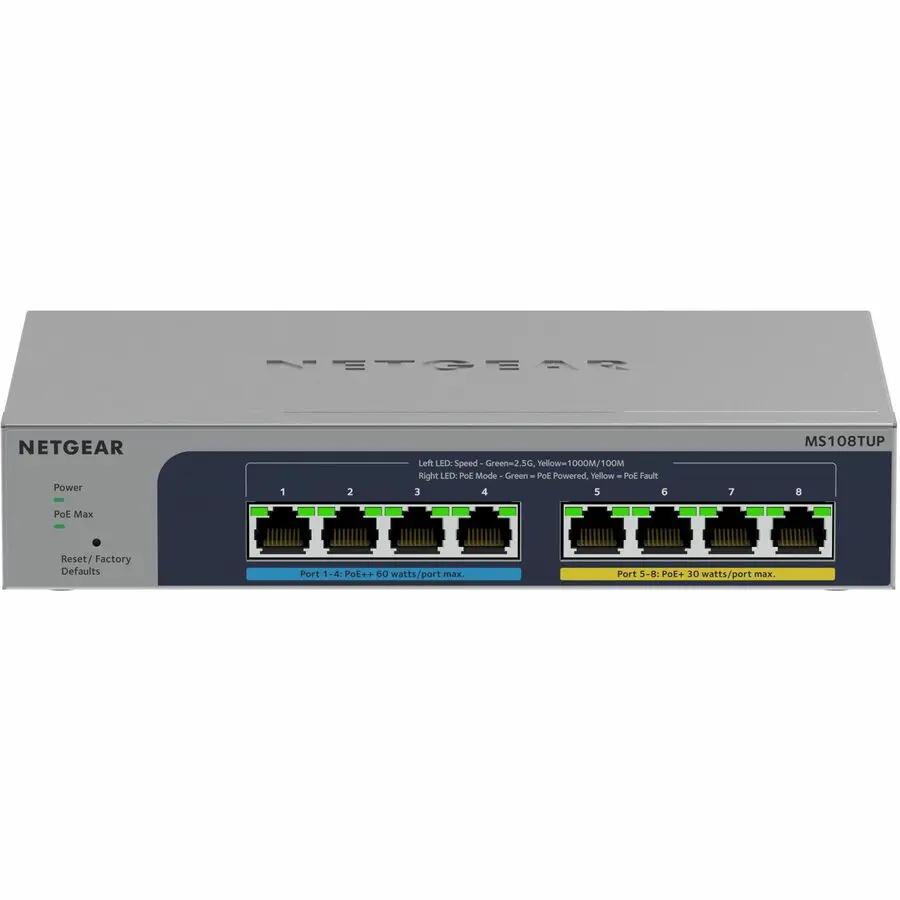

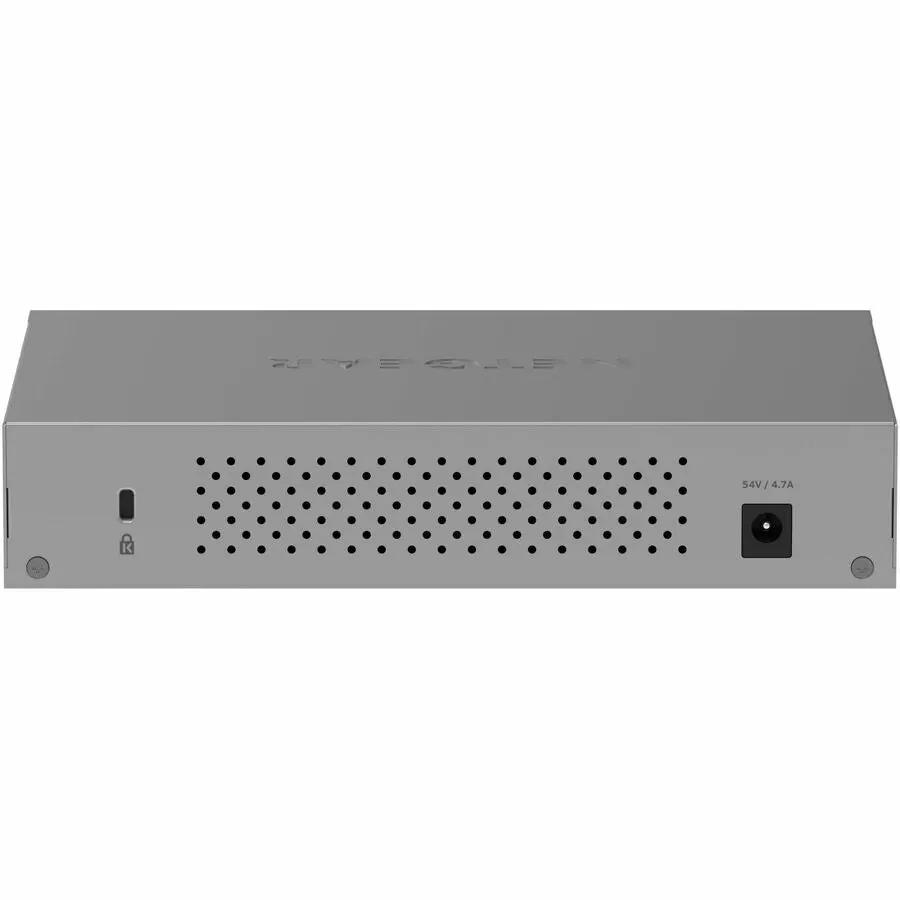

This 8-port multi-gigabit smart switch powers and connects demanding edge devices at up to 2.5 Gbps per port. Four ports deliver IEEE 802.3bt PoE++ at up to 60W each and four deliver PoE+ at up to 30W, drawing from a 230W budget for cameras, access points, and VoIP phones. VLANs, access control lists, IPv4 and IPv6 static routing, and cloud management make it a manageable, fanless edge switch for multi-tenant, education, and retail sites.
Tech Specs
- Ports: 8 x 2.5GbE RJ-45
- Ethernet Technology: 2.5 Gigabit Ethernet (2.5GBase-T)
- PoE Budget: 230W
- PoE Standard, Ports 1-4: IEEE 802.3bt (PoE++)
- Per-Port PoE, Ports 1-4: Up to 60W
- PoE Standard, Ports 5-8: IEEE 802.3at (PoE+)
- Per-Port PoE, Ports 5-8: Up to 30W
- Switching Layer: Layer 3 Lite
- Routing: IPv4 and IPv6 static routing
- VLAN: Supported
- Multicast: IGMP snooping and querier
- Access Control Lists: Layer 2, Layer 3, and Layer 4
- Port Authentication: IEEE 802.1X
- DHCP: DHCP relay
- IPv6: Supported
- Monitoring: SNMP v1/v2c/v3
- Management: Web GUI with remote cloud management
- Cooling: Fanless
- Chassis: Metal
- Mounting: Desktop or wall mount
- Weight: 1.98 lb
Warranty & Compliance
- Warranty: Limited lifetime
What's in the Box
- 8-Port Multi-Gigabit (2.5G) PoE++ Smart Switch
- Power adapter
- Wall installation kit
- Rubber feet
- Installation guide
