Key Features

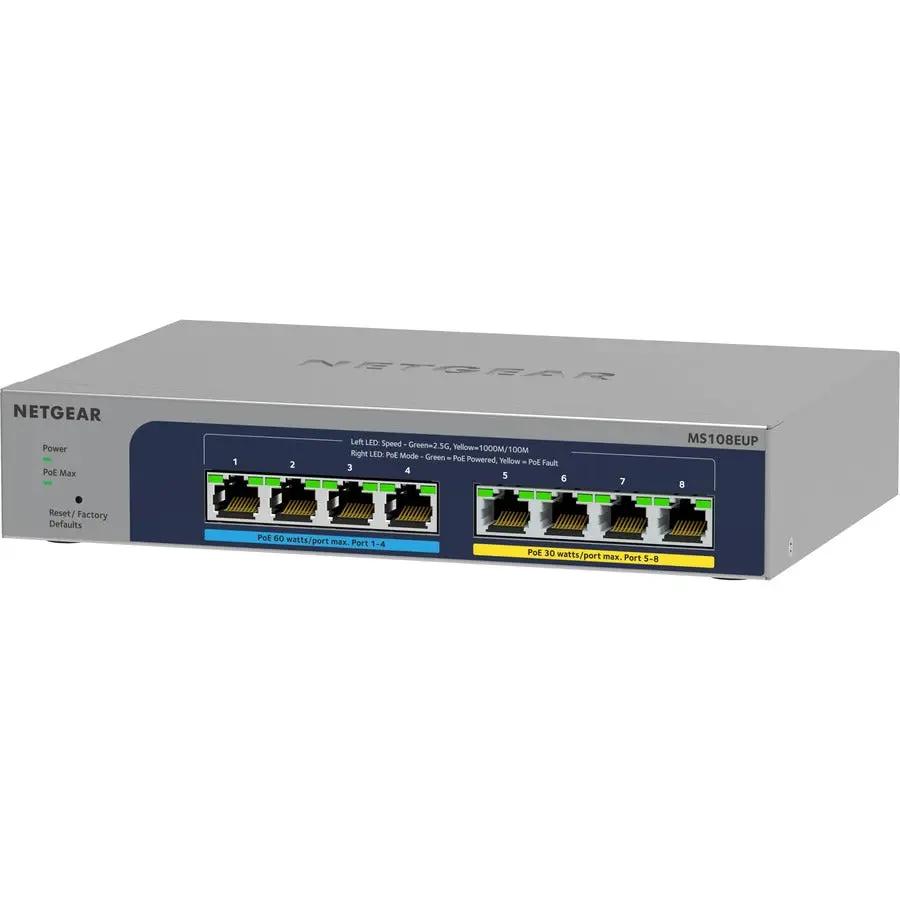

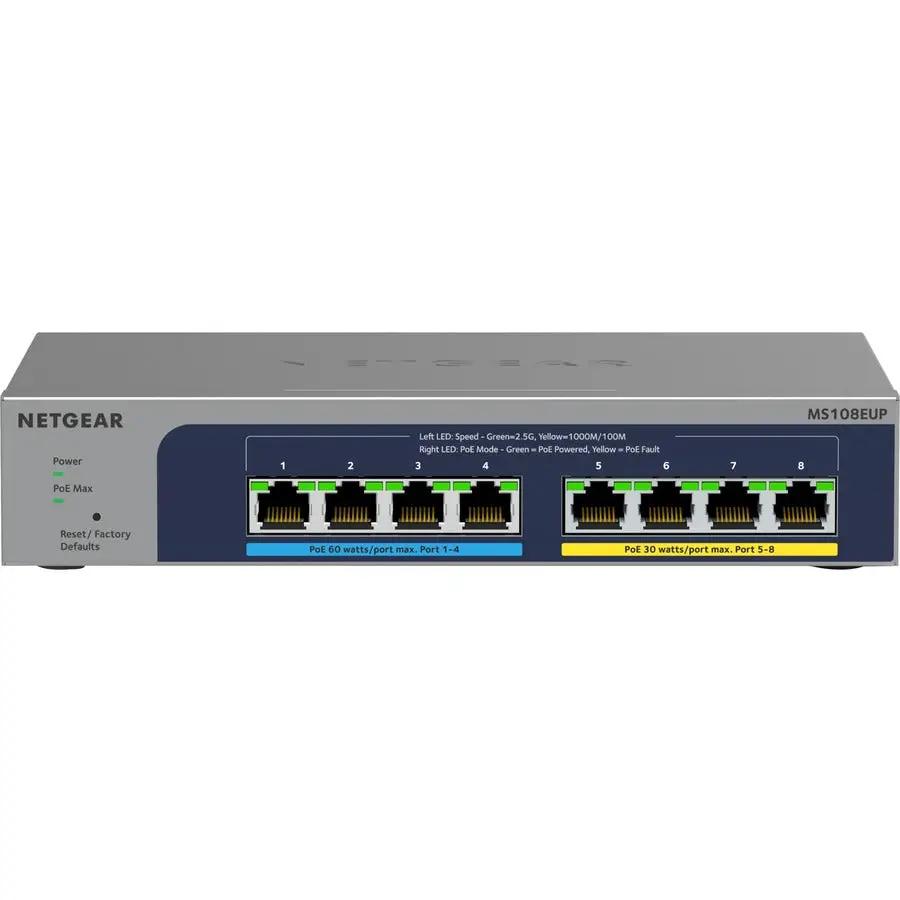

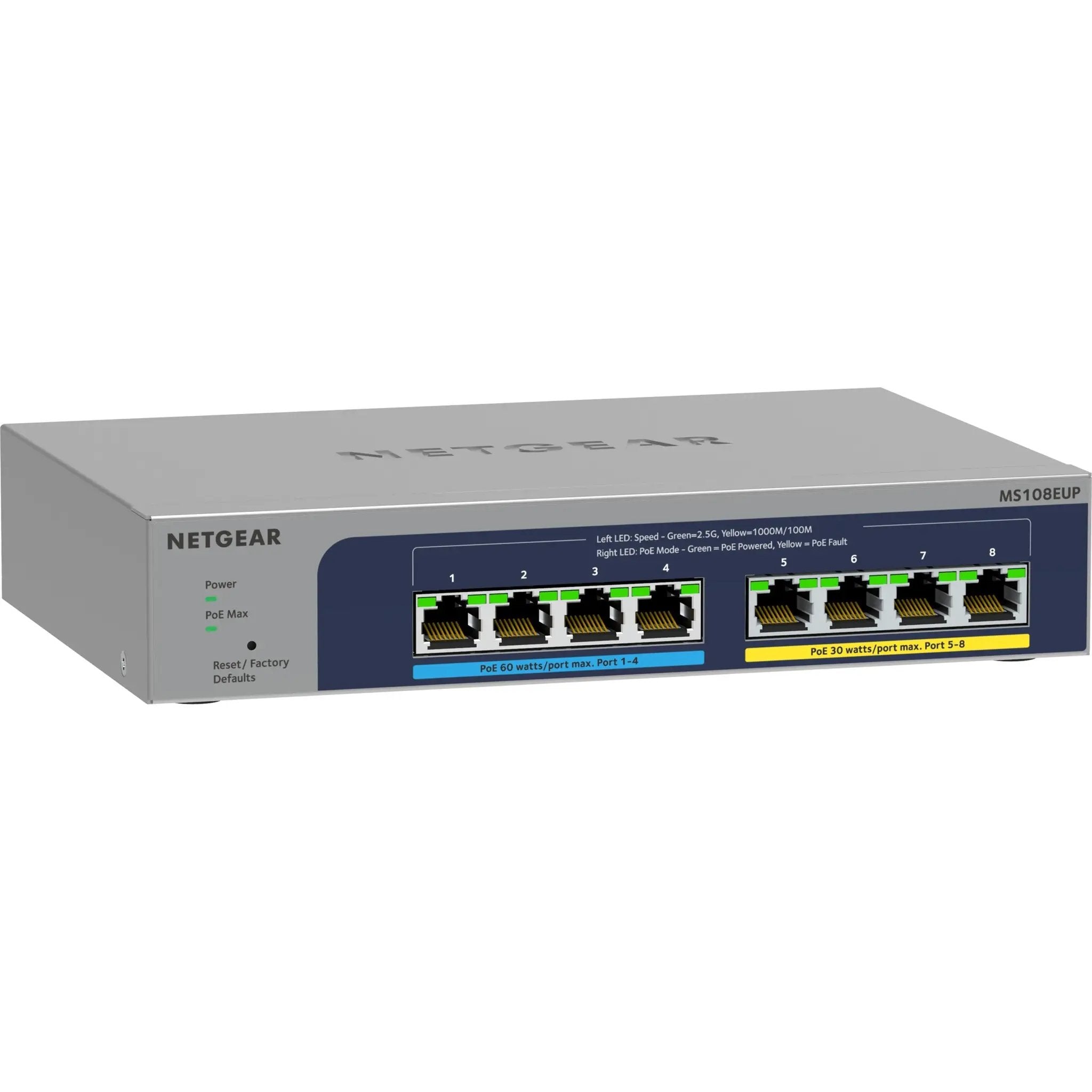

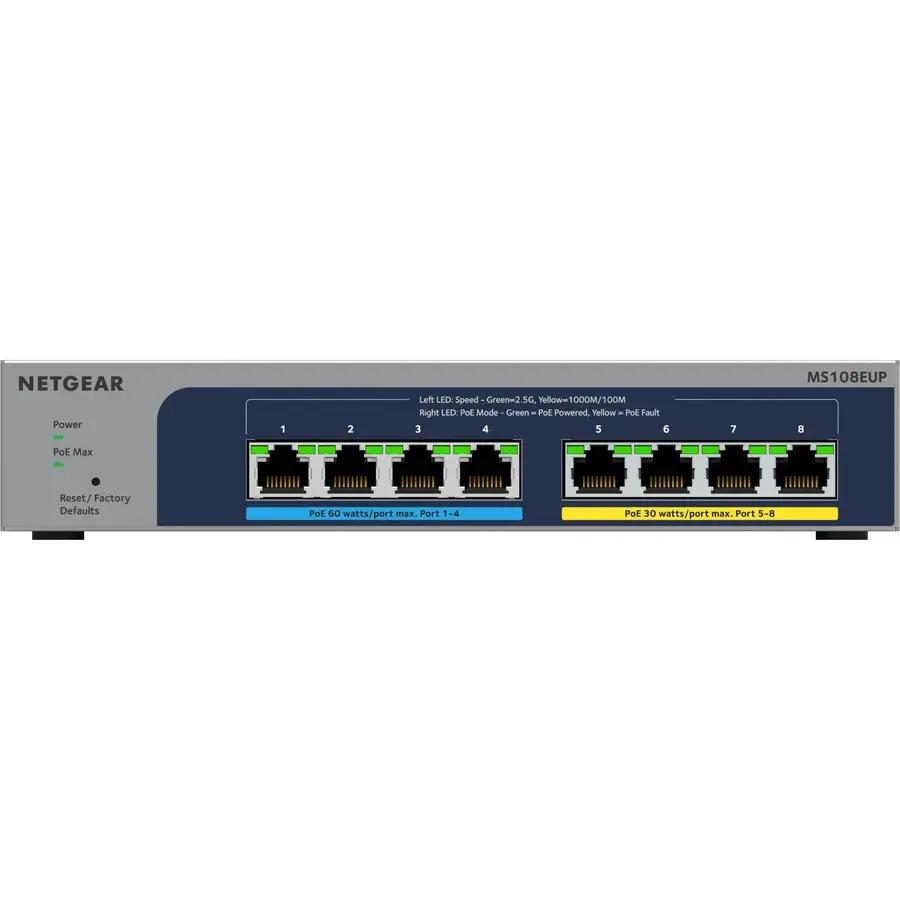

This 8-port multi-gigabit switch delivers up to 2.5 Gbps per port with 230W of PoE across all eight ports, so high-draw cameras, access points, and VoIP phones can run on a single cable. Four ports supply IEEE 802.3bt PoE++ at up to 60W and four supply PoE+ at up to 30W. A browser-based interface adds VLAN segmentation, QoS, IGMP snooping, and port mirroring on top of plug-and-play operation, and the fanless metal chassis sits on a desk or mounts to a wall.
Tech Specs
- Ports: 8 x 2.5GbE RJ-45
- Ethernet Technology: 2.5 Gigabit Ethernet (2.5GBase-T)
- PoE Budget: 230W
- PoE++ Ports: 4 at IEEE 802.3bt
- Per-Port PoE, PoE++ Ports: Up to 60W
- PoE+ Ports: 4 at IEEE 802.3at
- Per-Port PoE, PoE+ Ports: Up to 30W
- Switching Capacity: 40 Gbps
- Switching Layer: Layer 2
- VLAN: Up to 64 VLANs
- Multicast: IGMP snooping
- QoS: Supported
- Port Mirroring: Supported
- Loop Prevention: Supported
- Broadcast Storm Control: Supported
- Energy Efficiency: IEEE 802.3az
- Management: Web-based Easy Smart management GUI
- Cooling: Fanless

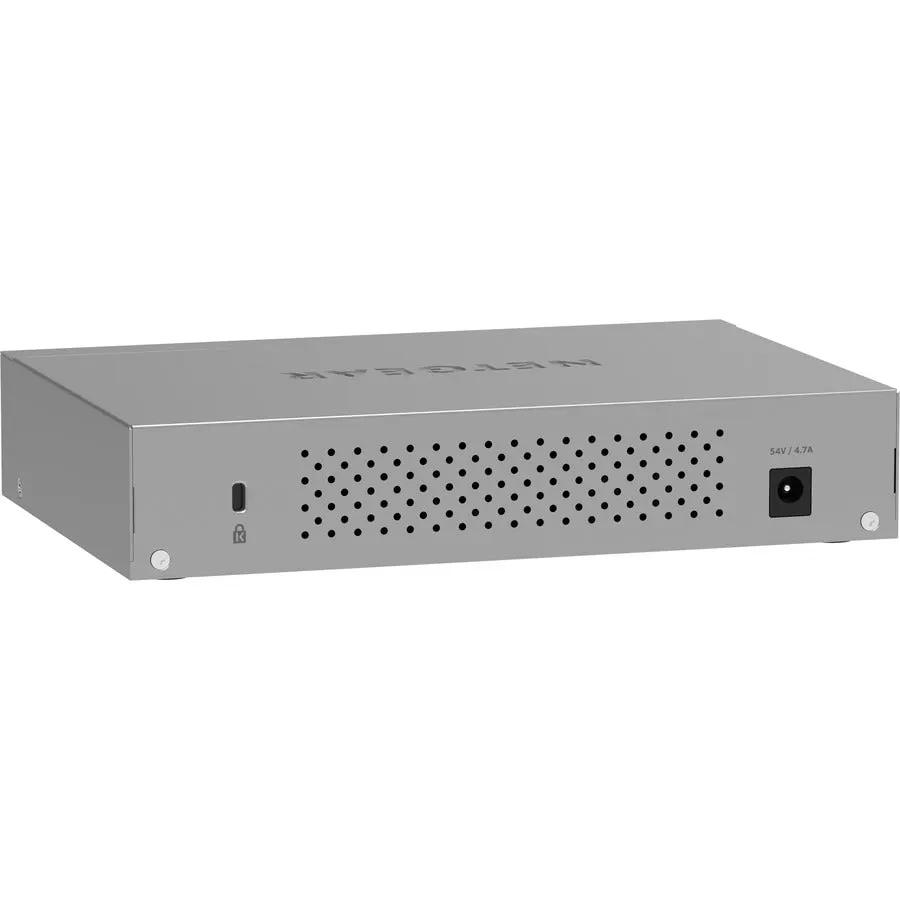

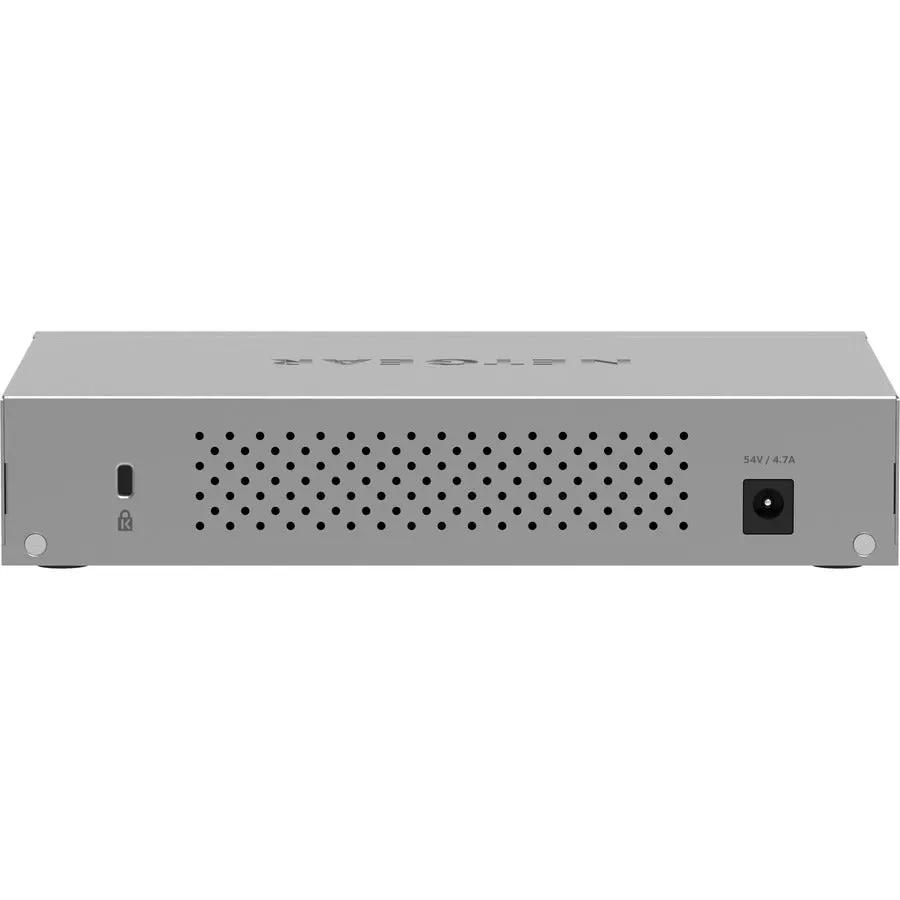

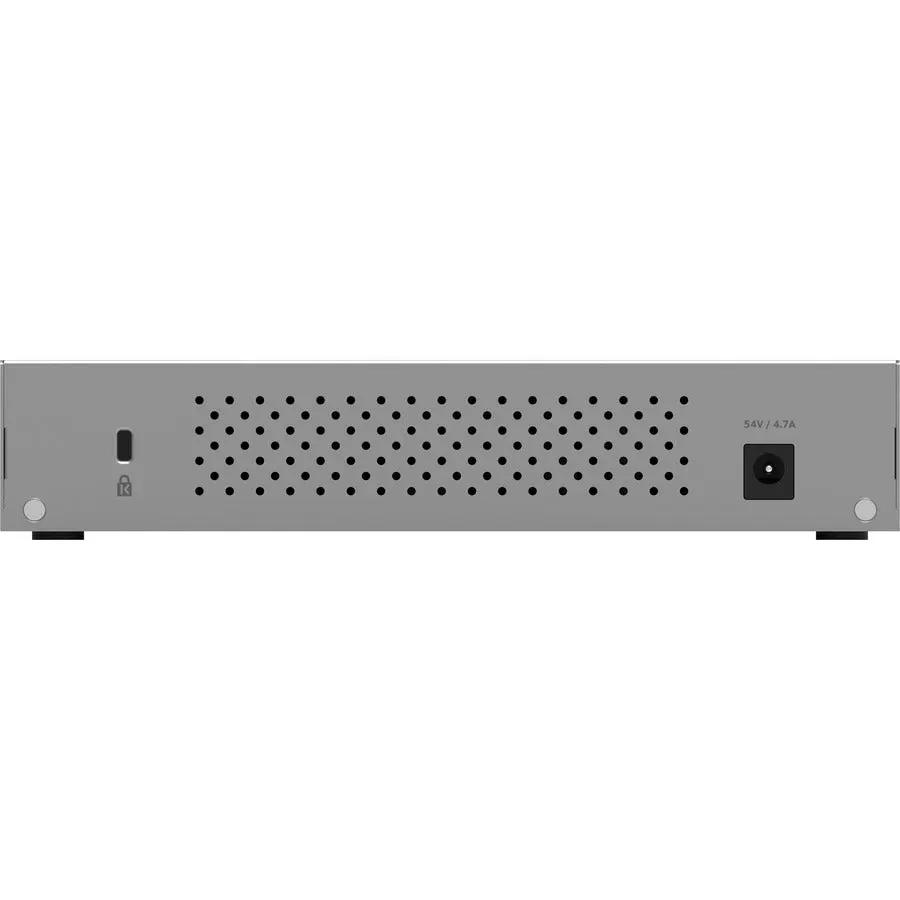

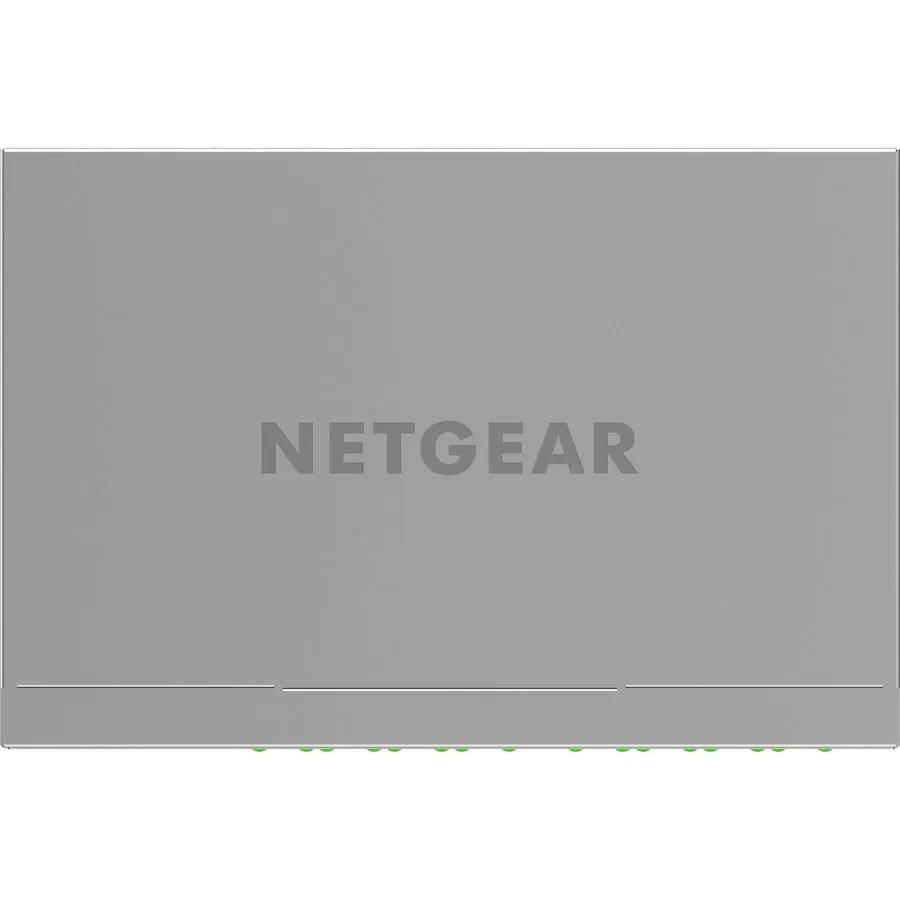

- Chassis: Metal
- Mounting: Desktop or wall mount
- Weight: 1.98 lb
Warranty & Compliance
- Warranty: Limited lifetime
What's in the Box
- 8-Port Multi-Gigabit (2.5G) PoE++ Switch
- Power adapter (power cable varies by region)
- Wall installation kit
- Rubber feet
- Installation guide
