Description

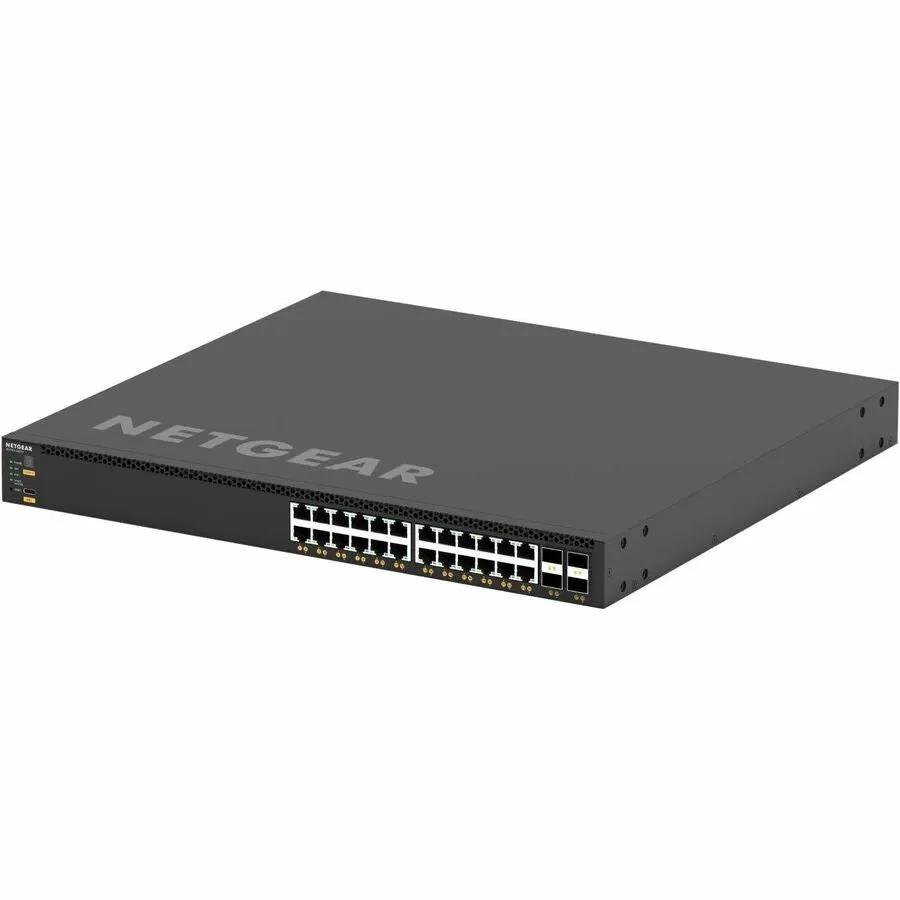

The NETGEAR AV Line M4350-24X4V is a 28-port Layer 3 fully managed switch built for AV-over-IP and enterprise aggregation. It combines 24 Multi-Gig (1/2.5/5/10G) PoE++ ports with four 25G SFP28 fiber uplinks, a 576 W PoE budget, and redundant power support. Centralized control via the Engage Controller plus deep AV/IP protocol support makes it ideal for mid-size to large professional installations.
Tech Specs

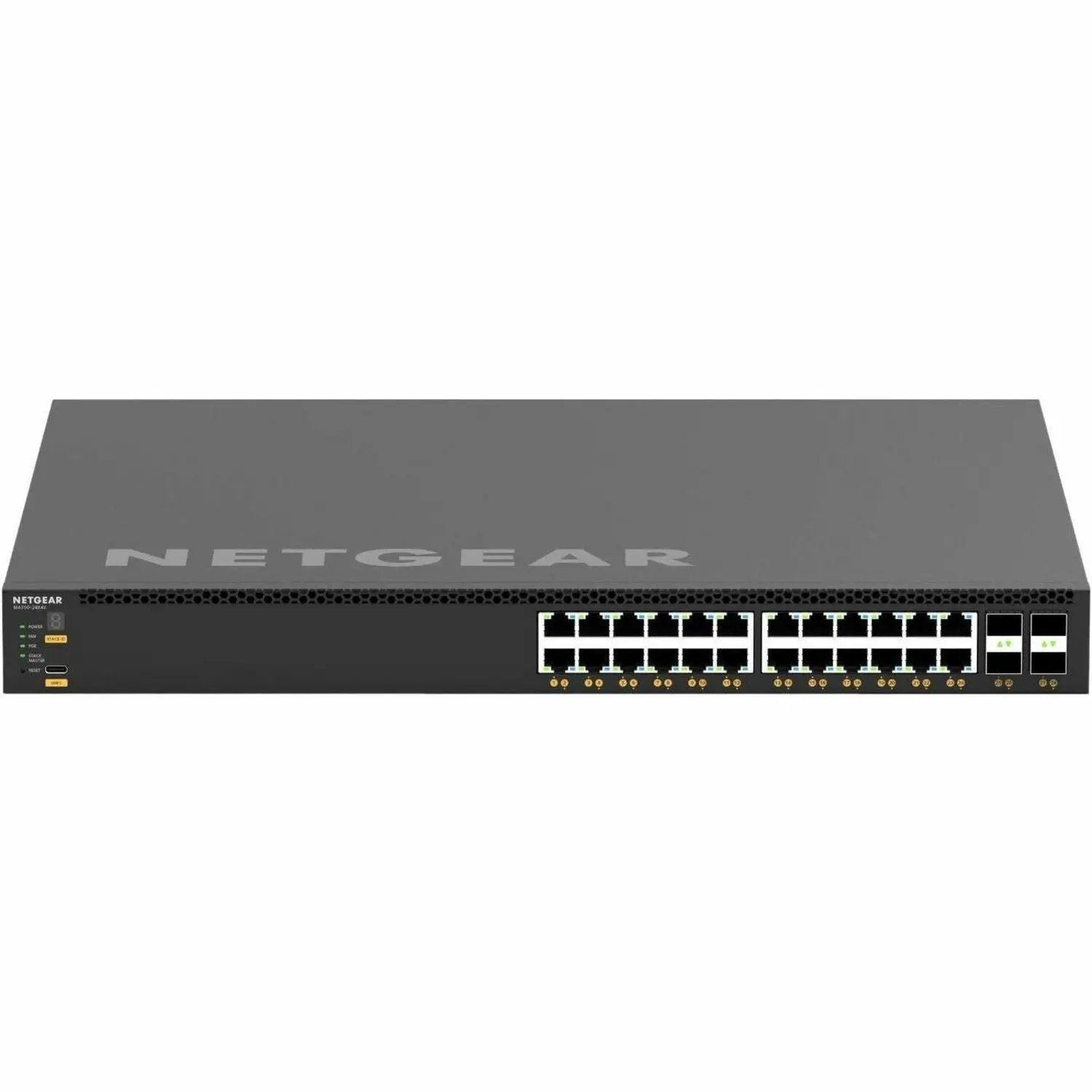

- Port Configuration: 24 x 1/2.5/5/10G Multi-Gig PoE++ RJ-45 ports; 4 x 25G SFP28 fiber uplinks
- PoE Budget: 576 W base, up to 720 W with second power supply
- PoE Standard: IEEE 802.3af/at/bt (Ultra90 PoE++), up to 90 W per port
- Switching Capacity: 680 Gb/s; 505.92 Mpps forwarding rate
- Routing: Layer 3 managed (dynamic and static routing)
- Management: CLI; NETGEAR GUI; SNMP; sFlow; RSPAN; Engage Controller
- High Availability: Non-Stop Forwarding (NSF) for hitless failover; edge-to-core stackable
- AV/IP Support: IGMP Plus; AVB; Dante; AES67; Q-SYS; NVX; NDI; SDVoE; SMPTE ST 2110 (select models)

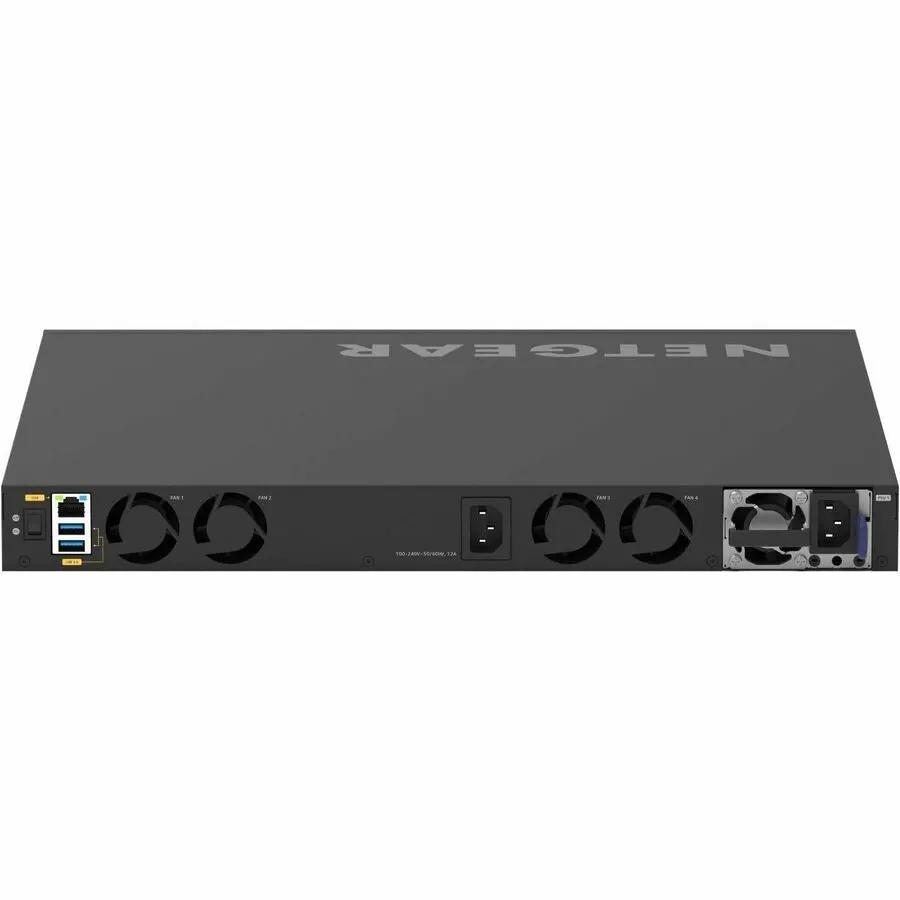

- Form Factor: 1U rack-mount with redundant power supplies
Warranty & Compliance
- Warranty: NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- Technical Support: 90 days phone and email; lifetime online chat; lifetime Next Business Day hardware replacement
- Licensing: No software subscriptions or per-feature licenses required
