Key Features

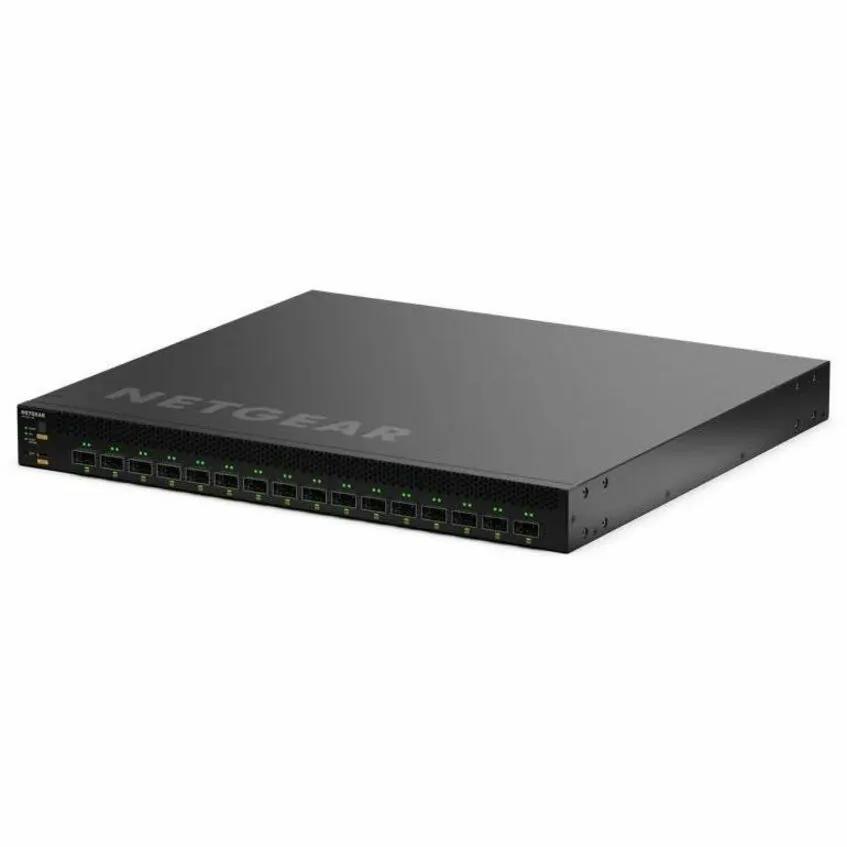

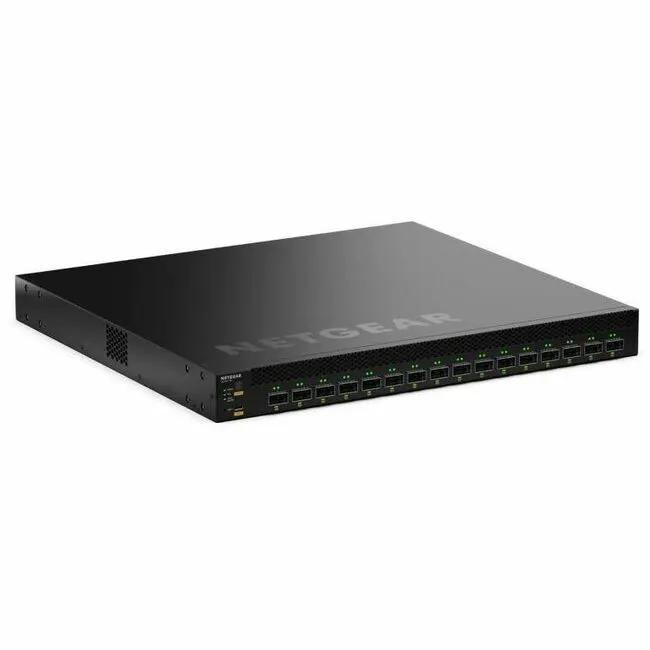

This 1U fully managed fiber switch provides 16 QSFP28 ports running at 100G for high-density AV over IP and IT-edge aggregation. A 3.2 Tbps switching fabric, Virtual Chassis stacking with non-stop forwarding, and a full Layer 3 routing set keep traffic moving at scale, while NETGEAR IGMP Plus and the Engage Controller handle AV multicast without hand configuration. It suits mid-to-large AV installations, broadcast facilities, and core aggregation.
Tech Specs
- Ports: 16 x 100GBASE-X QSFP28
- Switching Capacity: 3.2 Tbps
- Maximum Data Transfer Rate: 100 Gbps per port
- Switching Layer: Layer 3
- Routing: Static and dynamic
- Ethernet Technology: 100 Gigabit Ethernet
- Media Type: Optical fiber
- Stacking: Virtual Chassis with non-stop forwarding and hitless failover
- Multicast: NETGEAR IGMP Plus
- Access Control: Access control lists
- Management: AV User Interface and Engage Controller
- Monitoring: SNMP

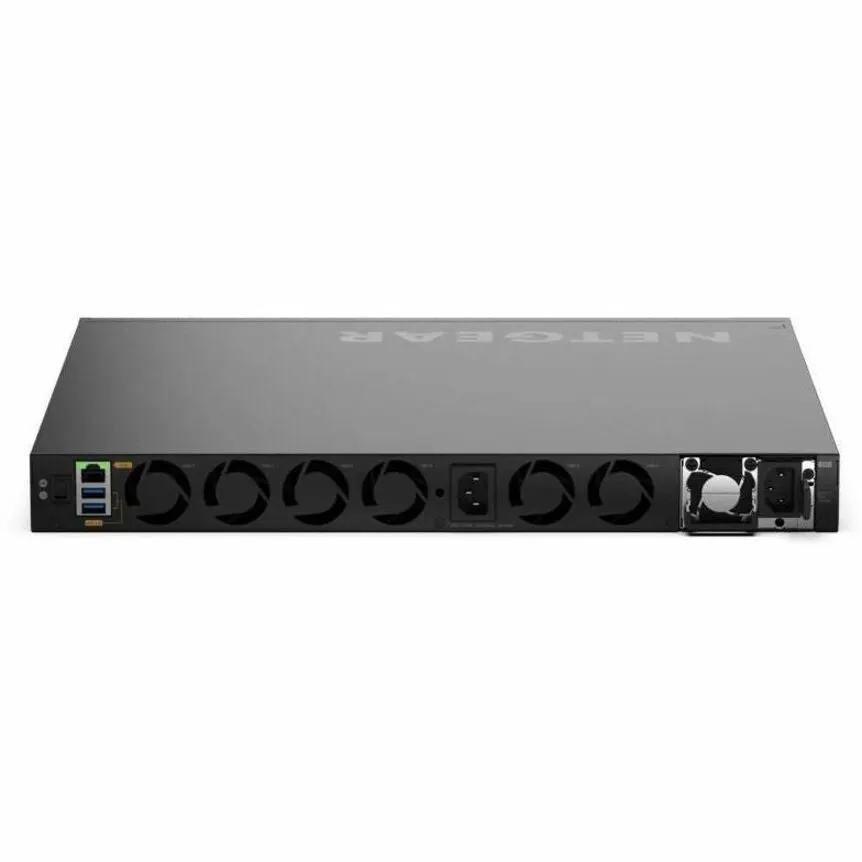

- Power Supply: 420 W internal
- Power Redundancy: Redundant power supply supported
- Power Consumption: 161.9 W
- Input Voltage: 230 V AC
- Plug Type: C14
- Rack Units: 1U
- Weight: 17.7 lb
Warranty & Compliance
- Warranty: NETGEAR ProSAFE Limited Lifetime Hardware Warranty
- Hardware Replacement: Lifetime Next Business Day
- Technical Support: 90 days phone and email, lifetime online chat
What's in the Box
- AV Line M4350-16C Ethernet Switch
- Power Cord
- USB Type-C to USB-A 2.0 Console Cable
- Rubber Caps for the SFP+, SFP28, and QSFP28 Sockets
- Rubber Footpads for Tabletop Installation
- Rackmounting Standard Brackets
- Longer Brackets for Recessed Mounting
- Installation Guide
