Key Features

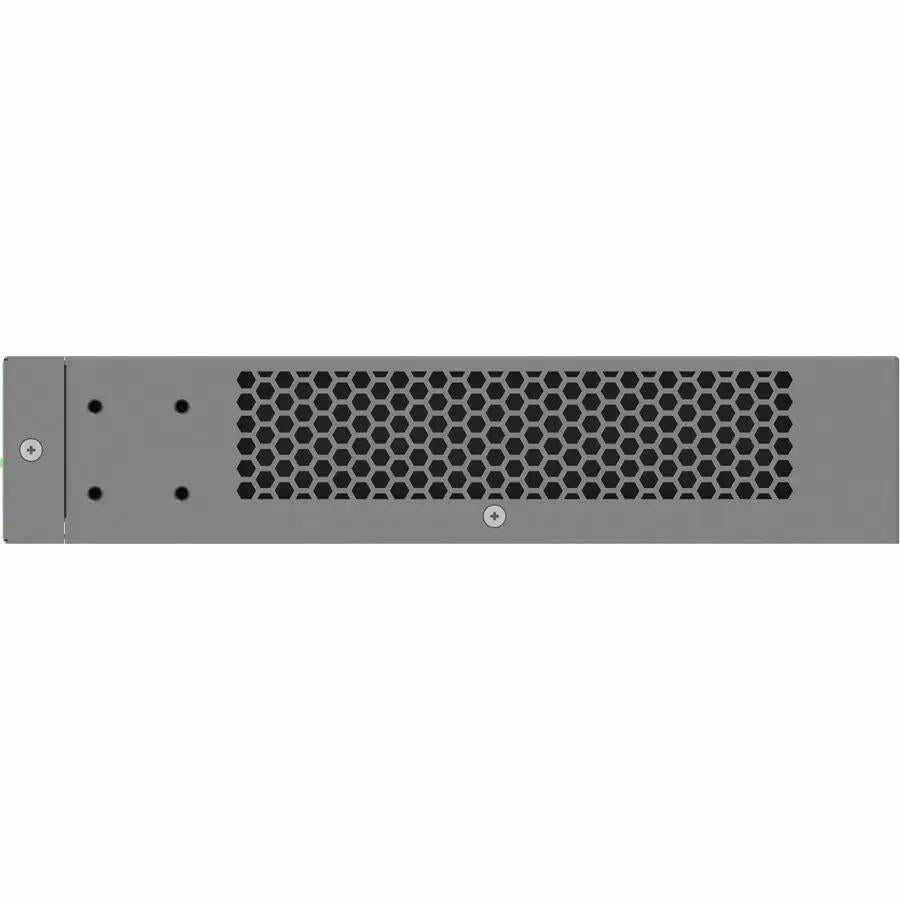

This 8-port multi-gigabit smart managed switch pairs four 10GbE RJ-45 ports with four 2.5GbE RJ-45 ports, every one of them Ultra60 PoE++ capable from a 295 W budget. Two 10G SFP+ fiber uplinks carry aggregated traffic back to the core, and Layer 3 Lite static routing with 256 VLANs suits small business edge and aggregation deployments. Optional NETGEAR Insight cloud management adds remote configuration.
Tech Specs

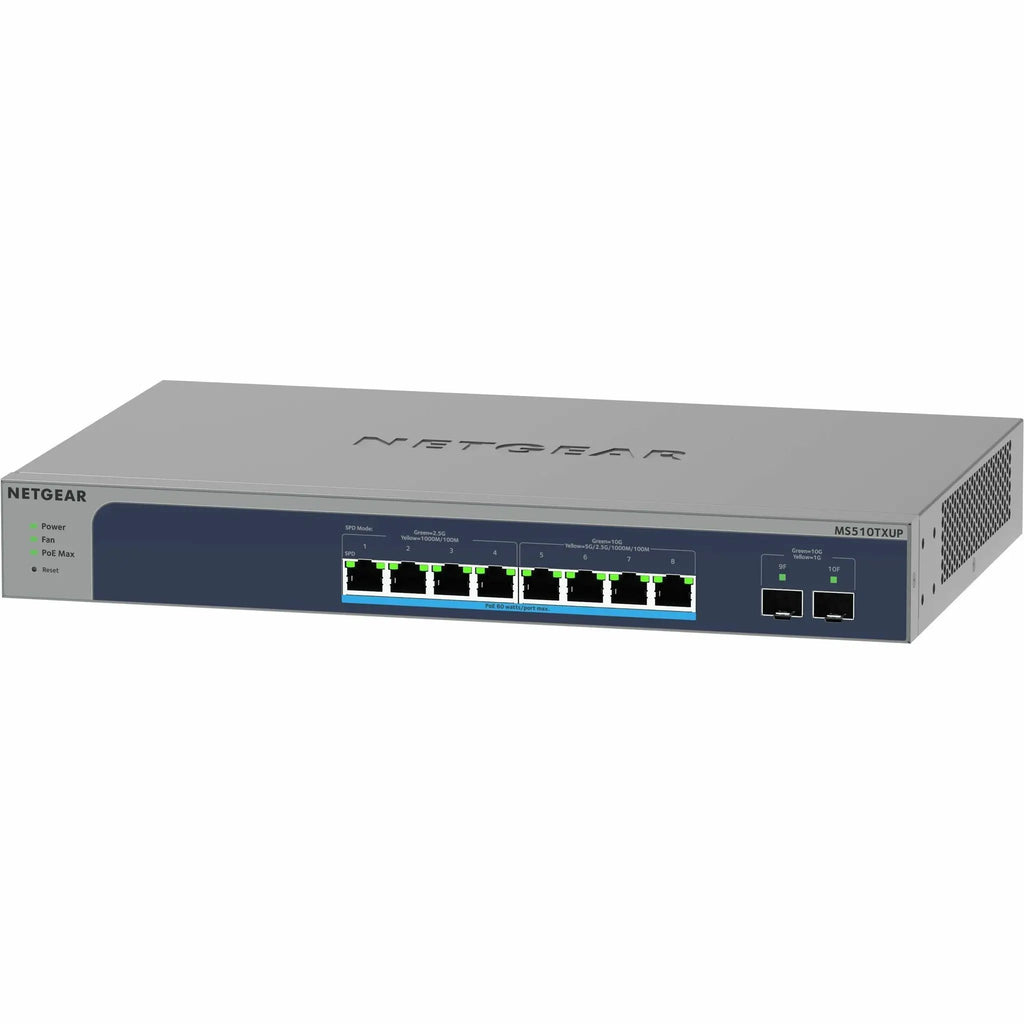

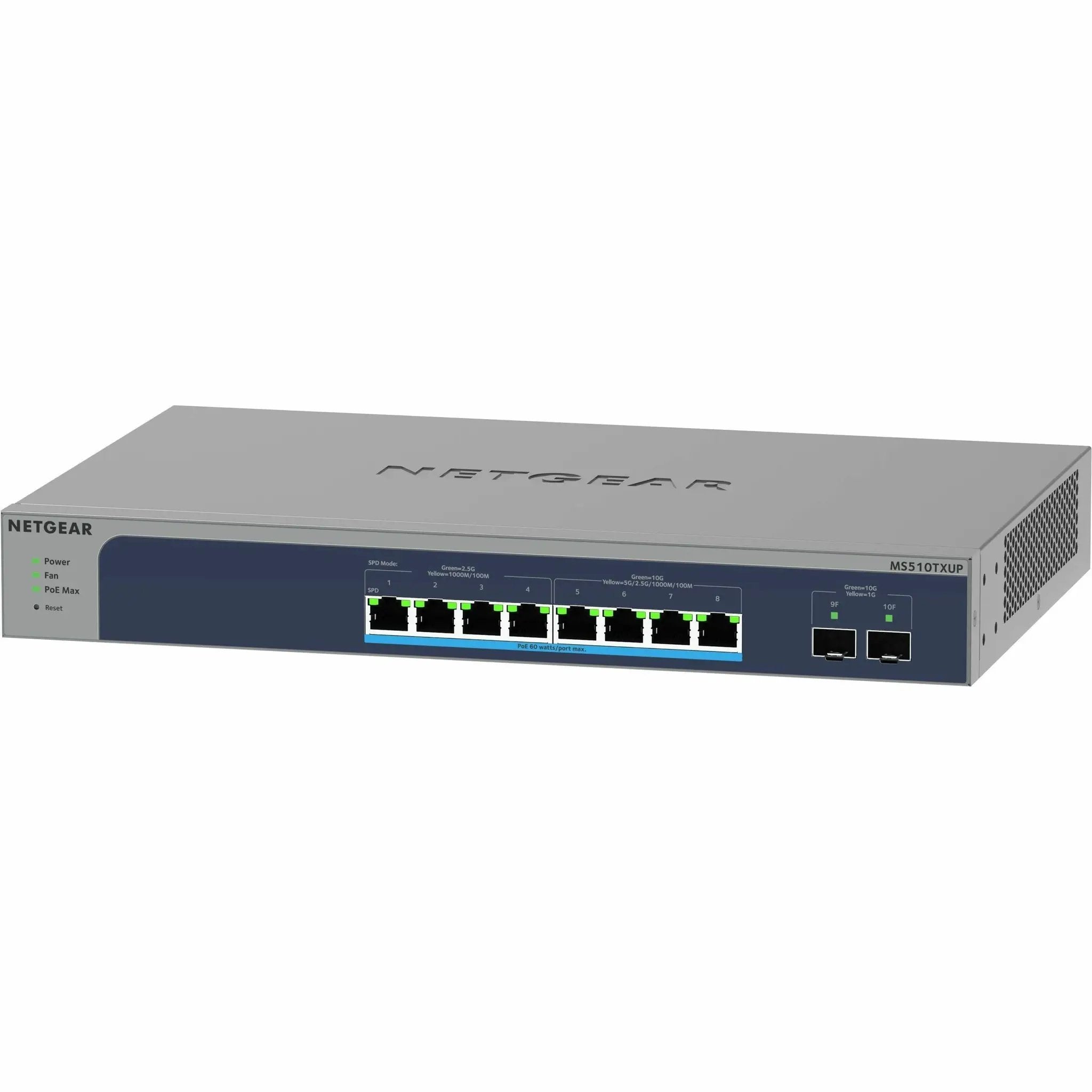

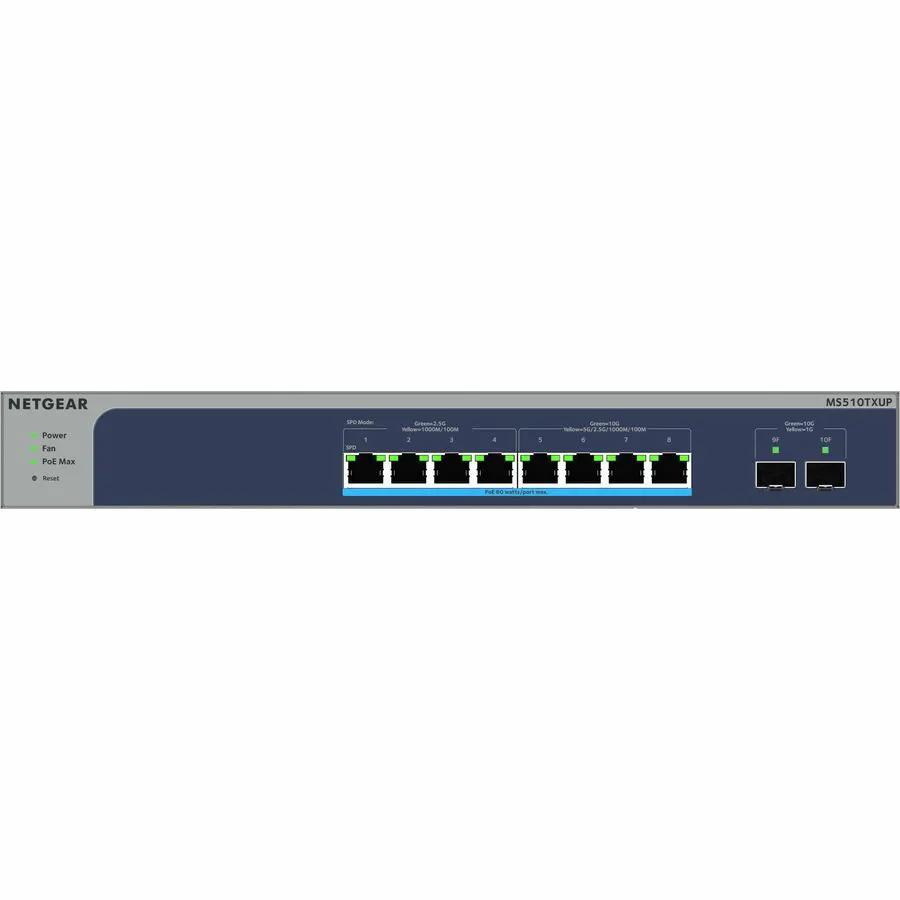

- Ports: 4 x 10GbE RJ-45 + 4 x 2.5GbE RJ-45
- Uplink Ports: 2 x 10G SFP+
- PoE Standard: IEEE 802.3bt (Ultra60 PoE++)
- Maximum PoE per Port: 60 W
- PoE Budget: 295 W
- Switching Capacity: 140 Gbps non-blocking
- Switching Layer: Layer 3 Lite
- Routing: Static routing, 32 static routes
- VLANs: 256
- Multicast: IGMP snooping v1, v2, and v3 with querier
- Management: Smart managed, with optional NETGEAR Insight cloud management
- Monitoring: SNMP v1, v2c, and v3
- Access Control: IPv4 and L4-based ACLs
- Port Authentication: IEEE 802.1x
- DHCP Security: DHCP snooping
- Ethernet Technology: 10 Gigabit Ethernet
- Media Type: Twisted pair and optical fiber

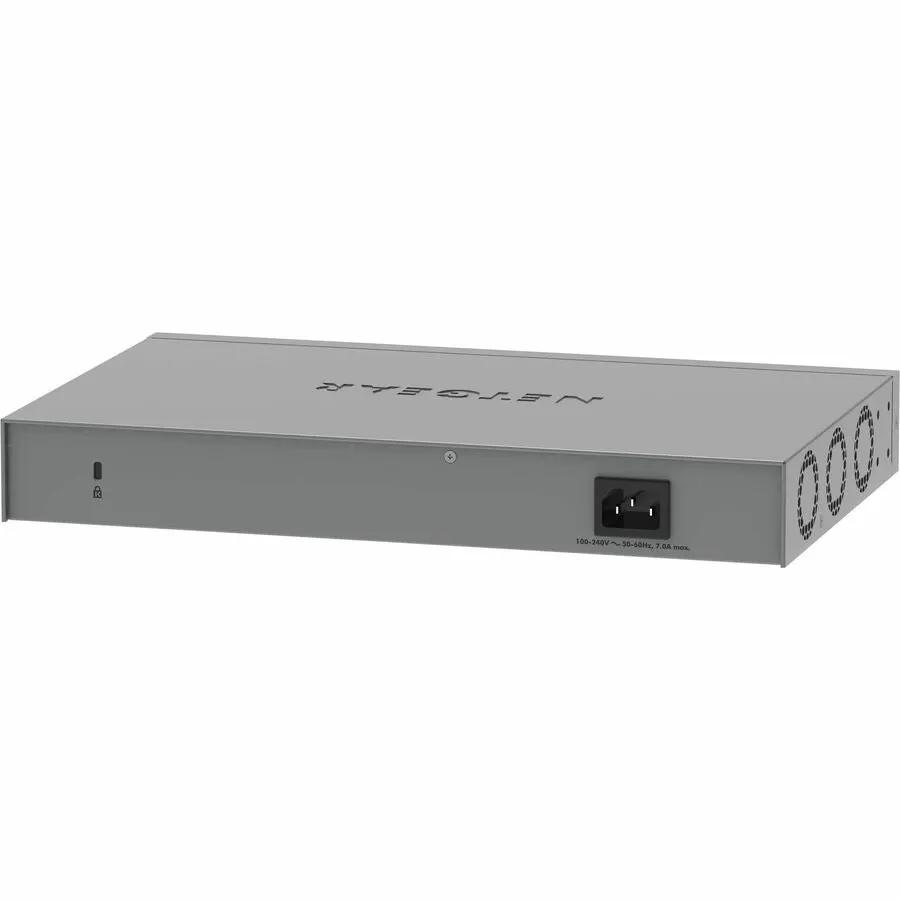

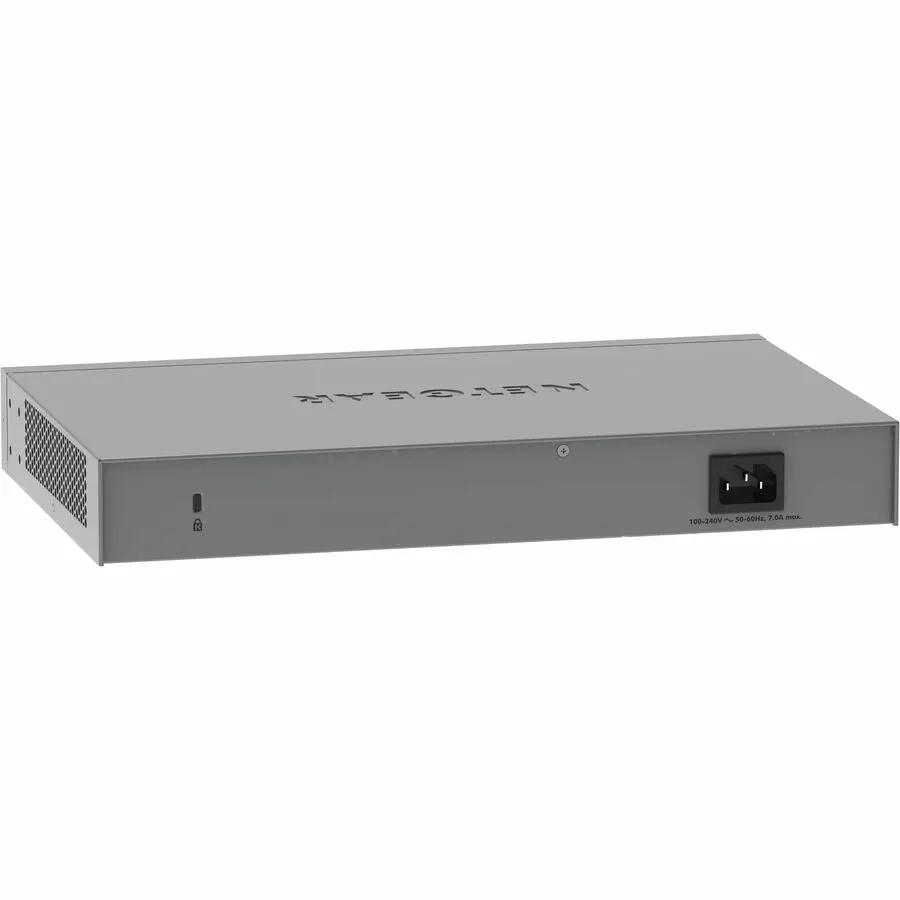

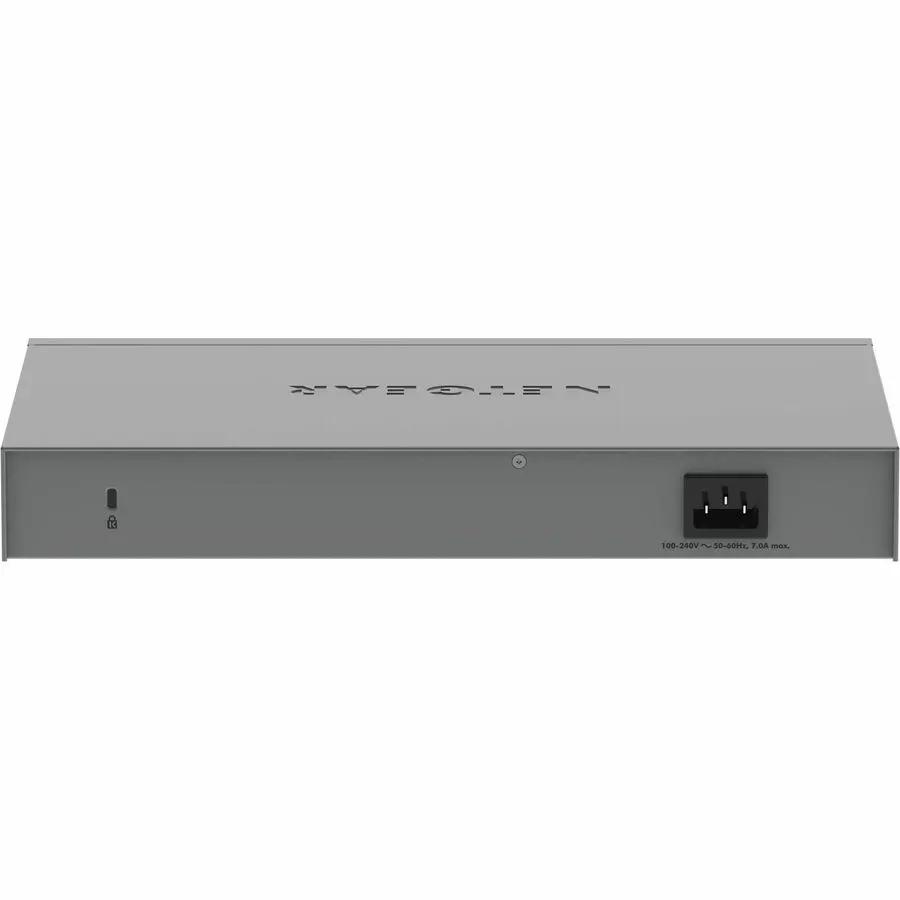

- Power Supply: Internal
- Acoustic Noise: 33 dB maximum at 25 degrees C
- Form Factor: Rack-mountable, also tabletop
- Weight: 5.53 lb
Warranty & Compliance
- Warranty: NETGEAR Limited Lifetime Hardware Warranty
What's in the Box
- MS510TXUP Ethernet Switch
- Power Cord
- Mounting Kit
- Rubber Feet
- Installation Guide
