Key Features

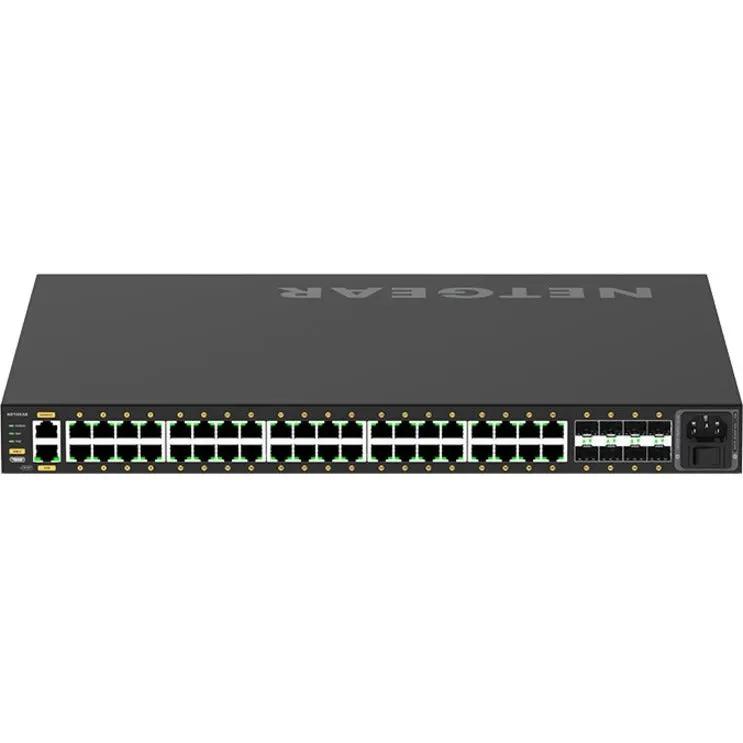

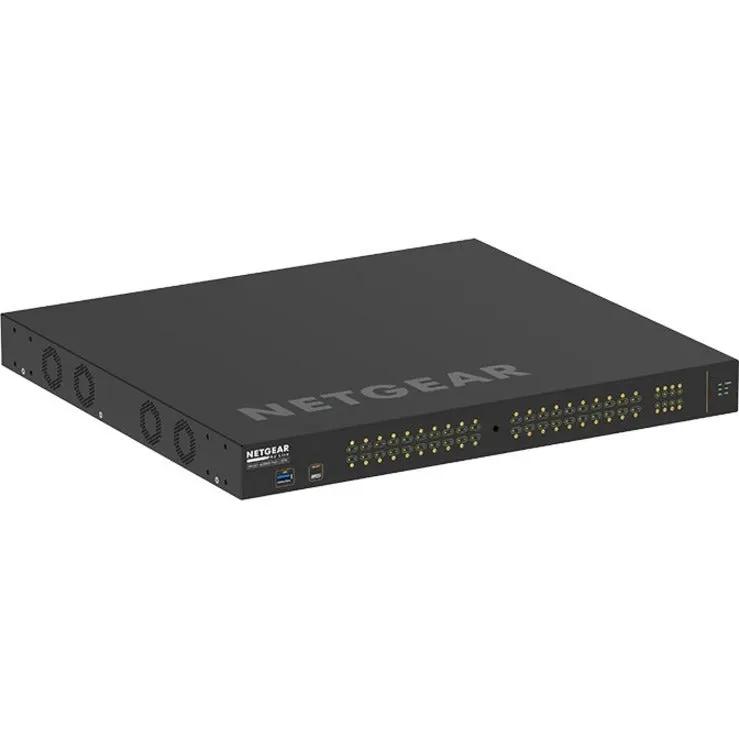

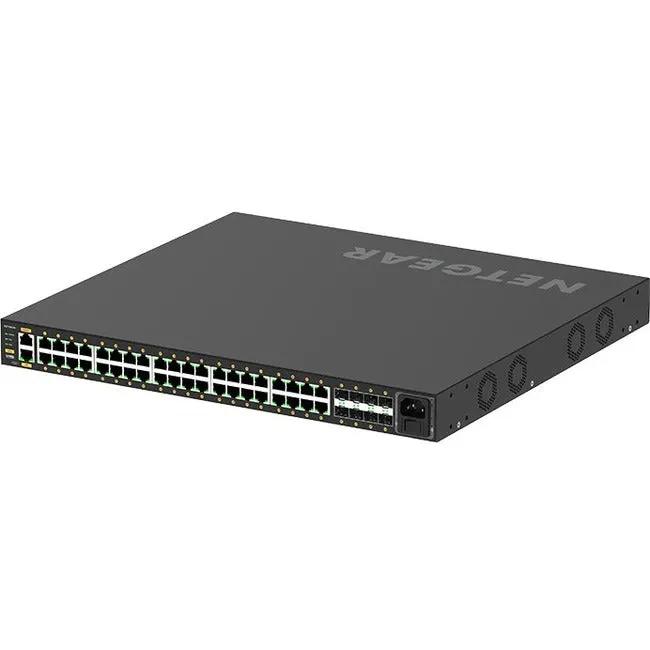

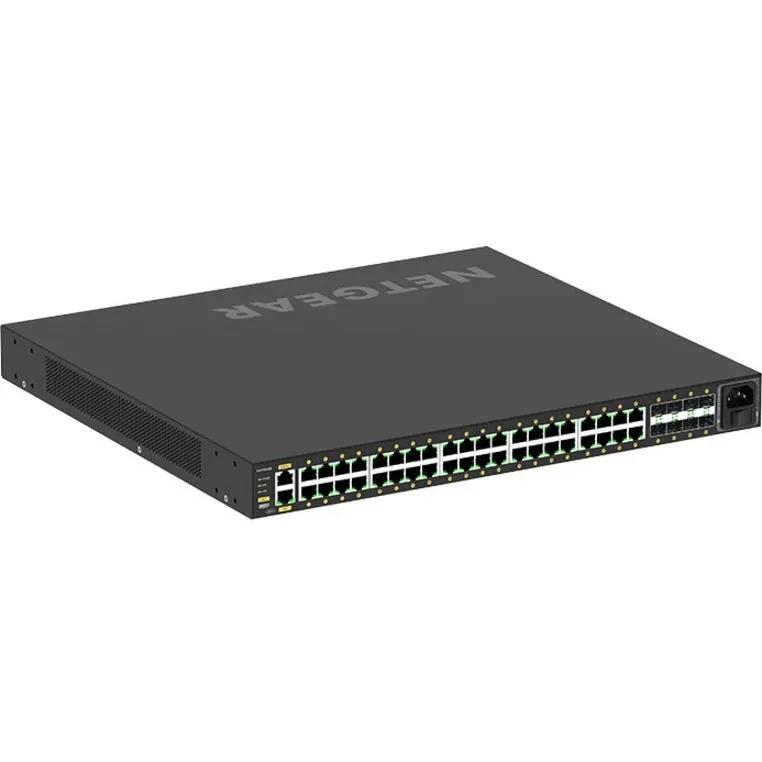

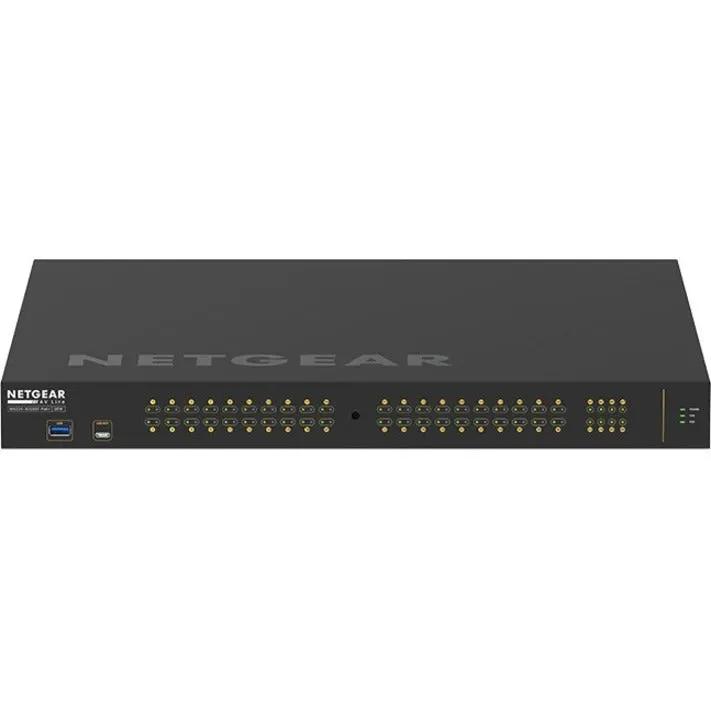

The Netgear AV Line M4250-40G8XF-PoE+ is a fully managed Layer 3 switch for professional audio and video deployments. Forty Gigabit PoE+ ports share a 960 W budget for cameras, displays, and access points, and eight 10G SFP+ ports carry fiber aggregation out of the rack. AV port profiles, IGMP Plus multicast, PTPv2 timing, and static, RIP, and PIM routing keep media streams predictable across subnets.
Tech Specs
- Ports: 40 x Gigabit PoE+ RJ-45
- Uplinks: 8 x 10G SFP+
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Budget: 960 W
- Power Supplies Installed: 1 internal
- Power Connector: C14
- Power Consumption: 89.20 W
- Switching Layer: Layer 3
- Routing: Static, RIP, and PIM multicast routing
- DHCP: DHCP server included
- Time Synchronization: PTPv2
- Multicast: IGMP Plus for AV over IP
- Management: Fully managed with web GUI, CLI, Telnet, and SSH
- Media Type: Twisted Pair
- Weight: 13.91 lb
- Form Factor: 1U rack-mountable, also deployable on a tabletop
Warranty & Compliance
- Warranty: Limited lifetime hardware warranty
- Compliance: Energy-related Products Directive (ErP)
- Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
What's in the Box
- M4250-40G8XF-PoE+ AV Line Managed Switch
- Power Cord(s)
- RJ45 Straight-through Serial Console Cable to DB9
- USB Type-C to USB-A 2.0 Console Cable
- Rubber Caps for the SFP/SFP+ Sockets
- Rubber Footpads for Tabletop Installation
- Installation Guide
- 2 x Standard Brackets and Screws for Two-post Rack Mounting
- 2 x Longer Brackets for Two-post Rack Mounting Recessed by 2 Inches for Cabling
