Key Features

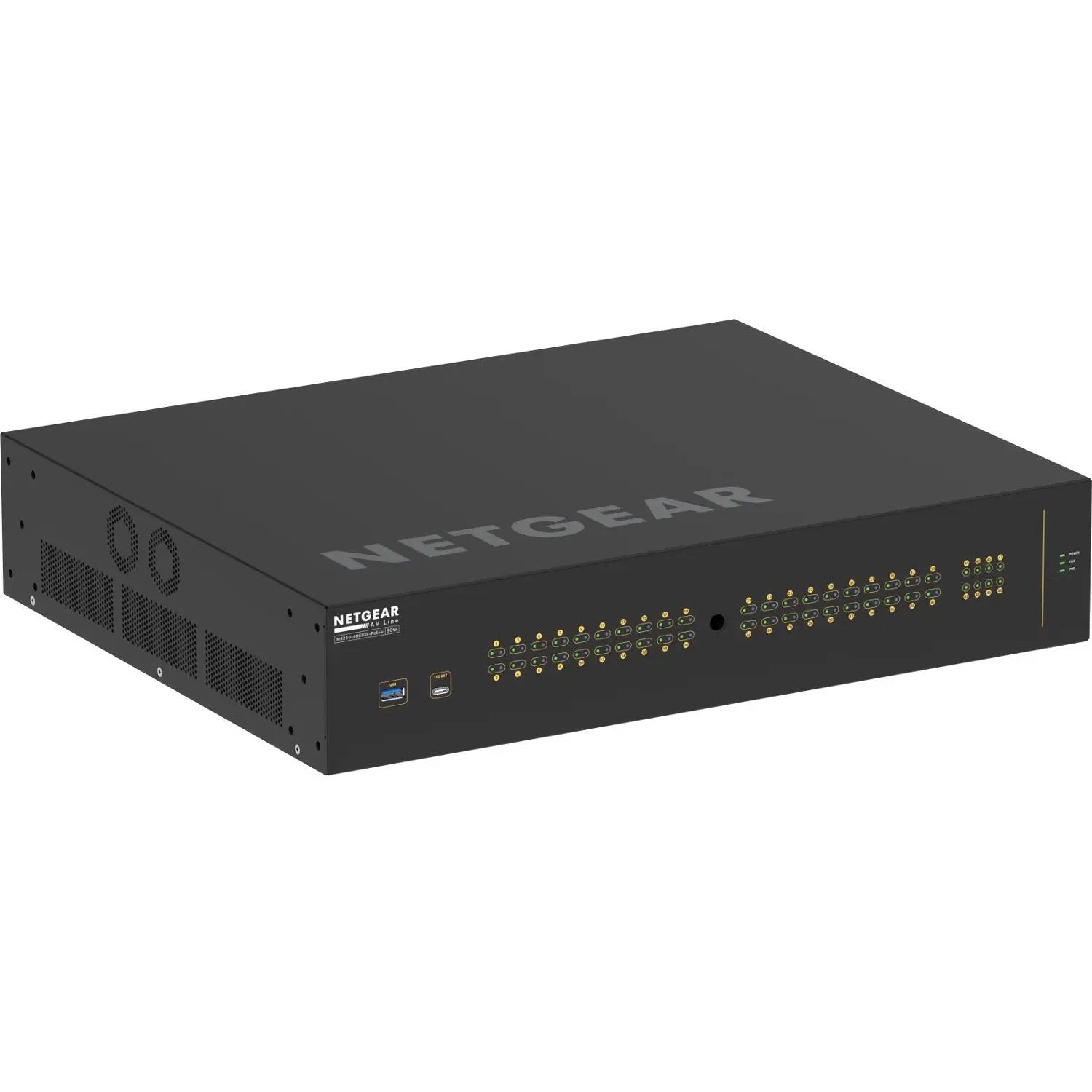

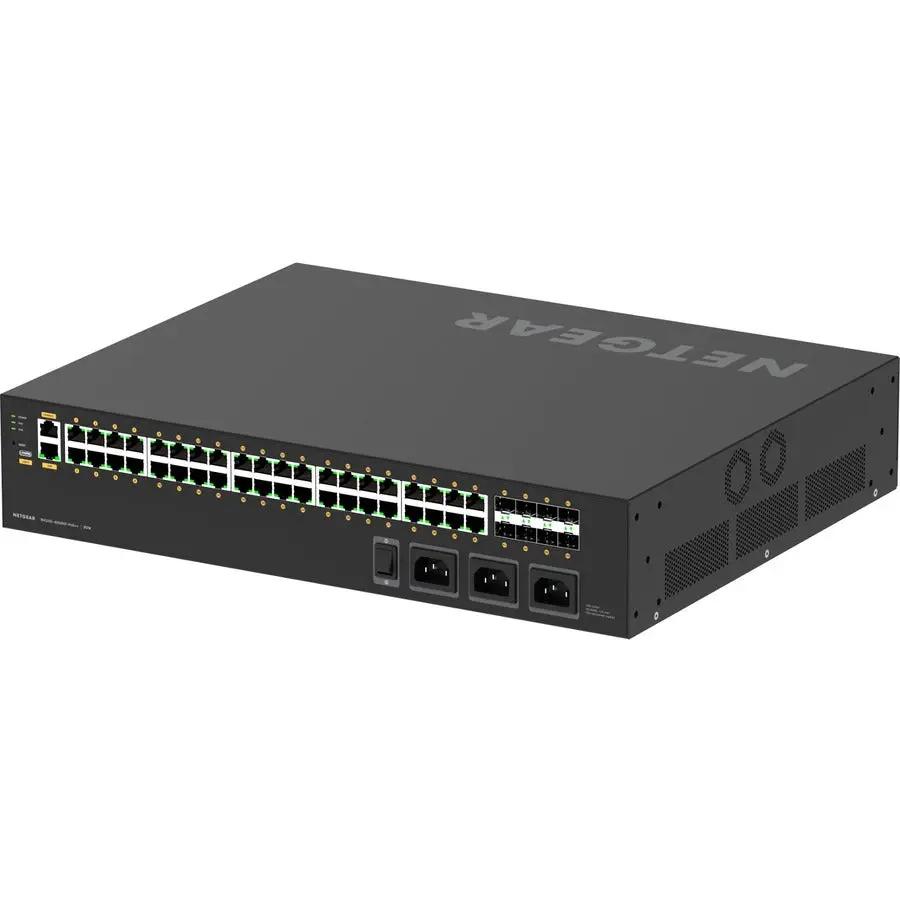

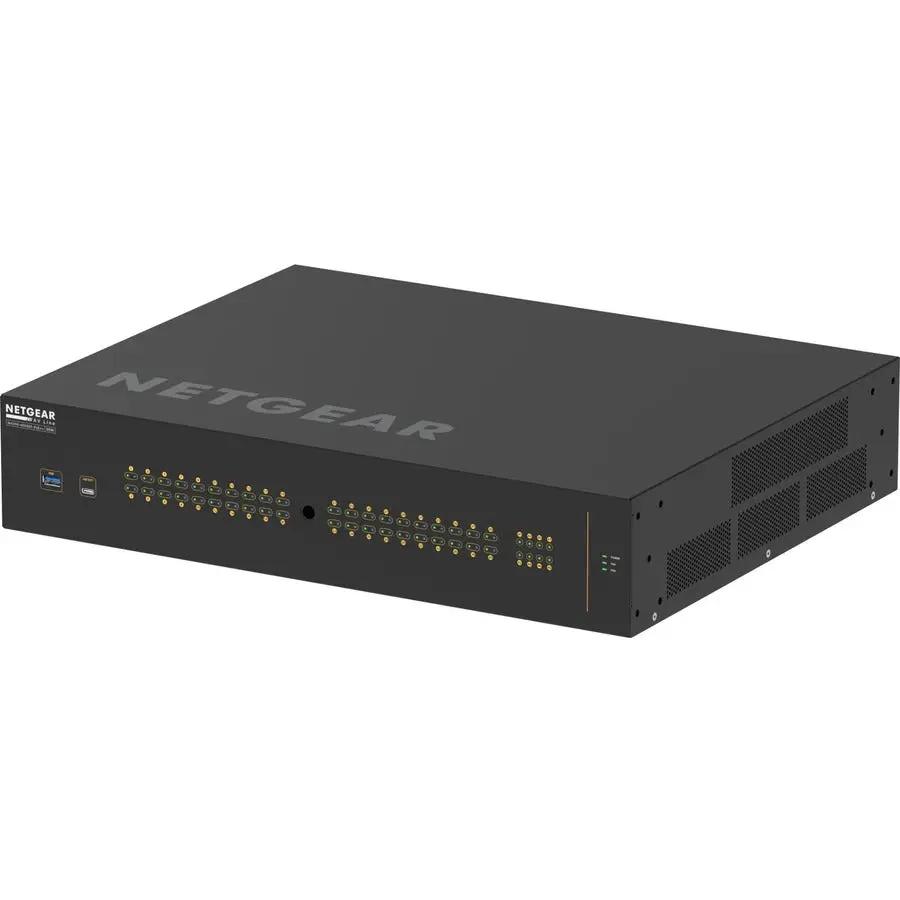

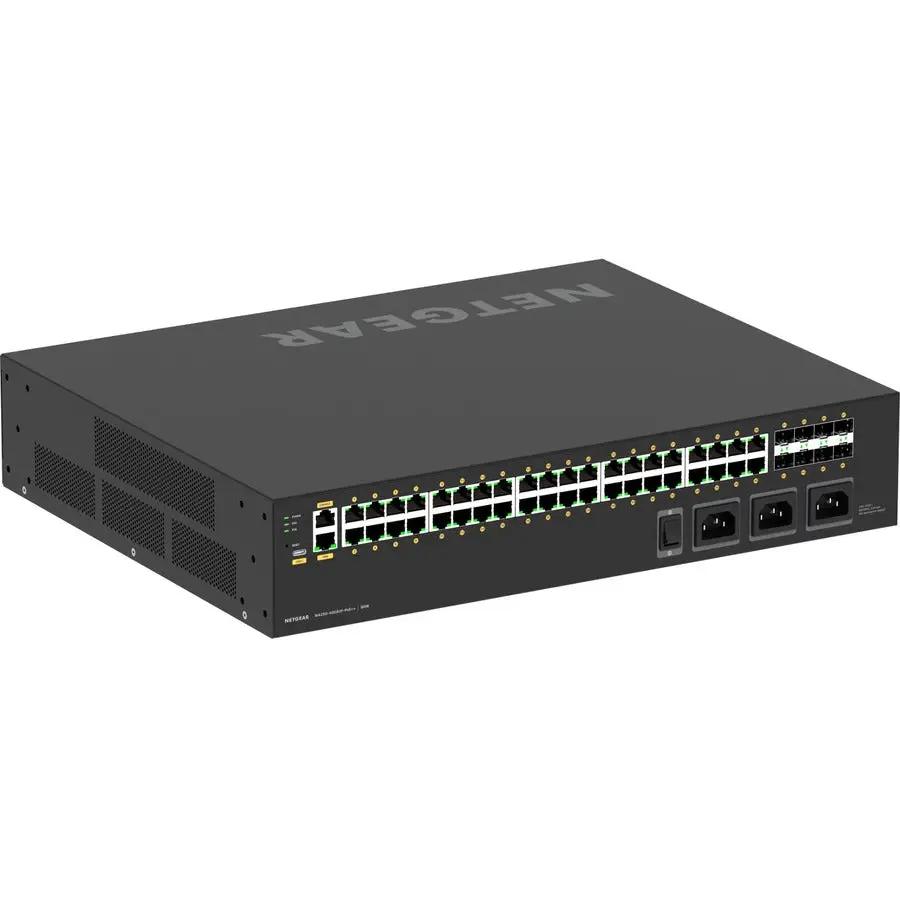

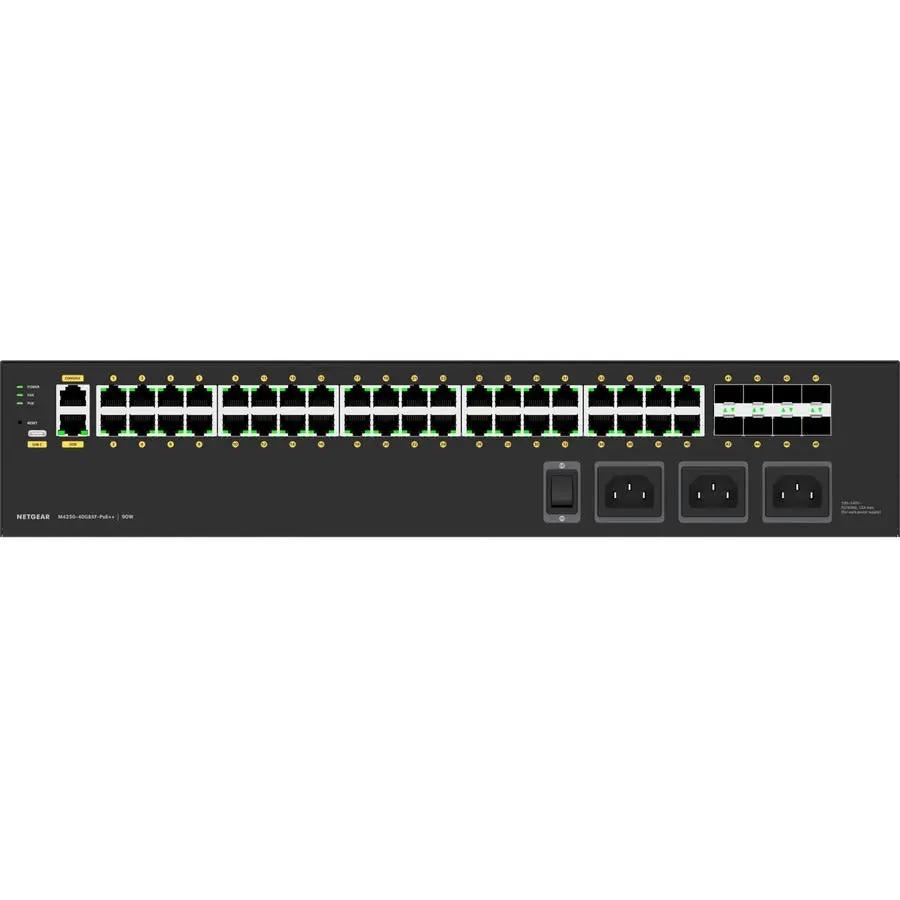

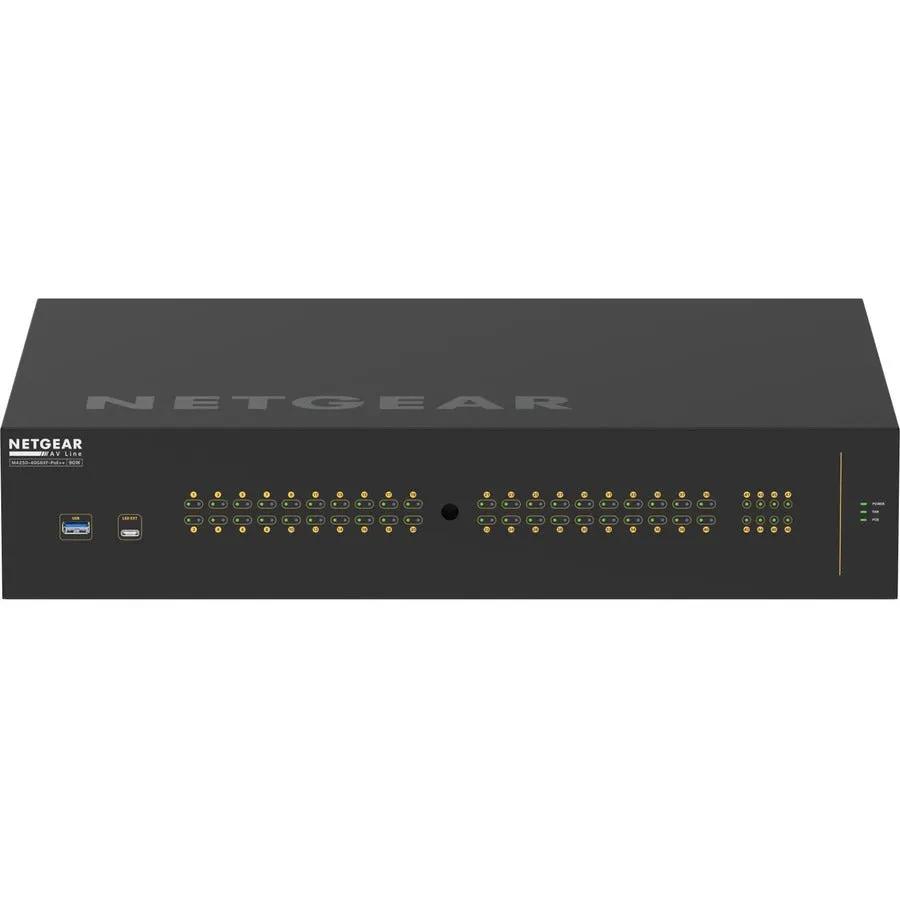

The Netgear AV Line M4250-40G8XF-PoE++ is a fully managed Layer 3 switch for professional audio and video networks. Forty Gigabit Ultra90 PoE++ ports deliver up to 90 W each from a 2880 W budget carried by three internal power supplies, and eight 10G SFP+ ports handle fiber aggregation. AV port profiles, IGMP Plus multicast, and PTPv2 timing keep media streams predictable across live events, studios, and mid-size installations.
Tech Specs
- Ports: 40 x Gigabit Ultra90 PoE++ RJ-45
- Uplinks: 8 x 10G SFP+
- PoE Standard: IEEE 802.3bt (PoE++)
- PoE Per Port: Up to 90 W
- PoE Budget: 2880 W
- Power Supplies Installed: 3 internal
- Power Connector: C14
- Power Consumption: 82.60 W
- Throughput: 240 Gbps
- Switching Layer: Layer 3
- Routing: Static, RIP, and PIM multicast routing
- DHCP: DHCP server included
- Time Synchronization: PTPv2
- Multicast: IGMP Plus for AV over IP
- Management: Fully managed with web GUI, CLI, Telnet, and SSH
- Media Type: Twisted Pair
- Weight: 22.66 lb
- Form Factor: 2U rack-mountable, also deployable on a tabletop
Warranty & Compliance
- Warranty: Limited lifetime hardware warranty
- Compliance: Energy-related Products Directive (ErP)
- Compliance: Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
What's in the Box
- M4250-40G8XF-PoE++ AV Line Managed Switch
- Power Cord(s)
- RJ45 Straight-through Serial Console Cable to DB9
- USB Type-C to USB-A 2.0 Console Cable
- Rubber Caps for the SFP/SFP+ Sockets
- Rubber Footpads for Tabletop Installation
- Installation Guide
- 2 x Standard Brackets and Screws for Two-post Rack Mounting
- 2 x Longer Brackets for Two-post Rack Mounting Recessed by 2 Inches for Cabling
