Key Features

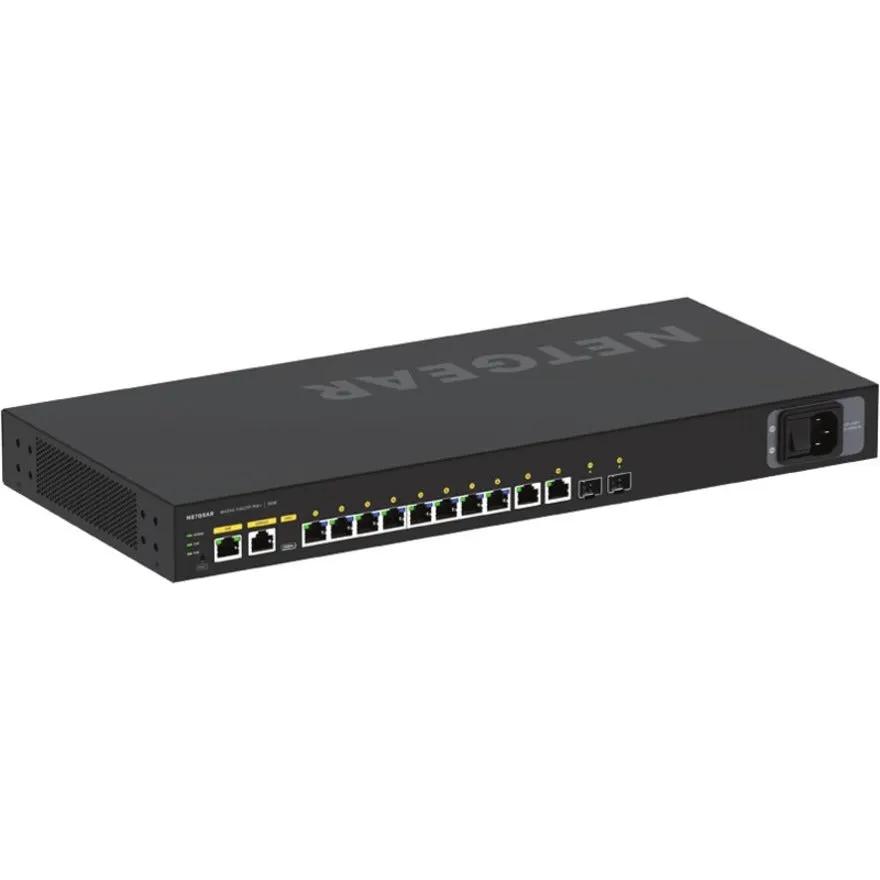

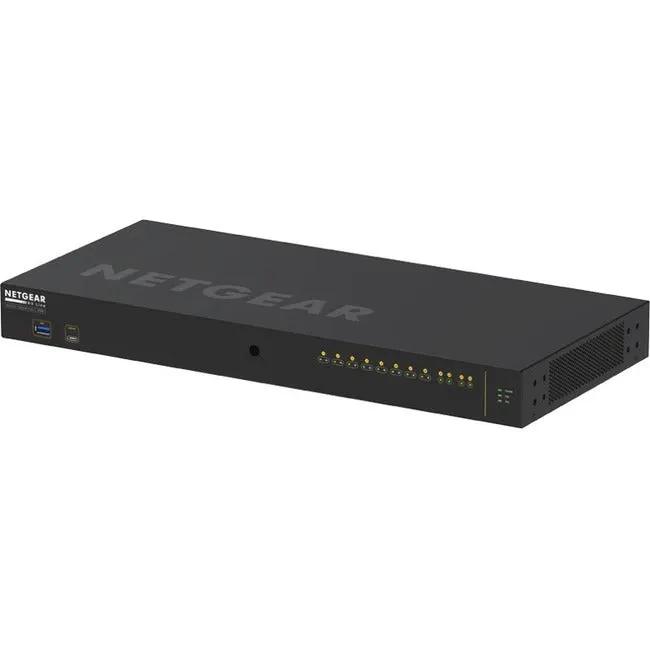

This fully managed Layer 3 switch is purpose-built for audio and video over IP, pairing eight Gigabit PoE+ ports with two additional Gigabit ports and two 10GbE SFP+ uplinks. A 240W PoE budget runs cameras, encoders, and displays at up to 30W each, and the 10G fiber uplinks carry aggregated streams back to the core. It ships pre-configured for AV, with profiles for Dante, Q-SYS, NDI, and NVX, and mounts in a 1U rack with the ports facing front or back.
Tech Specs
- PoE Ports: 8 x Gigabit PoE+ RJ-45
- Additional Ports: 2 x Gigabit RJ-45
- Uplinks: 2 x SFP+ 10G
- PoE Standard: IEEE 802.3at (PoE+)
- Maximum PoE per Port: 30W
- PoE Budget: 240W
- Switching Fabric: 60 Gbps
- Switching Layer: Layer 3
- Routing: Static, RIP, and PIM
- Network Technology: 10GBase-X
- Management: Fully managed through AV web GUI, IT web GUI, CLI, Telnet, SSH, and SNMP
- Multicast: NETGEAR IGMP Plus
- Uplink Automation: Auto-Trunk and Auto-LAG
- Shared SFP Slots: None, the SFP+ slots are dedicated
- Media Type: Twisted pair
- Power Input: IEC 60320 C14
- Power Consumption: 25W
- Rack Height: 1U
Warranty & Compliance
- Warranty: Lifetime limited hardware warranty
- Energy Efficiency: Energy-related Products Directive (ErP)
- Environmental: REACH
