Key Features

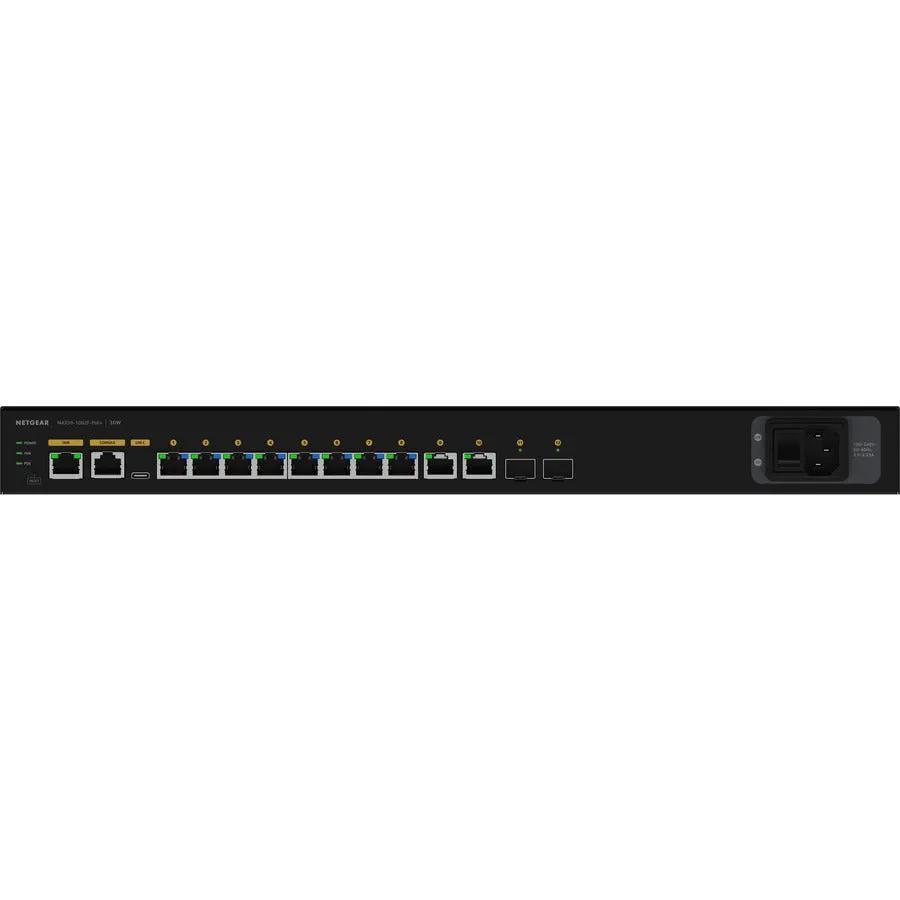

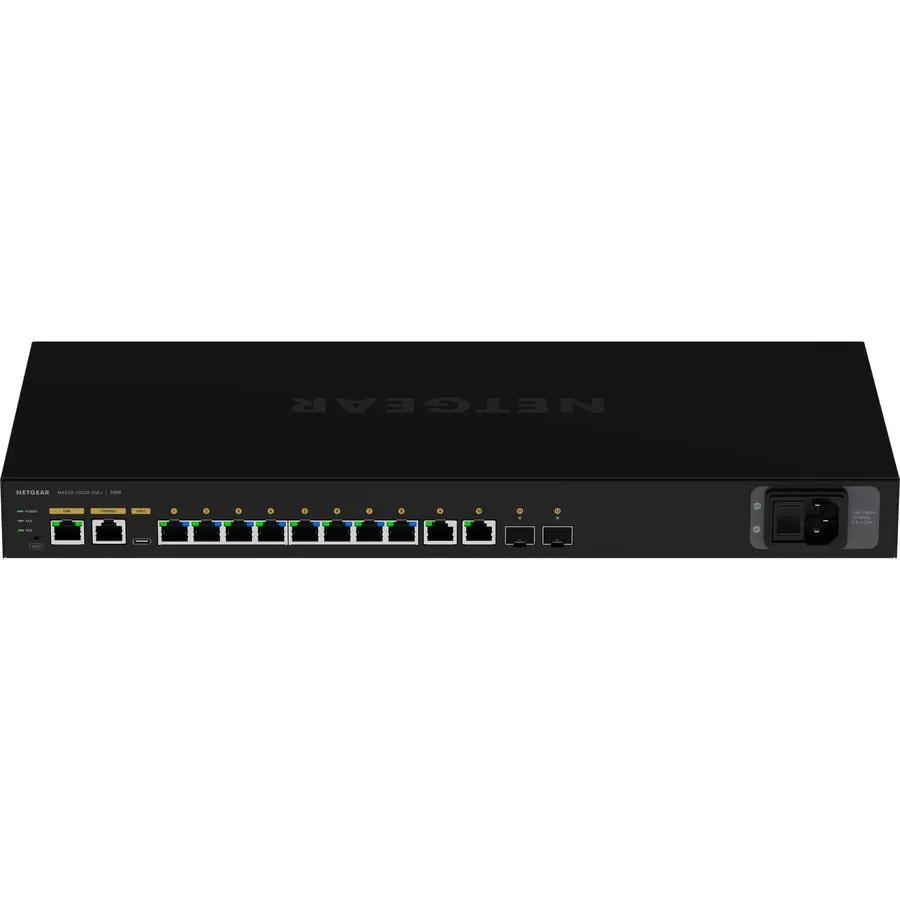

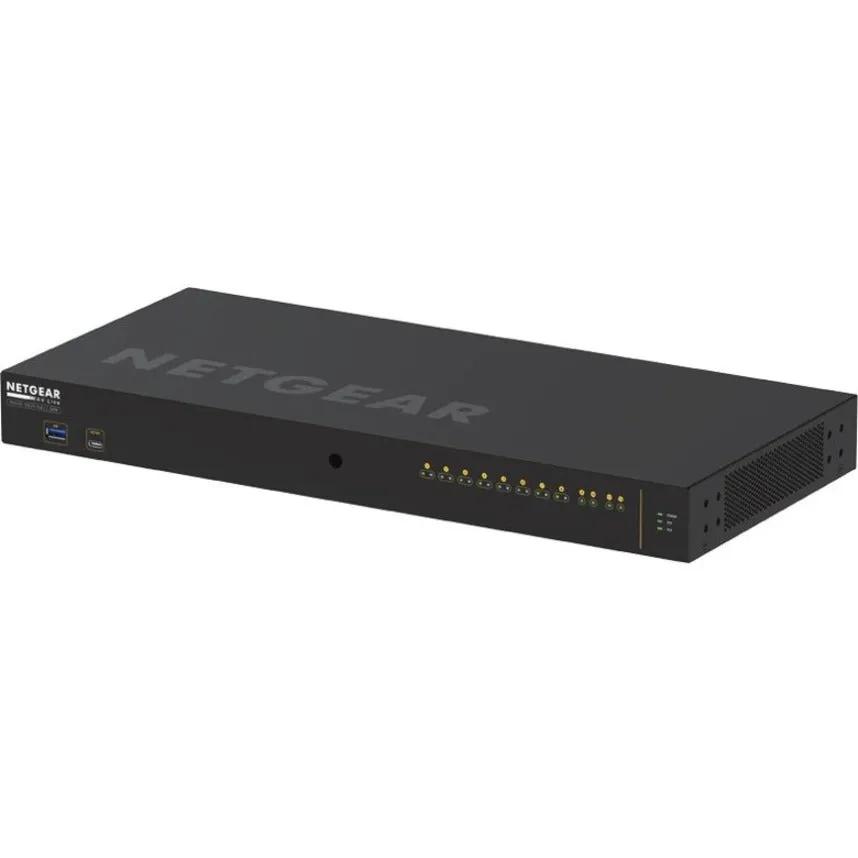

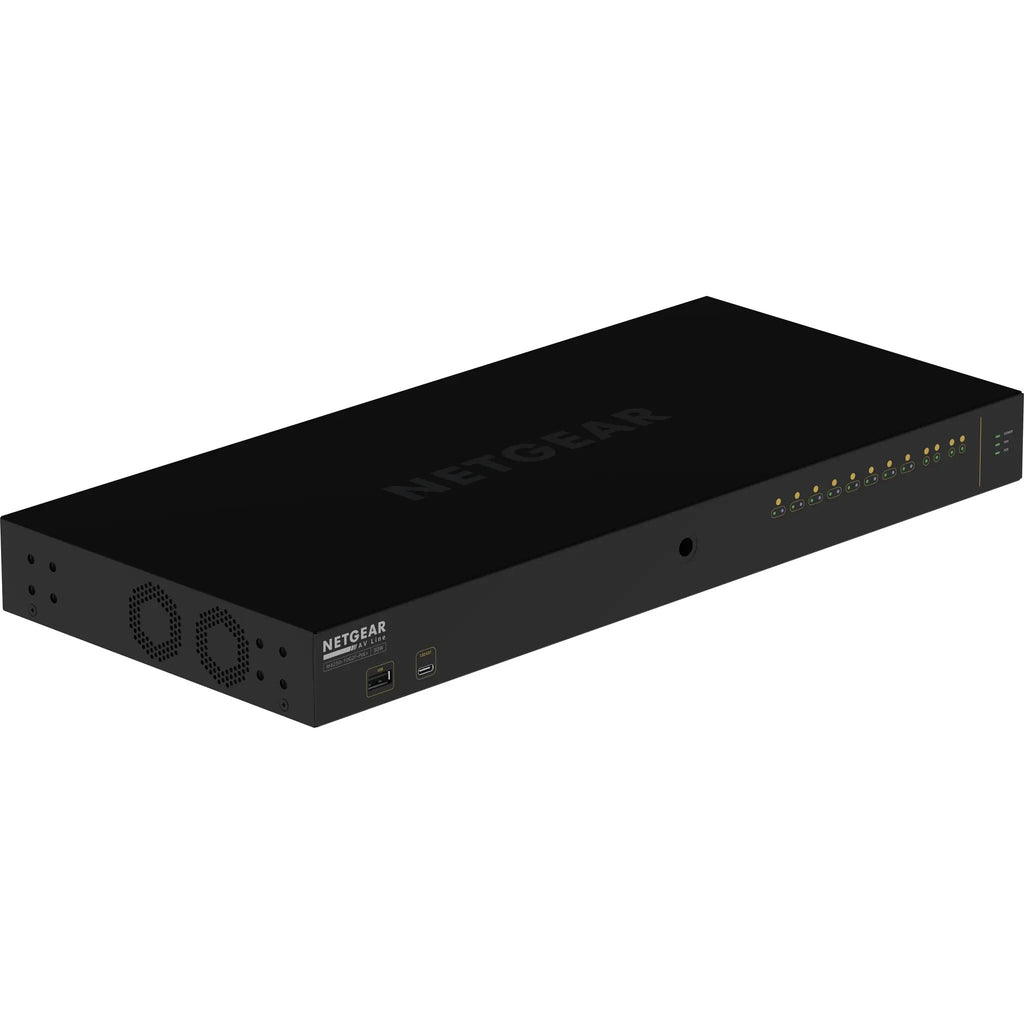

This fully managed Layer 3 switch is engineered for audio and video over IP, delivering eight Gigabit PoE+ ports, two additional Gigabit ports, and two SFP fiber uplinks. A 125W PoE budget powers cameras, encoders, and touch panels at up to 30W each, and the switch ships pre-configured for AV so a boardroom or classroom comes online without manual VLAN work. Selectable fan modes let it run silently when the load allows, and it mounts in a 1U rack with the ports facing front or back.
Tech Specs
- PoE Ports: 8 x Gigabit PoE+ RJ-45
- Additional Ports: 2 x Gigabit RJ-45
- Uplinks: 2 x SFP 1G
- PoE Standard: IEEE 802.3at (PoE+)
- Maximum PoE per Port: 30W
- PoE Budget: 125W
- Switching Fabric: 24 Gbps
- Switching Layer: Layer 3
- Routing: Static, RIP, and PIM
- Network Technology: 1000Base-X
- Management: Fully managed through AV web GUI, IT web GUI, CLI, Telnet, SSH, and SNMP
- Multicast: NETGEAR IGMP Plus
- Uplink Automation: Auto-Trunk and Auto-LAG
- Shared SFP Slots: None, the SFP slots are dedicated
- Media Type: Twisted pair
- Cooling: Selectable fan modes including fanless operation
- Power Input: IEC 60320 C14
- Power Consumption: 17.32W
- Rack Height: 1U
Warranty & Compliance
- Warranty: Lifetime limited hardware warranty
- Energy Efficiency: Energy-related Products Directive (ErP)
- Environmental: REACH
