Key Features

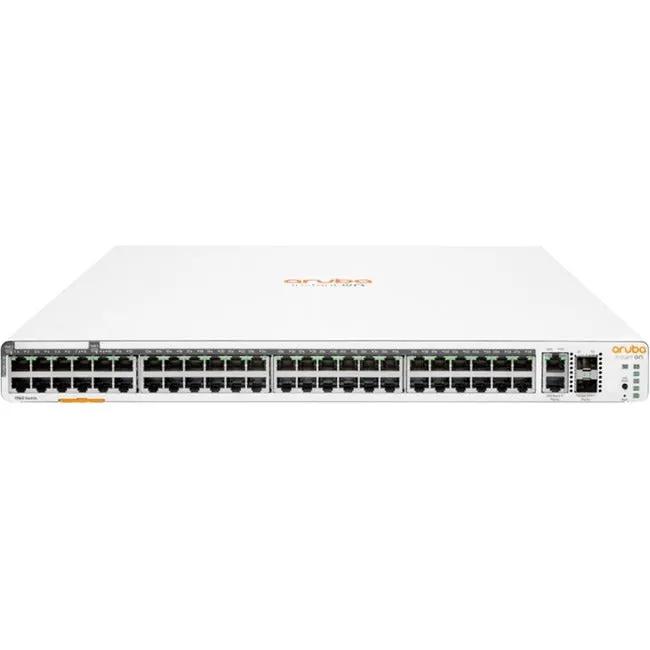

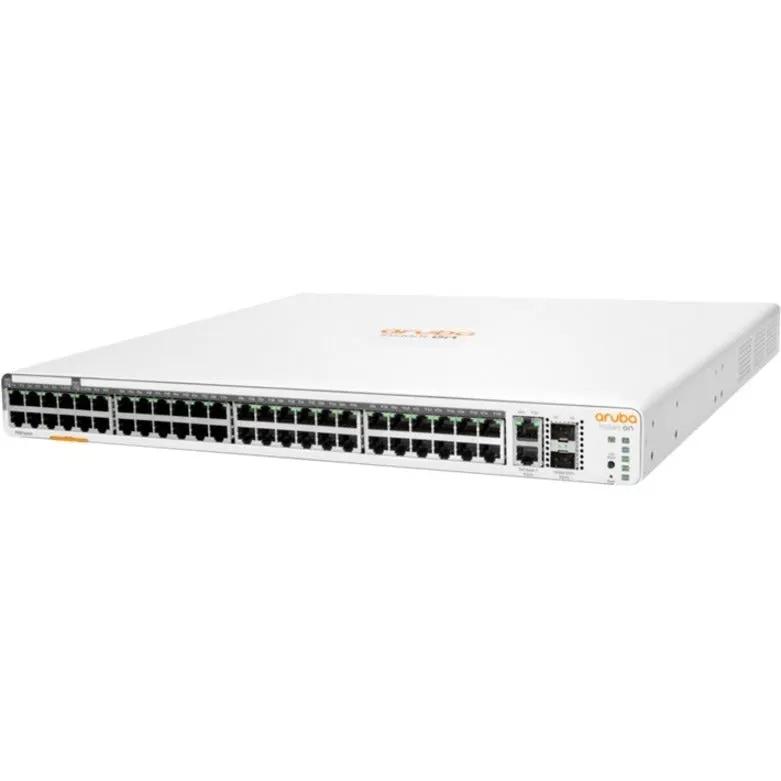

The HPE Instant On 1960 48G PoE is a smart-managed Layer 2+ switch for small and growing wired networks. It pairs 48 Gigabit PoE ports and a 600 W power budget with two 10GBASE-T and two 10G SFP+ uplinks, so access points, cameras, and IP phones stay powered while servers and storage get 10G connectivity. True Stacking lets up to four units be configured and managed as a single entity from the Instant On mobile app, the cloud portal, or the local web GUI.
Tech Specs
- Ports: 48 x Gigabit PoE RJ-45
- Uplink Ports: 2 x 10GBASE-T RJ-45
- SFP+ Slots: 2 x 10G SFP+
- PoE Budget: 600 W
- Class 4 PoE Ports (30 W): 40
- Class 6 PoE Ports (60 W): 8
- PoE Standards: IEEE 802.3at, IEEE 802.3bt
- Switching Layer: Layer 2+
- Management: Smart-managed
- Management Interfaces: Instant On mobile app, cloud portal, local web GUI
- Stacking: True Stacking, up to 4 switches as one entity
- VLAN Support: IEEE 802.1Q
- Power Supply: Internal AC
- Power Consumption: 100 W
- Mounting: 19-inch rack, wall, or tabletop
- Weight: 10.80 lb
Warranty & Compliance
- Warranty: Limited lifetime
What's in the Box
- Instant On 1960 48G PoE Switch
- 2-post rack kit
- Mounting brackets
