Key Features

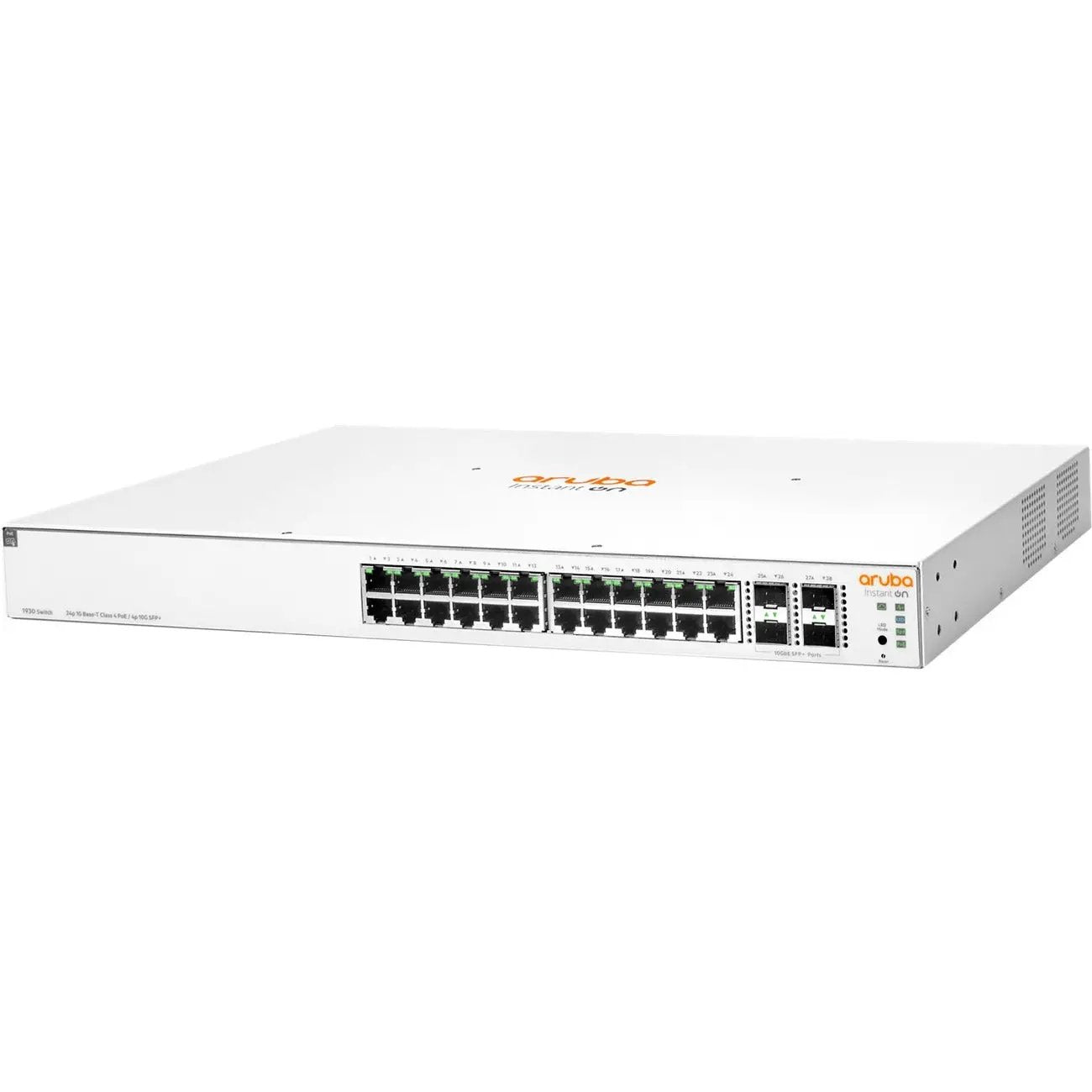

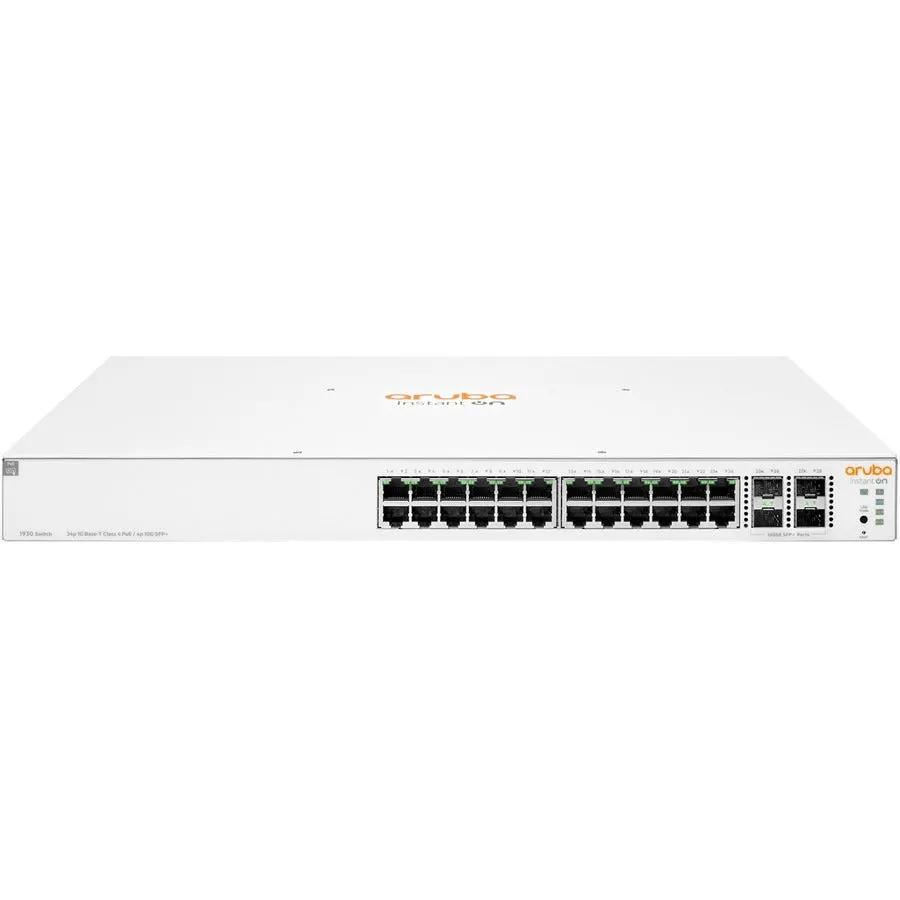

A 24-port Gigabit PoE+ access switch for small business networks that power their own endpoints. All 24 copper ports deliver Class 4 PoE+ at up to 30 W each from a 370 W budget, enough for IP phones, surveillance cameras, door locks, and wireless access points, while four dedicated 1G/10G SFP+ cages carry fiber uplinks. Smart management runs from a mobile app, a cloud portal, or the local web GUI, with VLANs and 802.1X port authentication separating each area of the network.
Tech Specs
- Ports: 24 x Gigabit Ethernet RJ-45 with PoE+
- Uplinks: 4 x SFP+ (1G/10G)
- PoE Budget: 370 W
- PoE Standard: IEEE 802.3at Class 4 (PoE+)
- PoE Per Port: Up to 30 W
- Switching Capacity: 128 Gbps
- Switching Layer: Layer 2+
- Static Routing: Up to 32 IPv4 static routes
- Management: Instant On mobile app, cloud portal, and local web GUI
- VLAN: IEEE 802.1Q
- Access Control: IEEE 802.1X port authentication
- Spanning Tree: IEEE 802.1D, 802.1w, and 802.1s
- Link Aggregation: IEEE 802.3ad LACP
- Color: White
- Power Supply: Internal
- Input Voltage: 230 V AC
- Maximum Power Rating: 490 W
- Form Factor: 1U rack mount
Warranty & Compliance
- Warranty: Limited lifetime
- Compliance: RoHS
What's in the Box
- Instant On 1930 24G Class4 PoE 4SFP/SFP+ 370W Switch
- 2-post Rack Kit
- Brackets
