Key Features

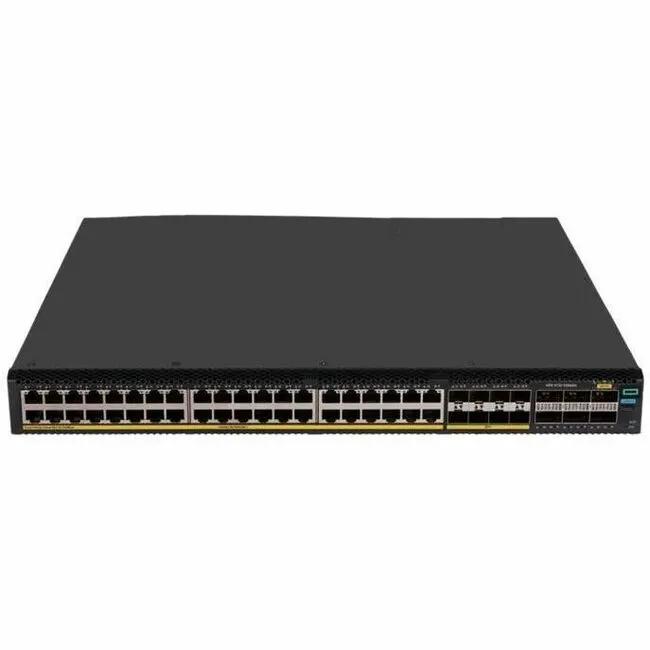

The HPE Comware 5720 is a data center leaf and access switch that pairs 40 multigigabit 10GBASE-T copper ports with eight 1/10G SFP+ ports and six QSFP+/QSFP28 slots for 40G or 100G uplinks. Full Layer 3 routing with OSPF and BGP, IRF virtualization of up to nine chassis, and DRNI link redundancy hold a dense access tier together, while HPE Intelligent Management Center centralizes configuration and monitoring.
Tech Specs
- Access Ports: 40 x 1/10GBASE-T RJ-45
- Port Speeds: 1G, 2.5G, 5G, and 10G multigigabit
- SFP+ Ports: 8 x 1/10G SFP+
- QSFP Slots: 6 x QSFP+/QSFP28, configurable as 40G or 100G
- Management Port: 1 x 100M/1G SFP
- Maximum Data Rate: 100 Gbps per QSFP28 port
- Switching Layer: Layer 3
- Routing Protocols: OSPF and BGP
- Stacking: IRF, up to nine switches as one logical device
- Resiliency: DRNI distributed link aggregation
- Security: Access control lists
- Network Standards: IEEE 802.1x
- Management: HPE Intelligent Management Center

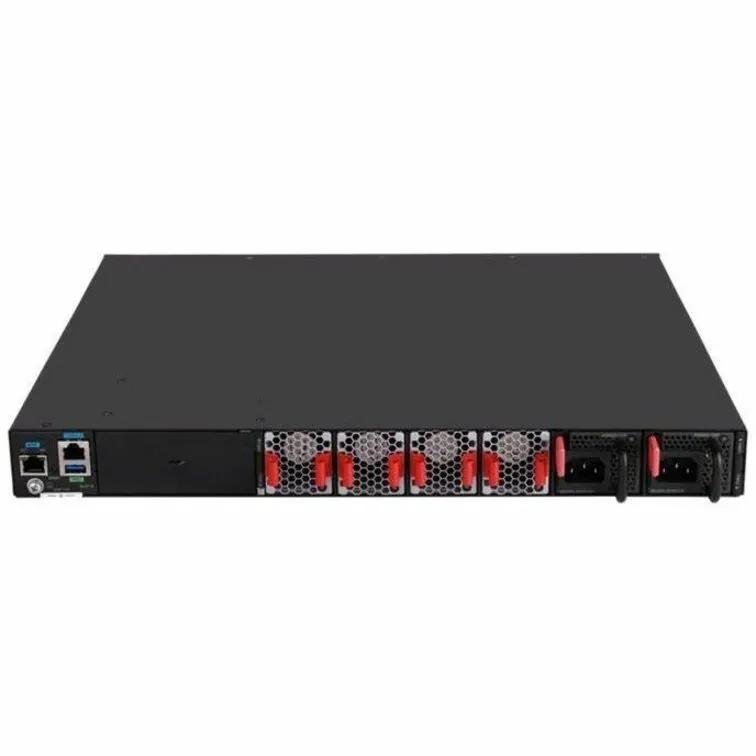

- Power Supplies: Two supply slots, one supply required
- Power Consumption: 99 W
- Form Factor: 1U rack mount
Warranty & Compliance
- Warranty: 1 year limited
