Key Features

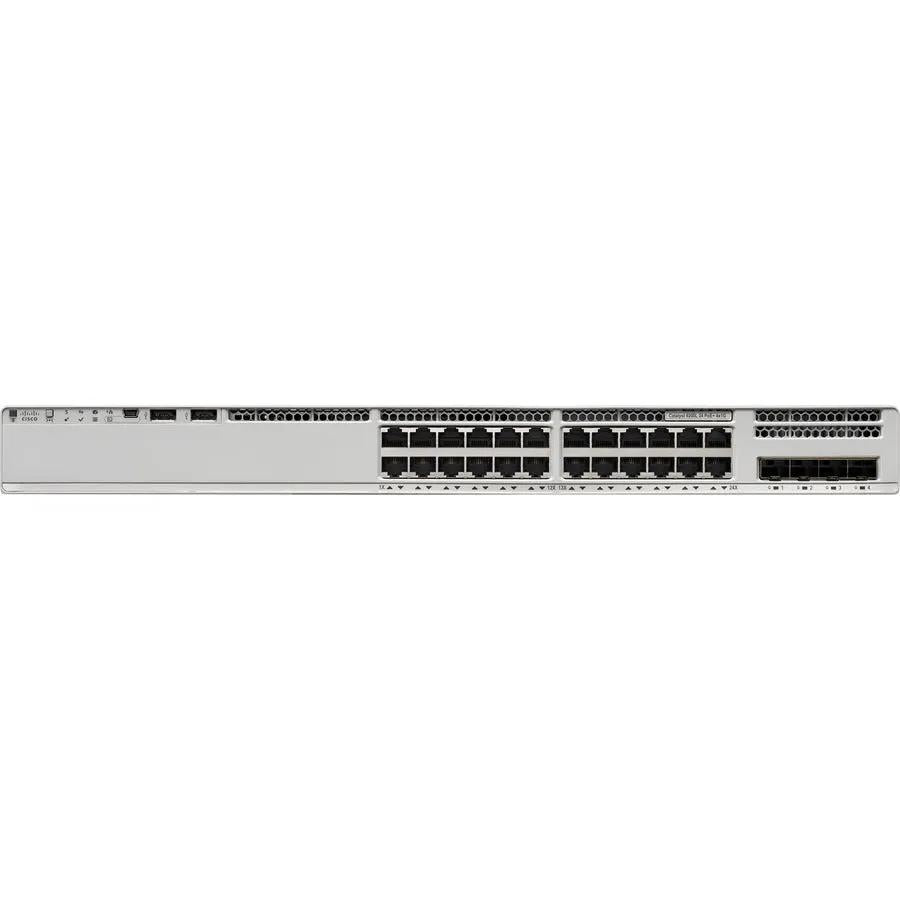

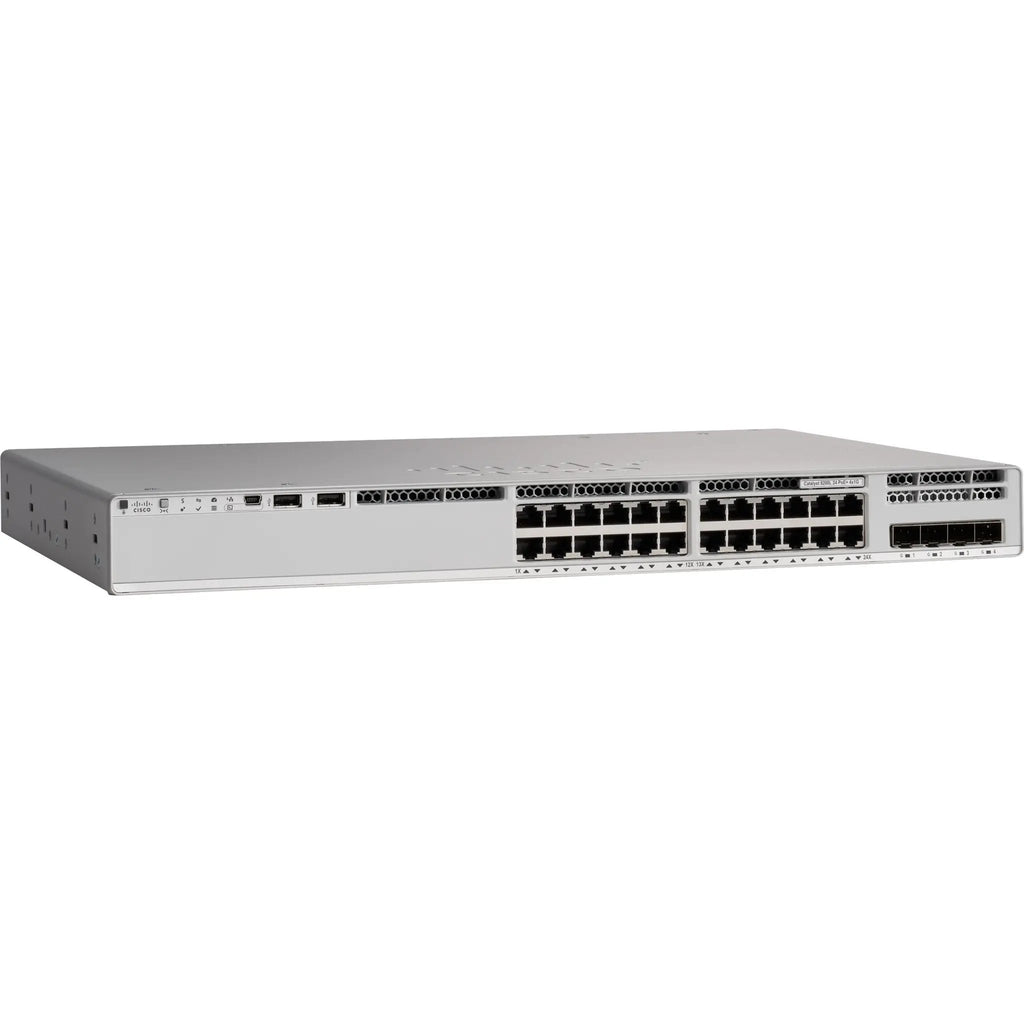

This 1U rack-mount access switch provides 24 Gigabit PoE+ ports with a 370 W power budget and four 1G SFP uplinks for branch office and enterprise access networks. Layer 3 routing with static routes, RIP, and OSPF routed access lets IT teams segment and route traffic at the access layer. StackWise-80 stacking and redundant power supply support let the switch grow alongside the network.
Tech Specs
- Ports: 24 x Gigabit Ethernet PoE+ RJ-45
- Uplinks: 4 x 1G SFP
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Budget: 370 W
- Switching Capacity: 56 Gbps
- Forwarding Rate: 41.67 Mpps
- Switching Layer: Layer 3
- Routing Protocols: Static routing, RIP, and OSPF routed access
- Stacking: StackWise-80, up to 8 units
- Redundant Power Supply: Supported
- Multicast: IGMP snooping
- Monitoring: Port mirroring
- Loop Prevention: Spanning tree
- Uplink Media: Optical fiber (SFP)
- Management: Managed
- Form Factor: 1U rack mountable
- Weight: 9.59 lb
Warranty & Compliance
- Warranty: Limited lifetime
