Key Features

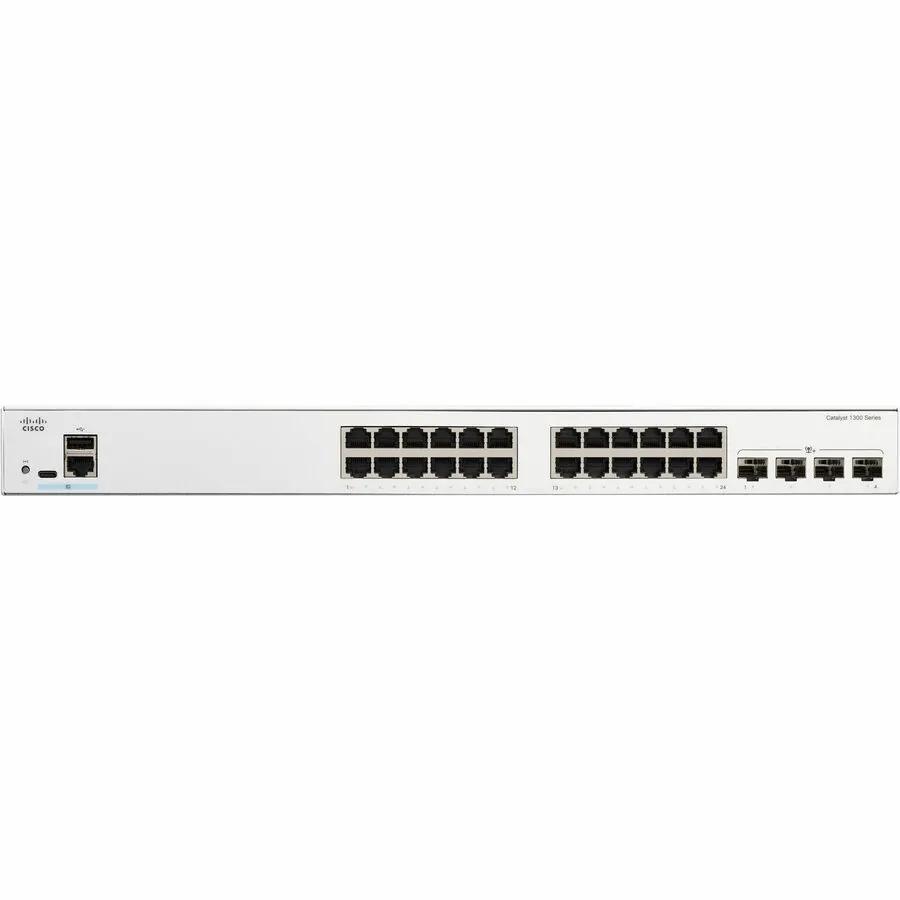

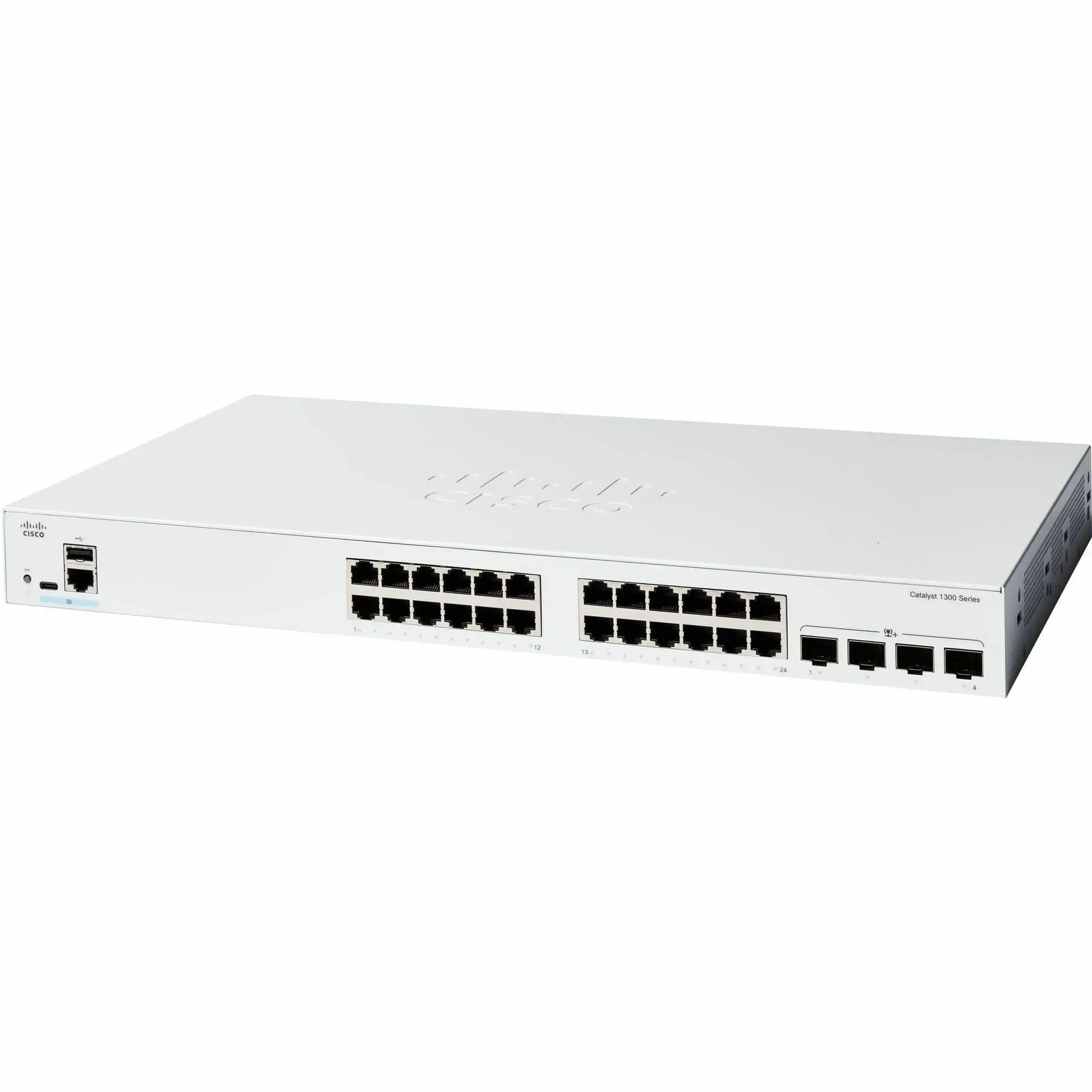

This fanless 24-port managed switch combines Gigabit access ports with four 10G SFP+ uplinks, so a growing office can move to fiber or 10G aggregation without replacing the access layer. Layer 3 routing with static routes and RIPv2 handles inter-VLAN traffic locally, and hardware stacking joins up to eight units under one IP address. The silent 1U chassis works outside the wiring closet as readily as inside it.
Tech Specs
- Ports: 24 x Gigabit Ethernet RJ-45
- Uplinks: 4 x 10G SFP+
- Switching Capacity: 128 Gbps
- Forwarding Rate: 95.23 Mpps
- Switching Layer: Layer 3
- Routing Protocols: Static routing, RIPv2, and policy-based routing
- Stacking: Up to 8 units, up to 200 ports as a single system
- PoE: Not supported
- Network Standards: IEEE 802.1ab
- Cooling: Fanless
- Operating System: Cisco Linux-based OS
- Management: Cisco Business Dashboard and Cisco Business mobile app
- Power Source: 230 V AC
- Power Consumption: 27.25 W
- Power Supplies Installed: 1
- Form Factor: 1U rack mountable
- Weight: 6.13 lb
Warranty & Compliance
- Warranty: Limited lifetime with return-to-factory replacement
