Key Features

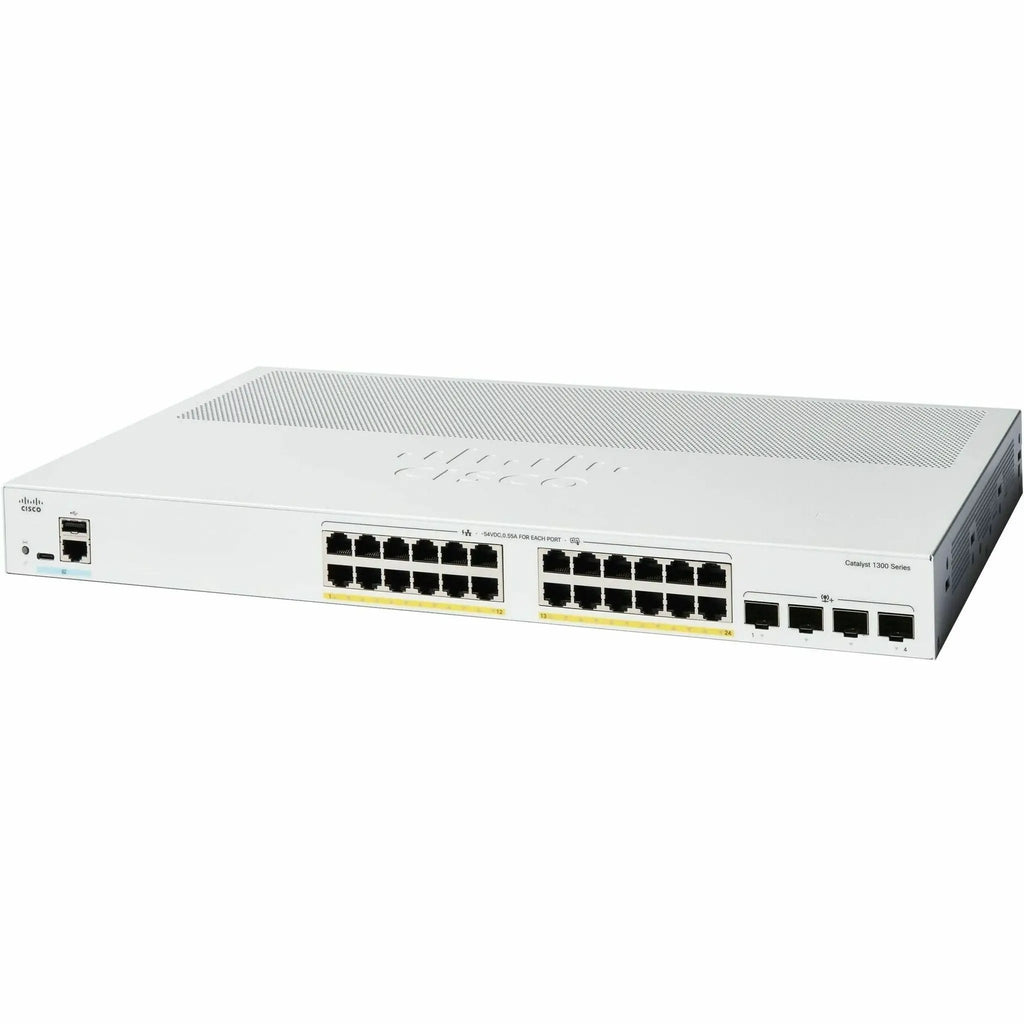

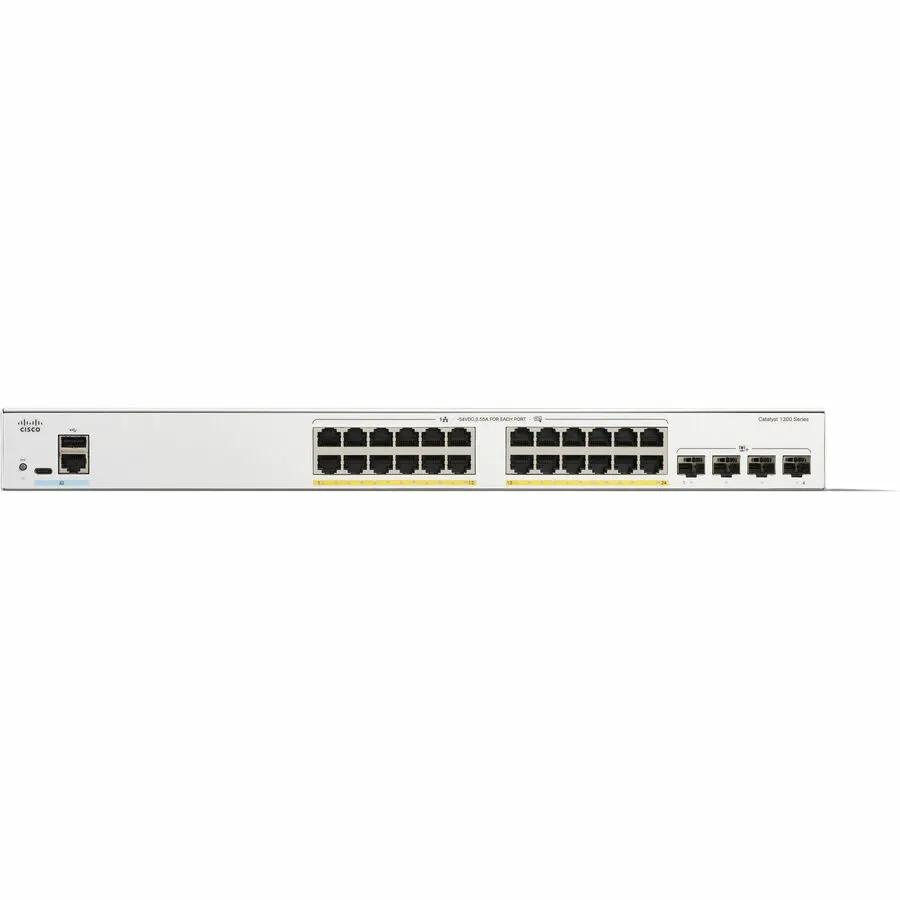

This fanless 24-port managed switch delivers Gigabit PoE+ to access points, cameras, and phones from a 195 W budget, with four 10G SFP+ uplinks for the path back to the core. Layer 3 routing with static routes and RIPv2 keeps inter-VLAN traffic on the switch, and hardware stacking joins up to eight units under one IP address. The silent 1U chassis is quiet enough to sit outside a wiring closet.
Tech Specs
- Ports: 24 x Gigabit Ethernet PoE+ RJ-45
- Uplinks: 4 x 10G SFP+
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Budget: 195 W
- PoE Per Port: Up to 30 W
- Switching Capacity: 128 Gbps
- Forwarding Rate: 95.23 Mpps
- Switching Layer: Layer 3
- Routing Protocols: Static routing, RIPv2, and policy-based routing
- Stacking: Up to 8 units, up to 200 ports as a single system
- Network Standards: IEEE 802.1ab
- Cooling: Fanless
- Management: Cisco Business Dashboard and Cisco Business mobile app
- Power Source: 230 V AC
- Power Consumption: 236.90 W
- Power Supplies Installed: 1
- Form Factor: 1U rack mountable
- Weight: 8.11 lb
Warranty & Compliance
- Warranty: Limited lifetime with return-to-factory replacement
