Description

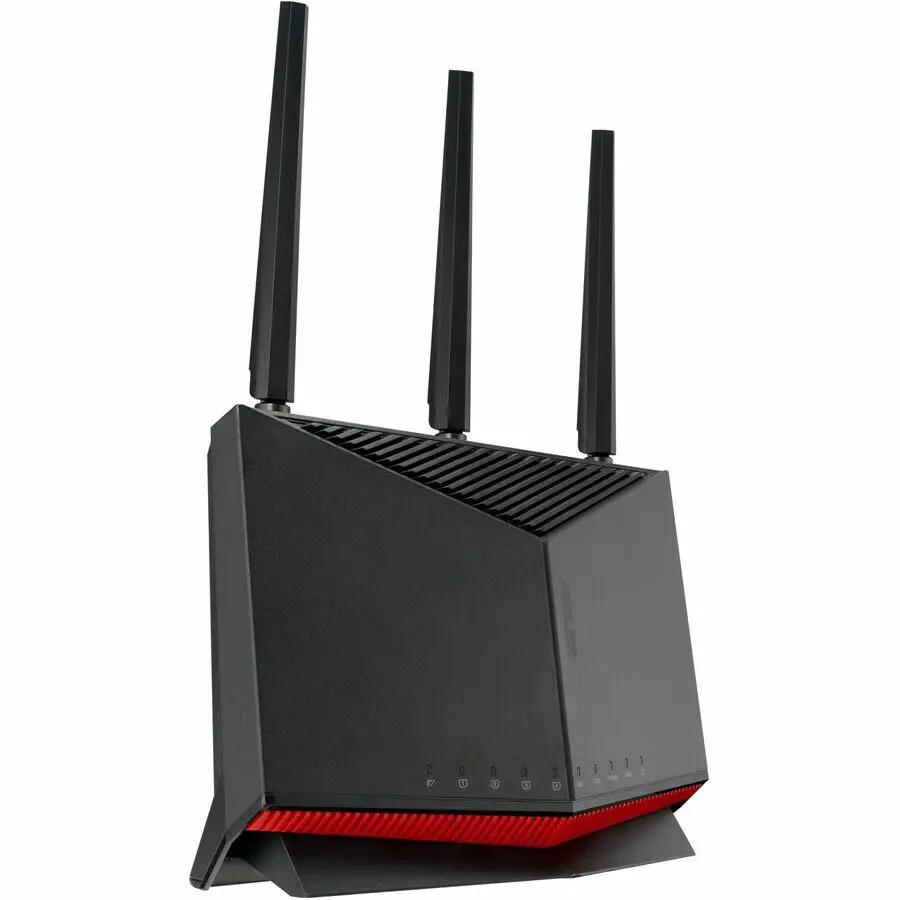

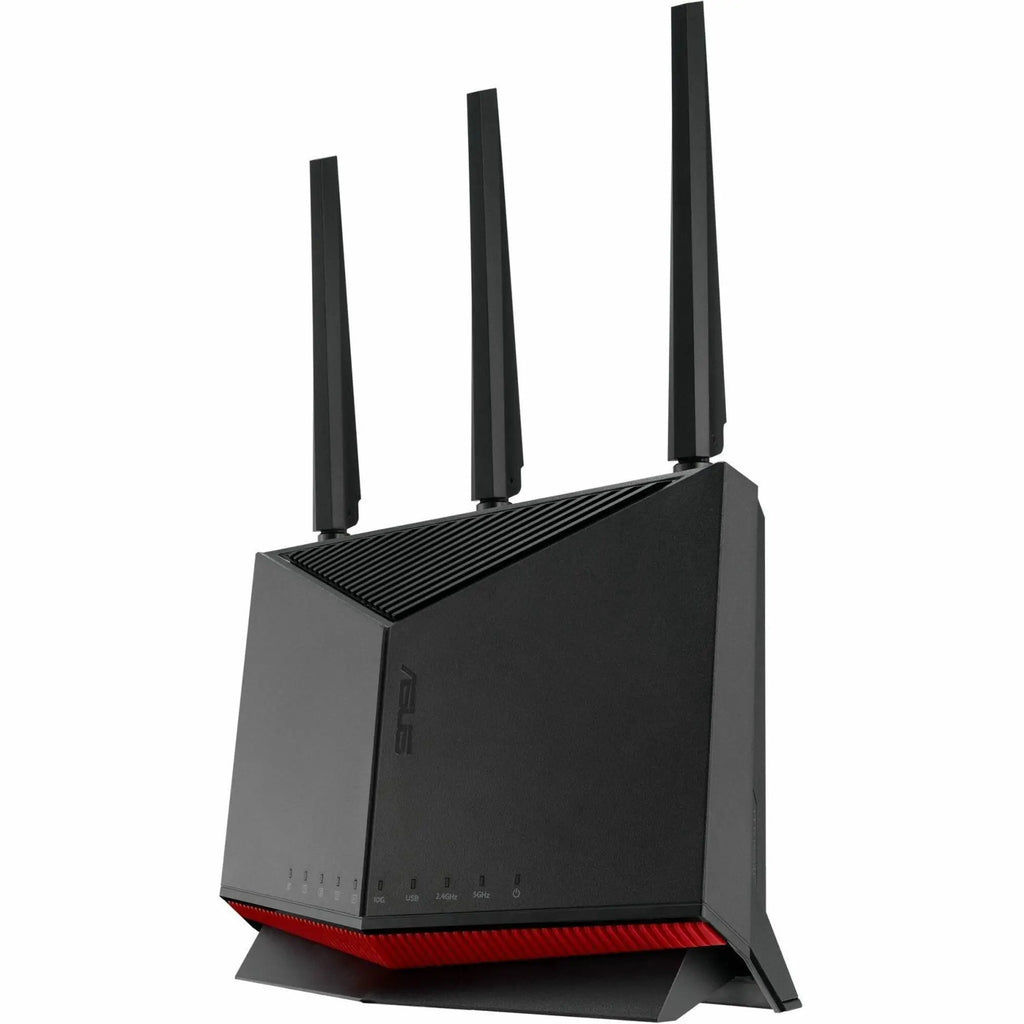

The ASUS RT-BE86U is a dual-band Wi-Fi 7 router engineered for ultra-fast wireless performance and flexible multi-gig wired connectivity. It delivers up to 6,800 Mbps of wireless throughput and up to 20 Gbps of total wired capacity across a 10G WAN/LAN port, a 2.5G WAN/LAN port, and three 2.5G LAN ports. Designed for power users, gamers, and small offices, it is AiMesh-extendable for whole-home coverage and includes 160 MHz channels, Multi-Link Operation, subscription-free security, and comprehensive VPN support.
Tech Specs
- Wi-Fi Generation: Wi-Fi 7 (IEEE 802.11be)
- Bands: Dual-band (2.4 GHz, 5 GHz)
- 5 GHz Throughput: 5,764 Mbps
- 2.4 GHz Throughput: 1,032 Mbps
- 160 MHz Channels: Supported
- MLO (Multi-Link Operation): Supported

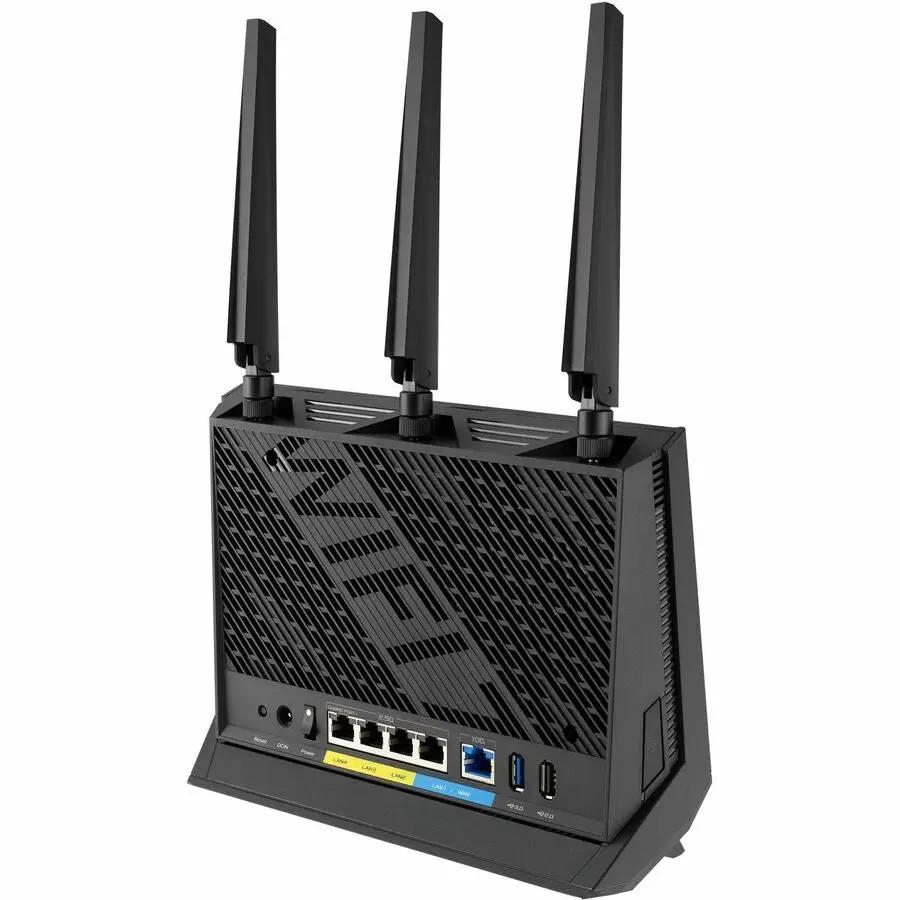

- Ports: 1 x 10G WAN/LAN, 1 x 2.5G WAN/LAN, 3 x 2.5G LAN (one dedicated gaming port)
- Total Network Ports: 5
- Total Wired Capacity: Up to 20 Gbps
- Network Management: VLAN controls, Multi-WAN auto-detection
- AiMesh: Single unit, expandable into an AiMesh whole-home mesh system
- VPN: Supported
- USB: Yes (USB tethering / 4G/5G mobile tethering)
- Guest Networking: Guest Network Pro
- Firmware: ASUSWRT 5.0
- Antennas: 4 (3 external, 1 internal)
- Processor: Quad-core 2.60 GHz
- Memory: 1 GB RAM, 256 MB flash
- Model: RT-BE86U
What's in the Box
- RT-BE86U Router
- RJ-45 Cable
- Power Adapter
- Quick Start Guide
- Warranty Card
