Description

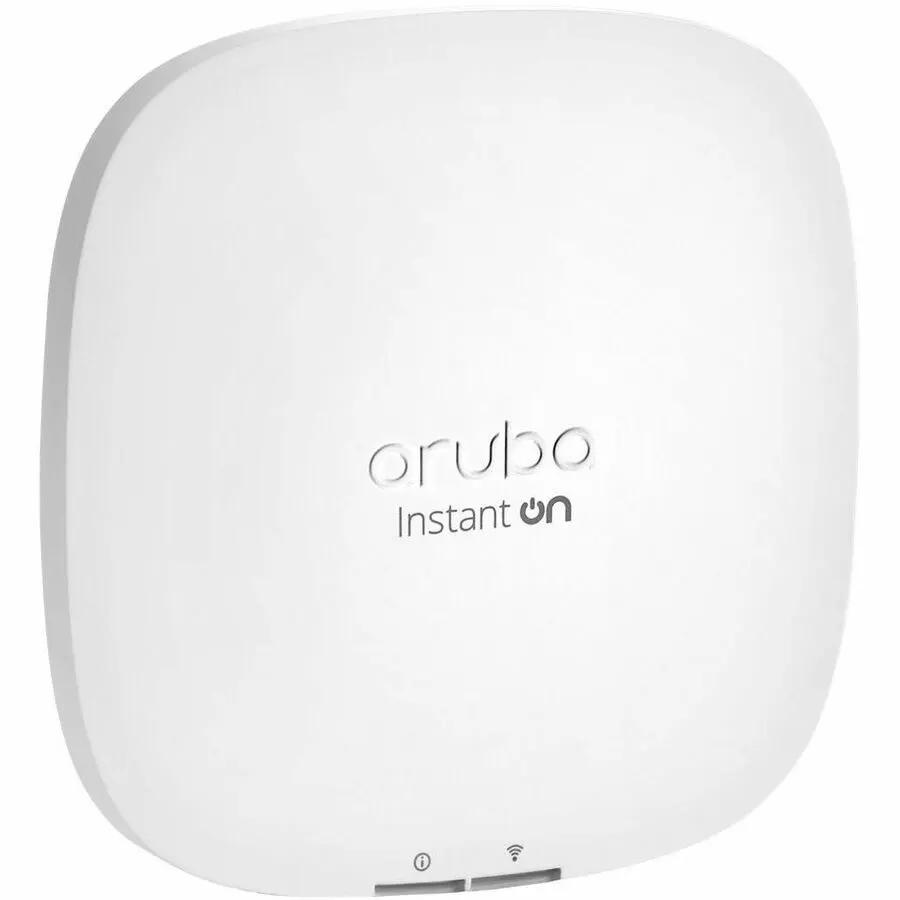

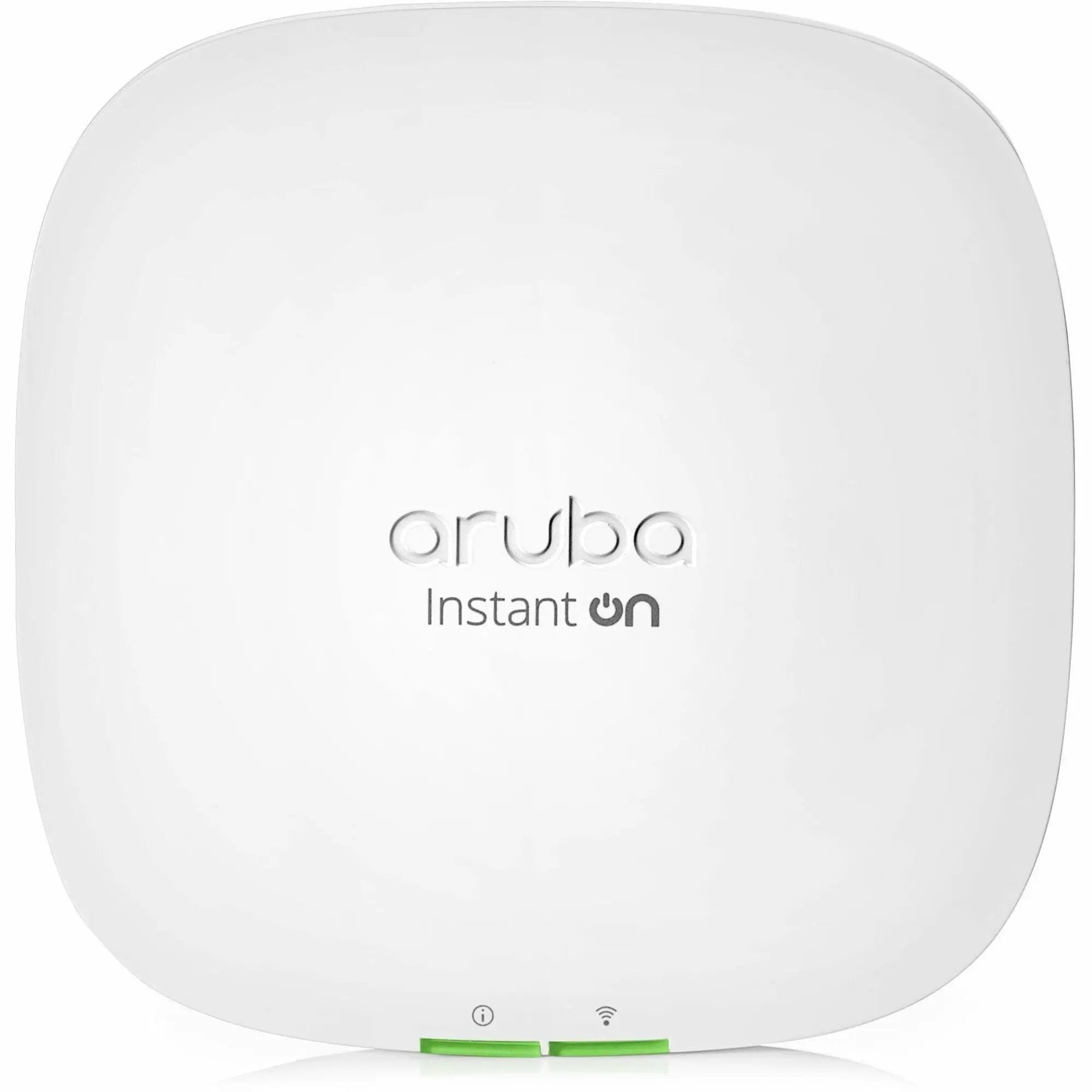

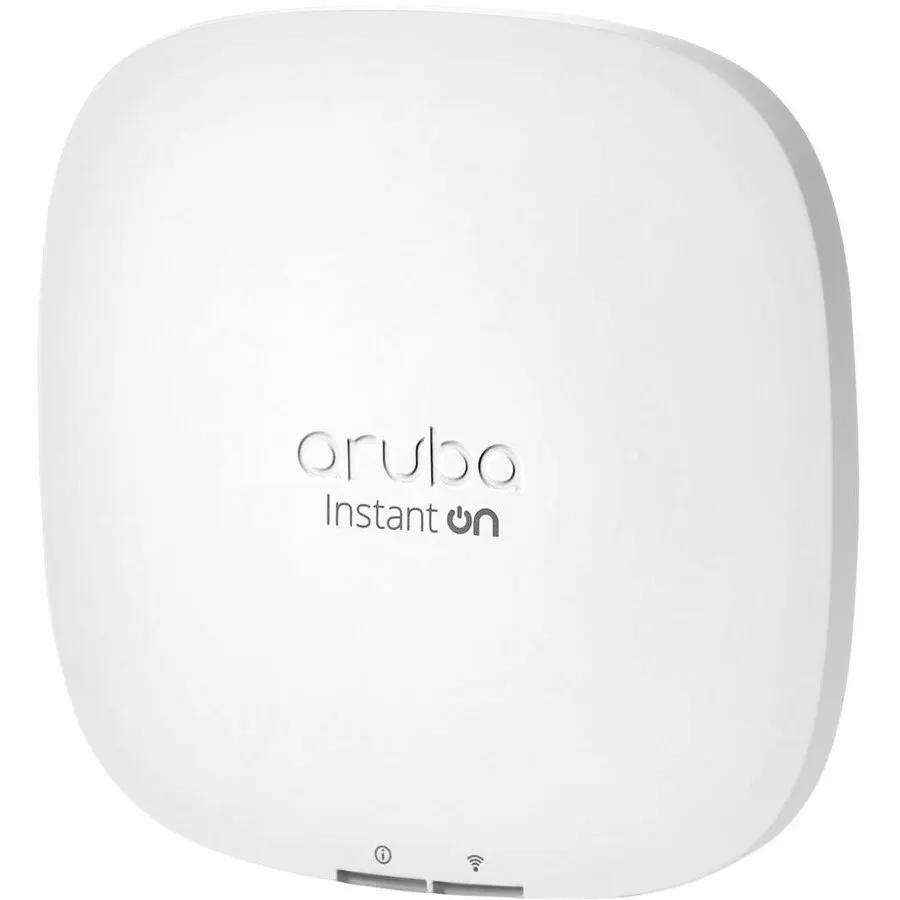

The Aruba Instant On AP22 is a Wi‑Fi 6 (802.11ax) access point for small businesses facing growing mobile, cloud, and IoT demands. It delivers up to 1.66 Gbit/s aggregate throughput with 2×2:2 MU‑MIMO, built-in router/gateway functionality, and Smart Mesh support for scalable coverage across remote offices, hybrid classrooms, hotels, restaurants, and retail spaces. Manageable via a web or mobile app.
Tech Specs
- Frequency Bands: 2.4 GHz and 5 GHz
- Wireless LAN Standard: 802.11ax (Wi-Fi 6)
- Security Encryption: WPA2-MPSK
- Ethernet Technology: Gigabit Ethernet
- RJ-45 Ports: 1
- PoE (RJ-45) Port: Yes
- PoE PD Port: Yes
- Total Antennas: 2
- Internal Antennas: 2
- MIMO Technology: MU‑MIMO
- Beamforming Technology: Yes
- Wireless Transmission Speed: 1.66 Gbit/s
- Router/Gateway: Built-in
- Bluetooth: Integrated
- Management: Web and mobile app
- Smart Mesh Wi‑Fi: Supported
- Application Classification/Control/Visibility: Supported
- Form Factor: Rail-mountable
- Color: White
- Power Consumption: 10.10 W
Warranty & Compliance
- Warranty: 1 Year Limited

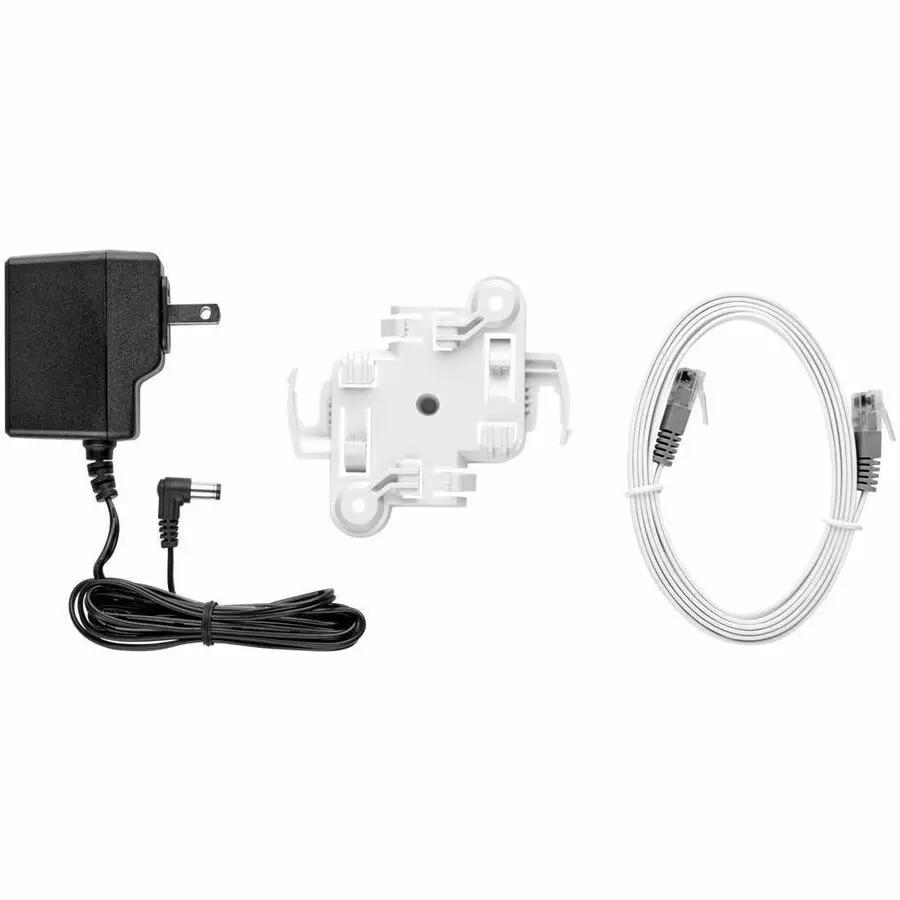

What's in the Box
- Instant On AP22 Wireless Access Point
- Instant On AP22 Quick Start Guide
- Combined Ceiling And Wall Rail Mount Clip
- Ethernet Cable
- Power Adaptor
