Key Features

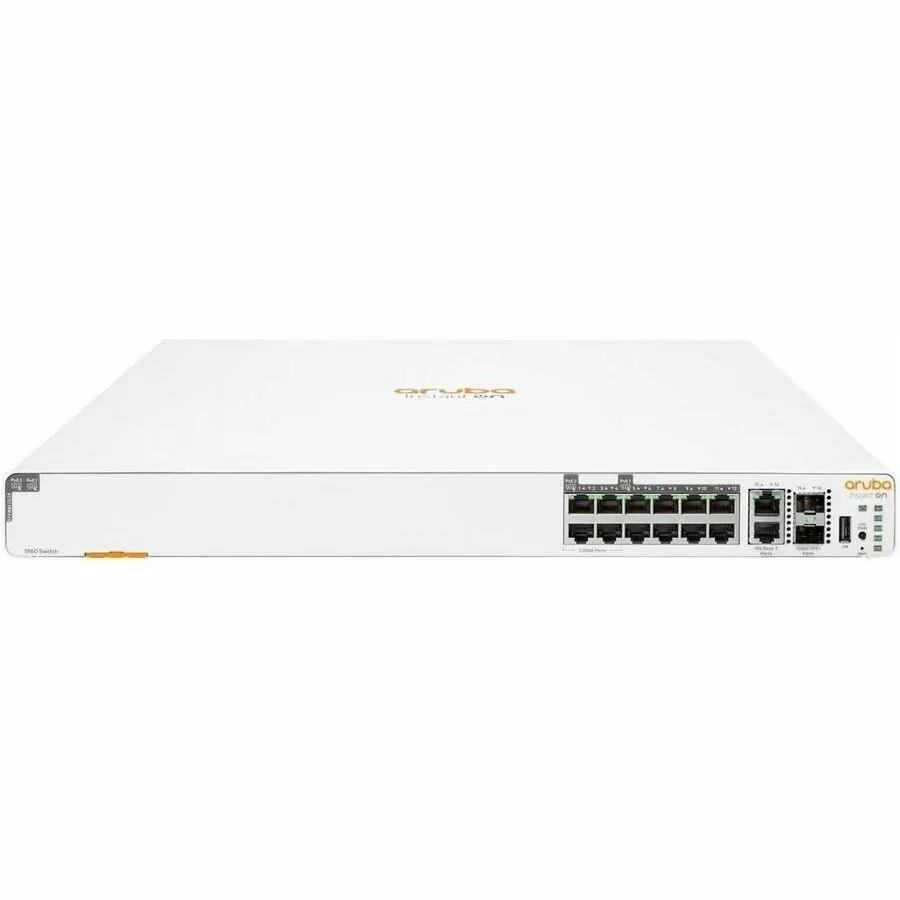

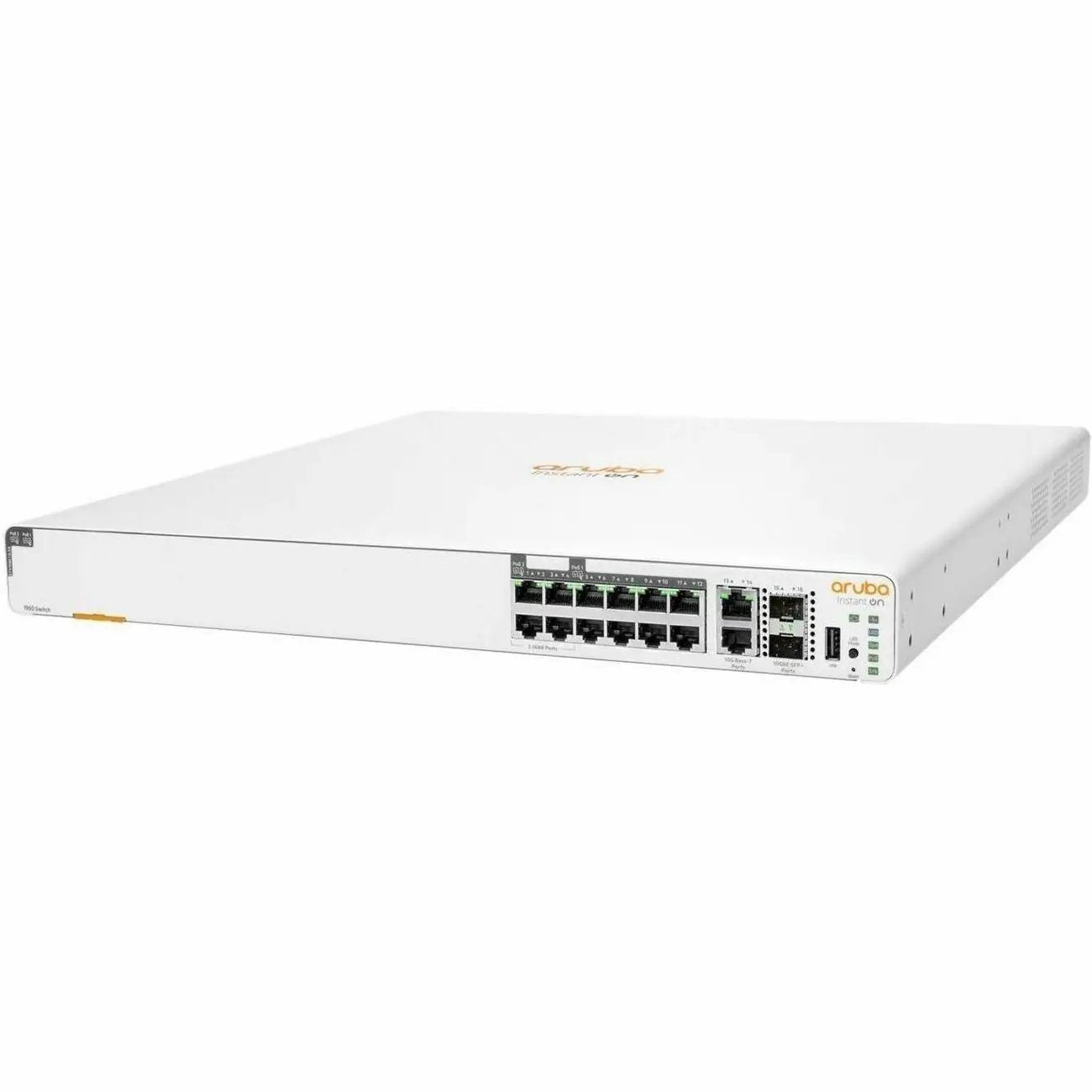

The HPE Networking Instant On 1960 is a smart-managed switch for small and growing businesses that need multi-gigabit PoE at the edge. Twelve PoE ports, four of them 2.5GbE, share a 480 W budget for access points, cameras, and IP phones, while two 10GBASE-T copper uplinks and two SFP+ cages carry aggregated traffic. Cloud and mobile management through the Instant On app allows quick deployment and stacking of up to four switches from a single IP address.
Tech Specs
- Ports: 8 x Gigabit PoE+ RJ-45 + 4 x 2.5GbE PoE++ RJ-45 + 2 x 10GbE RJ-45 uplink
- Total RJ-45 Ports: 14
- Fiber Uplink Ports: 2 x SFP+
- PoE Standard, Gigabit Ports: IEEE 802.3at (Class 4), up to 30 W per port
- PoE Standard, 2.5GbE Ports: IEEE 802.3bt (Class 6), up to 60 W per port
- PoE Budget: 480 W
- Switching Layer: Layer 2+
- Stacking: Cloud-managed stacking, up to 4 switches
- Management: Local web GUI plus Instant On cloud and mobile app
- Network Standards: IEEE 802.3z
- Color: White
- Power Source: AC
- Form Factor: 1U rack mountable, wall mountable
