Key Features

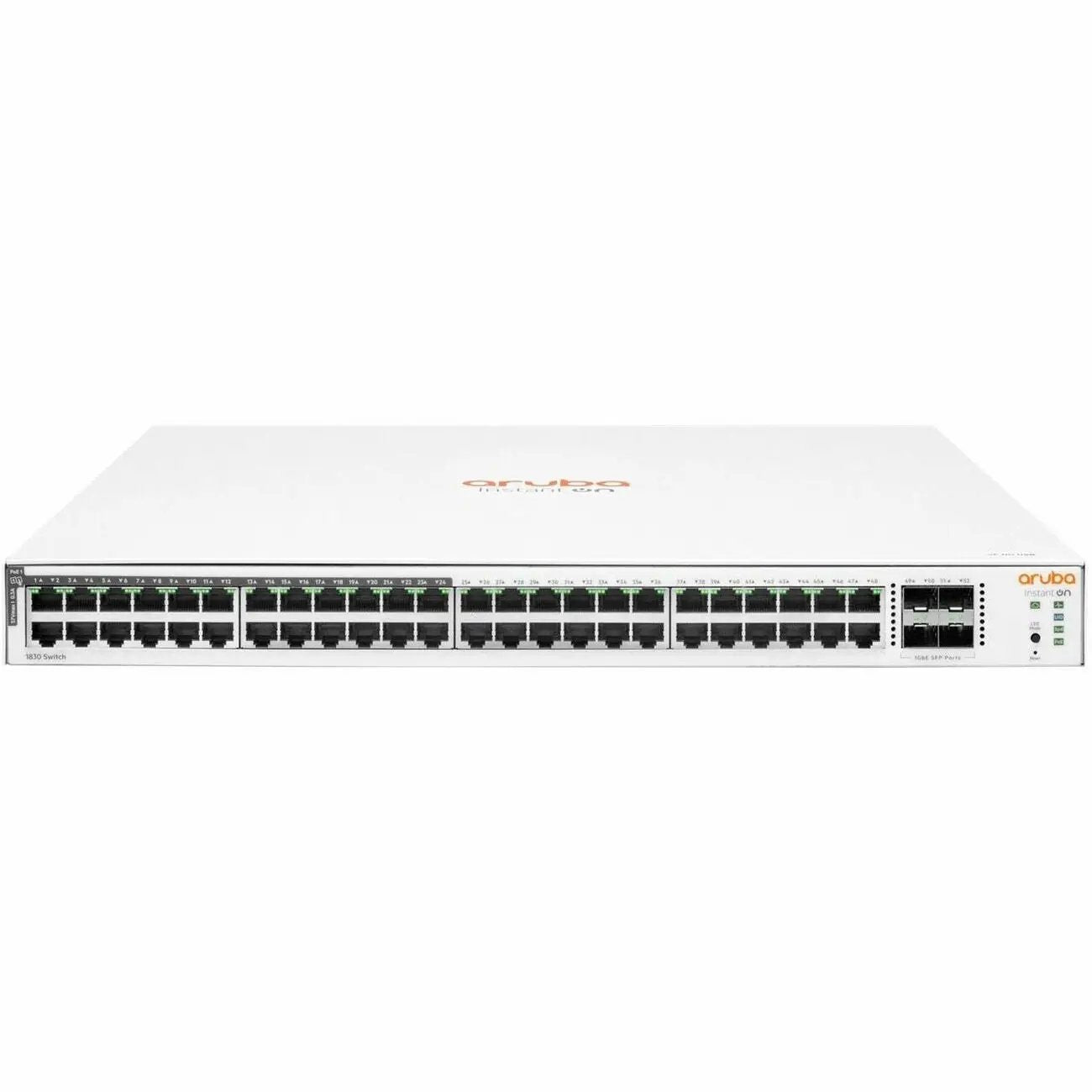

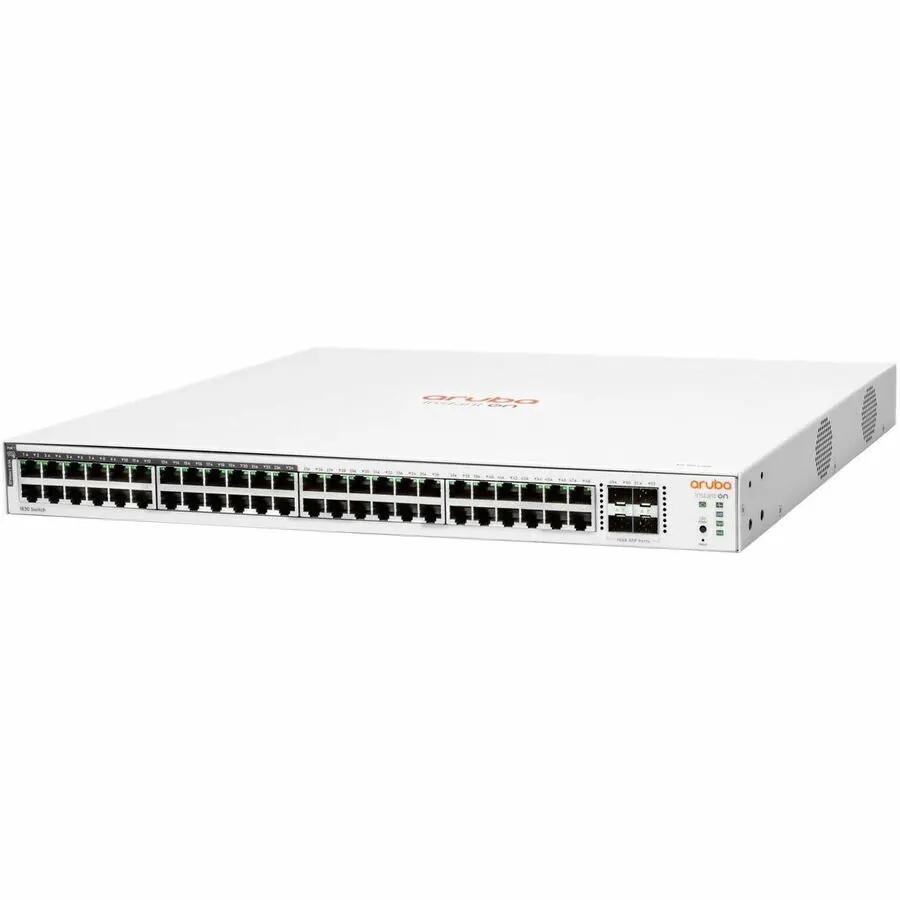

The HPE Instant On 1830 is a 48-port Gigabit smart-managed Layer 2 switch for small business networks. Twenty-four RJ-45 ports deliver Class 4 PoE+ from a 370 W budget to power access points, IP phones, cameras, and door locks, and four dedicated 1G SFP fiber uplinks keep traffic moving between wiring closets. Setup, monitoring, and troubleshooting run from the Instant On mobile app or the local web GUI.
Tech Specs
- Ports: 48 x Gigabit Ethernet (RJ-45)
- PoE Ports: 24
- PoE Standard: IEEE 802.3at (PoE+)
- PoE Class: Class 4
- PoE Budget: 370 W
- SFP Uplinks: 4 x 1G SFP
- Network Technology: 1000Base-X
- Network Standards: IEEE 802.3ac
- Switching Layer: Layer 2
- Management: Smart-managed via the Instant On mobile app and local web GUI
- VLANs: Up to 64 IEEE 802.1Q VLANs
- Rack Height: 1U
- Mounting: Rack mount, wall mount, table-top, and under-table
- Power Input: 100-240 V AC
- Power Supply: Internal
- Power Consumption: 462.5 W
- Weight: 10.9 lb
Warranty & Compliance
- Warranty: Limited lifetime
What's in the Box
- Instant On 1830 48G 24p Class4 PoE 4SFP 370W Switch
- 2-post rack kit
